2005 BMW MOTORRAD K 1200 LT warning

1

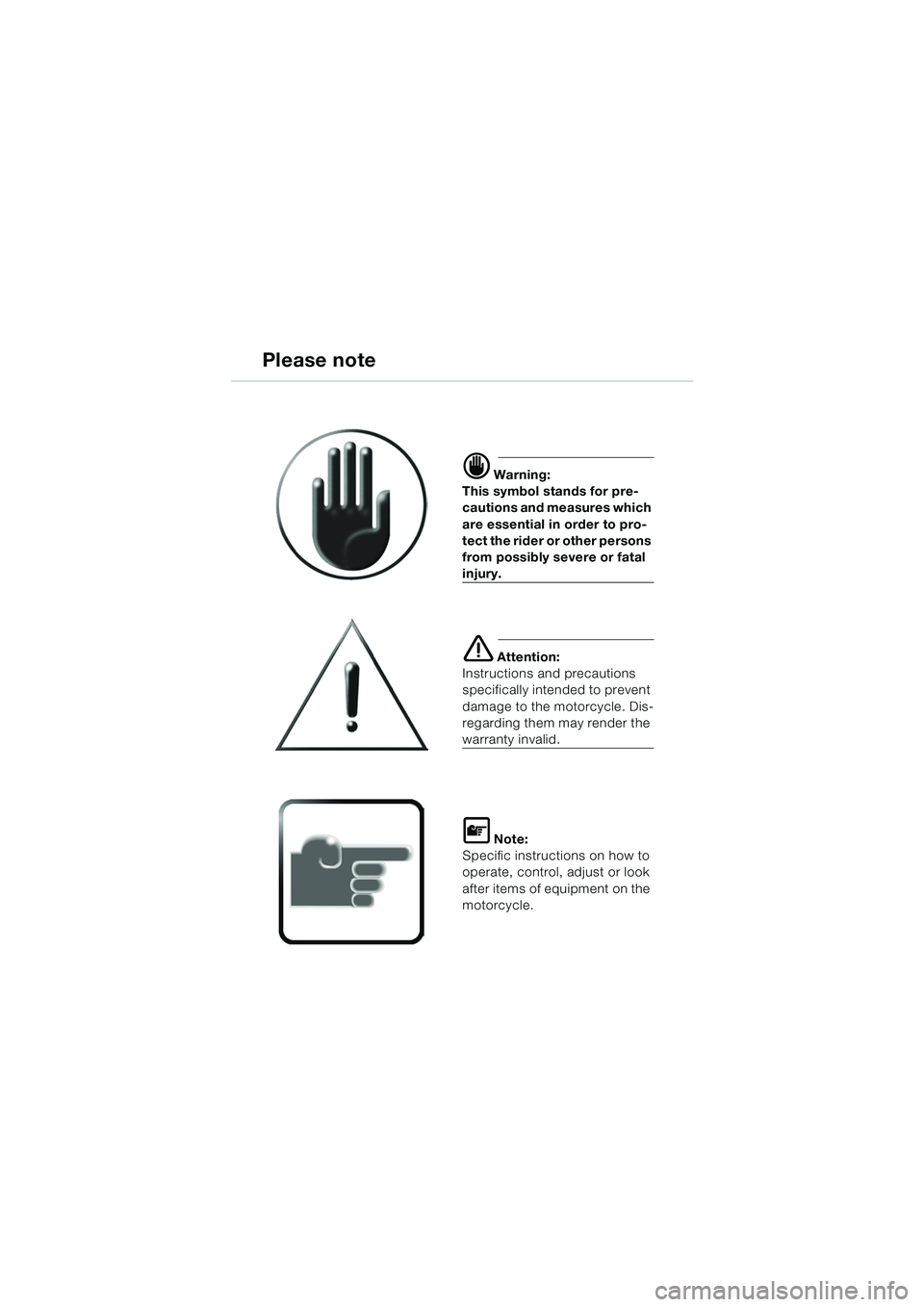

Please note
d Warning:
This symbol stands for pre-
cautions and measures which
are essential in order to pro-
tect the rider or other persons
from possibly severe or fatal
injury.
e Attention:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle. Dis-
regarding them may render the
warranty invalid.
L Note:
Specific instructions on how to
operate, control, adjust or look
after items of equipment on the
motorcycle.
10LTbkg6.book Seite 1 Freitag, 1. Juli 2005 8:53 08

2
Introduction
i

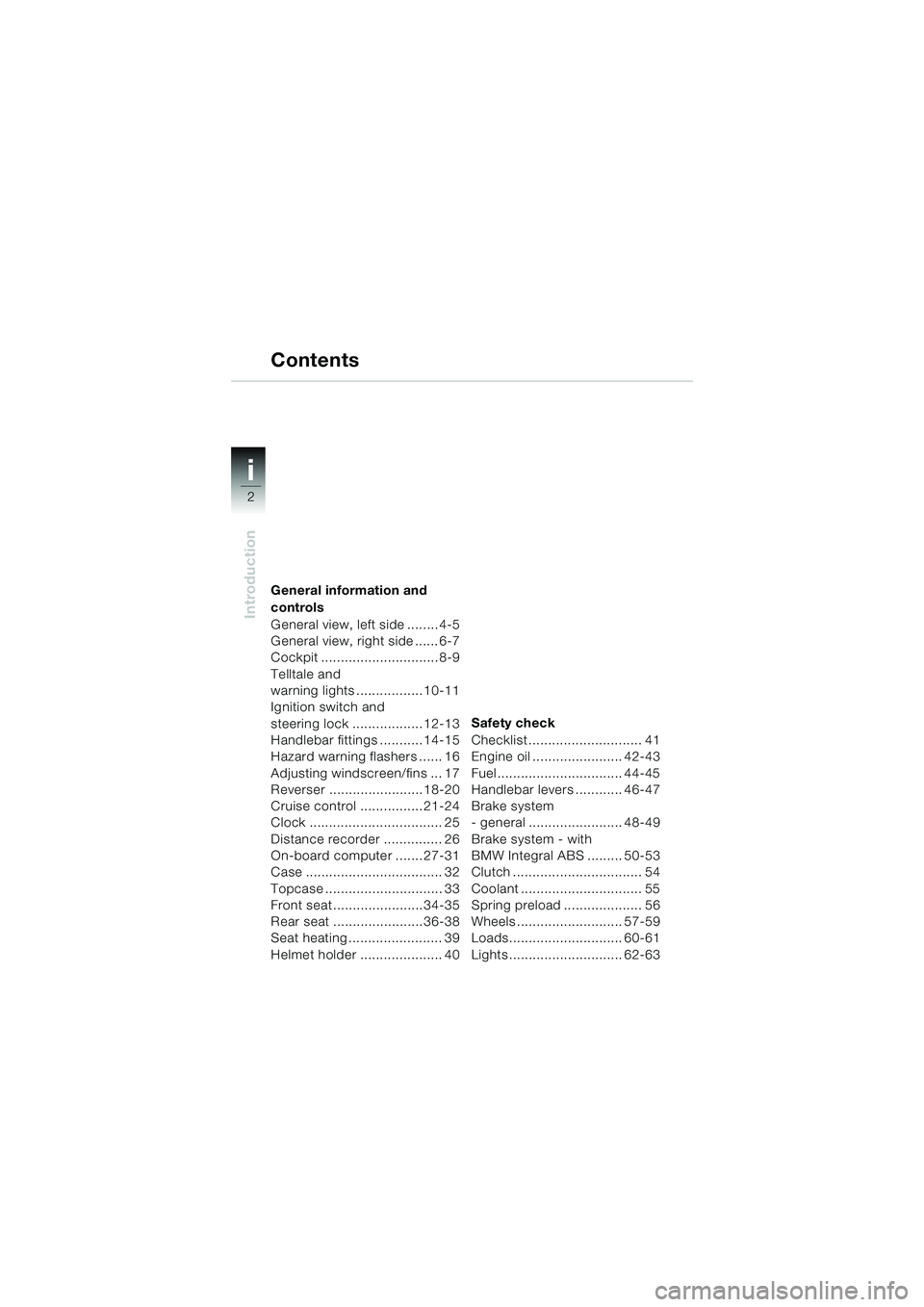

General information and
controls
General view, left side ........ 4-5
General view, right side ...... 6-7
Cockpit .............................. 8-9
Telltale and
warning lights ................. 10-11
Ignition switch and
steering lock .................. 12-13
Handlebar fittings ........... 14-15
Hazard warning flashers ...... 16
Adjusting windscreen/fins ... 17
Reverser ........................18-20
Cruise control ................ 21-24
Clock .................................. 25
Distance recorder ............... 26
On-board computer ....... 27-31
Case ................................... 32
Topcase .............................. 33
Front seat .......................34-35
Rear seat .......................36-38
Seat heating ........................ 39
Helmet holder ..................... 40Safety check
Checklist ............................. 41
Engine oil ....................... 42-43
Fuel ................................ 44-45
Handlebar levers ............ 46-47
Brake system
- general ........................ 48-49
Brake system - with
BMW Integral ABS ......... 50-53
Clutch ................................. 54
Coolant ............................... 55
Spring preload .................... 56
Wheels ........................... 57-59
Loads............................. 60-61
Lights ............................. 62-63
Contents
10LTbkg6.book Seite 2 Freitag, 1. Juli 2005 8:53 08

3
Introduction
i

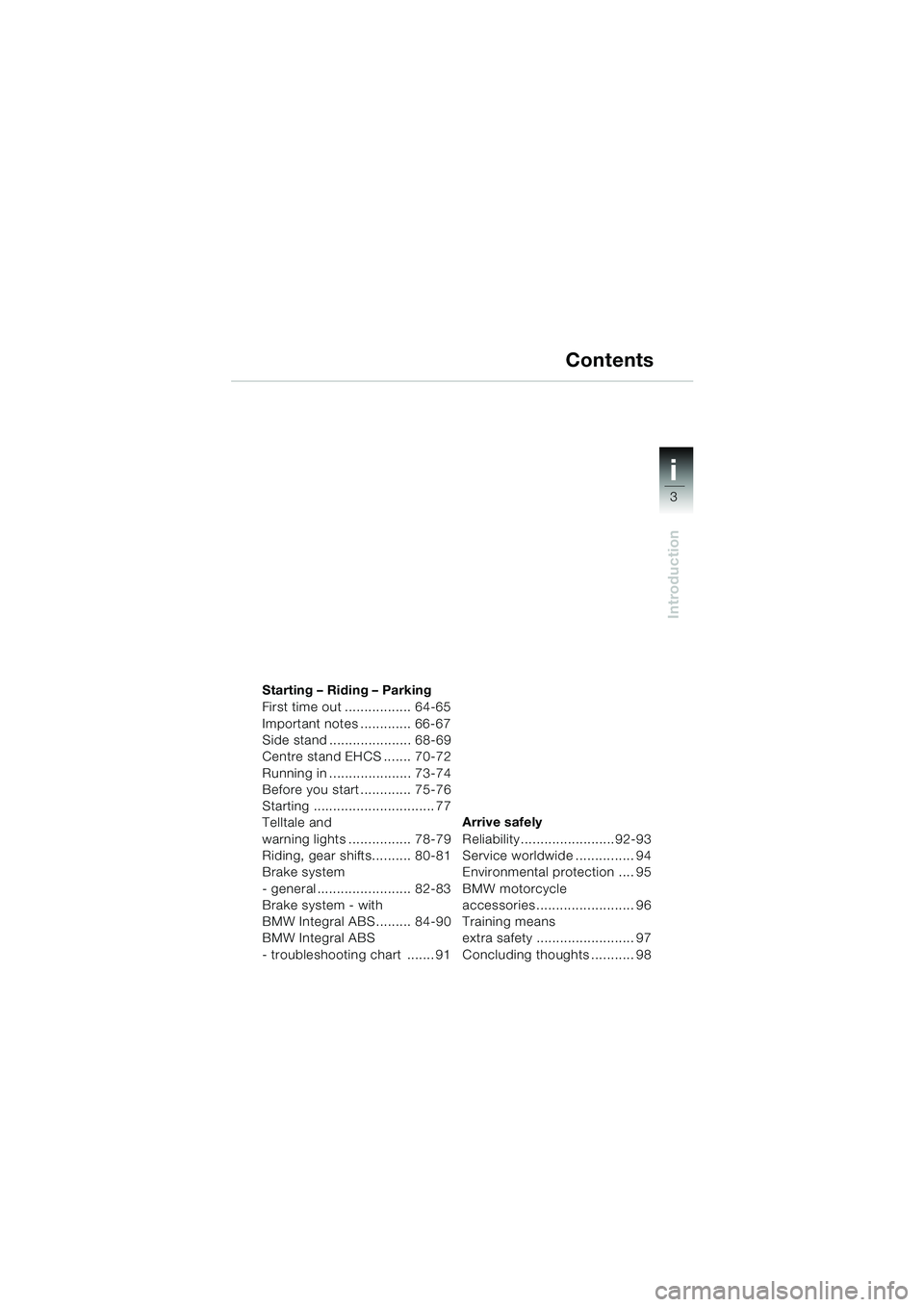

Starting – Riding – Parking
First time out ................. 64-65
Important notes ............. 66-67
Side stand ..................... 68-69
Centre stand EHCS ....... 70-72
Running in ..................... 73-74
Before you start ............. 75-76
Starting ............................... 77
Telltale and
warning lights ................ 78-79
Riding, gear shifts.......... 80-81
Brake system
- general ........................ 82-83
Brake system - with
BMW Integral ABS......... 84-90
BMW Integral ABS
- troubleshooting chart ....... 91Arrive safely
Reliability ........................92-93
Service worldwide ............... 94
Environmental protection .... 95
BMW motorcycle
accessories ......................... 96
Training means
extra safety ......................... 97
Concluding thoughts ........... 98
Contents
10LTing6.fm Seite 3 Dienstag, 12. Juli 2005 10:19 10

9
General information and controls
1
8Telltale and warning lights
(
b10, 11)

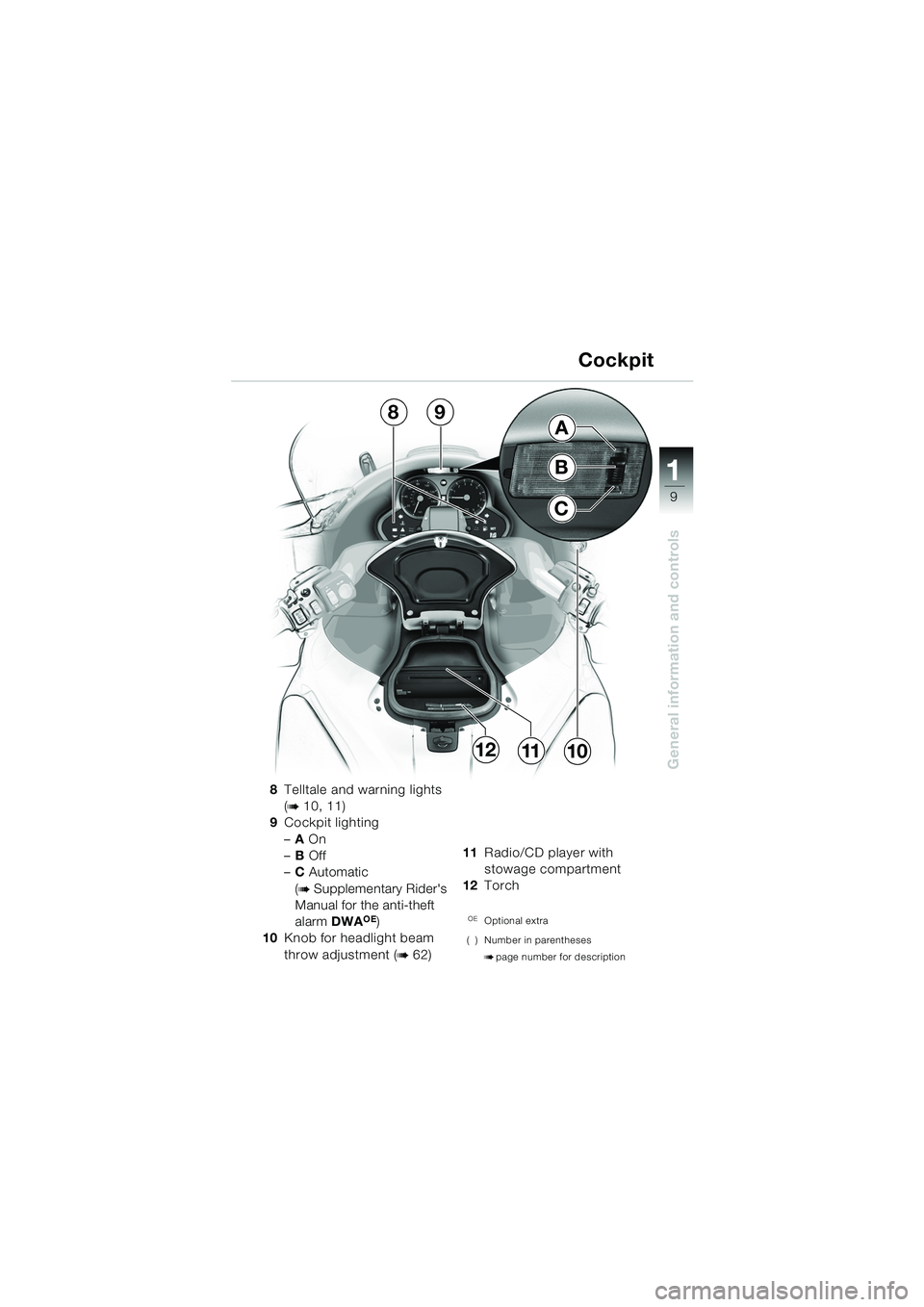

9 Cockpit lighting
–A On
– B Off
– C Automatic
(
b Supplementary Rider's
Manual for the anti-theft
alarm DWA
OE)
10 Knob for headlight beam
throw adjustment (
b62) 11
Radio/CD player with
stowage compartment
12 Torch
OEOptional extra
( ) Number in parentheses
bpage number for description
Cockpit
C
B
A89
111012
10LTbkg6.book Seite 9 Freitag, 1. Juli 2005 8:53 08

10
General information and controls
1
L Note:
A sensor controls automatic
daytime/night-time switchover.
The LCD is illuminated at night.

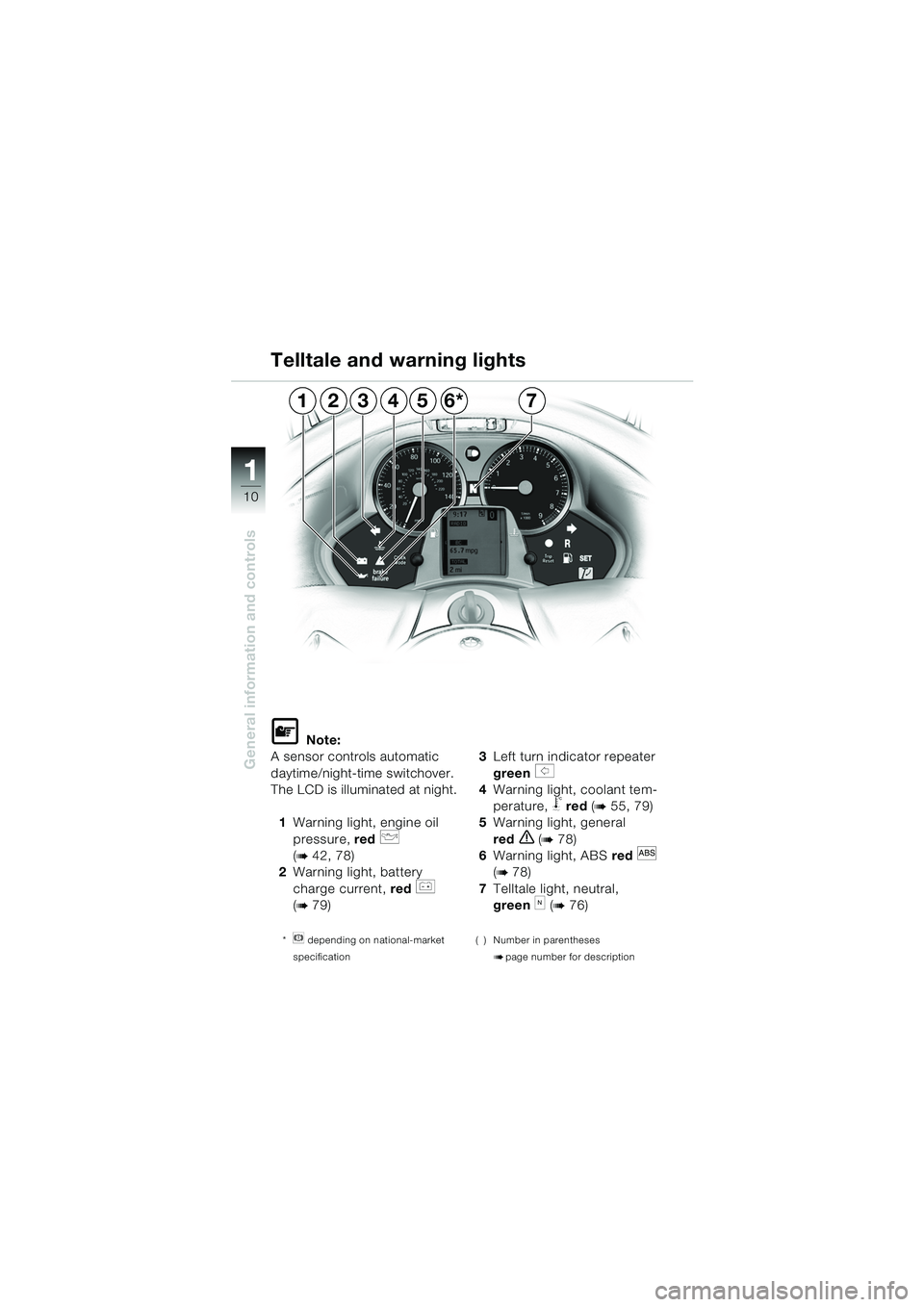

1 Warning light, engine oil
pressure, red
p
(
b42, 78)
2 Warning light, battery
charge current, red
r
(
b79)
*n depending on national-market
specification
3 Left turn indicator repeater
green
s
4 Warning light, coolant tem-
perature,
j red (b55, 79)
5 Warning light, general
red
e (b78)
6 Warning light, ABS red
l
(
b78)
7 Telltale light, neutral,
green
k (b76)
( ) Number in parentheses
bpage number for description
Telltale and warning lights
56*17324
10LTbkg6.book Seite 10 Freitag, 1. Juli 2005 8:53 08

11
General information and controls
1
Telltale and warning lights
8Telltale light, high-beam
headlight, blue
q
9 Telltale light, anti-theft alarm
DWA
OE (b Supplementary
Rider’s Manual for the anti-
theft alarm DWA)
10 Telltale light, reverser
yellow
11 Right turn indicator repeater
green
t
12 Warning light, fuel level/
when approx. 4 litres
(0.9 Imp.gal.) left in tank
yellow
m (b45, 78) 13
Telltale light, cruise con-
trol
OE yellow (b21)
14 Telltale light, electro-
hydraulic centre stand
EHCS (
b71)
( ) Number in parentheses
bpage number for description
OEOptional extra
121114131098
10LTbkg6.book Seite 11 Freitag, 1. Juli 2005 8:53 08

12
General information and controls
1

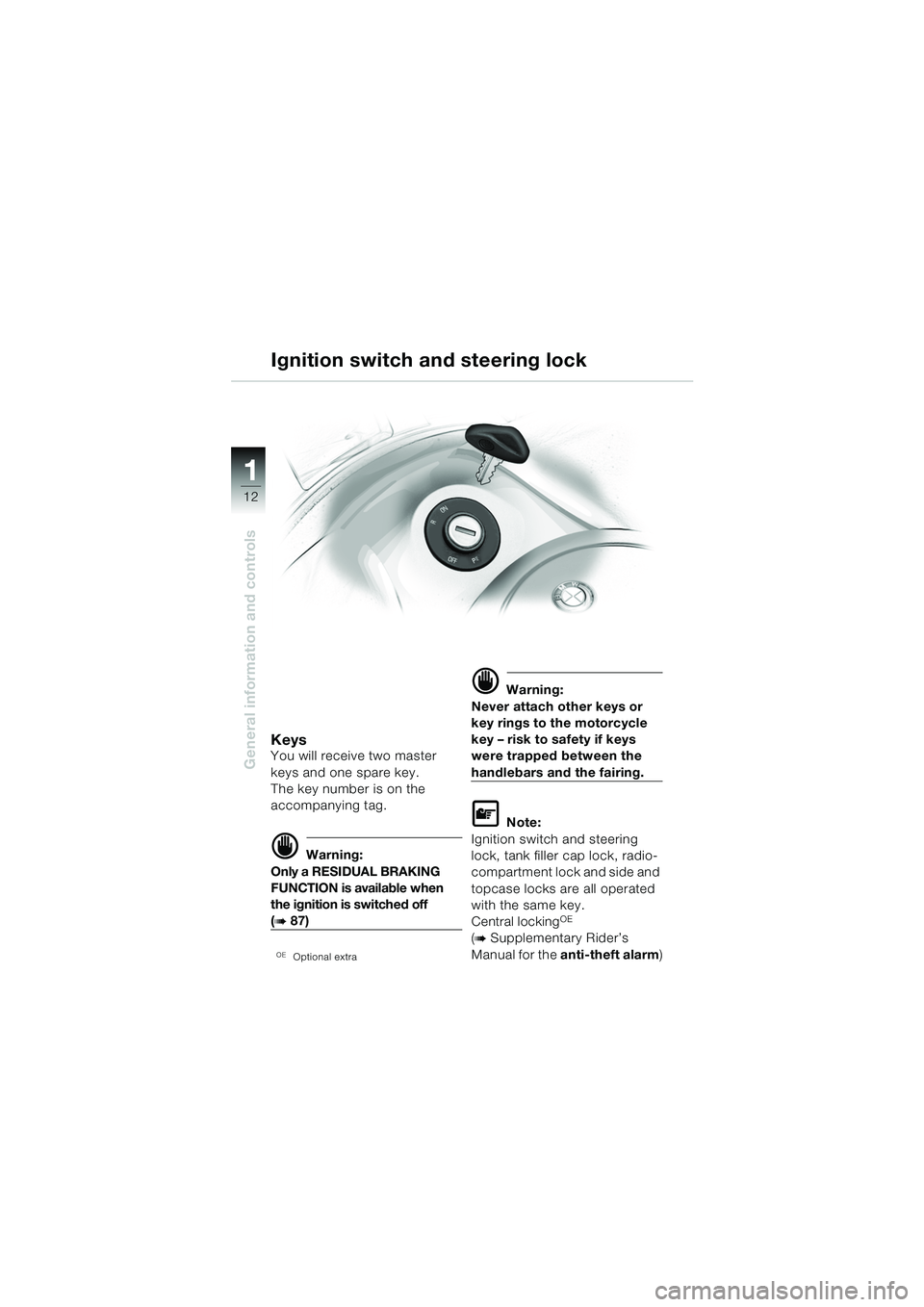

KeysYou will receive two master
keys and one spare key.
The key number is on the
accompanying tag.
d Warning:
Only a RESIDUAL BRAKING
FUNCTION is available when
the ignition is switched off
(b87)
OEOptional extra
d Warning:
Never attach other keys or
key rings to the motorcycle
key – risk to safety if keys
were trapped between the
handlebars and the fairing.
L Note:
Ignition switch and steering
lock, tank filler cap lock, radio-
compartment lock and side and
topcase locks are all operated
with the same key.
Central locking
OE
(
b Supplementary Rider’s
Manual for the anti-theft alarm )
Ignition switch and steering lock
10LTbkg6.book Seite 12 Freitag, 1. Juli 2005 8:53 08

13
General information and controls
1

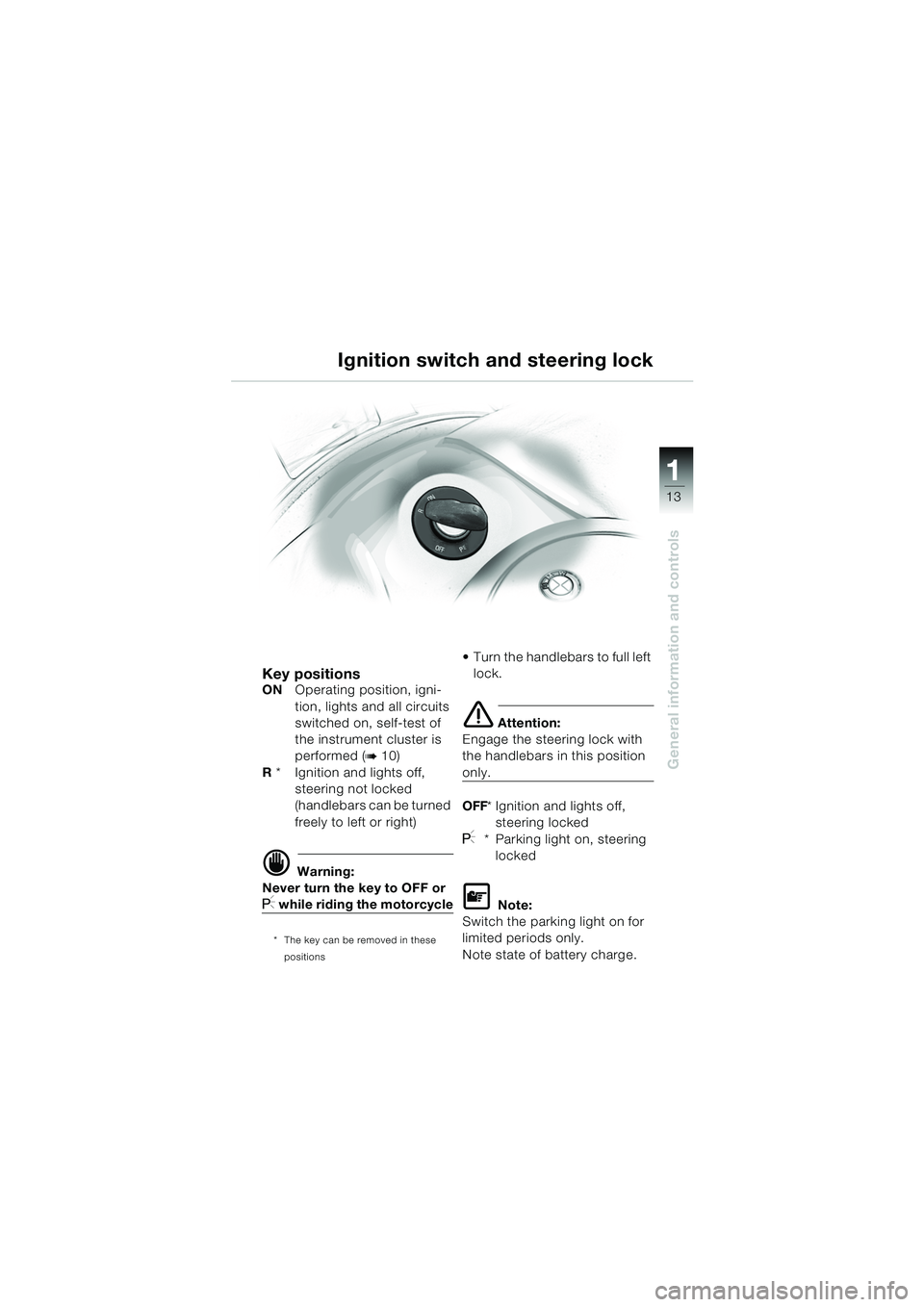

Key positionsONOperating position, igni-
tion, lights and all circuits
switched on, self-test of
the instrument cluster is
performed (
b10)
R * Ignition and lights off,
steering not locked
(handlebars can be turned
freely to left or right)
d Warning:
Never turn the key to OFF or
I while riding the motorcycle
* The key can be removed in these
positions
 Turn the handlebars to full left lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF * Ignition and lights off,
steering locked
I* Parking light on, steering
locked
L Note:
Switch the parking light on for
limited periods only.
Note state of battery charge.
Ignition switch and steering lock
10LTbkg6.book Seite 13 Freitag, 1. Juli 2005 8:53 08
