2005 Acura RSX Owner's Manual

Press and hold the select/reset
button in the instrument panel,
then turn the ignition switch to
ON (II).
Hold the button for about 10
seconds until the indicator goes
off.This indicator comes on when the
security system is set. See page
f or more inf ormation on the
security system.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
dealer, reset the indicator as f ollows.
Turn of f the engine.
1.
2.
3. 114
Security System Indicator
Instrument Panel Indicators
56
SELECT/RESET BUTTON
SECURITY SYSTEM INDICATOR

The odometer shows the total dis-
tance your vehicle has been driven.
It measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. The odometer and the
two trip meters use the same display.
Switch between these displays and
the odometer by pressing the Select/
Reset button repeatedly. Each trip
meter works independently, so youcan keep track of two dif f erent
distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0.’’
Odometer T rip Meter
Gauges
Inst rument s and Cont rols
57
TEMPERATURE GAUGE TACHOMETER SPEEDOMETER FUEL GAUGE
SELECT/RESET BUTTON
ODOMETER/TRIP METER

This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to near
the upper white mark. If it reaches
the red (Hot) mark, pull safely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.(Odometer/trip meter message)
If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears as text in the odometer/trip
meter display after you start the
engine. Turn the engine of f and
conf irm the f uel cap is installed. If it
is, loosen the cap, then retighten it at
least 3 clicks. When you restart the
engine, the message appears again.
To clear the message, press and hold
the select/reset button until the
message is replaced the odometer/
trip meter display.
If the system still detects a loose or
missing f uel cap, the Malf unction
Indicator Lamp (MIL) comes on.
Turn the engine of f and check or
retighten the fuel cap at least 3 clicks.
The MIL goes out af ter 3 days of
normal driving once the cap is
tightened or replaced. If it does not
go out, have your dealer inspect the
vehicle. For more inf ormation, see
page .
202
205
Fuel Gauge
T emperature GaugeCheck Fuel Cap Indicator
Gauges
58
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

Î
ÎTo use the horn, press the center pad on the steering wheel.
:

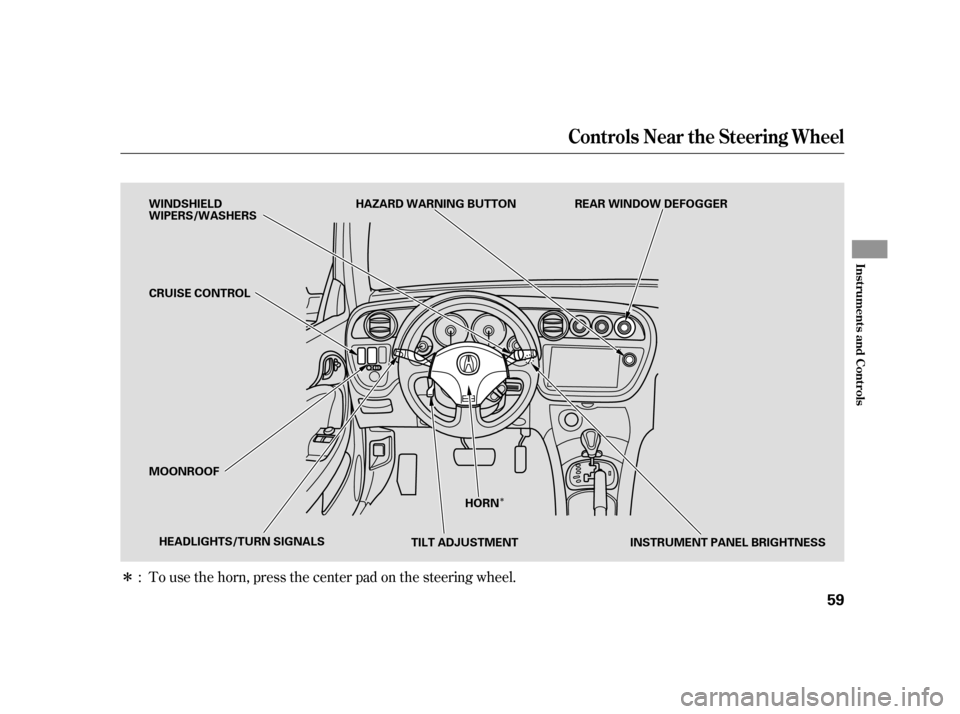

Controls Near the Steering Wheel
Inst rument s and Cont rols
59
WINDSHIELD
WIPERS/WASHERS
TILT ADJUSTMENT
MOONROOF REAR WINDOW DEFOGGER
CRUISE CONTROL
INSTRUMENT PANEL BRIGHTNESS
HAZARD WARNING BUTTON
HEADLIGHTS/TURN SIGNALS HORN

µ
µ
µ µ
µ
µ
µ
µ µ
The wipers are not activated.
The wipers run at low speed.
The wipers run at high speed. Hold past ON to turn the window
wiper on and the window washer
to spray.
OFF
Rotate counterclockwise to turn
the window wiper on and the
window washer to spray.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the INT
TIME ring. If you turn it to the
shortest delay, the wipers will
change to low speed operation
when the vehicle speed exceeds 12
mph (20 km/h).
Push the right lever up or down to
select a position. MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield Washers
The wipers run at high
speed until you release the lever. Pull the
wiper control lever toward you and
hold it. The washers spray until
you release the lever. The wipers
run at low speed, then complete
one more sweep af ter you release
the lever. Rotate the switch clockwise to
turn the rear window wiper ON.
1.
2.
3.
4.
5.
6. 1.
2.
3.
4.
OFF
LO
HI
Rear Window Wiper and Washer
INT
MIST Windshield Wiper Windshield Washers
Windshield Wipers and Washers
60

µ
µ
µ
Turn Signal
Of f
Parking and interior lights
Headlight on
High beams
Flashhighbeams Turning the
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the key
removed f rom the ignition switch,
you will hear a reminder beeper
when you open the driver’s door.
To turn on the high
beams, push the lef t lever f orward
until it clicks. The blue high beam
indicator will come on (see page ).
Pull it back to return to low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to center when you release it or
complete a turn.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
switch of f , even if you set the
parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
1.
2.
3.
4.
5.
6. 54
Canadian model only
Turn Signal and Headlights Daytime Running L ights
Headlights On
High Beams
Turn Signal
Turn Signal and Headlights
Inst rument s and Cont rols
61

The knob on the instrument panel
controls the brightness of the
instrument panel. Turn the knob to
adjust the brightness.Pushtheredbuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled.The rear window def ogger will clear
fog,frost,andthinicefromthe
window. Push the def ogger button to
turn it on and of f . The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 25 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn it on again
when you restart the vehicle. Rear Window Def ogger
Instrument Panel Brightness Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button, Rear Window Def ogger
62

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.Make any steering wheel adjustment
bef ore you start driving.
Push the lever under the steering
column all the way down. Move the steering wheel so it
points to your chest, not toward
yourface.Makesureyoucansee
the instrument panel gauges and
indicators.
Push the lever up to lock the
steering wheel in position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
1.
2.
3.
4.
Steering Wheel A djustment
Rear Window Def ogger, Steering Wheel A djustment
Inst rument s and Cont rols
63
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
