2005 Acura RSX Owner's Manual

Your vehicle’s radio can receive the
complete AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertzHow well your vehicle’s radio
receives stations is dependent on
many f actors, such as the distance
from the station’s transmitter,
nearby large objects, and
atmospheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
Radio Reception
Radio Frequencies
Radio Reception
96

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Radio Reception
Features
97

Playing a T ape
A ll models except T ype-ST ype-S
98
CASSETTE SLOT FF BUTTON
FM BUTTON PLAY/PROG BUTTON
REW BUTTON
SKIP BAR
AM BUTTON TAPE DIRECTION INDICATOR
REPEAT INDICATORDOLBY INDICATOR
PLAY BUTTON PROG BUTTON REW BUTTON CD BUTTON
DOLBY BUTTON TAPE BUTTON
TAPE EJECT BUTTON
FF BUTTON
SKIP BUTTONS
CD/TAPE BUTTON
AM/FM BUTTON
TAPE DIRECTION INDICATOR
REPEAT BUTTONDOLBY INDICATOR
DOLBY BUTTON
POWER/VOLUME
KNOB
REPEAT
BUTTONPOWER/VOLUME
KNOB

Ûµ
Î
Î
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
The tape direction indicator will
come on to show you which side of
the tape is playing. The indicates
the side you inserted upward is now
playing. If you want to play the other
side, press the PLAY/PROG button.
When the player reaches the end of
the tape, it will automatically reverse
direction and play the other side.Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
NR ( ) button. Dolby remains
of f until you press the NR ( )
button again.
To remove the tape, press the
EJECT button. If you want to turn
the player of f , press the PWR/VOL
knob or turn of f the ignition. The
tape will remain in the drive. When
youturnthesystembackon,the
tape will begin playing where it lef t
off. To switch to the radio or CD player
while a tape is playing, press the
AM/FM or CD/TAPE button. To
change back to the tape player, press
the CD/TAPE button.
To switch to the radio or CD
changer while listening to a tape,
press the AM, FM, or CD button. To
change back to the tape player, press
the TAPE button.
To rewind the tape,
push the REW button. You will see
REW in the display. To fast forward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, PLAY, or PLAY/PROG button
to take the system out of rewind or
fast forward.
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
CONT INUED
Optional on all models except Type-S
Type-S
Playing a T ape
To Play a Tape
To Stop Playing a TapeT ape Search Functions
FF/REW
Features
99

µ
µµ
´
Press the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
The SKIP and REPEAT
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination build up over time and
causes the sound quality to degrade.
To prevent this, you should clean the
player af ter every 30 hours of use.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.Store tapes in their cases to protect
them f rom dust and moisture. Never
placetapeswheretheywillbe
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
If you see the error indication
‘‘ ’’ on the display, press the
EJECT button to remove the tape
from the unit. Make sure the tape is
not damaged. If the tape will not
eject or the error indication stays on
after the tape ejects, take the vehicle
to your dealer. Never try to insert f oreign objects
into the tape player.
Press the / ( )
button to f ind the beginning of the
current song or passage. Press the /( )buttontofindthe
beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it. If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Type-S only
REPEATCaring f or the T ape and Player
SK IP
Playing a T ape
100
NOTE:

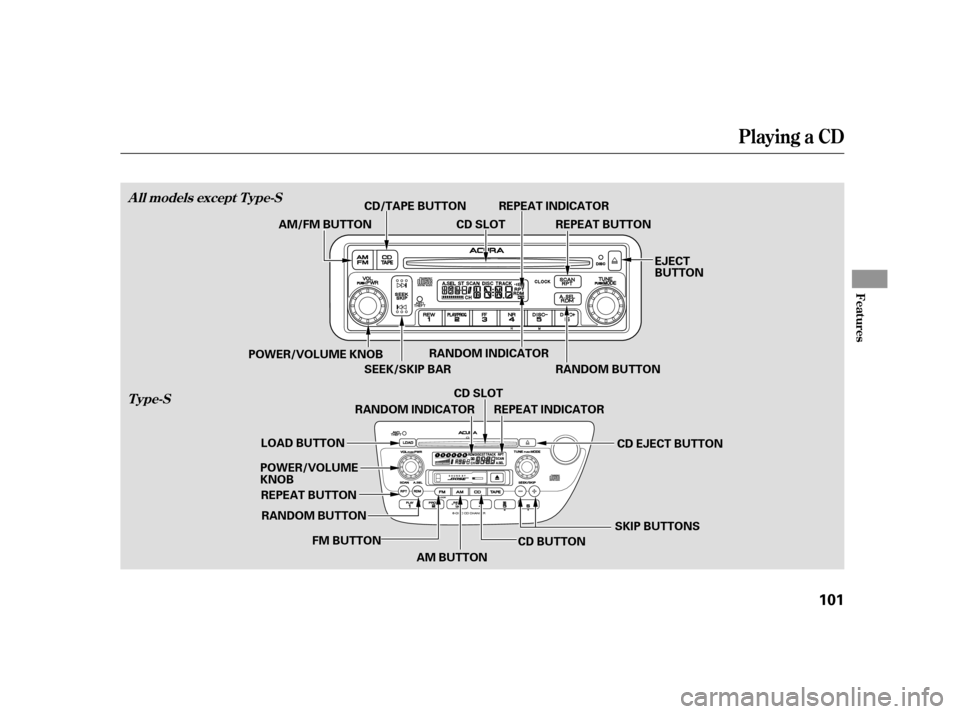

Playing a CD
A ll models except T ype-ST ype-S
Features
101
CD/TAPE BUTTON
AM/FM BUTTON CD SLOTREPEAT INDICATOR
EJECT
BUTTON
RANDOM INDICATOR
SEEK/SKIP BAR
LOAD BUTTON CD SLOT
CD EJECT BUTTON
SKIP BUTTONS
REPEAT BUTTON REPEAT INDICATOR
RANDOM INDICATOR
CD BUTTON
FM BUTTON
AM BUTTON REPEAT BUTTON
RANDOM BUTTON
RANDOM BUTTON
POWER/VOLUME KNOB
POWER/VOLUME
KNOB

´µ
´µ µ
µ
With the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it. You
operate the CD player with the same
controls used f or the radio. The
number of the track playing is shown
in the display. The system will
continuously play a CD until you
change modes.
Each time you press and release
/ ( ) , the player skips
f orward to the beginning of the next
track. Press and release / ( )
to skip backward to the beginning of
the previous track. To move rapidly
within a track, press and hold the / ( ) or / ( ) . You will
see CUE or REW in the display. To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press the RPT button again
to turn it off.
Pressing either of the SKIP buttons
also turns of f the repeat f eature.
This f eature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. This continues until you
press the RDM button again. Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the CD will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f . Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
Type-S only
CD Player
To Change Tracks (SKIP)
REPEAT
RANDOM
To Stop Playing a CD
Playing a CD
102

To load multiple CDs in one
operation:Press and hold the Load button
until you see ‘‘LOAd’’ in the
display, then release the button.
Ontheupperleftsideof the
display, the CD number f or an
empty position will begin blinking
and the green CD Loaded
indicator will come on.
Insert the CD into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD Loaded indicator
turns red and blinks as the CD is
loaded.
When LOAd appears again in the
display, insert the next CD into the
CD slot. Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
If you are not loading CDs into all six
positions, press the Load button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
If you stop loading CDs bef ore all six
positions are f illed, and you do not
press the Load button, the system
will wait f or 10 seconds, then stop
the load operation and begin playing
the last CD loaded.
To load CDs or operate the CD
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position. Your vehicle’s audio system has an
in-dash CD changer that holds up to
six CDs, providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used f or the radio and
tape player.
Load and play only standard round
CDs. Odd-shaped CDs may jam in
the drive or cause other problems.
You cannot load and play 3-inch (8
cm) CDs in this system. 1.
2.
3.
4.5.
CONT INUED
Type-S
Operating the CD ChangerL oading CDs in t he Changer
CD Changer
Features
103
Avoid using discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
