2004 YAMAHA YZF-R1S Service Manual

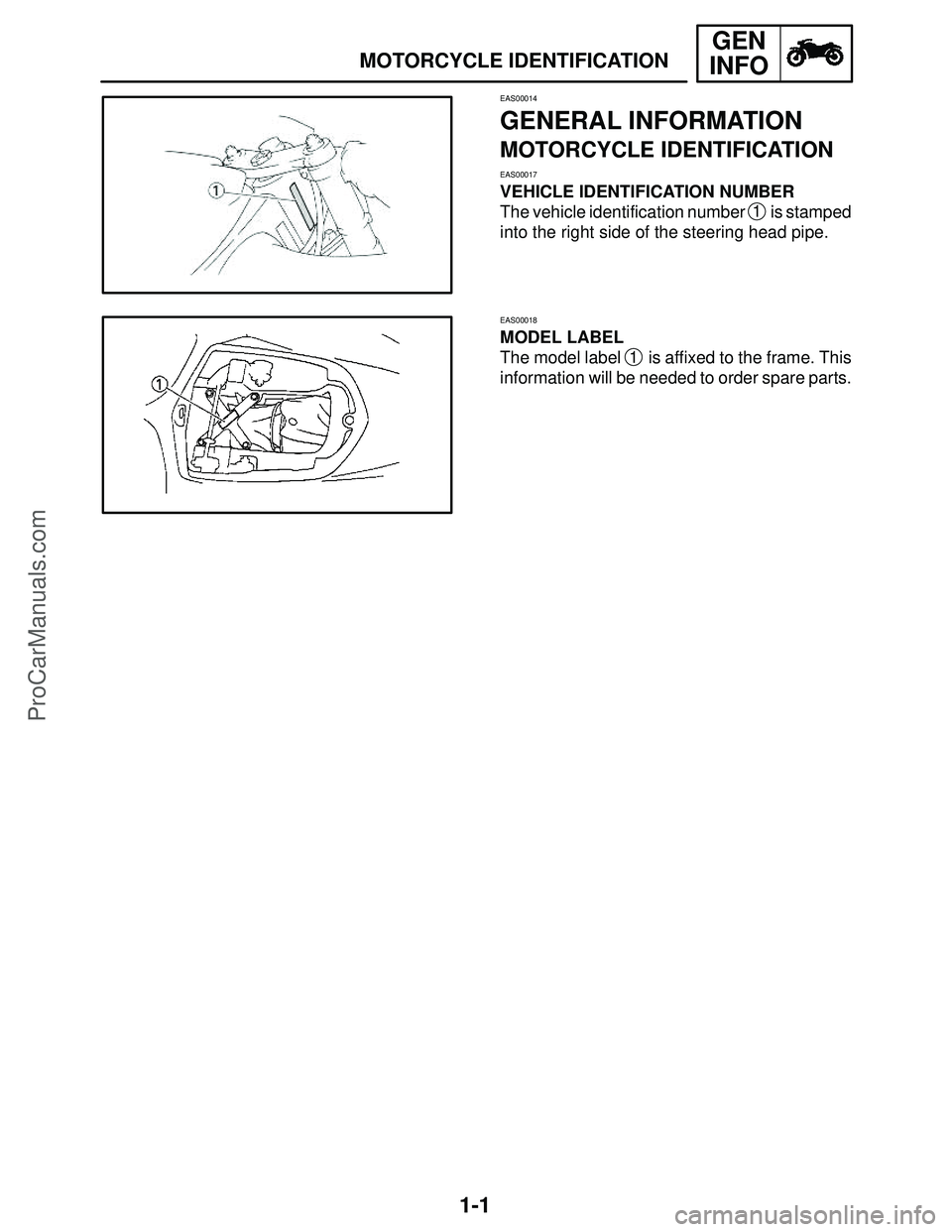

1-1
MOTORCYCLE IDENTIFICATION
GEN
INFO
EAS00014
GENERAL INFORMATION
MOTORCYCLE IDENTIFICATION
EAS00017
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number
1 is stamped
into the right side of the steering head pipe.
EAS00018
MODEL LABEL
The model label
1 is affixed to the frame. This
information will be needed to order spare parts.
ProCarManuals.com

1-2
1
1 Clock
2 Speedometer
3 “SELECT” button
4 “RESET” button
5 Tachometer
6 Coolant temperature display / air intake
temperature display
7 Odometer / tripmeters / fuel reserve tripme-
ter / stopwatch
8 Shift timing indicator light
1 Clock
2 Speedometer
FEATURES
GEN
INFO
NOTE:
EAS00019
FEATURES
INSTRUMENT FUNCTIONS
Multi-function display
The multi-function meter unit is equipped with
the following:

a speedometer (which shows the riding
speed)

a tachometer (witch shows engine speed)

an odometer (which shows the total distance
traveled)

two tripmeters (which show the distance
traveled since they were last set to zero)

a fuel reserve tripmeter (which shows the
distance traveled since the fuel level warning
light came on)

a stopwatch

a clock

a coolant temperature display

an air intake temperature display

a self-diagnosis device

a display brightness and shift timing indicator
light control mode

Be sure to turn the key to “ON” before using the “SELECT” and “RESET” buttons.
Clock mode
Turn the key to “ON”.
To set the clock
1. Push the “SELECT” button and “RESET”
button together for at least two seconds.
2. When the hour digits start flashing, push the
“RESET” button to set the hours.
3. Push the “SELECT” button, and the minute
digits will start flashing.
4. Push the “RESET” button to set the minutes.
5. Push the “SELECT” button and then release
it to start the clock.
ProCarManuals.com

1-3
FEATURES
GEN
INFO
1 Coolant temperature display / air intake
temperature display
2 Odometer / tripmeters / fuel reserve tripme-
ter / stopwatch
3 Shift timing indicator light
NOTE:
NOTE:Odometer, tripmeter, and stopwatch modes
Push the “SELECT” button to switch the display
between the odometer mode “ODO”, the trip-
meter modes “TRIP A” and “TRIP B” and the
stopwatch mode in the following order:
TRIP A
TRIP B
ODO
Stopwatch

TRIP A
If the fuel level warning light comes on, the
odometer display will automatically change to
the fuel reserve tripmeter mode ”F-TRIP” and
start counting the distance traveled from that
point. In that case, push the ”SELECT” button to
switch the display between the various tripme-
ter, odometer, and stopwatch modes in the fol-
lowing order:
F-TRIP
Stopwatch
TRIP A
TRIP B

ODO
F-TRIP
To reset a tripmeter, select it by pushing the “SE-
LECT” button, and then push the “RESET” button
for at least one second. If you do not reset the fuel
reserve tripmeter manually, it will reset itself auto-
matically and the display will return to the prior
mode after refueling and traveling 5 km (3 mi).
Stopwatch mode
Standard measurement
1. Push the “RESET” button to start the stopwatch.
2. Push the “SELECT” button to stop the stopwatch.
3. Push the “SELECT” button again to reset the stopwatch.
Split-time measurement
1. Push the “RESET” button to start the stopwatch.
2. Push the “RESET” button to measure split-times. (The colon “:” will start flashing.)
3. Push the “RESET” button to display the final split-time or push the “SELECT” button to stop the stop-
watch and display total elapsed time.
4. Push the “SELECT” button to reset the stopwatch.
Coolant temperature display
The coolant temperature display indicates the temperature of the coolant. Push the “RESET” button to
switch the coolant temperature display to the air intake temperature display.
When the coolant temperature display is selected, “C” is displayed before the coolant temperature.
Air intake temperature display
The air intake temperature display indicates the temperature of the air drawn into the air filter case. Push
the “RESET” button to switch the coolant temperature display to the air intake temperature display.

Even if the air intake temperature is set to be displayed, the coolant temperature warning light comes
on when the engine overheats.

When the key is turned to “ON”, the coolant temperature is automatically displayed, even if the air
intake temperature was displayed prior to turning the key to “OFF”.

When the air intake temperature display is selected, “A” is displayed before thetemperature.
ProCarManuals.com

1-4
FEATURES
GEN
INFO
NOTE: Self-diagnosis devices
The model is equipped with a self-diagnosis device for various electrical circuits. If any of those circuits
are defective, the engine trouble warning light will come on, and then the right display will indicate a
two-digit error code (e.g.,11,12,13).
Display brightness and shift timing indicator light control mode
This mode cycles through five control functions, allowing you to make the following settings in the order
listed below.

Display brightness:
This function allows you to adjust the brightness of the displays and tachometer to suit the outside
lighting conditions.

Shift timing indicator light activity:
This function allows you to choose whether or not the indicator light should be activated and whether
it should flash or stay on when activated.

Shift timing indicator light activation:
This function allows you to select the engine speed at which the indicator light will be activated.

Shift timing indicator light deactivation:
This function allows you to select the engine speed at which the indicator light will be deactivated.

Shift timing indicator light brightness:
This function allows you to adjust the brightness of the indicator light to suit your preference.

To make any settings in this mode, you have to cycle through all of its functions. However, if the key is
turned to “OFF” or the engine is started before completing the procedure, only the settings made be-
fore the “SELECT” button was last pushed will be applied.

In this mode, the right display shows the current setting for each function (except the shift timing indi-
cator light activity function).
To adjust the brightness of the multifunction meter displays and tachometer
1. Turn the key to “OFF”.
2. Push and hold the “SELECT” button.
3. Turn the key to “ON”, and then release the “SELECT” button after five seconds.
4. Push the “RESET” button to select the desired brightness level.
5. Push the “SELECT” button to confirm the selected brightness level. The control mode changes to
the shift timing indicator light activity function.
To set the shift timing indicator light activity function
1. Push the “RESET” button to select one of the following indicator light activity settings:

The indicator light will stay on when activated. (This setting is selected when the indicator light stays
on.)

The indicator light will flash when activated. (This setting is selected when the indicator light flashes
four times per second.)

The indicator light is deactivated; in other words, it will not come on or flash. (This setting is selected
when the indicator light flashes once every two seconds.)
2. Push the ”SELECT” button to confirm the selected indicator light activity. The control mode changes
to the shift timing indicator light activation function.
ProCarManuals.com

1-5
FEATURES
GEN
INFO
NOTE:
NOTE: To set the shift timing indicator light activation function
The shift timing indicator light activation function can be set between 7000 r/min and 15000 r/m. From
7000 r/min to 12000 r/min, the indicator light can be set in increments of 500 r/min. From 12000 r/min to
15000 r/min, the indicator light can be set in increments of 200 r/min.
1. Push the “RESET” button to select the desired engine speed for activating the indicator light.
2. Push the “SELECT” button to confirm the selected engine speed. The control mode changes to the
shift timing indicator light deactivation function.
To set the shift timing indicator light deactivation function

The shift timing indicator light activation function can be set between 7000 r/min and 15000 r/min.
From 7000 r/min to 12000 r/min, the indicator light can be set in increments of 500 r/min. From 12000
r/min to 15000 r/min, the indicator light can be set in increments of 200 r/min.

Be sure to set the deactivation function to a higher engine speed than for the activation function,
otherwise the shift timing indicator light will remain deactivated.
1. Push the “RESET” button to select the desired engine speed for deactivating the indicator light.
2. Push the “SELECT” button to confirm the selected engine speed. The control mode changes to the
shift timing indicator light brightness function.
To adjust the shift timing indicator light brightness
1. Push the “RESET” button to select the desired indicator light brightness level.
2. Push the “SELECT” button to confirm the selected indicator light brightness level. The right display
will return to the odometer or tripmeter mode
ProCarManuals.com

1-6
springlip
oil
grease lip
IMPORTANT INFORMATION
GEN
INFO
EAS00020
IMPORTANT INFORMATION
PREPARATION FOR REMOVAL AND
DISASSEMBLY
1. Before removal and disassembly, eliminate
all dirt, mud, dust and foreign material.
2. Use only the proper tools and cleaning
equipment.
Refer to the “SPECIAL TOOLS”.
3. When disassembling, always keep mated
parts together. This includes gears, cylin-
ders, pistons and other parts that have been
“mated” through normal wear. Mated parts
must always be reused or replaced as an as-
sembly.
4. During disassembly, clean all of the parts
and place them in trays in the order of disas-
sembly. This will speed up assembly and al-
low for the correct installation of all parts.
5. Keep all parts away from any source of fire.
EAS00021
REPLACEMENT PARTS
Use only genuine Yamaha parts for all replace-
ments. Use oil and grease recommended by
Yamaha for all lubrication jobs. Other brands
may be similar in function and appearance, but
inferior in quality.
EAS00022
GASKETS, OIL SEALS AND O-RINGS
1. When overhauling the engine, replace all
gaskets, seals and O-rings. All gasket sur-
faces, oil seal lips and O-rings must be
cleaned.
2. During reassembly, properly oil all mating
parts and bearings and lubricate the oil seal
lips with grease.
ProCarManuals.com

1-7
IMPORTANT INFORMATION
GEN
INFO
CAUTION:
EAS00023
LOCK WASHERS / PLATES AND COTTER
PINS
After removal, replace all lock washers / plates
1 and cotter pins. After the bolt or nut has been
tightened to specification, bend the lock tabs
along a flat of the bolt or nut.
EAS00024
BEARINGS AND OIL SEALS
Install bearings and oil seals so that the
manufacturer’s marks or numbers are visible.
When installing oil seals, lubricate the oil seal
lips with a light coat of lithium-soap-based
grease. Oil bearings liberally when installing, if
appropriate.
1Oil seal
Do not spin the bearing with compressed air
because this will damage the bearing sur-
faces.
1Bearing
EAS00025
CIRCLIPS
Before reassembly, check all circlips carefully
and replace damaged or distorted circlips. Al-
ways replace piston pin clips after one use.
When installing a circlip
1, make sure the
sharp-edged corner
2 is positioned opposite
the thrust
3 that the circlip receives.
4Shaft
ProCarManuals.com

1-8
CHECKING THE CONNECTIONS
GEN
INFO
NOTE:
NOTE:
NOTE:
EAS00026
CHECKING THE CONNECTIONS
Check the leads, couplers, and connectors for
stains, rust, moisture, etc.
1. Disconnect:

lead

coupler

connector
2. Check:

lead

coupler

connector
Moisture
Dry with an air blower.
Rust / stains
Connect and disconnect sev-
eral times.
3. Check:

all connections
Loose connection
Connect properly.
If the pin
1 on the terminal is flattened, bend it
up.
4. Connect:

lead

coupler

connector
Make sure all connections are tight.
5. Check:

continuity
(with the pocket tester)
Pocket tester
90890-03112, YU-3112

If there is no continuity, clean the terminals.

When checking the wire harness, perform
steps (1) to (3).

As a quick remedy, use a contact revitalizer
available at most part stores.
ProCarManuals.com
