2004 TOYOTA AVALON Owners Manual

’04 AVALON U (L/O 0408)
137
2004 AVALON from Aug. ’04 Prod. (OM41412U)
“TRAC OFF” indicator light comes on for
a few seconds when the ignition key is
turned to “ON”. It will come on again
when you push the “TRAC OFF” switch to
turn off the system.
In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on with the
normal driving mode while driving.
“VSC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC” warning light comes
on even if the “TRAC OFF” switch is not
pushed.

’04 AVALON U (L/O 0408)
138
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This system will activate when your ve-
hicle speed reaches or exceeds 15 km/h
(9 mph), and will deactivate when the ve-
hicle speed reduces to below 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the selfcheck mode but does
not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes and an alarm sounds, spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” in
Section 72.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Vehicle stability control
system

’04 AVALON U (L/O 0408)
139
2004 AVALON from Aug. ’04 Prod. (OM41412U)

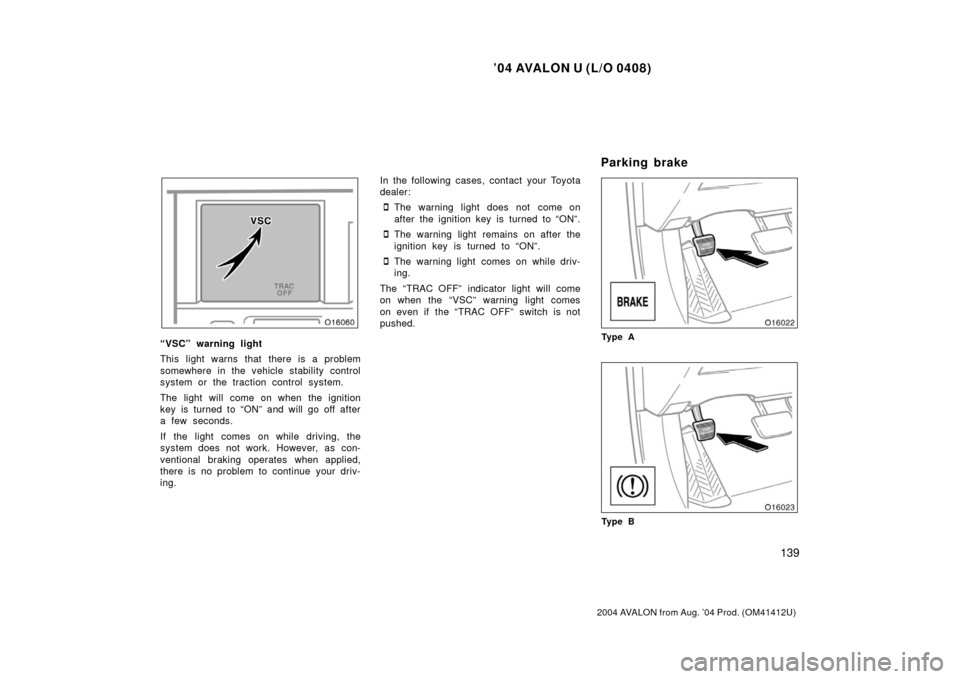

“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system or the traction control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC” warning light comes
on even if the “TRAC OFF” switch is not
pushed.
Ty p e A
Ty p e B
Parking brake

’04 AVALON U (L/O 0408)
140
2004 AVALON from Aug. ’04 Prod. (OM41412U)
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal while depressing the brake pedal.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) with your foot off the
accelerator pedal.
Your cruising speed can be maintained
although a slight speed change may occur
when driving up or down gradient, within
the limits of engine performance. On
steeper hills, a greater speed change will
occur so it is better to drive without the
cruise control.
When the cruise control is on, the driving
pattern of the automatic transmission is
fixed in the normal position, regardless of
the position of the selector switch.CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
Cruise control

’04 AVALON U (L/O 0408)
141
2004 AVALON from Aug. ’04 Prod. (OM41412U)

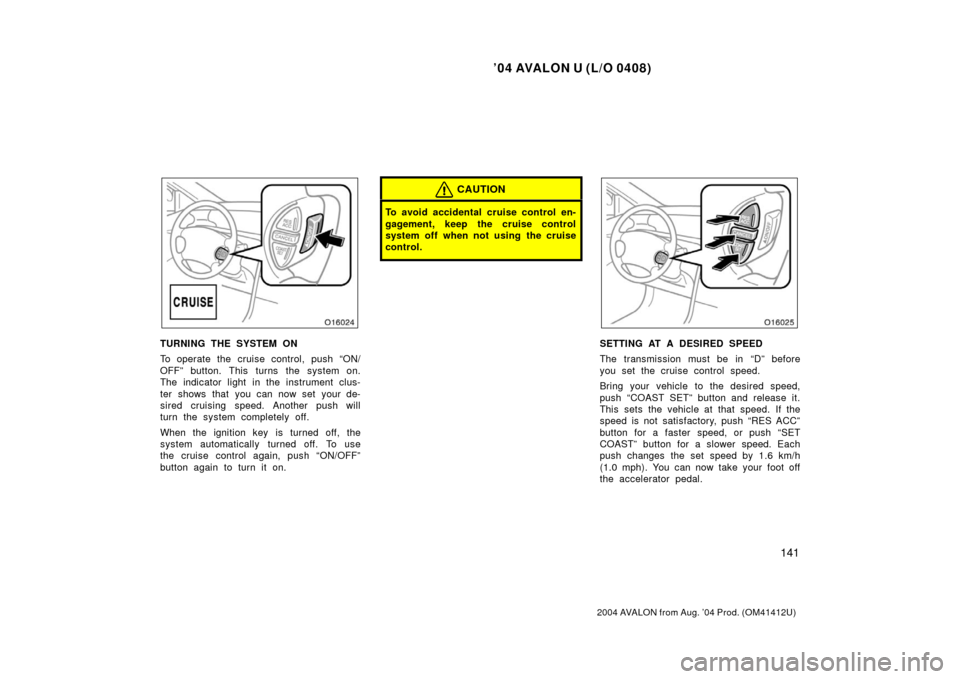

TURNING THE SYSTEM ON
To operate the cruise control, push “ON/
OFF” button. This turns the system on.
The indicator light in the instrument clus-
ter shows that you can now set your de-
sired cruising speed. Another push will
turn the system completely off.
When the ignition key is turned off, the
system automatically turned off. To use
the cruise control again, push “ON/OFF”
button again to turn it on.
CAUTION
To avoid accidental cruise control en-
gagement, keep the cruise control
system off when not using the cruise
control.
SETTING AT A DESIRED SPEED
The transmission must be in “D” before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push “COAST SET” button and release it.
This sets the vehicle at that speed. If the
speed is not satisfactory, push “RES ACC”
button for a faster speed, or push “SET
COAST” button for a slower speed. Each
push changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.

’04 AVALON U (L/O 0408)
142
2004 AVALON from Aug. ’04 Prod. (OM41412U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:a. Depressing the brake pedal.
b. Pushing “CANCEL” button and releas- ing it.
c. Pushing “ON/OFF” button.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will be
automatically cancelled.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will be also automatically cancelled.
If the preset speed automatically cancels
out for any other reasons, have your ve-
hicle checked by your Toyota dealer at the
earliest opportunity. RESETTING TO A FASTER SPEED
Push “RES ACC” button and hold it. Re-
lease the button the desired speed is at-
tained. While the button is pushed, the
vehicle will gradually gain speed.
When the difference between the actual
vehicle speed and the set speed is less
than 5 km/h (3 mph), the set speed can
be increased 1.6 km/h (1 mph) each time
by pushing “RES ACC” button quickly
within 0.6 seconds.
However, a faster way to reset is to ac-
celerate the vehicle and then push
“COAST SET” button.
RESETTING TO A SLOWER SPEED
Push “COAST SET” button and hold it.
Release the button when the desired
speed is attained. While the button is
pushed, the vehicle speed will gradually
decrease.
When the difference is 5 km/h (3 mph) or
more, the vehicle will cruise with its actu-
al speed. When the difference between the
actual vehicle speed and the set speed is
less than 5 km/h (3 mph), the set speed
can be lowered 1.6 km/h (1 mph) each
time by pushing “COAST SET” button
quickly within 0.6 seconds.However, a faster way to reset is to de-
press the brake pedal and then push
“COAST SET” button.
Even if you turn off the overdrive switch
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control button or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.
RESUMING THE PRESET SPEED
If the preset speed is cancelled by push-
ing “CANCEL” button or by depressing the
brake pedal, pushing “RES ACC” button
will restore the speed set prior to can-
cellation. However, once the vehicle speed
falls below about 40 km/h (25 mph), the
preset speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If “CRUISE” indicator light in the instru-
ment cluster flashes when using the
cruise control, push “ON/OFF” button to
turn the system off and then push it again
to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.

’04 AVALON U (L/O 0408)
143
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
