2004 TOYOTA AVALON Owners Manual

’04 AVALON U (L/O 0408)
41
2004 AVALON from Aug. ’04 Prod. (OM41412U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Driving position memory system 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk storage extension 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Head restraints 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Armrest 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Seat heaters 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Seat belts 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbag and front passenger airbag 61
. . . . . . . . . . . . . . . . . . .
SRS side airbags 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Child restraint 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3

’04 AVALON U (L/O 0408)
42
2004 AVALON from Aug. ’04 Prod. (OM41412U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

’04 AVALON U (L/O 0408)
43
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Front outside passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats
CAUTION
SRS side airbags are installed in the
outboard side of the driver’s and
front passenger seats. Observe the
following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbag system to in-
flate accidentally, resulting in death
or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
—Seat adjustment precautions

’04 AVALON U (L/O 0408)
44
2004 AVALON from Aug. ’04 Prod. (OM41412U)

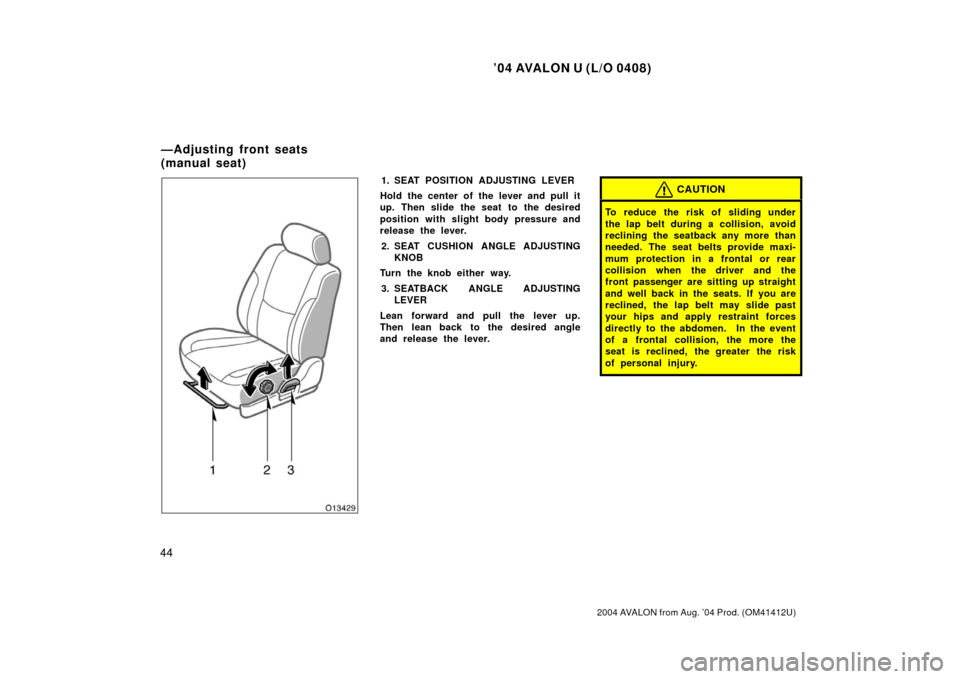

1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
—Adjusting front seats
(manual seat)

’04 AVALON U (L/O 0408)
45
2004 AVALON from Aug. ’04 Prod. (OM41412U)

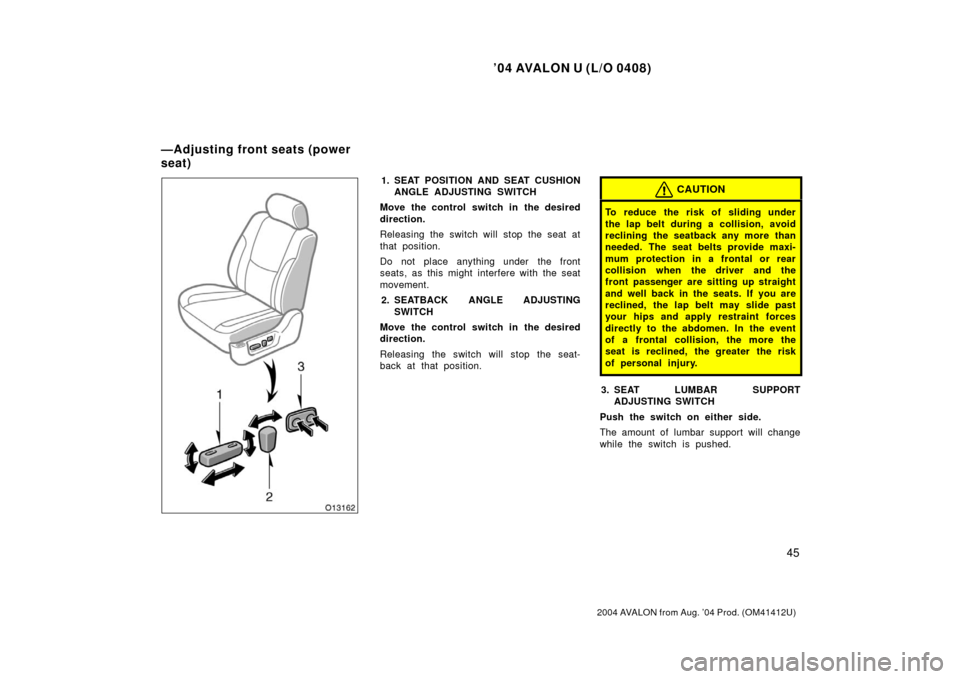

1. SEAT POSITION AND SEAT CUSHIONANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT LUMBAR SUPPORT ADJUSTING SWITCH
Push the switch on either side.
The amount of lumbar support will change
while the switch is pushed.
—Adjusting front seats (power
seat)

’04 AVALON U (L/O 0408)
46
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The micro computer can memorize the
position of the driver’s seat and outside
rear view mirror. Two different driving
position profiles can be entered into
computer ’s memory.
Recording a driving position in the
computer’s memory can only be done
when the ignition key is in the “ON”
position and the automatic transmission
selector lever is in the “P” position.
SETTING THE DRIVING POSITION1. Adjust the driver ’s seat and outside rear view mirror to the desired posi-
tion.
2. While pushing the “SET” button, push button “1” or “2” until the sig-
nal beeps.
The beep sound means that the positions
are recorded in the computer ’s memory.
By repeating these two steps and pressing
the remaining button, the driving position
for another driver can be recorded.
To set a new memorized position, select
the desired position and perform step 2.
The previous memory will be erased and
a new position will be set. To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
Driving position memory
system

’04 AVALON U (L/O 0408)
47
2004 AVALON from Aug. ’04 Prod. (OM41412U)
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, the
driving position will be automatically
adjusted to the position recorded for
that button.CONDITIONS FOR MEMORIZED
POSITION ACTIVATION
Ignition key “ON” and shift lever in “P”
position
All parts of the memorized positions
can be activated. However, if the brake
pedal is being depressed, the seat
position will not change.
Key not in ignition switch and within 30
seconds of opening driver ’s door
The memorized position can be acti-
vated.
If any driving position memory switch is
pushed while one of the memorized driv-
ing position profiles is being activated, the
operation will stop.
To reactivate the system, push the desired
button (“1” or “2”) again.
The driving position memory control sys-
tem cannot be operated while the vehicle
is moving.
If the vehicle’s battery is disconnected,
the computer’s memory will be erased and
the memorized position will have to be set
again.
CAUTION
Do not start the vehicle while the
adjustment are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.

’04 AVALON U (L/O 0408)
48
2004 AVALON from Aug. ’04 Prod. (OM41412U)

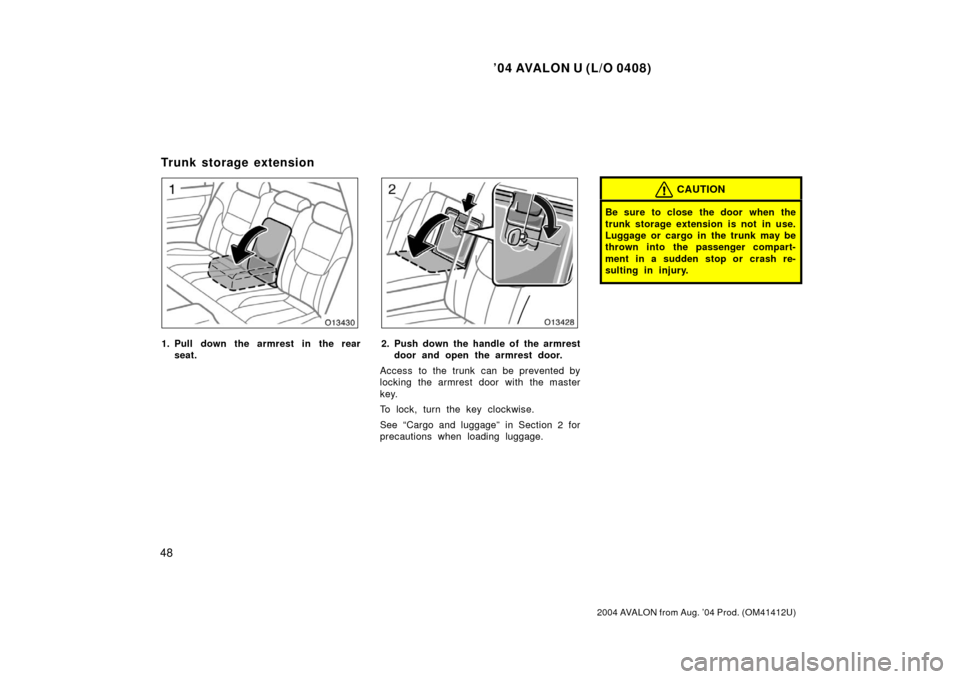

1. Pull down the armrest in the rearseat.2. Push down the handle of the armrestdoor and open the armrest door.
Access to the trunk can be prevented by
locking the armrest door with the master
key.
To lock, turn the key clockwise.
See “Cargo and luggage” in Section 2 for
precautions when loading luggage.
CAUTION
Be sure to close the door when the
trunk storage extension is not in use.
Luggage or cargo in the trunk may be
thrown into the passenger compart-
ment in a sudden stop or crash re-
sulting in injury.
Trunk storage extension
