If either the left or right front fog or
front turn signal/parking lights burns
out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front turn signal/parking light bulbs
by yourself. You may damage the ve-
hicle.
Use a flatbladed screwdriver which is
wrapped with a cloth.a: Rear turn signal light
b: Stop/tail light
c: Rear side marker light
d: Backup light
—Front fog and front turn
signal/parking lights—Rear turn signal, stop/tail,
rear side marker and backup
lights

’04 AVALON U (L/O 0408)
314
2004 AVALON from Aug. ’04 Prod. (OM41412U)

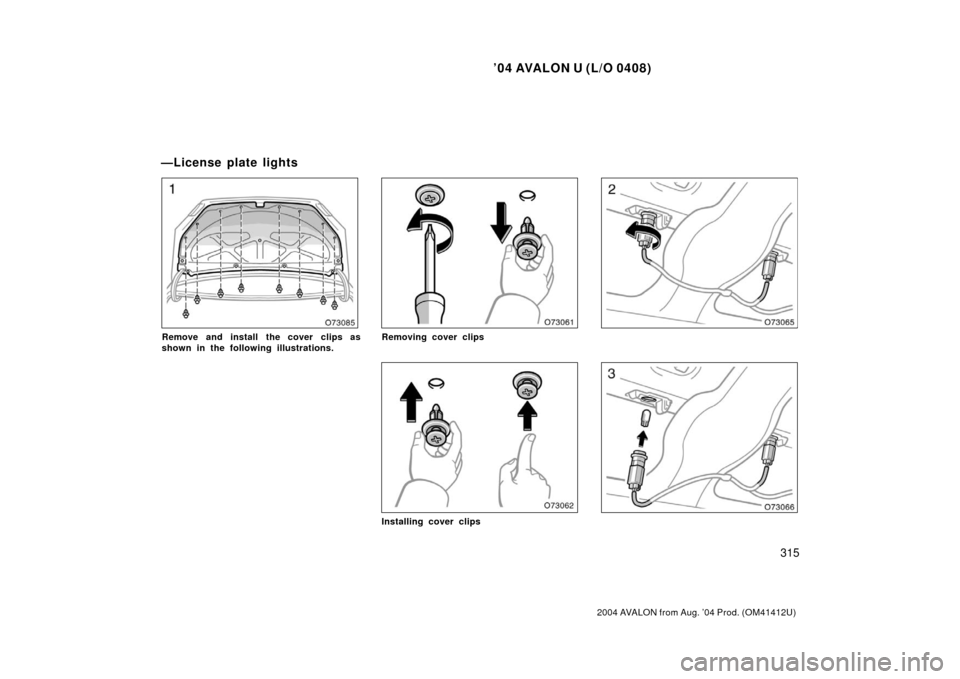

Remove and install the cover clips as
shown in the following illustrations.Removing cover clips
Installing cover clips
—Tail lights

’04 AVALON U (L/O 0408)
315
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Remove and install the cover clips as
shown in the following illustrations.Removing cover clips
Installing cover clips
—License plate lights

’04 AVALON U (L/O 0408)
316
2004 AVALON from Aug. ’04 Prod. (OM41412U)

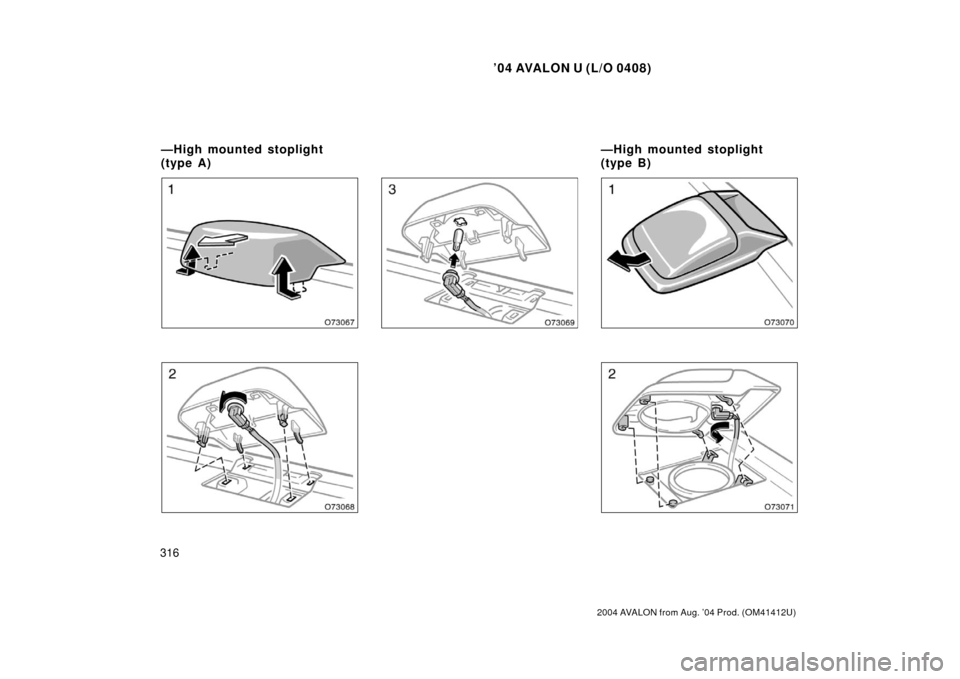

—High mounted stoplight
(type A)—High mounted stoplight
(type B)

’04 AVALON U (L/O 0408)
317
2004 AVALON from Aug. ’04 Prod. (OM41412U)

’04 AVALON U (L/O 0408)
318
2004 AVALON from Aug. ’04 Prod. (OM41412U)
SPECIFICATIONS
Specifications
Dimensions and weights319
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 319
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 322
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 323
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’04 AVALON U (L/O 0408)
319
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Model:1MZFE
Type: 6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 87.5 83.0 (3.44 3.27)
Displacement, cm
3 (cu. in.):
2995 (182.8)
Overall length mm (in.) 4865 (191.5)
Overall width mm (in.) 1820 (71.7)
Overall heightmm (in.) 1465 (57.7)∗
1
Wheelbase mm (in.) 2720 (107.0)
Front treadmm (in.) 1550 (61.0)
Rear treadmm (in.) 1525 (60.0)
∗
1: Unladen vehicle∗2: With bucket type front seat∗3: With bench type front seat
Vehicle capacity weight
(occupants + luggage) kg (lb.) 410 (900)∗
2
475 (1050)∗3
Towing capacity kg (lb.)907 (2000)
Dimensions and weights Engine

’04 AVALON U (L/O 0408)
320
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Fuel type:Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
Drive belt tension measured with
Borroughs drive belt tension gauge No.
BT3373F (used belt), Ibf: Generator belt 88 22
Power steering pump belt 115 20
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.): With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity. Oil grade:
API grade SL “EnergyConserving” or
ILSAC multigrade engine oil.
Recommended oil viscosity: SAE 5W30
Outside temperature
Please contact your Toyota dealer for fur-
ther details.
Fuel Service specifications
