2004 TOYOTA AVALON windshield wipers

’04 AVALON U (L/O 0408)
100
2004 AVALON from Aug. ’04 Prod. (OM41412U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Front personal and interior lights 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear personal lights 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Ignition switch light 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting the windshield wiper position 11 2
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 11 3
. . . . . . . . . . .
SECTION 1 5

’04 AVALON U (L/O 0408)
11 0
2004 AVALON from Aug. ’04 Prod. (OM41412U)

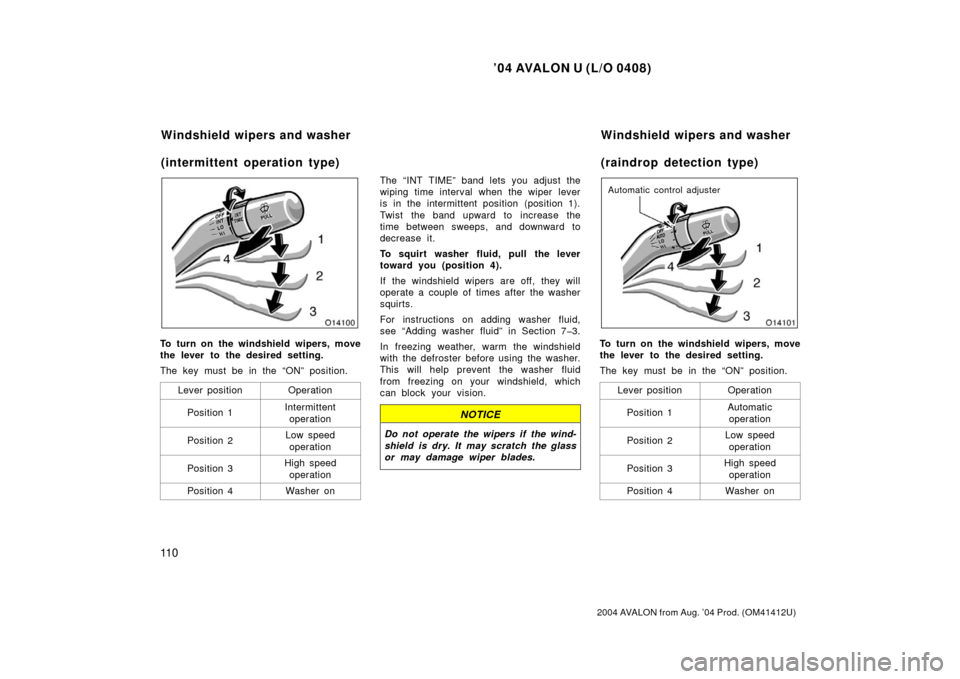

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Operation
Position 1Intermittentoperation
Position 2Low speedoperation
Position 3High speed operation
Position 4Washer on
The “INT TIME” band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it.
To squirt washer fluid, pull the lever
toward you (position 4).
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the glass
or may damage wiper blades.
Automatic control adjuster
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Operation
Position 1Automaticoperation
Position 2Low speed operation
Position 3High speed operation
Position 4Washer on
Windshield wipers and washer
(intermittent operation type) Windshield wipers and washer
(raindrop detection type)

’04 AVALON U (L/O 0408)
111
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Automatic operation (position 1)
The wiper speed is determined by the
amount of raindrops and sunlight detected
by the automatic wiper control sensor.
The automatic wiper control sensor is on
the inside of the windshield as shown
above.
If you feel that the operation of the auto-
matic wiper control is too fast or too slow,
twist the automatic control adjuster in the
“” direction to lower sensitivity, and “+”
direction to boost the sensitivity.Even if the wiper lever is in the position
1, the system will switch to intermittent
operations in the following conditions:
When the windshield gets extremely
cold (at less than 10
C [14 F])
When the system malfunctions
However, when the windshield gets ex-
tremely hot (at more than 90 C [194 F]),
the wipers do not operate even if the
wiper lever is in the position 1.
When the ignition switch is turned off with
the wiper lever in the position 1, and then
the ignition switch is turned on again, the
automatic operation may not work even if
raindrops are on the windshield.
In this case, move the lever to another
position and return it to the position 1
again.
CAUTION
Be careful not to get your fingers
caught between the wipers and wind-
shield.
When the wiper lever is in the posi-
tion 1 with the ignition switch on, the
wipers could operate automatically in
the following cases:
If you touch the upper center of the
windshield adjacent to the sensor.
If you wipe the upper center of the
windshield (adjacent to which the
sensor is located) with a towel or
other object.
If the windshield vibrates.
If you touch the sensor.
NOTICE
Do not apply detergent to or wet the
automatic wiper control sensor when
cleaning the inside of the windshield.

’04 AVALON U (L/O 0408)
11 2
2004 AVALON from Aug. ’04 Prod. (OM41412U)
To squirt washer fluid, pull the lever
toward you (position 4).
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the glass
or may damage wiper blades.

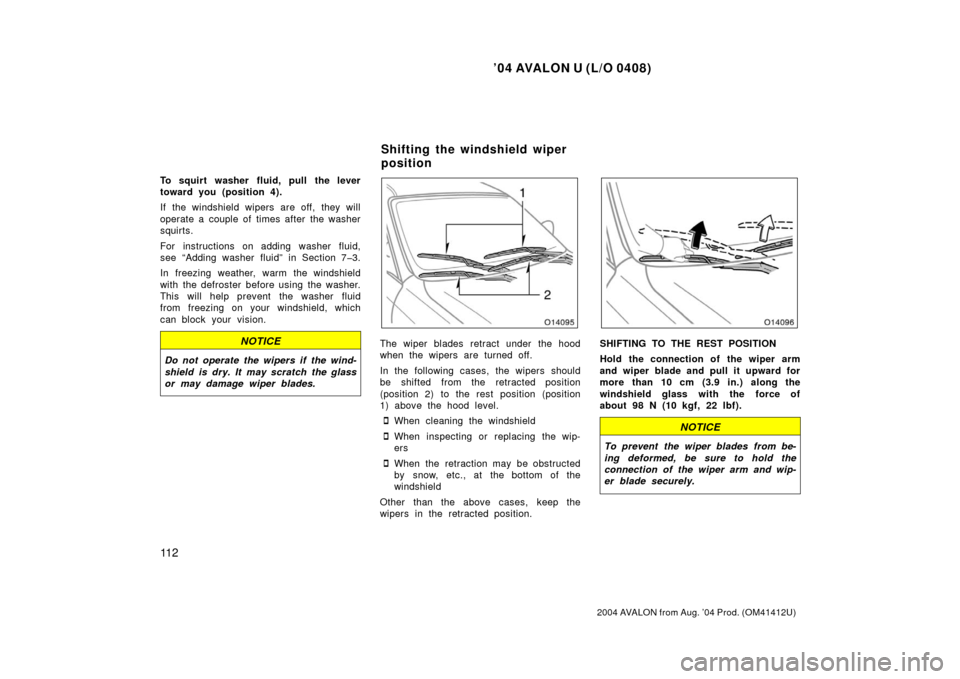

The wiper blades retract under the hood
when the wipers are turned off.
In the following cases, the wipers should
be shifted from the retracted position
(position 2) to the rest position (position
1) above the hood level.
When cleaning the windshield
When inspecting or replacing the wip-
ers
When the retraction may be obstructed
by snow, etc., at the bottom of the
windshield
Other than the above cases, keep the
wipers in the retracted position.
SHIFTING TO THE REST POSITION
Hold the connection of the wiper arm
and wiper blade and pull it upward for
more than 10 cm (3.9 in.) along the
windshield glass with the force of
about 98 N (10 kgf, 22 lbf).
NOTICE
To prevent the wiper blades from be-
ing deformed, be sure to hold the
connection of the wiper arm and wip-
er blade securely.
Shifting the windshield wiper
position

’04 AVALON U (L/O 0408)
325
2004 AVALON from Aug. ’04 Prod. (OM41412U)
47. DOME 7.5 A: Interior lights, front per-
sonal lights, door courtesy lights, igni-
tion switch light, vanity lights, garage
door opener, open door warning light,
illuminated entry system, rear pers onal
lights, automatic light control system,
trunk light, wireless remote control sys-
tem, multiplex communication system
48. OPNER 5 A: No circuit
49. RL P/W 20 A: Power window (for rear
left passenger)
50. RR P/W 20 A: Power window (for rear
right passenger)
51. WIP 25 A: Windshield wipers and
washer
52. ECUIG NO.2 10 A: Antilock brake
system, cruise control system, multiin-
formation display, theft deterrent sys-
tem, vehicle stability control system,
meters, multiplex communication sys-
tem
53. CIG 15 A: Cigarette lighter
54. DOOR NO.1 25 A: Theft deterrent sys-
tem, trunk opener, multiplex commu-
nication system
55. SUN ROOF 30 A: Electric moon roofFuses (type B)
56. AM1 40 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
57. HTR 50 A: Air conditioning system
58. CDS 30 A: Electric cooling fans
59. RDI 30 A: Electric cooling fans
60. MAIN 40 A: Starter system
61. DEF 40 A: Rear window defogger,
noise filter
62. PWR SEAT 30 A: Power seats
Fuses (type C)
63. ABS 60 A: Antilock brake system,
“ABS NO.4” fuse
64. ALT 120 A: “HTR”, “A/C”, “ABS NO.2”,
“ABS NO.3”, “RDI”, “CDS”, “AM1”,
“ABS” and “ABS NO.4” fuses
