2004 AVALON from Aug. ’04 Prod. (OM41412U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators andindicator lights
4. Speedometer
5. Theft deterrent system/engine immobilizer system indicator light 6. Clock∗
7. Outside temperature display∗
8. Multi information display
9. “LIGHT” button
∗
10. “MODE” button∗
11. “RESET/ADJ” button∗
12. “DISPLAY” button∗
13. Odometer and two trip meters
14. “ODO/TRIP” button
15. Fuel gauge
∗: This button is used to operate the multi information display. For details, see “Multi information display” in Section 1 10.
Ty p e B
’04 AVALON U (L/O 0408)
36
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
The indicator light will come on when the
system is activated.
If any of the doors is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again. After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key or wireless
remote control transmitter.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
’04 AVALON U (L/O 0408)
11 9
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Ty p e C
This meter displays the odometer and
two trip meters when the ignition
switch is on.1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. “ODO/TRIP” button—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the button. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the button until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
’04 AVALON U (L/O 0408)
142
2004 AVALON from Aug. ’04 Prod. (OM41412U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:a. Depressing the brake pedal.
b. Pushing “CANCEL” button and releas- ing it.
c. Pushing “ON/OFF” button.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will be
automatically cancelled.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will be also automatically cancelled.
If the preset speed automatically cancels
out for any other reasons, have your ve-
hicle checked by your Toyota dealer at the
earliest opportunity. RESETTING TO A FASTER SPEED
Push “RES ACC” button and hold it. Re-
lease the button the desired speed is at-
tained. While the button is pushed, the
vehicle will gradually gain speed.
When the difference between the actual
vehicle speed and the set speed is less
than 5 km/h (3 mph), the set speed can
be increased 1.6 km/h (1 mph) each time
by pushing “RES ACC” button quickly
within 0.6 seconds.
However, a faster way to reset is to ac-
celerate the vehicle and then push
“COAST SET” button.
RESETTING TO A SLOWER SPEED
Push “COAST SET” button and hold it.
Release the button when the desired
speed is attained. While the button is
pushed, the vehicle speed will gradually
decrease.
When the difference is 5 km/h (3 mph) or
more, the vehicle will cruise with its actu-
al speed. When the difference between the
actual vehicle speed and the set speed is
less than 5 km/h (3 mph), the set speed
can be lowered 1.6 km/h (1 mph) each
time by pushing “COAST SET” button
quickly within 0.6 seconds.However, a faster way to reset is to de-
press the brake pedal and then push
“COAST SET” button.
Even if you turn off the overdrive switch
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control button or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.
RESUMING THE PRESET SPEED
If the preset speed is cancelled by push-
ing “CANCEL” button or by depressing the
brake pedal, pushing “RES ACC” button
will restore the speed set prior to can-
cellation. However, once the vehicle speed
falls below about 40 km/h (25 mph), the
preset speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If “CRUISE” indicator light in the instru-
ment cluster flashes when using the
cruise control, push “ON/OFF” button to
turn the system off and then push it again
to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
’04 AVALON U (L/O 0408)
148
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Details of specific buttons, controls, and
features are described in the alphabetical
list that follows.
—Controls and features
Ty p e 1

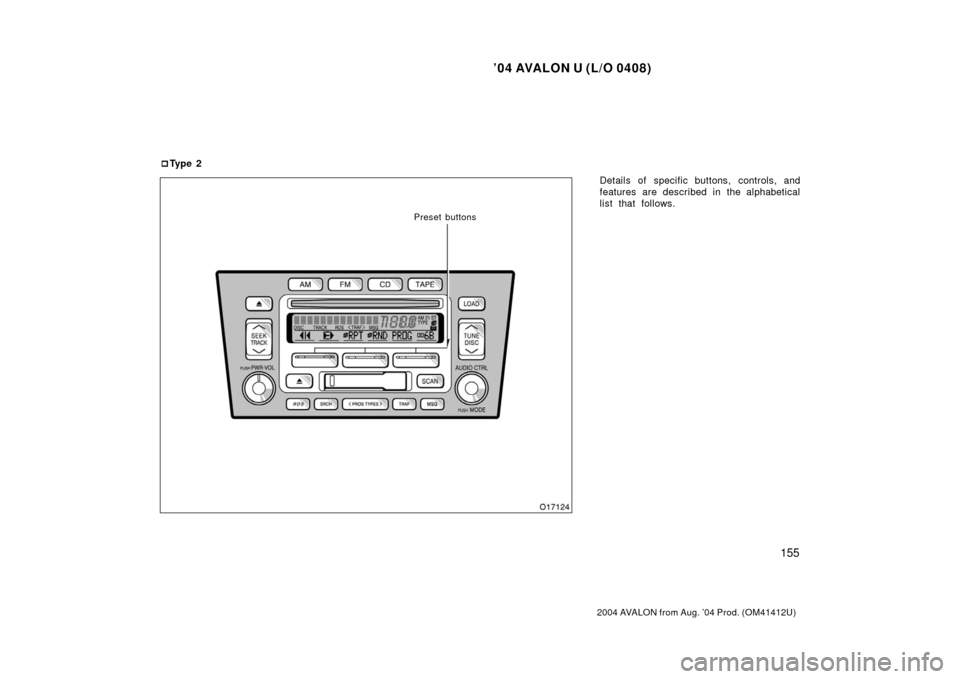

Preset buttons
’04 AVALON U (L/O 0408)
149
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Preset buttons
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK” button.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM” “FM”.)
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to “LOCK”, you
will be able to eject a cassette or disc,
but you will not be able to reinsert it.
(Reverse/Fast forward button)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. “
” will appear
on the display. Push the reverse button to
rewind a tape. “
” will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
“TAPE”; to stop the tape while it is re-
winding, push the reverse button or
“TAPE”.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto re-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing. AM
Push “AM” to turn on the radio and select
the AM band. “AM” will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing “AM”. Also, push
“AM” to switch from cassette or compact
disc operation to radio operation.
AUDIO CTRL / MODE (Audio control
and mode adjustment)
Manual tone adjustment function—
This knob is used to adjust the tone
manually.
For low pitch tone adjustment, push
“AUDIO CTRL / MODE” repeatedly until
“BASS” appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
“BASS 5” to “BASS 5”.
For middle pitch tone adjustment, push
“AUDIO CTRL / MODE” repeatedly until
“MID” appears on the display. Then turn
the knob to suit your preference.
The display will show the range from “MID
5” to “MID 5”.
’04 AVALON U (L/O 0408)
152
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Compact Disc Player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “
” while the
track is playing. “
” will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Compact disc changer only—
Repeating a disc:
Push and hold “
” until you hear a
beep. “
” will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the first track on the disc and replay.
To turn off the repeat feature, push this
button again. SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
“SCAN” again.
To scan all the frequencies:
Quickly push and release “SCAN”. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push “SCAN” again.
Compact Disc Player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the magazine. To select a track, push
“SCAN” again. If the player scanned all
the tracks on the disc, it will stop scan-
ning.
Compact disc changer only—
Scanning the first track of all the discs in
the magazine:
Push “SCAN” until you hear a beep.
“
·SCAN” will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the “SCAN” again. If the player has
scanned all the di scs, it will stop scan-
ning.
’04 AVALON U (L/O 0408)
155
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Details of specific buttons, controls, and
features are described in the alphabetical
list that follows.
Ty p e 2
Preset buttons
