2004 SUBARU FORESTER sensor

EN(H4DOTC)-96
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK IDLE SWITCH SIGNAL.
1) Turn the ignition switch to ON.
2) Operate the LED operation mode for
engine using Subaru Select Monitor.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to the
“LED OPERATION MODE FOR ENGINE”.
itor.>Does the LED of {Idle Switch
Signal} come on?Go to step 2.Check the throttle
position sensor cir-
cuit. EN(H4DOTC)-
122, DTC P0121
THROTTLE/
PEDAL POSI-
TION SENSOR/
SWITCH “A” CIR-
CUIT RANGE/
PERFORMANCE,
Diagnostic Proce-
dure with Diagnos-
tic Trouble Code
(DTC).>
N
OTE:
In this case, it is
not necessary to
inspect DTC
P0106.
2 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check related
DTC.“List of Diag-
nostic Trouble
Code (DTC)” to EN(H4DOTC)-
74, List of Diag-
nostic Trouble
Code (DTC).>
NOTE:
In this case, it is
not necessary to
inspect DTC
P0106.Go to step 3.
3 CHECK MANIFOLD ABSOLUTE PRESSURE
SENSOR CONDITION.Is the manifold absolute pres-
sure sensor installation bolt
tightened securely?Go to step 4.Tighten manifold
absolute pressure
sensor installation
bolt securely.
4 CHECK CONDITION OF THROTTLE BODY.Is the throttle body installation
bolt tightened securely?Replace the mani-
fold absolute pres-
sure sensor. to FU(H4DOTC)-
36, Manifold Abso-
lute Pressure Sen-
sor.>Tighten throttle
body installation
bolt securely.

EN(H4DOTC)-97
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
I: DTC P0101 MASS OR VOLUME AIR FLOW CIRCUIT RANGE/PERFOR-
MANCE
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
 Erroneous idling
 Engine stalls.
 Poor driving performance
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .

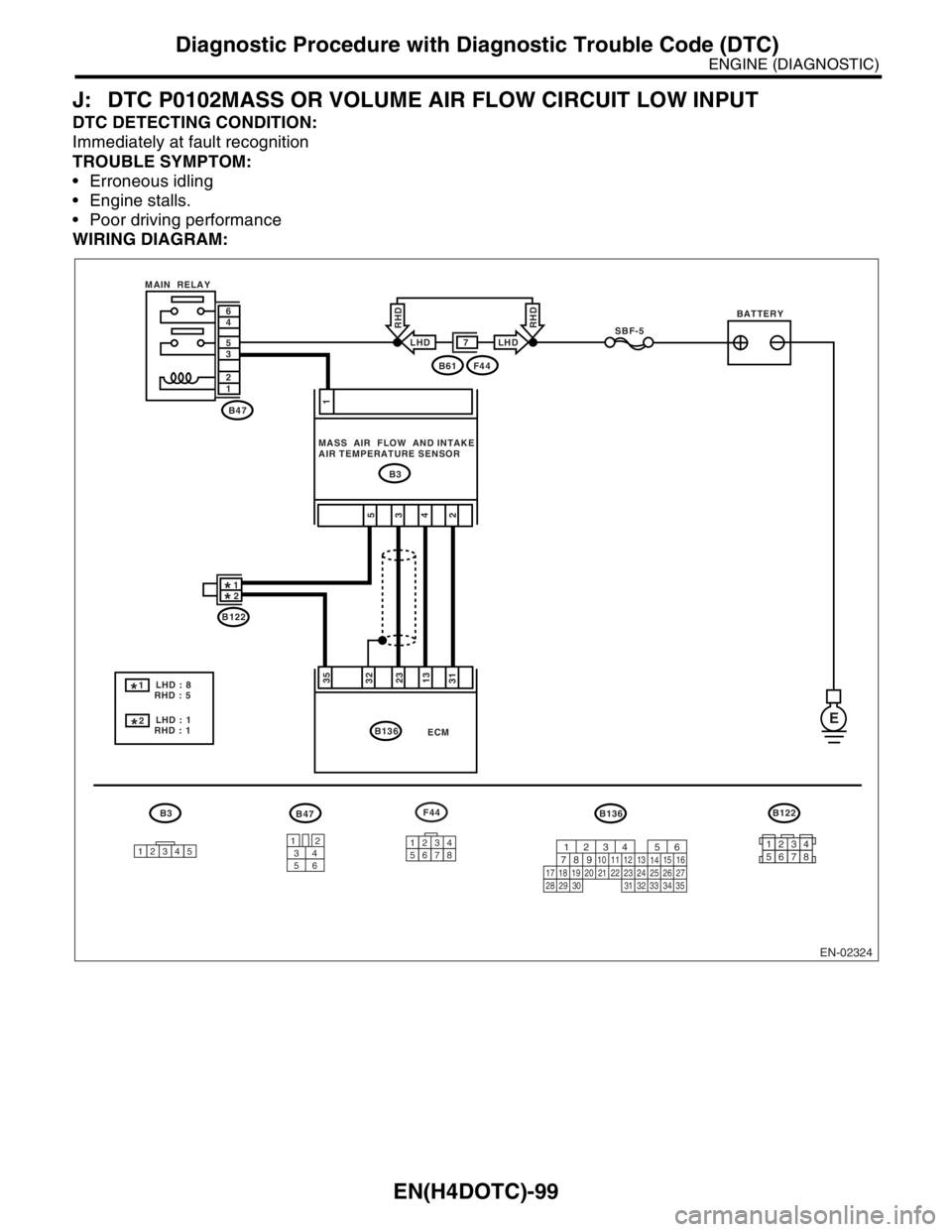

WIRING DIAGRAM:
EN-02324
B122B3
BATTERY
E
B61F44
7LHD
RHD
LHD
RHD
1
B3
MASS AIR FLOW AND INTAKE
AIR TEMPERATURE SENSOR
ECMB136
SBF-5
123453412
56
B47 1
2
*
*
2 4 3 5
311323 3532LHD : 8
RHD : 5
LHD : 1
RHD : 1*1
*2
F44
12345678
MAIN RELAY
B47 1 2 3 5 4 6
12345678
B136 B122
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35

EN(H4DOTC)-98
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Inspect the rele-
vant DTC using
“List of Diagnostic
Trouble Code
(DTC)”. EN(H4DOTC)-74,
List of Diagnostic
Trouble Code
(DTC).>
N
OTE:
In this case, it is
not necessary to
inspect DTC
P0101.Replace the mass
air flow and intake
air temperature
sensor. FU(H4DOTC)-35,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>

EN(H4DOTC)-99
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
J: DTC P0102MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
 Erroneous idling
 Engine stalls.
 Poor driving performance

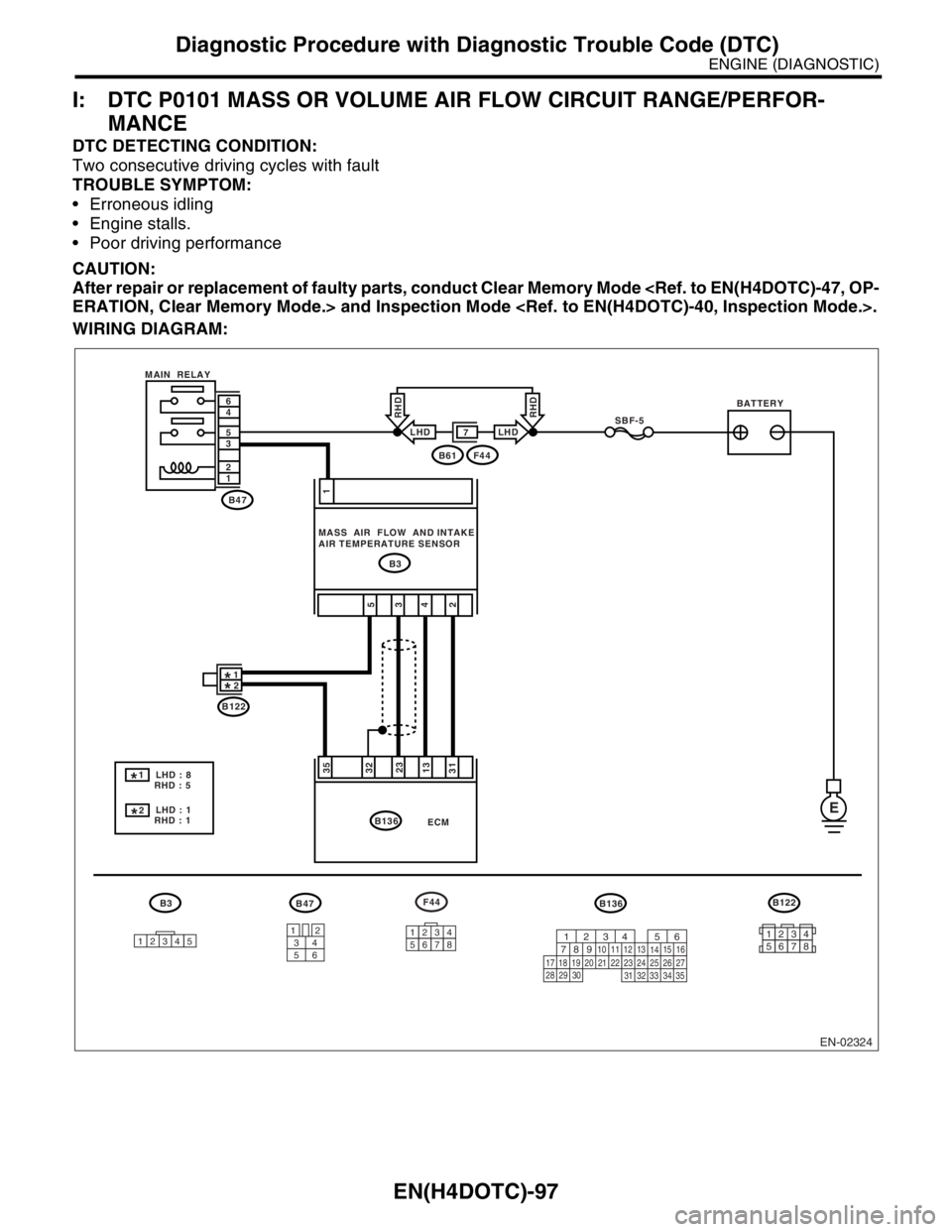

WIRING DIAGRAM:
EN-02324
B122B3
BATTERY
E
B61F44
7LHD
RHD
LHD
RHD
1
B3
MASS AIR FLOW AND INTAKE
AIR TEMPERATURE SENSOR
ECMB136
SBF-5
123453412
56
B47 1
2
*
*
2 4 3 5
311323 3532LHD : 8
RHD : 5
LHD : 1
RHD : 1*1
*2
F44
12345678
MAIN RELAY
B47 1 2 3 5 4 6
12345678
B136 B122
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35

EN(H4DOTC)-100
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CONNECT SUBARU SELECT MONITOR OR
THE OBD-II GENERAL SCAN TOOL, AND
READ DATA.
1) Turn the ignition switch to OFF.
2) Connect the Subaru Select Monitor or the
OBD-II general scan tool to data link connec-
tor.
3) Turn the ignition switch to ON and the Sub-
aru Select Monitor or OBD-II general scan tool
switch to ON.
4) Start the engine.
5) Connect the Subaru Select Monitor or
OBD-II general scan tool, and read the mass
air flow sensor voltage.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”. 33, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the voltage 0.2 — 4.7 V? Even if the mal-
function indicator
light illuminates,
the circuit has
returned to a nor-
mal condition at
this time.A tempo-
rary poor contact
of the connector or
harness may be
the cause.Repair
harness or con-
nector in the mass
air flow sensor.
NOTE:
In this case repair
the following:
 Open or ground
short circuit in har-
ness between
mass air flow sen-
sor and ECM con-
nector
 Poor contact in
mass air flow sen-
sor or ECM con-
nectorGo to step 2.
2 CHECK INPUT SIGNAL FROM ECM.
Measure the voltage between ECM connector
and chassis ground while engine is idling.
Connector & terminal
(B136) No. 23 (+) — Chassis ground (
−):Is the voltage more than 0.2 V? Go to step 4.Go to step 3.
3 CHECK INPUT SIGNAL FOR ECM (WITH
SUBARU SELECT MONITOR).
Measure the voltage between ECM connector
and chassis ground while engine is idling.Does the voltage change by
shaking the harness and con-
nector of ECM while monitor-
ing the value with Subaru
Select Monitor?Repair the poor
contact in ECM
connector.Contact the SUB-
ARU dealer.
N
OTE:
Inspection by DTM
is required, because
probable cause is
deterioration of mul-
tiple parts.
4 CHECK POWER SUPPLY TO MASS AIR
FLOW SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from mass air
flow sensor.
3) Turn the ignition switch to ON.
4) Measure voltage between mass air flow
sensor connector and chassis ground.
Connector & terminal
(B3) No. 1 (+) — Chassis ground (
−):Is the voltage more than 5 V? Go to step 5.Repair open circuit
between mass air
flow sensor and
main relay

EN(H4DOTC)-101
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
5 CHECK HARNESS BETWEEN ECM AND
MASS AIR FLOW SENSOR CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance of harness
between ECM and mass air flow sensor con-
nector.
Connector & terminal
(B136) No. 23 — (B3) No. 3:
(B136) No. 31 — (B3) No. 2:
(B135) No. 35 — (B3) No. 5:Is the resistance less than 1
Ω?Go to step 6.Repair open circuit
between ECM and
mass air flow sen-
sor connector.
6 CHECK HARNESS BETWEEN ECM AND
MASS AIR FLOW SENSOR CONNECTOR.
Measure the resistance of harness between
ECM and chassis ground.
Connector & terminal
(B136) No. 23 — Chassis ground:
(B136) No. 31 — Chassis ground:
(B135) No. 35 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 7.Repair ground
short circuit
between ECM and
mass air flow sen-
sor connector.
7 CHECK POOR CONTACT.
Check poor contact in mass air flow sensor
connector.Is there poor contact in mass
air flow sensor connector?Repair poor con-
tact in mass air
flow sensor con-
nector.Replace the mass
air flow and intake
air temperature
sensor. FU(H4DOTC)-35,
Mass Air Flow and
Intake Air Temper-
ature Sensor.> Step Check Yes No

EN(H4DOTC)-102
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
K: DTC P0103 MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
 Erroneous idling
 Engine stalls.
 Poor driving performance
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .

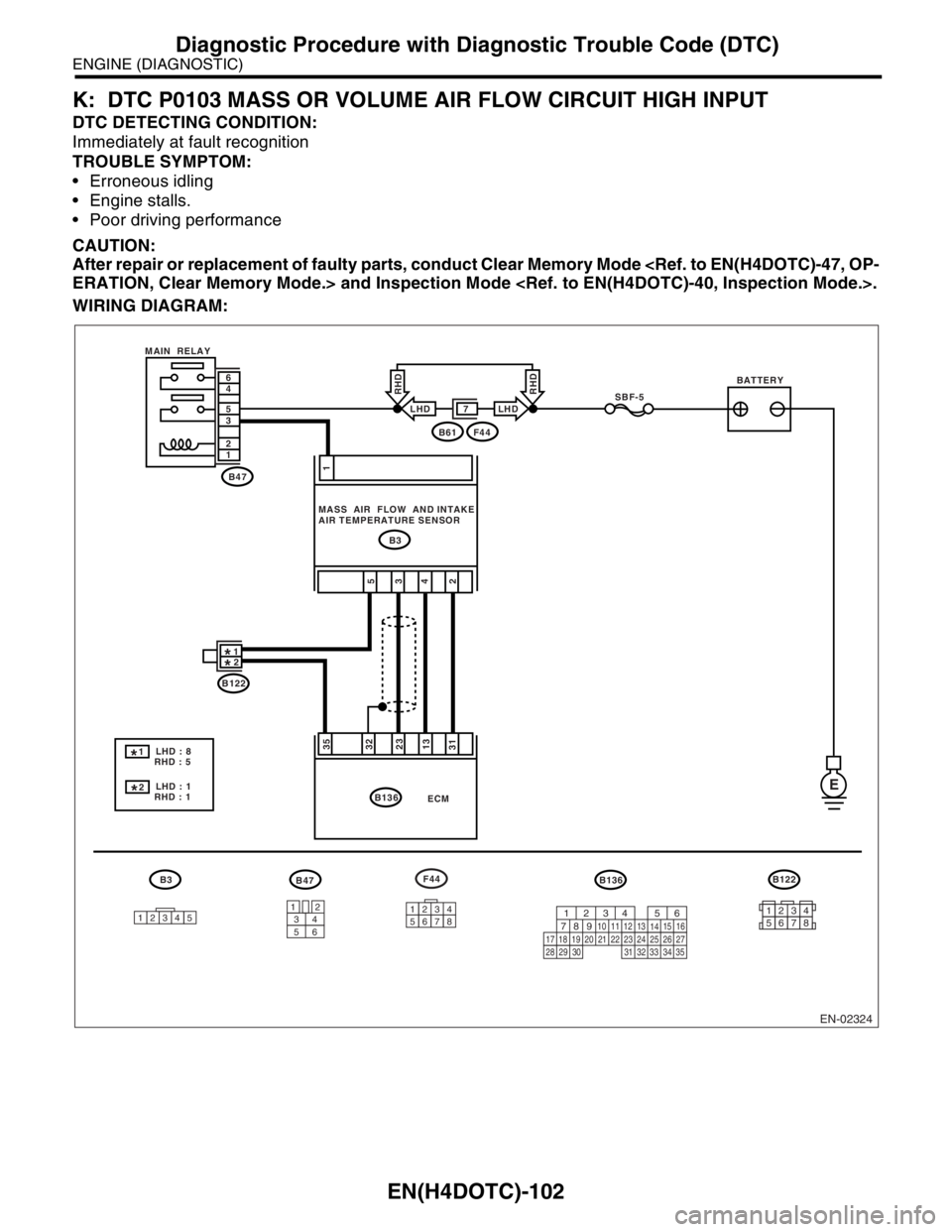

WIRING DIAGRAM:
EN-02324
B122B3
BATTERY
E
B61F44
7LHD
RHD
LHD
RHD
1
B3
MASS AIR FLOW AND INTAKE
AIR TEMPERATURE SENSOR
ECMB136
SBF-5
123453412
56
B47 1
2
*
*
2 4 3 5
311323 3532LHD : 8
RHD : 5
LHD : 1
RHD : 1*1
*2
F44
12345678
MAIN RELAY
B47 1 2 3 5 4 6
12345678
B136 B122
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35

EN(H4DOTC)-103
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CONNECT SUBARU SELECT MONITOR OR
THE OBD-II GENERAL SCAN TOOL, AND
READ DATA.
1) Turn the ignition switch to OFF.
2) Connect the Subaru Select Monitor or the
OBD-II general scan tool to data link connec-
tor.
3) Turn the ignition switch to ON and the Sub-
aru Select Monitor or OBD-II general scan tool
switch to ON.
4) Start the engine.
5) Connect the Subaru Select Monitor or
OBD-II general scan tool, and read the mass
air flow sensor voltage.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”. 33, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the voltage 0.2 — 4.7 V? Even if the mal-
function indicator
light illuminates,
the circuit has
returned to a nor-
mal condition at
this time.Go to step 2.
2 CHECK HARNESS BETWEEN ECM AND
MASS AIR FLOW SENSOR CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from mass air-
flow sensor.
3) Turn the ignition switch to ON.
4) Measure voltage between mass air flow
sensor connector and chassis ground.
Connector & terminal
(B3) No. 3 (+) — Chassis ground (
−):Is the voltage more than 5 V? Repair battery
short circuit in har-
ness between
mass air flow sen-
sor connector and
ECM connector. Go to step 3.
3 CHECK HARNESS BETWEEN ECM AND
MASS AIR FLOW SENSOR CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance of harness
between ECM connector and mass air flow
sensor connector.
Connector & terminal
(B3) No. 2 — (B136) No. 31:Is the resistance less than 1
Ω?Replace the mass
air flow sensor.
FU(H4DOTC)-35,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>Repair open circuit
in harness
between mass air
flow sensor con-
nector and ECM
connector.
