2004 SUBARU FORESTER relay

WW-19
WIPER AND WASHER SYSTEM
Wiper Control Relay
12.Wiper Control Relay
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the right quarter lower trim. 45, REMOVAL, Rear Quarter Trim.>
3) Loosen the nut to remove control unit.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Disconnect the connector from the wiper control
relay.
2) Connect the positive (+) lead from the battery to
terminal 8 and the negative (−) lead to terminal 6.
Connect the positive (+) lead from the voltmeter to
terminal 3 and the negative (−) lead to ground.3) Measure the voltage when the wiper relay is op-
erated.
If operation is not as specified, replace the switch.
WW-00034
WW-00035
2143
6587
(A) Switch position
(B) Voltage
(C) ON
(D) 12 V
(E) 0 V
(F) 9±2 sec.
WW-00055
(A) (B)
(C)(D)
(E)
(F)

COM-3
COMMUNICATION SYSTEM
Horn System
2. Horn System
A: WIRING DIAGRAM
1. HORN
tem.>
B: INSPECTION
1. HORN RELAY
Measure the horn relay resistance between termi-
nals (indicated in table below) when connecting ter-
minal No. 4 to battery positive terminal and terminal
No. 3 to battery negative terminal.
Current Terminal No. Standard
Flow
1 and 2Less than 1Ω
No Flow More than 1MΩ
COM00001
(1)
(2) (1)
(4)(2)
(3)
(3)(4)

GW-6
GLASS/WINDOW/MIRROR
Power Window System
2. Power Window System
A: WIRING DIAGRAM
1. POWER WINDOW

B: INSPECTION
Symptom Repair order
All power windows does not operate.(1) Fuse (SBF-6) (F/B No. 18)
(2) Power window circuit breaker
(3) Power window relay
(4) Wire harness
One window does not operate.(1) Power window main switch
(2) Power window sub switch
(3) Power window motor
(4) Wire harness
“Window Lock” does not operate. Power window main switch

GW-30
GLASS/WINDOW/MIRROR
Rear Window Defogger System
16.Rear Window Defogger System
A: WIRING DIAGRAM
1. REAR WINDOW DEFOGGER

B: INSPECTION
Symptom Repair order
Rear window defogger does not operate.(1) Fuse (M/B No. 1) (F/B No. 17)
(2) Rear defogger relay
(3) Rear defogger timer
(4) Defogger switch
(5) Rear defogger condenser
(6) Defogger wire
(7) Wiring harness

SL-16
SECURITY AND LOCK
Keyless Entry System
2. CHECK TRANSMITTER BATTERY
3. CHECK FUSE
The room light and ignition switch illu-
mination operation does not activate.1. Check the room light operation. LIGHT OPERATION, INSPECTION,
Keyless Entry System.>
2. Check the ignition switch illumination circuit. SWITCH ILLUMINATION CIRCUIT,
INSPECTION, Keyless Entry Sys-
tem.>
3. Replace the keyless entry control module.
(without double lock) Module.>
4. Replace the double lock module. (with double
lock) ule.>
Step Check Yes No
1 CHECK TRANSMITTER BATTERY.
1) Remove the battery from transmitter. to SL-41, REMOVAL, Keyless Transmitter.>
2) Check the battery voltage. INSPECTION, Keyless Transmitter.>
NOTE:
If the transmitter battery voltage is 2.5 V or less,
the range of transmission becomes very short.Is the voltage more than 2.5 V? If further inspec-
tion is necessary,
refer to “SYMP-
TOM CHART”.
SYMPTOM
CHART, INSPEC-
TION, Keyless
Entry System.>Replace the trans-
mitter battery.
Step Check Yes No
1 CHECK FUSE.
Remove and visually check the fuse No. 2 (in
the main fuse box), No. 3 (in the fuse and relay
box) and SBF-6 (in the main fuse box)Is the fuse blown out? Replace the fuse
with a new one.Check the power
supply and ground
circuit. SL-17, CHECK
POWER SUPPLY
AND GROUND
CIRCUIT,
INSPECTION,
Keyless Entry Sys-
tem.> Symptom Repair order Reference

SR-4
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
Sunroof Control System
2. Sunroof Control System
A: WIRING DIAGRAM
1. SUNROOF

B: INSPECTION
Symptom Checking order
Water leaks. (1) Check roof panel and sunroof lid for improper or poor sealing.
(2) Check drain tube for clogging.
(3) Check sunroof frame seal and body for improper fit.
Booming noise (1) Check sunroof lid and roof panel for improper clearance.
(2) Check sunshade and roof trim for improper clearance.
Abnormal motor noise (1) Check motor for looseness.
(2) Check gears and bearings for wear.
(3) Check cables for wear.
(4) Check cable pipe for deformities.
Failure of sunroof
(Motor operates properly.)(1) Check guide rail for foreign particles.
(2) Check guide rail for improper installation.
(3) Check parts for mutual interference.
(4) Check cable slider for improper clinching.
(5) Check cable for improper installation.
(6) Check clutch adjusting nut for improper tightness.
Motor does not rotate or rotates improperly. (1) Check fuse for blow-out.
(2) Check switch for improper function.
(3) Check motor for incorrect terminal voltage.
(4) Check relay for improper operation.
(5) Check poor grounding system.
(6) Check harness for open or short and terminals for poor connections.
(7) Check limit switch for improper operation.

CC(H4SO)-14
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK POWER SUPPLY.
1) Turn the ignition switch to OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Turn the ignition switch to ON.
4) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
(B94) No. 12 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2. Check the fuse
No. 18 (in fuse &
relay box).
 Check the har-
ness for open or
short between
cruise control
module and fuse &
relay box.
2 CHECK GROUND CIRCUIT.
1) Turn the ignition switch OFF.
2) Measure the resistance between harness
connector terminal and chassis ground.
Connector & terminal
(B94) No. 6 — Chassis ground:Is the resistance less than 10
Ω?Power supply and
ground circuit are
OK.Repair the har-
ness.

CC(H4SO)-15
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
C: CHECK CRUISE CONTROL MAIN SWITCH
TROUBLE SYMPTOM:
Cruise control main switch is not turned ON and cruise control cannot be set.
NOTE:
When the main relay (built-in cruise control module) operates, the main switch circuit is in normal condition.
The main relay operation can be checked by hearing the operation sound.
This operation sound will be heard when the ignition switch and cruise control main switch is turned to ON.

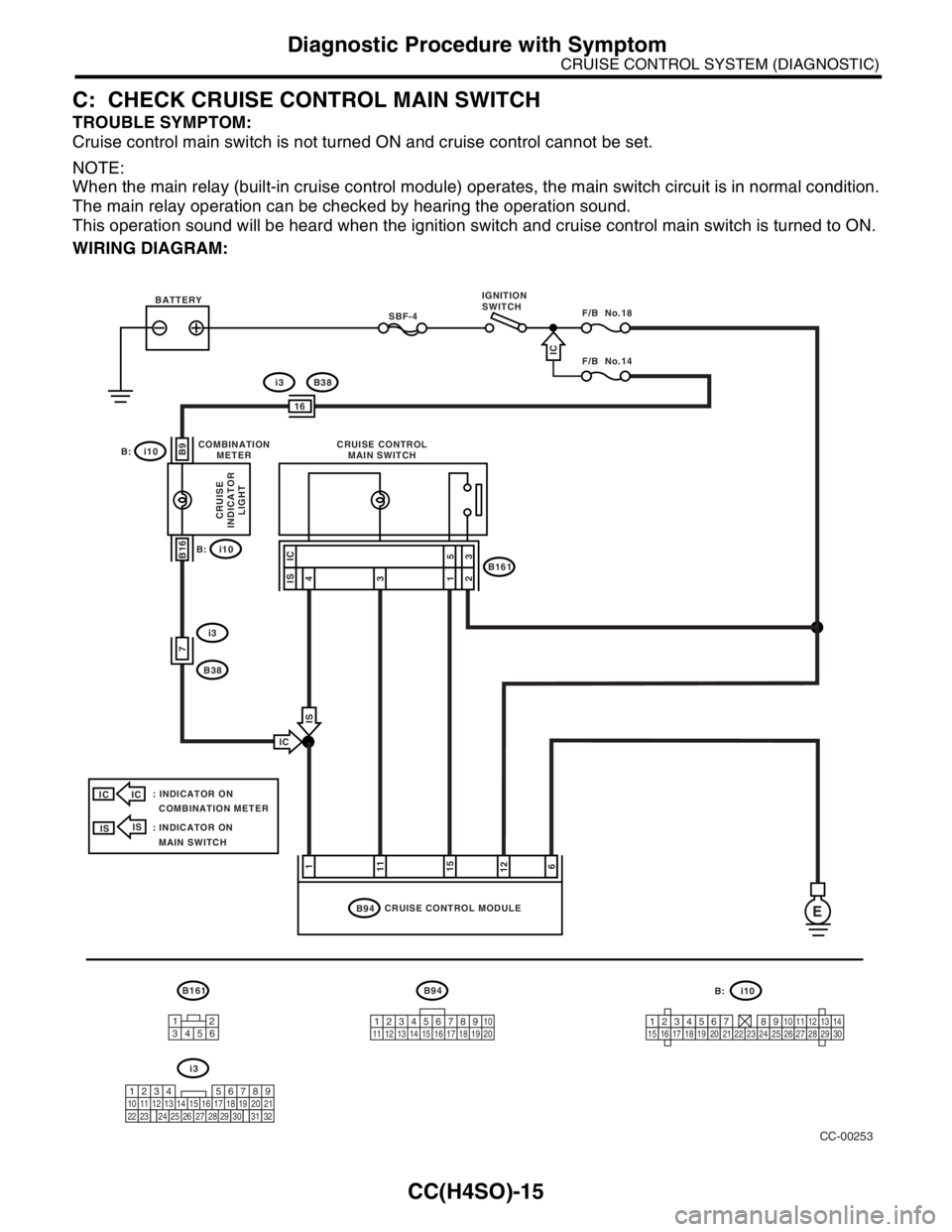

WIRING DIAGRAM:
CC-00253
B161
i3
i10 B:B94
12345678910
11 12 13 14 15 16 17 18 19 20
E
11115126
5
3
7
B16
B9
BATTERY
CRUISE CONTROL MODULE CRUISE CONTROL
MAIN SWITCH
CRUISE
INDICATOR
LIGHT
COMBINATION
METER
SBF-4F/B No.18
B94
B161
F/B No.14
IGNITION
SWITCH
i10
i3
B38
i3B38
B:
i10
B:
123456789101112131415161718192021222324252627282930
219
32
1234 5610 11 12 13 14 15716
23 3019 20
22 26 27 28 29817
24 3118
25
: INDICATOR ON
COMBINATION METER
4
3
1
2
IC
IS
ISIS
IC
IC
IC
IS
IC
: INDICATOR ON
MAIN SWITCH IS
16
12
3456
