2004 SUBARU FORESTER diagram

AB-62
AIRBAG SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
I: DTC 25
DIAGNOSIS:
 Airbag control module is faulty.
 Airbag main harness circuit is open.
 Fuse No. 6 (in joint box) is blown.
 Body harness circuit is open.
CAUTION:
 Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground cable from battery, and wait more than 20 seconds before starting to work.
 After replacing the airbag module, seat belt pretensioner, roll connector, control module or sensor,
reconnect each part and confirm that the airbag warning light operates properly.
 When inspecting the airbag main harness, disconnect the driver’s airbag module and passenger’s
airbag module connectors for safety reasons.
1. LHD MODEL
WIRING DIAGRAM:
AB-00624
AB3
AIRBAG CONTROL MODULEAB3
B31
AB1
AB1
2
5
BATTERY
IG SW
NO.6
B31
12
34561
23 45 61234567891011121314151617
1819202122232425262728

AB-64
AIRBAG SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)

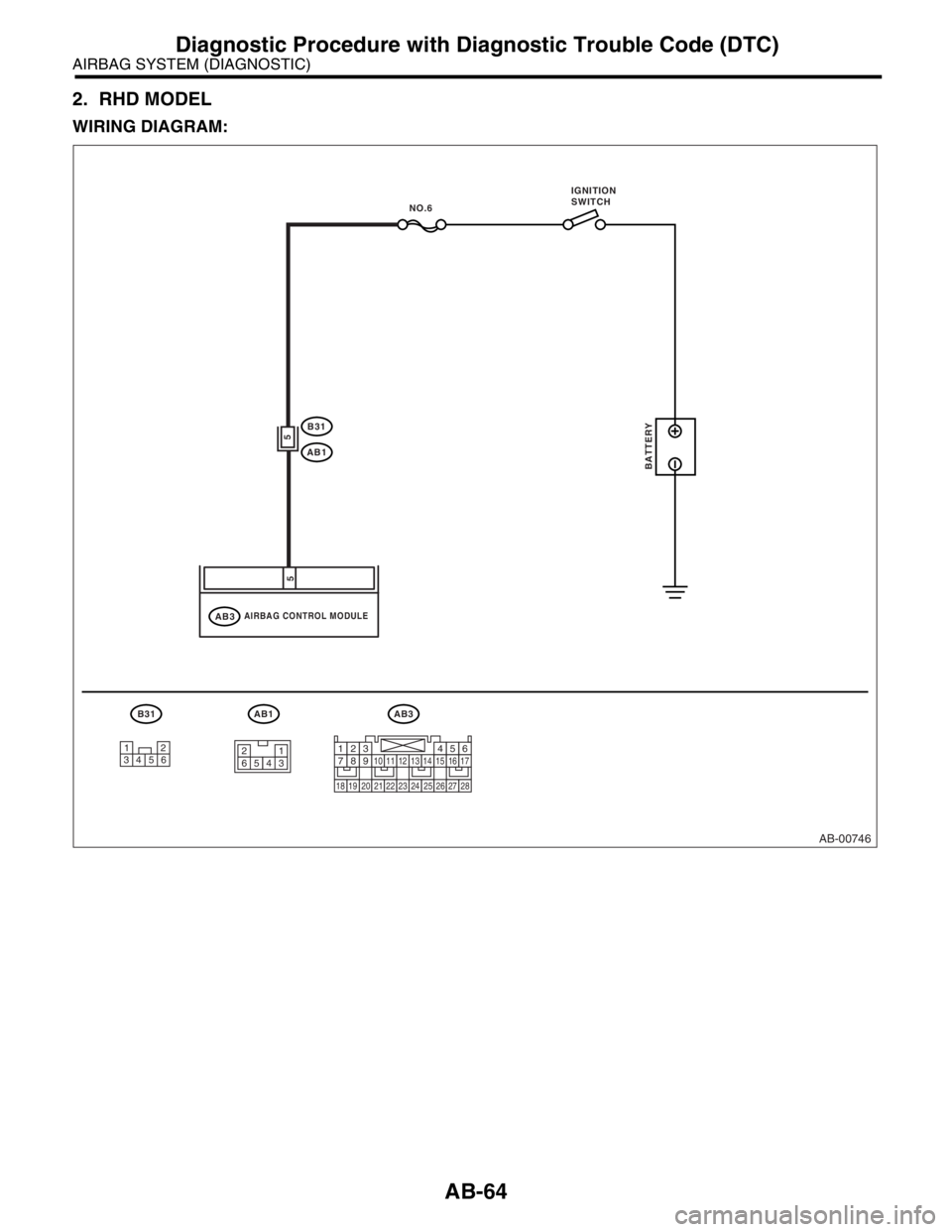

2. RHD MODEL
WIRING DIAGRAM:
AB-00746
AB3
AIRBAG CONTROL MODULEAB3
B31
AB1
AB1
5
5
BATTERY
NO.6
B31
12
34561
23 45 61234567891011121314151617
1819202122232425262728
IGNITION
SWITCH

AB-66
AIRBAG SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
J: DTC 31
DIAGNOSIS:
 Front sub-sensor harness circuit (RH) is shorted, open or shorted to power supply.
 Airbag main harness circuit is shorted, open or shorted to power supply.
 Front sub-sensor (RH) is faulty.
 Airbag control module is faulty.
CAUTION:
 Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground cable from battery, and wait more than 20 seconds before starting to work.
 After replacing the airbag module, seat belt pretensioner, roll connector, control module or sensor,
reconnect each part and confirm that the airbag warning light operates properly.
 When inspecting the airbag main harness, disconnect the driver’s airbag module and passenger’s
airbag module connectors for safety reasons.
WIRING DIAGRAM:
AB-00747
AB3
AB13
AB14
AB15
AB3
LHD
RHD
LHD
RHD
LHD
FRONT SUB SENSOR RH
209
21
RHD
LHDRHD
AB13AB15
1212
AIRBAG CONTROL MODULE
1
2
1234567891011121314151617
1819202122232425262728

AB-69
AIRBAG SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
K: DTC 32
DIAGNOSIS:
 Front sub-sensor harness circuit (LH) is shorted.is shorted, open or shorted to power supply.
 Airbag main harness circuit is shorted, open or shorted to power supply.
 Front sub-sensor (LH) is faulty.
 Airbag control module is faulty.
CAUTION:
 Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground cable from battery, and wait more than 20 seconds before starting to work.
 After replacing the airbag module, seat belt pretensioner, roll connector, control module or sensor,
reconnect each part and confirm that the airbag warning light operates properly
 When inspecting the airbag main harness, disconnect the driver’s airbag module and passenger’s
airbag module connectors for safety reasons.
WIRING DIAGRAM:
AB-00748
AB3
AB13
AB14
AB18
AB3
RHD
LHD
RHD
LHD
RHD
1526
1 2
21
LHD
RHDLHD
AB13AB18
1212
AIRBAG CONTROL MODULE
FRONT SUB SENSOR LH
1234567891011121314151617
1819202122232425262728

AB-72
AIRBAG SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
L: DTC 41
DIAGNOSIS:
 Side airbag harness (RH) is faulty.
 Side airbag module (RH) is faulty.
 Airbag control module is faulty.
CAUTION:
 Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground cable from battery, and wait more than 20 seconds before starting to work.
 After replacing the airbag module, seat belt pretensioner, roll connector, control module or sensor,
reconnect each part and confirm that the airbag warning light operates properly.
 When inspecting the airbag main harness, disconnect the driver’s airbag module and passenger’s
airbag module connectors for safety reasons.
 When inspecting the side airbag harness, disconnect the side airbag module connector and seat
belt pretensioner connector for the safety reasons.
WIRING DIAGRAM:
AB-00627
AIRBAG CONTROL MODULEAB8
SIDE AIRBAG
SENSOR RH
INFLATOR
(SIDE RH)
AB111 2
12AB12
12
109
7
3
4
1
2
AB8
123456
789101112
AB12
3412
AB11
12

AB-74
AIRBAG SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
M: DTC 42
DIAGNOSIS:
 Side airbag harness (LH) is faulty.
 Side airbag module (LH) is faulty.
 Airbag control module is faulty.
CAUTION:
 Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground cable from battery, and wait more than 20 seconds before starting to work.
 After replacing the airbag module, seat belt pretensioner, roll connector, control module or sensor,
reconnect each part and confirm that the airbag warning light operates properly.
 When inspecting the airbag main harness, disconnect the driver’s airbag module and passenger’s
airbag module connectors for safety reasons.
 When inspecting the side airbag harness, disconnect the side airbag module connector and seat
belt pretensioner connector for the safety reasons.
WIRING DIAGRAM:
AB-00628
AIRBAG CONTROL MODULEAB7
SIDE AIRBAG
SENSOR LH
INFLATOR
(SIDE LH)
AB1012
6 5AB9
12 10
9 7
3
4
1
2
AB10
3412
AB9
12
AB7
123456
789101112

AB-76
AIRBAG SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
N: DTC 45
DIAGNOSIS:
 Side airbag harness (RH) is shorted to power supply.
 Side airbag module (RH) is faulty.
 Airbag control module is faulty.
CAUTION:
 Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground cable from battery, and wait more than 20 seconds before starting to work.
 After replacing the airbag module, seat belt pretensioner, roll connector, control module or sensor,
reconnect each part and confirm that the airbag warning light operates properly.
 When inspecting the airbag main harness, disconnect the driver’s airbag module and passenger’s
airbag module connectors for safety reasons.
 When inspecting the side airbag harness, disconnect the side airbag module connector and seat
belt pretensioner connector for the safety reasons.
WIRING DIAGRAM:
AB-00627
AIRBAG CONTROL MODULEAB8
SIDE AIRBAG
SENSOR RH
INFLATOR
(SIDE RH)
AB111 2
12AB12
12
109
7
3
4
1
2
AB8
123456
789101112
AB12
3412
AB11
12

AB-78
AIRBAG SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
O: DTC 46
DIAGNOSIS:
 Side airbag harness (LH) is shorted to power supply.
 Side airbag module (LH) is faulty.
 Airbag control module is faulty.
CAUTION:
 Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground cable from battery, and wait more than 20 seconds before starting to work.
 After replacing the airbag module, seat belt pretensioner, roll connector, control module or sensor,
reconnect each part and confirm that the airbag warning light operates properly.
 When inspecting the airbag main harness, disconnect the driver’s airbag module and passenger’s
airbag module connectors for safety reasons.
 When inspecting the side airbag harness, disconnect the side airbag module connector and seat
belt pretensioner connector for the safety reasons.
WIRING DIAGRAM:
AB-00628
AIRBAG CONTROL MODULEAB7
SIDE AIRBAG
SENSOR LH
INFLATOR
(SIDE LH)
AB1012
6 5AB9
12 10
9 7
3
4
1
2
AB10
3412
AB9
12
AB7
123456
789101112
