EN(H4SO)-227
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BT:DTC P1134 A/F SENSOR MICRO-COMPUTER PROBLEM
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode tion Mode.>.

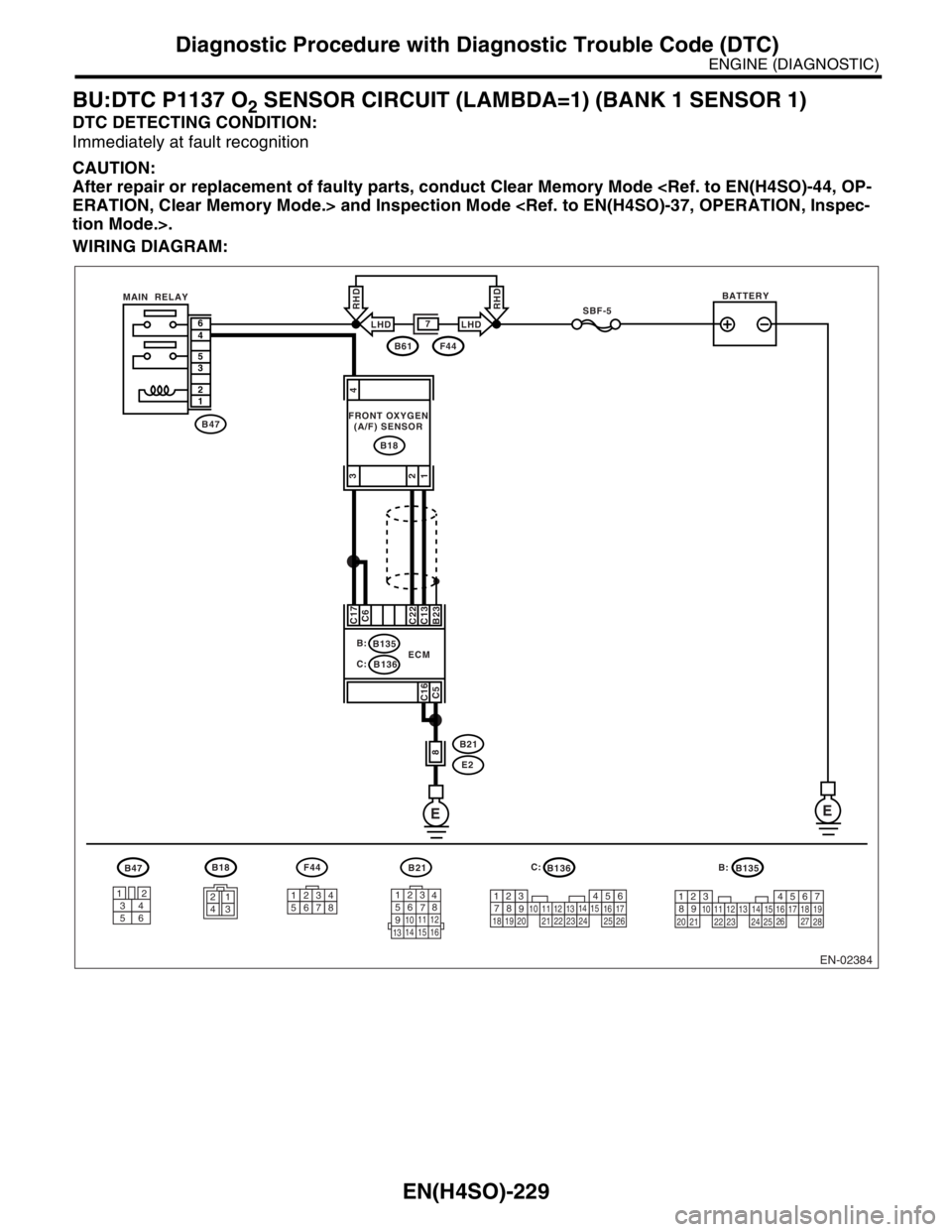

WIRING DIAGRAM:
EN-02384
B18
3412
56
B47F44
12345678
B136B135
1234
B21
123
4
56
78
9
1011 12
1314 15 16
SBF-5
EE
B47
B18
6
4
5
3
2
1
B23 C13
C22C6 C17
C16
C5
8
B:
C:B135
B136
B21
E2 ECMBATTERY
B61F44
7
FRONT OXYGEN
(A/F) SENSOR MAIN RELAY
567
82 1
94
310
24
22 23251112131415
26 27
281617181920 21
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
LHDLHD
RHDRHD
4
3
1 2
B: C:

EN(H4SO)-229
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BU:DTC P1137 O2 SENSOR CIRCUIT (LAMBDA=1) (BANK 1 SENSOR 1)
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode tion Mode.>.
WIRING DIAGRAM:
EN-02384
B18
3412
56
B47F44
12345678
B136B135
1234
B21
123
4
56
78
9
1011 12
1314 15 16
SBF-5
EE
B47
B18
6
4
5
3
2
1
B23 C13
C22C6 C17
C16
C5
8
B:
C:B135
B136
B21
E2 ECMBATTERY
B61F44
7
FRONT OXYGEN
(A/F) SENSOR MAIN RELAY
567
82 1
94
310
24
22 23251112131415
26 27
281617181920 21
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
LHDLHD
RHDRHD
4
3
1 2
B: C:

EN(H4SO)-230
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Inspect the DTC
using “List of Diag-
nostic Trouble
Code (DTC)”.
EN(H4SO)-72, List
of Diagnostic Trou-
ble Code (DTC).>Go to step 2.
2 CHECK FRONT (A/F) OXYGEN SENSOR DA-
TA.
1) Start the engine.
2) While observing the Subaru Select Monitor
or OBD-II general scan tool screen, warm-up
the engine until coolant temperature is above
70°C (160°F).
If the engine is already warmed-up, operate at
idle speed for at least 1 minute.
3) Read the data of front oxygen (A/F) sensor
signal at idling using Subaru Select Monitor or
OBD-II general scan tool.
NOTE:
 Subaru Select Monitor
For detailed operation procedure, refer to the
“READ CURRENT DATA FOR ENGINE”. to EN(H4SO)-29, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the voltage 0.85 — 1.15 V? Go to step 3.Go to step 4.
3 CHECK FRONT (A/F) OXYGEN SENSOR DA-
TA.
Race the engine at speeds from idling to 5,000
rpm for a total of 5 cycles.
N
OTE:
 Normally the air fuel ratio be rich at racing.
 To increase engine speed to 5,000 rpm,
slowly depress accelerator pedal, taking
approximately 5 seconds, and quickly release
accelerator pedal to decrease engine speed.Is the voltage more than 1.1 V? Go to step 6.Go to step 4.
4 CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
front oxygen (A/F) sensor connector.
3) Measure the resistance between ECM and
front oxygen (A/F) sensor.
Connector & terminal
(B136) No. 13 — (B18) No. 1:
(B136) No. 22 — (B18) No. 2:Is the resistance less than 5
Ω?Go to step 5.Repair open circuit
between ECM and
front oxygen (A/F)
sensor.
5 CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR.
Measure the resistance between ECM and
chassis ground.
Connector & terminal
(B136) No. 13 — Chassis ground:
(B136) No. 22 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 6.Repair ground
short circuit
between ECM and
front oxygen (A/F)
sensor.

EN(H4SO)-231
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
6 CHECK EXHAUST SYSTEM.
Check exhaust system parts.
N
OTE:
Check the following items:
 Loose installation of portions
 Damage (crack, hole etc.) of parts
 Looseness of front oxygen (A/F) sensor
 Looseness and ill fitting of parts between
front oxygen (A/F) sensor and rear oxygen
sensorIs there a fault in exhaust sys-
tem?Repair or replace
the faulty par t.Replace the front
oxygen (A/F) sen-
sor. FU(H4SO)-40,
Front Oxygen (A/
F) Sensor.> Step Check Yes No

EN(H4SO)-255
ENGINE (DIAGNOSTIC)
General Diagnostic Table
20.General Diagnostic Table
A: INSPECTION
1. ENGINE
NOTE:
Malfunction of parts other than those listed is also possible. eral.>
Symptom Problem parts
1. Engine stalls during idling.1) Idle air control solenoid valve
2) Manifold absolute pressure sensor
3) Intake air temperature sensor
4) Ignition parts (*1)
5) Engine coolant temperature sensor (*2)
6) Crankshaft position sensor (*3)
7) Camshaft position sensor (*3)
8) Fuel injection parts (*4)
2. Rough idling1) Idle air control solenoid valve
2) Manifold absolute pressure sensor
3) Intake air temperature sensor
4) Engine coolant temperature sensor (*2)
5) Ignition parts (*1)
6) Air intake system (*5)
7) Fuel injection parts (*4)
8) Throttle position sensor
9) Crankshaft position sensor (*3)
10) Camshaft position sensor (*3)
11) Oxygen sensor
12) Fuel pump and fuel pump relay
3. Engine does not return to idle.1) Idle air control solenoid valve
2) Engine coolant temperature sensor
3) Accelerator cable (*6)
4) Throttle position sensor
5) Manifold absolute pressure sensor
6) Intake air temperature sensor
4. Poor acceleration1) Manifold absolute pressure sensor
2) Intake air temperature sensor
3) Throttle position sensor
4) Fuel injection parts (*4)
5) Fuel pump and fuel pump relay
6) Engine coolant temperature sensor (*2)
7) Crankshaft position sensor (*3)
8) Camshaft position sensor (*3)
9) A/C switch and A/C cut relay
10) Engine torque control signal circuit
11) Ignition parts (*1)
5. Engine stalls or engine sags or hesitates at
acceleration.1) Manifold absolute pressure sensor
2) Intake air temperature sensor
3) Engine coolant temperature sensor (*2)
4) Crankshaft position sensor (*3)
5) Camshaft position sensor (*3)
6) Purge control solenoid valve
7) Fuel injection parts (*4)
8) Throttle position sensor
9) Fuel pump and fuel pump relay

EN(H4SO)-256
ENGINE (DIAGNOSTIC)
General Diagnostic Table
*1: Check ignition coil & ignitor ASSY and spark plug.
*2: Indicate the symptom occurring only in cold temperatures.
*3: Ensure the secure installation.
*4: Check fuel injector, fuel pressure regulator and fuel filter.
*5: Inspect air leak in air intake system.
*6: Adjust the accelerator cable.
2. AUTOMATIC TRANSMISSION
NOTE:
Check general diagnostics table with non-conformity symptom for automatic transmission. 4AT(H4SO)-2, Basic Diagnostic Procedure.>
6. Surging1) Intake manifold pressure sensor
2) Intake air temperature sensor
3) Manifold absolute pressure sensor
4) Engine coolant temperature sensor (*2)
5) Crankshaft position sensor (*3)
6) Camshaft position sensor (*3)
7) Fuel injection parts (*4)
8) Throttle position sensor
9) Fuel pump and fuel pump relay
7. Spark knock1) Intake manifold pressure sensor
2) Intake air temperature sensor
3) Manifold absolute pressure sensor
4) Engine coolant temperature sensor
5) Knock sensor
6) Fuel injection parts (*4)
7) Fuel pump and fuel pump relay
8. After burning in exhaust system1) Intake manifold pressure sensor
2) Intake air temperature sensor
3) Manifold absolute pressure sensor
4) Engine coolant temperature sensor (*2)
5) Fuel injection parts (*4)
6) Fuel pump and fuel pump relay Symptom Problem parts
