Luggage Compartment, Loadspace and Storage
225
Drawer underneath the right front seatThere is room for the fire extinguisher in the
drawer underneath the right front seat.
Opening
fLift the unlocking handle and pull out the
drawer.
Closing
fClose the drawer until it clicks audibly into
place.
Side storage compartments in the
luggage compartmentDepending on how the vehicle is equipped, there
is an additional storage option in the left-hand
storage compartment.
The intermediate base can be removed to
increase the size of the drawer.Opening the storage compartment
fPull off the cover on the handle recess.
Closing the storage compartment
fFirst, insert the cover at the bottom and then
close it until it clicks audibly into place.
Caution!
Risk of damage.
fBecause of the heat, the right-hand storage
compartment cannot be used as such in
vehicles that have air suspension with level control and height adjustment.
10_Cayenne_21_KW17.book Seite 225 Donnerstag, 9. April 2009 3:33 15

226
Luggage Compartment, Loadspace and Storage
CupholderYou can place drinks cans and cups in the cup-
holder.
fKeep the cupholder closed while driving.
Warning!
Risk of accident, scalding or damage due to
spilling drinks.
fOnly use cupholder when safe to do so it is.
fOnly use containers which fit.
fNever put overfull containers in the cupholder.
fNever place hot drinks in the cupholder.
Opening front cupholderfOpen shutter A (arrow).
Removing cupholder insertThe cupholder insert can be removed for cleaning.
Removing the insert makes an additional storage
tray available.
fOpen shutter A.
fPress together the cupholder insert at the two
engagement recesses B.
fRemove the cupholder insert.
10_Cayenne_21_KW17.book Seite 226 Donnerstag, 9. April 2009 3:33 15

Luggage Compartment, Loadspace and Storage
227
Opening rear cupholderfPress on the cover of the cupholder (arrow).Closing rear cupholderfClose and engage the cupholder.
AshtrayAshtray, front
Warning!
Danger of fire.
fNever use ashtray for waste paper disposal, as it could pose a fire hazard.
Opening
fPress ashtray lid briefly.Emptying
fMove unlocking button A to the right; the
ashtray insert pops out.
fOnce you have emptied the ashtray, replace
the insert and push it down until it clicks
audibly into place.
10_Cayenne_21_KW17.book Seite 227 Donnerstag, 9. April 2009 3:33 15

228
Luggage Compartment, Loadspace and Storage

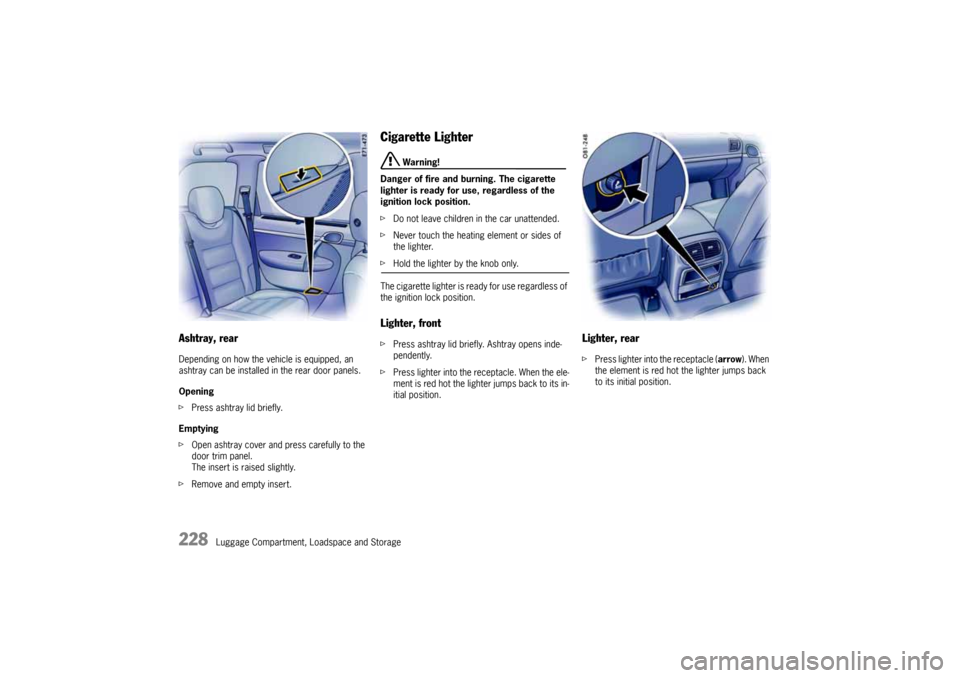

Ashtray, rearDepending on how the vehicle is equipped, an
