YOUR 607 IN DETAIL107
THE ALARM This provides two types of protec- tion, exterior and interior:
- exterior protection: when this is
set, the alarm sounds if a door, the boot or the bonnet is opened.
- interior protection: when this is set, the alarm sounds if the sen-sors detect a variation in the airmovement inside the vehicle(breaking of a window or a move-ment inside the vehicle).
Setting the alarm  Switch off the ignition and get outof the vehicle.
 Set the alarm within five minutesof getting out of the vehicle, bylocking or deadlocking using theremote control (button Bindicator
light flashes once per second). Note:
if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, the siren sounds and the direction indi-cators flash for thirty seconds. It then stops, but the alarm remains set.
Warning: if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inac-tive. Note: if button Bflashes rapidly, the
alarm has been triggered while you were away from your vehicle. Automatic activation* The alarm is activated automatically two minutes after the last closing of adoor or the boot. In order to avoid accidental triggering of the alarm when a door or the bootis opened, it is essential to press theremote control opening button first. Disarming Unlock the vehicle with the remote control key (button Bindicator light
goes out). Note: if the alarm has been triggered
while you were away from your car, the rapid flashing of the indicatorlight will stop when you switch on theignition To set the alarm with exteriorprotection only If, while you are away from the vehi- cle, you wish to leave a window par-tially open or a pet inside the vehicle,you should choose exterior protec-
tion only.
 Switch off the ignition
 In the next ten seconds, pressbutton Auntil indicator light Bis
on continuously.
 Get out of the vehicle.
 Set the alarm by locking or dead-locking using the remote control(button Bindicator light flashes
once a second).
Note: when the alarm is set but the
remote control does not operate:
 Unlock the doors with the key and
open the door. The alarm is trig-gered.
 Switch on the ignition in the next
ten seconds. The alarm is disar-med.
Incorrect operation When the ignition is switched on, if button Blights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked.
* According to destination.

02-02-2004
DOORS Opening the doors from outside Opening the doors from inside
YOUR 607 IN DETAIL
108
Locking / unlocking from the inside
Ð Using button
Aof the centre con-
sole : This allows the doors, the boot and the fuel filler flap to be locked orunlocked.
Ð Using button B on the door :
¥ on the front doors this allows the doors, the boot and the fuel fillerflap to be locked or unlocked.
¥ on the rear doors this allows the door concerned to be locked orunlocked.
Note : button Bis neutralised if the
vehicle is deadlocked.
' Door open' alert
With the ignition on (2nd notch), withthe engine running or when the vehicle is moving, if a door is not properly closed then the dooropen warning light comes on,accompanied by an audible signaland a diagram indicating the relevant
door on the multi-function display. Child safety This prevents either of the rear doors being opened from inside.
 Turn the switch a quarter of a turn
using the ignition key.

02-02-2004
YOUR 607 IN DETAIL109
Closing the boot lid Press the push button
Cto start
electric closing of the boot lid.Note: do not hinder closing of the
boot lid: any obstacle to closing causes the boot lid to stop and rise a
few centimetres automatically.
When opening or closing the boot,ensure that no-one is close to therear of the vehicle to avoid the risk
of injury.
To close the boot lid manually, useone of the two handles inside theboot lid.
'Boot open' warning With the ignition on (2nd notch), with the engine running or when thevehicle is moving, the door openwarning light comes on, accompa-nied by an audible signal and a dia-
gram on the multi-function display, ifthe boot is not properly closed. Stopping opening or closing of the boot lid While electric opening or closing of the boot lid is in progress, you canstop its movement at any time.
press the push-button Bor Con
the boot lid.
or
press button Aon the remote
control.
When it is stopped, the boot lid isheld in an intermediate position electrically for approximately 10 minutes. After this time, the system switches to standby and releases the boot lid. Note: to leave the intermediate
position, start an electric opening or closing operation or move the boot
lid manually.
THE MOTORISED BOOT Opening the boot
With the vehicle locked / deadlockedPress and hold
button Aof the
remote control key.
This action will also unlock the doors and the fuel filler flap.
Vehicle unlocked
Press and hold button Aof the
remote control key, or press and
hold push-button Bon the boot
lid.
Note: when the vehicle reaches a
speed of 6 mph (10 km/h), the boot locks and the push button Bis
disarmed. It is reactivated when
stationary, by opening a door.

02-02-2004
YOUR 607 IN DETAIL
110
BONNET Opening Pull the lever, located in the driver's footwell, downwards.
 Lift the catch and raise the bonnet.
Bonnet assister struts open the bon-net and keep it open. Closing
 Lower the bonnet and release it at the end of its travel.
 Check that it is locked.
'Bonnet open' warning With the ignition on (2nd notch), with the engine running or when thevehicle is moving, the door openwarning light comes on, accompa-nied by an audible signal and a dia-
gram on the multi-function display, ifthe bonnet is not properly closed.
¥ safety auto-reverse (on sliding only) When the sunroof is closing and meets an obstacle, it stops thenpartially opens again.
In the event of unwanted opening ofthe sunroof on closing, press part B
of the switch until the sunroof is fully
open. As soon as the sunroof stops,press part Aof the switch until the
sunroof is fully closed. The safety auto-reverse function is not operational during this ope-ration. Note: the sunroof shutter is manual.
Always remove the key from the ignition when leaving the vehicle, even fora short time.
In the event of contact when opera-ting the sunroof, you must reverse
the movement of the sunroof. To dothis, press the switch concerned. When the driver operates the sun- roof switch, he must ensure that noone is preventing correct closing ofthe sunroof. The driver must ensure that passengers use the electric sunroof
correctly. Be aware of children when operating the sunroof.
SUNROOF Control the sunroof:- manually: lightly press the switch;
the roof stops as soon as the switch is released.
- automatically: press the switch
down fully; the roof opens or closescompletely depending on where theswitch is pressed.
¥ to partially open the roof: press
part Aof the switch. To close it,
press part B of the switch.
¥ to open the roof completely:press part Bof the switch.
¥ to close it completely: press part
A of the switch.

YOUR 607 IN DETAIL113
Automatic switching on of the lights Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. Note :
in foggy weather, the bright-
ness sensor can detect sufficient
light. As a consequence, the lights
will not come on automatically. This function is active when the vehi-
cle is supplied to the customer.
To switch the function on or off:
 Place the key in the accessories position (1st notch),
 Change the stalk position to 0,
 Press the end of the stalk for morethan two seconds.
Note : after the ignition is switched
off and depending on the brightness,the lights remain on for approximate-ly thirty seconds or until the vehicle islocked. Do not cover the sunshine / brightness sensor located in thecentre of the fascia. It helps toregulate the air conditioning,automatic switching on of thelights and the automatic adjust-ment of the instrument panelbrightness. Operating check Activation
When this function is acti- vated, the indicator lightcomes on, accompanied byan audible signal.
The light also comes on as soon asthe driver changes the stalk positionto 0.
Neutralisation When neutralising the func-tion, the indicator lightcomes on, accompanied byan audible signal.
The indicator light also comes on assoon as the driver uses the manuallighting controls. If the sunshine / brightness sen-
sor does not function correctly,the system activates the function(the lights come on) and the dippedbeam headlamps indicator light onthe instrument panel flashes.
Contact a PEUGEOT dealer to have the system checked.
02-02-2004

YOUR 607 IN DETAIL113
Automatic switching on of the lights Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. Note :
in foggy weather, the bright-
ness sensor can detect sufficient
light. As a consequence, the lights
will not come on automatically. This function is active when the vehi-
cle is supplied to the customer.
To switch the function on or off:
 Place the key in the accessories position (1st notch),
 Change the stalk position to 0,
 Press the end of the stalk for morethan two seconds.
Note : after the ignition is switched
off and depending on the brightness,the lights remain on for approximate-ly thirty seconds or until the vehicle islocked. Do not cover the sunshine / brightness sensor located in thecentre of the fascia. It helps toregulate the air conditioning,automatic switching on of thelights and the automatic adjust-ment of the instrument panelbrightness. Operating check Activation
When this function is acti- vated, the indicator lightcomes on, accompanied byan audible signal.
The light also comes on as soon asthe driver changes the stalk positionto 0.
Neutralisation When neutralising the func-tion, the indicator lightcomes on, accompanied byan audible signal.
The indicator light also comes on assoon as the driver uses the manuallighting controls. If the sunshine / brightness sen-
sor does not function correctly,the system activates the function(the lights come on) and the dippedbeam headlamps indicator light onthe instrument panel flashes.
Contact a PEUGEOT dealer to have the system checked.
02-02-2004

02-02-2004

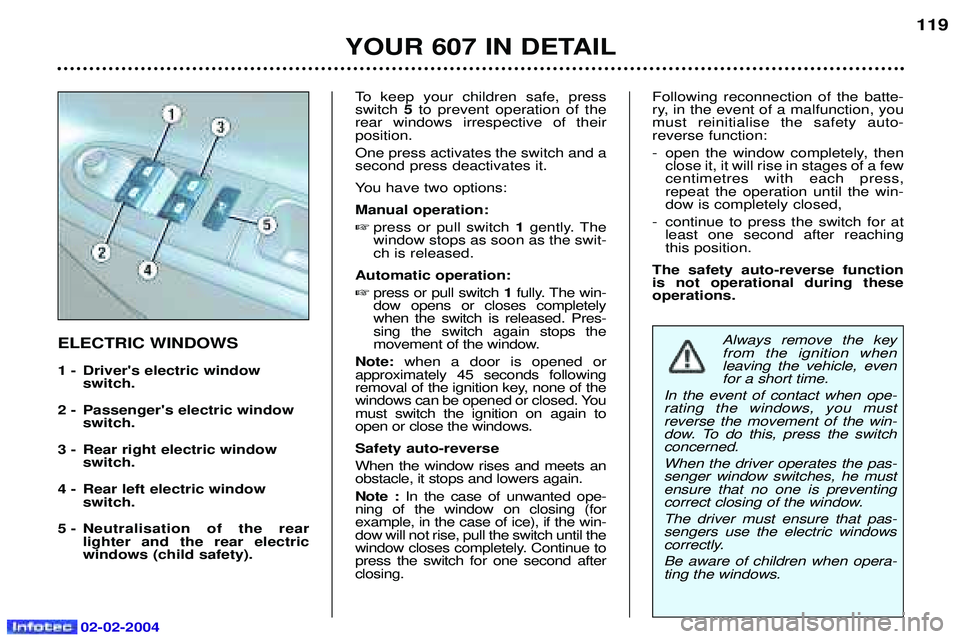

YOUR 607 IN DETAIL119
To keep your children safe, press switch
5to prevent operation of the
rear windows irrespective of theirposition. One press activates the switch and a second press deactivates it.
You have two options:Manual operation:
 press or pull switch 1gently. The
window stops as soon as the swit- ch is released.
Automatic operation:  press or pull switch 1fully. The win-
dow opens or closes completelywhen the switch is released. Pres-sing the switch again stops the
movement of the window.
Note: when a door is opened or
approximately 45 seconds following
removal of the ignition key, none of the
windows can be opened or closed. Youmust switch the ignition on again toopen or close the windows. Safety auto-reverse When the window rises and meets an obstacle, it stops and lowers again. Note : In the case of unwanted ope-
ning of the window on closing (for example, in the case of ice), if the win-dow will not rise, pull the switch until the
window closes completely. Continue topress the switch for one second afterclosing. Following reconnection of the batte-
ry, in the event of a malfunction, youmust reinitialise the safety auto-reverse function:
- open the window completely, then
close it, it will rise in stages of a few centimetres with each press,repeat the operation until the win-dow is completely closed,
- continue to press the switch for at least one second after reachingthis position.
The safety auto-reverse functionis not operational during theseoperations.
ELECTRIC WINDOWS
1 - Driver's electric window switch.
2 - Passenger's electric window switch.
3 - Rear right electric window switch.
4 - Rear left electric window switch.
5 - Neutralisation of the rear lighter and the rear electric windows (child safety).
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact when ope-rating the windows, you mustreverse the movement of the win-
dow. To do this, press the switchconcerned. When the driver operates the pas- senger window switches, he mustensure that no one is preventing
correct closing of the window. The driver must ensure that pas- sengers use the electric windows
correctly. Be aware of children when opera- ting the windows.

02-02-2004

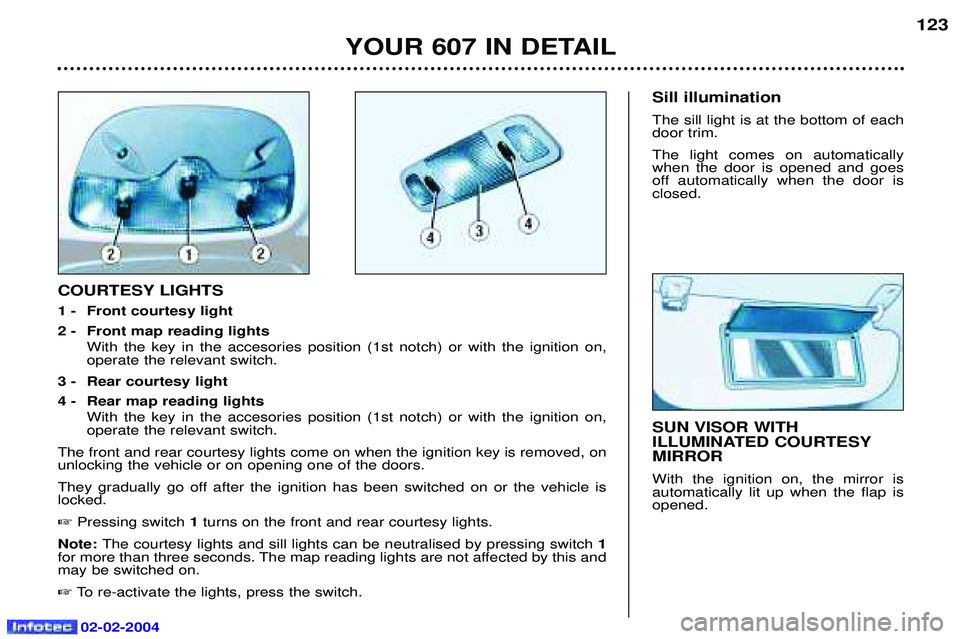

YOUR 607 IN DETAIL123
SUN VISOR WITH
ILLUMINATED COURTESYMIRROR With the ignition on, the mirror is automatically lit up when the flap isopened.
COURTESY LIGHTS
1 - Front courtesy light
2 - Front map reading lights
With the key in the accesories position (1st notch) or with the ignition on, operate the relevant switch.
3 - Rear courtesy light
4 - Rear map reading lights With the key in the accesories position (1st notch) or with the ignition on, operate the relevant switch.
The front and rear courtesy lights come on when the ignition key is removed, onunlocking the vehicle or on opening one of the doors.
They gradually go off after the ignition has been switched on or the vehicle is locked.  Pressing switch 1turns on the front and rear courtesy lights.
Note: The courtesy lights and sill lights can be neutralised by pressing switch 1
for more than three seconds. The map reading lights are not affected by this and may be switched on.  To re-activate the lights, press the switch. Sill illuminationThe sill light is at the bottom of each door trim. The light comes on automatically when the door is opened and goes
off automatically when the door isclosed.
