2004 NISSAN PATHFINDER Control

ENGINE
ModelVQ35DE
TypeGasoline, 4-cycle
Cylinder arrangement6-cylinder, V-slanted at 60°
Bore×Stroke in (mm) 3.760×3.205 (95.5×81.4)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order1-2-3-4-5-6
Idle speed rpm
See the “Emission control label” on the underside of the hood. Ignition timing (BTDC) degree/rpm
CO percentage at idle speed [No air] %
Spark plugPL FR5A-11 (Standard)
PL FR4A-11 (Service option)
PL FR6A-11 (Service option)
Spark plug gap in (mm) 0.043 (1.1)
Camshaft operationTiming chain
Alternator belt size
Width×Length in (mm) 0.8409×46.26 (21.36×1,175)
*1: Periodic maintenance is necessary. See “Periodic maintenance” in the “Service and Maintenance Guide” for maintenance intervals.
SPECIFICATIONS
Technical and consumer information
9-9


04.3.9/R50-D/V5


When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles can be operated with unleaded
gasoline. Therefore, avoid taking your ve-
hicle to areas where appropriate fuel is not
available.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(Chassis number)
STI0095
STI0227
WHENTRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION9-12
Technical and consumer information


04.3.9/R50-D/V5

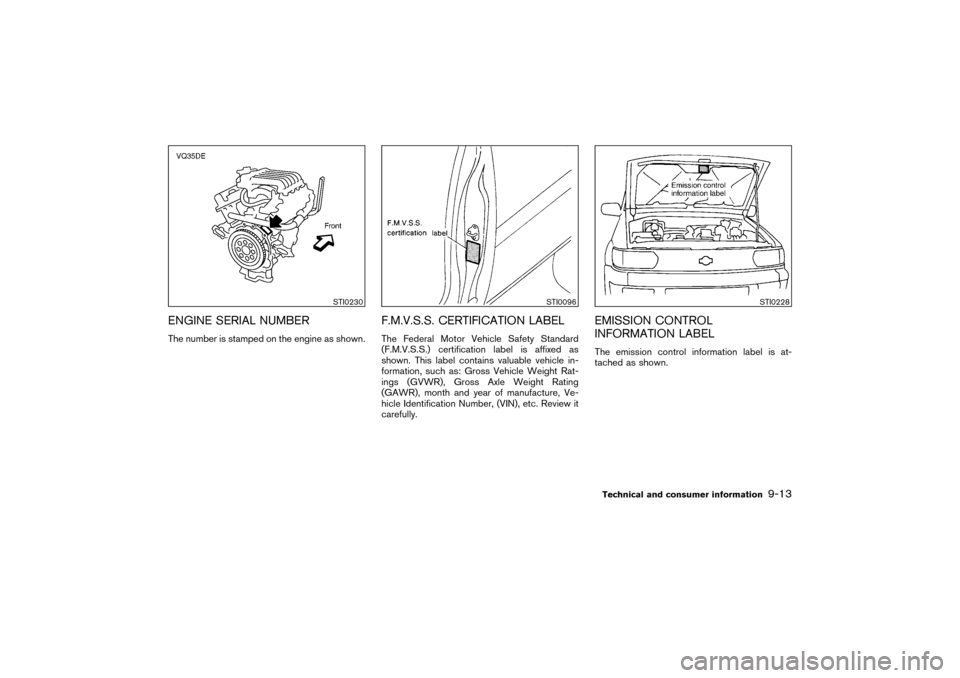

ENGINE SERIAL NUMBERThe number is stamped on the engine as shown.
F.M.V.S.S. CERTIFICATION LABELThe Federal Motor Vehicle Safety Standard
(F.M.V.S.S.) certification label is affixed as
shown. This label contains valuable vehicle in-
formation, such as: Gross Vehicle Weight Rat-
ings (GVWR), Gross Axle Weight Rating
(GAWR), month and year of manufacture, Ve-
hicle Identification Number, (VIN), etc. Review it
carefully.
EMISSION CONTROL
INFORMATION LABELThe emission control information label is at-
tached as shown.
STI0230
STI0096
STI0228
Technical and consumer information
9-13


04.3.9/R50-D/V5

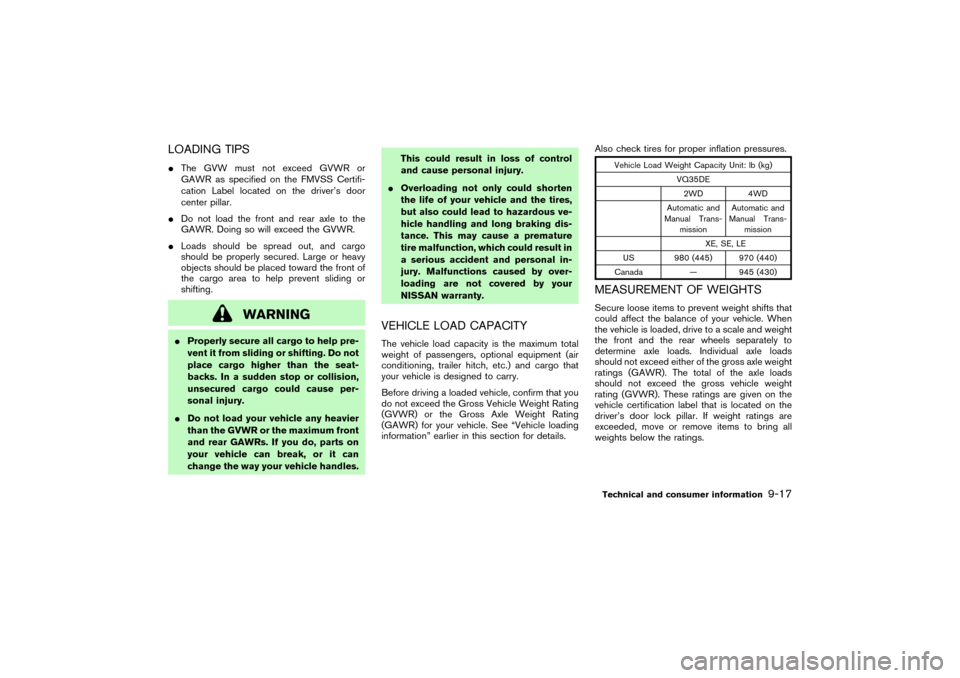

LOADING TIPS
The GVW must not exceed GVWR or
GAWR as specified on the FMVSS Certifi-
cation Label located on the driver’s door
center pillar.

Do not load the front and rear axle to the
GAWR. Doing so will exceed the GVWR.

Loads should be spread out, and cargo
should be properly secured. Large or heavy
objects should be placed toward the front of
the cargo area to help prevent sliding or
shifting.
WARNING

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts on
your vehicle can break, or it can
change the way your vehicle handles.This could result in loss of control
and cause personal injury.

Overloading not only could shorten
the life of your vehicle and the tires,
but also could lead to hazardous ve-
hicle handling and long braking dis-
tance. This may cause a premature
tire malfunction, which could result in
a serious accident and personal in-
jury. Malfunctions caused by over-
loading are not covered by your
NISSAN warranty.
VEHICLE LOAD CAPACITYThe vehicle load capacity is the maximum total
weight of passengers, optional equipment (air
conditioning, trailer hitch, etc.) and cargo that
your vehicle is designed to carry.
Before driving a loaded vehicle, confirm that you
do not exceed the Gross Vehicle Weight Rating
(GVWR) or the Gross Axle Weight Rating
(GAWR) for your vehicle. See “Vehicle loading
information” earlier in this section for details.Also check tires for proper inflation pressures.
Vehicle Load Weight Capacity Unit: lb(kg)
VQ35DE
2WD 4WD
Automatic and
Manual Trans-
missionAutomatic and
Manual Trans-
mission
XE, SE, LE
US 980 (445) 970 (440)
Canada — 945 (430)
MEASUREMENT OF WEIGHTSSecure loose items to prevent weight shifts that
could affect the balance of your vehicle. When
the vehicle is loaded, drive to a scale and weight
the front and the rear wheels separately to
determine axle loads. Individual axle loads
should not exceed either of the gross axle weight
ratings (GAWR). The total of the axle loads
should not exceed the gross vehicle weight
rating (GVWR). These ratings are given on the
vehicle certification label that is located on the
driver’s door lock pillar. If weight ratings are
exceeded, move or remove items to bring all
weights below the ratings.Technical and consumer information
9-17


04.3.9/R50-D/V5

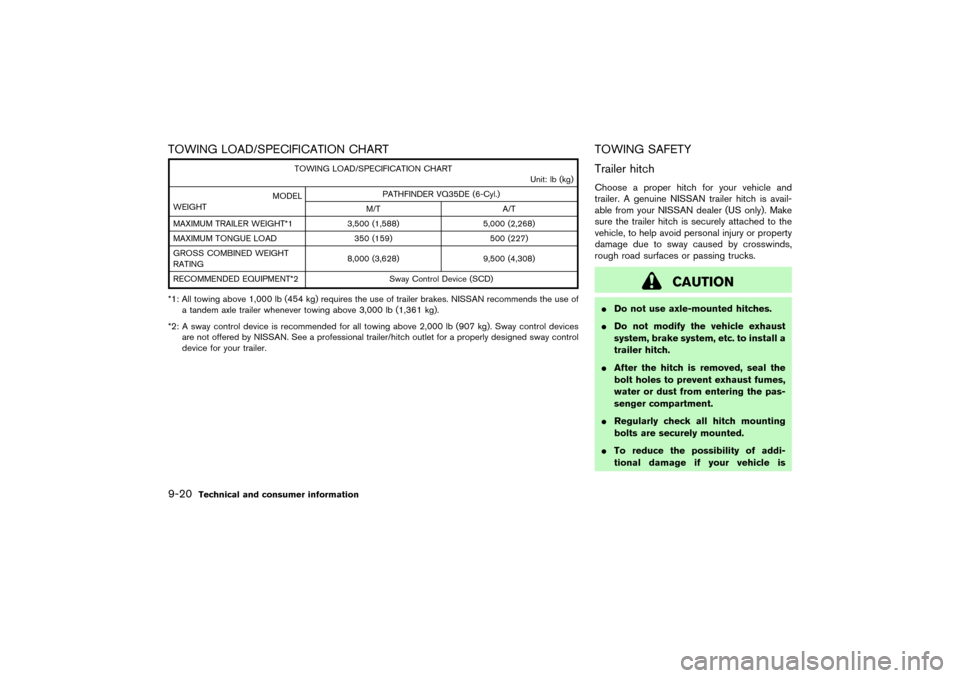

TOWING LOAD/SPECIFICATION CHART
TOWING LOAD/SPECIFICATION CHART
Unit: lb(kg)
MODEL
WEIGHTPATHFINDER VQ35DE (6-Cyl.)
M/T A/T
MAXIMUM TRAILER WEIGHT*1 3,500 (1,588) 5,000 (2,268)
MAXIMUM TONGUE LOAD 350 (159) 500 (227)
GROSS COMBINED WEIGHT
RATING8,000 (3,628) 9,500 (4,308)
RECOMMENDED EQUIPMENT*2 Sway Control Device (SCD)
*1: All towing above 1,000 lb (454 kg) requires the use of trailer brakes. NISSAN recommends the use of
a tandem axle trailer whenever towing above 3,000 lb (1,361 kg).
*2: A sway control device is recommended for all towing above 2,000 lb (907 kg). Sway control devices
are not offered by NISSAN. See a professional trailer/hitch outlet for a properly designed sway control
device for your trailer.
TOWING SAFETY
Trailer hitchChoose a proper hitch for your vehicle and
trailer. A genuine NISSAN trailer hitch is avail-
able from your NISSAN dealer (US only). Make
sure the trailer hitch is securely attached to the
vehicle, to help avoid personal injury or property
damage due to sway caused by crosswinds,
rough road surfaces or passing trucks.
CAUTION

Do not use axle-mounted hitches.

Do not modify the vehicle exhaust
system, brake system, etc. to install a
trailer hitch.

After the hitch is removed, seal the
bolt holes to prevent exhaust fumes,
water or dust from entering the pas-
senger compartment.

Regularly check all hitch mounting
bolts are securely mounted.

To reduce the possibility of addi-
tional damage if your vehicle is
9-20
Technical and consumer information


04.3.9/R50-D/V5

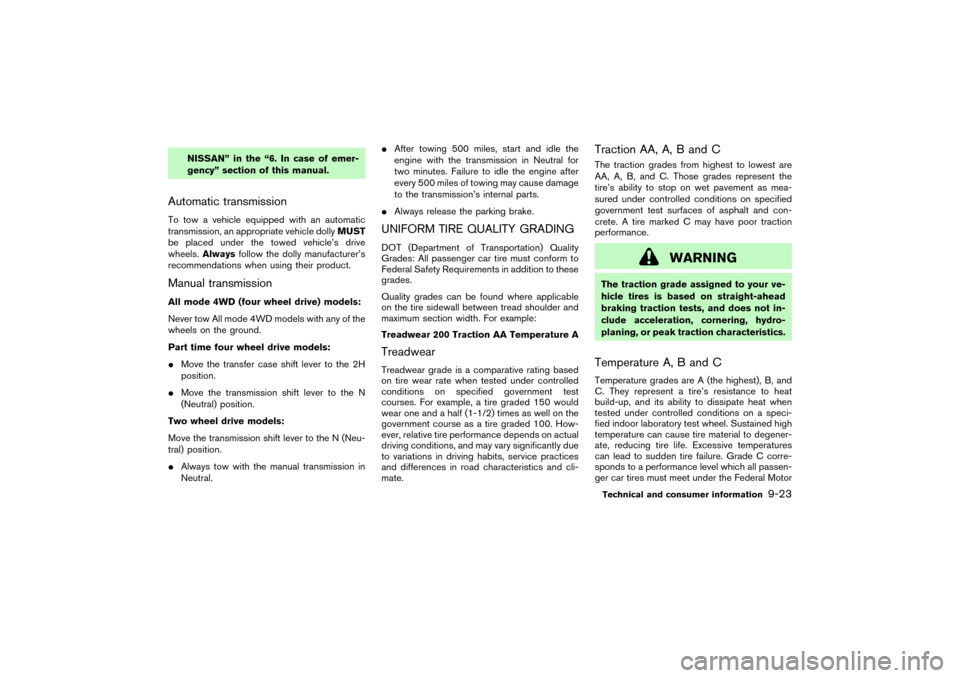

NISSAN” in the “6. In case of emer-
gency” section of this manual.
Automatic transmissionTo tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dollyMUST
be placed under the towed vehicle’s drive
wheels.Alwaysfollow the dolly manufacturer’s
recommendations when using their product.Manual transmissionAll mode 4WD (four wheel drive) models:
Never tow All mode 4WD models with any of the
wheels on the ground.
Part time four wheel drive models:

Move the transfer case shift lever to the 2H
position.

Move the transmission shift lever to the N
(Neutral) position.
Two wheel drive models:
Move the transmission shift lever to the N (Neu-
tral) position.

Always tow with the manual transmission in
Neutral.
After towing 500 miles, start and idle the
engine with the transmission in Neutral for
two minutes. Failure to idle the engine after
every 500 miles of towing may cause damage
to the transmission’s internal parts.

Always release the parking brake.
UNIFORM TIRE QUALITY GRADINGDOT (Department of Transportation) Quality
Grades: All passenger car tire must conform to
Federal Safety Requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature ATreadwearTreadwear grade is a comparative rating based
on tire wear rate when tested under controlled
conditions on specified government test
courses. For example, a tire graded 150 would
wear one and a half (1-1/2) times as well on the
government course as a tire graded 100. How-
ever, relative tire performance depends on actual
driving conditions, and may vary significantly due
to variations in driving habits, service practices
and differences in road characteristics and cli-
mate.
Traction AA, A, B and CThe traction grades from highest to lowest are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to your ve-
hicle tires is based on straight-ahead
braking traction tests, and does not in-
clude acceleration, cornering, hydro-
planing, or peak traction characteristics.Temperature A, B and CTemperature grades are A (the highest), B, and
C. They represent a tire’s resistance to heat
build-up, and its ability to dissipate heat when
tested under controlled conditions on a speci-
fied indoor laboratory test wheel. Sustained high
temperature can cause tire material to degener-
ate, reducing tire life. Excessive temperatures
can lead to sudden tire failure. Grade C corre-
sponds to a performance level which all passen-
ger car tires must meet under the Federal MotorTechnical and consumer information
9-23


04.3.9/R50-D/V5

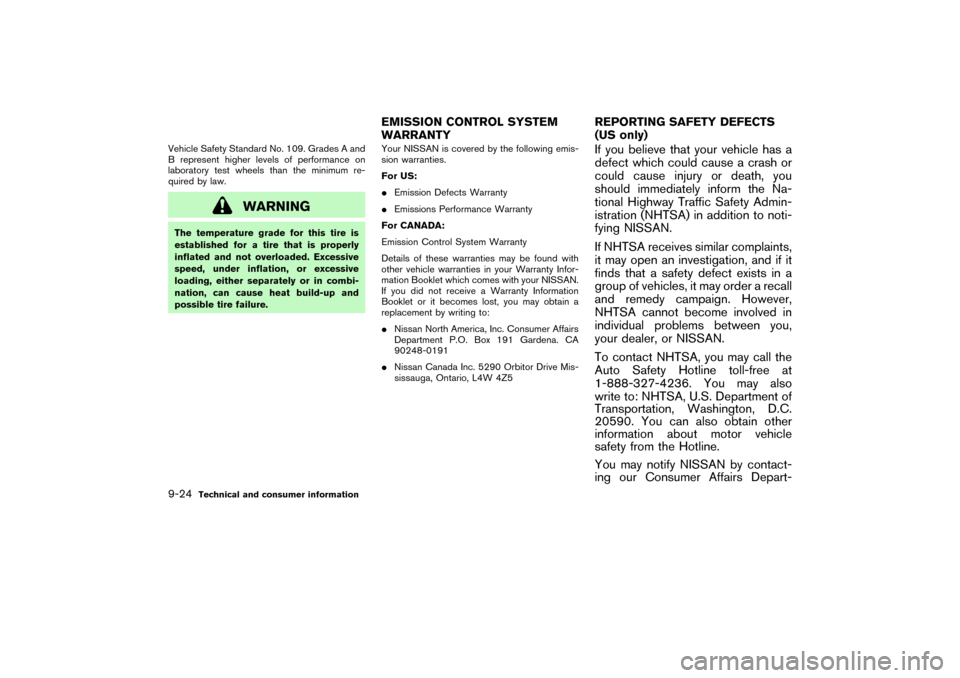

Vehicle Safety Standard No. 109. Grades A and
B represent higher levels of performance on
laboratory test wheels than the minimum re-
quired by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.Your NISSAN is covered by the following emis-
sion warranties.
For US:

Emission Defects Warranty

Emissions Performance Warranty
For CANADA:
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet which comes with your NISSAN.
If you did not receive a Warranty Information
Booklet or it becomes lost, you may obtain a
replacement by writing to:

Nissan North America, Inc. Consumer Affairs
Department P.O. Box 191 Gardena. CA
90248-0191

Nissan Canada Inc. 5290 Orbitor Drive Mis-
sissauga, Ontario, L4W 4Z5
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Admin-
istration (NHTSA) in addition to noti-
fying NISSAN.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer, or NISSAN.
To contact NHTSA, you may call the
Auto Safety Hotline toll-free at
1-888-327-4236. You may also
write to: NHTSA, U.S. Department of
Transportation, Washington, D.C.
20590. You can also obtain other
information about motor vehicle
safety from the Hotline.
You may notify NISSAN by contact-
ing our Consumer Affairs Depart-
EMISSIONCONTROL SYSTEM
WARRANTYREPORTING SAFETY DEFECTS
(US only)
9-24
Technical and consumer information


04.3.9/R50-D/V5


ment, toll-free, at 1-800-NISSAN-1
(1-800-647-7261). In Hawaii call
(808) 836-0888.
Due to legal requirements in some states/
areas, your vehicle may be required to be in what
is called the ready condition for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the ready condition when it
is driven through certain driving patterns. Usu-
ally, the ready condition can be obtained by
ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a not ready condition. Before taking the
I/M test, drive the vehicle through the following
pattern to set the vehicle to the ready condition.
If you cannot or do not want to perform the
driving pattern, a NISSAN dealer can conduct it
for you.
WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic
conditions, and obey all traffic laws.
1. Start the engine. Allow the engine to idle until
the engine coolant temperature gauge needle
points between the C and H (normal operat-
ing temperature).2. Accelerate the vehicle to 55 MPH (88 km/h),
then quickly release the accelerator pedal
completely and keep it released for at least 6
seconds.
3. Quickly depress the accelerator pedal for a
moment, then drive the vehicle at a speed of
53 to 60 MPH (86 to 96 km/h) for at least 5
minutes.
4. Stop the vehicle. Leave the engine running.
5. Accelerate the vehicle to 35 MPH (55 km/h)
and maintain the speed for 20 seconds.
6. Repeat steps 4 and 5 at least 3 times.
7. Accelerate the vehicle to 55 MPH (88 km/h)
and maintain the speed for at least 3 minutes.
8. Stop the vehicle. Place the transmission gear
shift lever in the “P” or “N” position.
9. Turn the engine off.
10.Repeat steps 1 through 8 at least one more
time.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed.READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US
only)
Technical and consumer information
9-25


04.3.9/R50-D/V5
