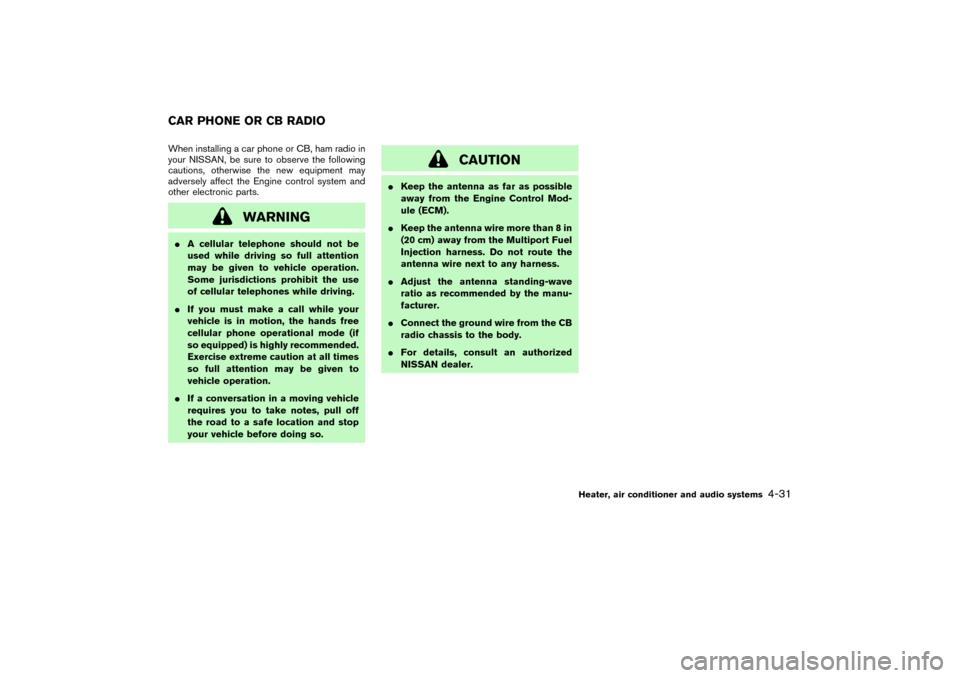

2004 NISSAN PATHFINDER Control

When installing a car phone or CB, ham radio in
your NISSAN, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the Engine control system and
other electronic parts.
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION

Keep the antenna as far as possible
away from the Engine Control Mod-
ule (ECM).

Keep the antenna wire more than 8 in
(20 cm) away from the Multiport Fuel
Injection harness. Do not route the
antenna wire next to any harness.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

Connect the ground wire from the CB
radio chassis to the body.

For details, consult an authorized
NISSAN dealer.
CAR PHONE OR CB RADIO
Heater, air conditioner and audio systems
4-31


04.3.9/R50-D/V5

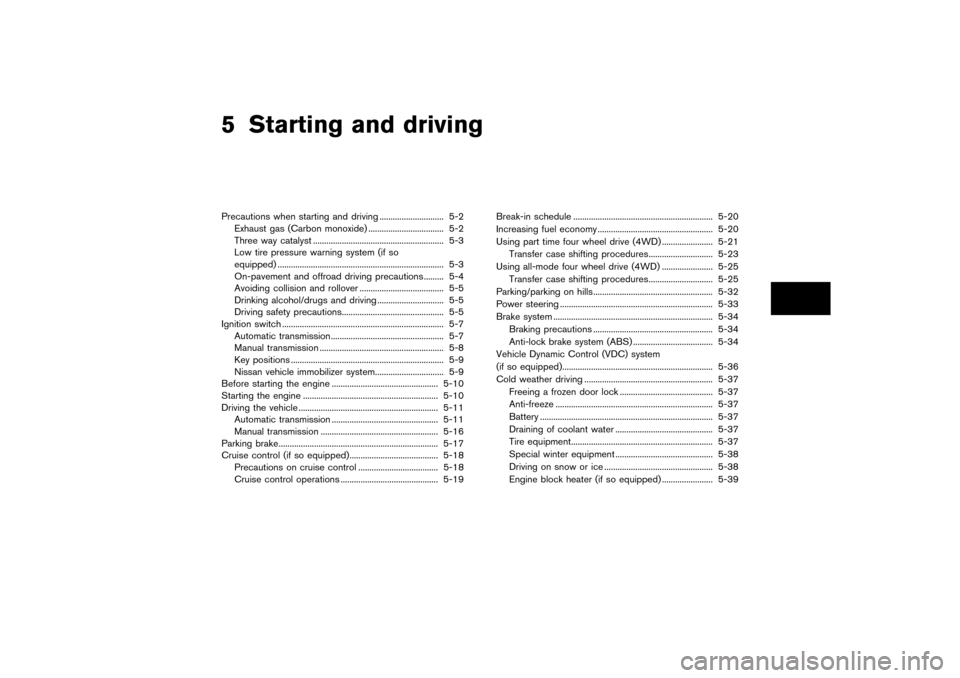

5 Starting and drivingPrecautions when starting and driving ............................. 5-2
Exhaust gas (Carbon monoxide) .................................. 5-2
Three way catalyst ........................................................... 5-3
Low tire pressure warning system (if so
equipped) ........................................................................... 5-3
On-pavement and offroad driving precautions ......... 5-4
Avoiding collision and rollover ...................................... 5-5
Drinking alcohol/drugs and driving .............................. 5-5
Driving safety precautions.............................................. 5-5
Ignition switch ......................................................................... 5-7
Automatic transmission................................................... 5-7
Manual transmission ........................................................ 5-8
Key positions ..................................................................... 5-9
Nissan vehicle immobilizer system............................... 5-9
Before starting the engine ................................................ 5-10
Starting the engine ............................................................. 5-10
Driving the vehicle ............................................................... 5-11
Automatic transmission ................................................ 5-11
Manual transmission ..................................................... 5-16
Parking brake........................................................................ 5-17
Cruise control (if so equipped)........................................ 5-18
Precautions on cruise control .................................... 5-18
Cruise control operations ............................................ 5-19Break-in schedule ............................................................... 5-20
Increasing fuel economy .................................................... 5-20
Using part time four wheel drive (4WD) ....................... 5-21
Transfer case shifting procedures............................. 5-23
Using all-mode four wheel drive (4WD) ....................... 5-25
Transfer case shifting procedures............................. 5-25
Parking/parking on hills...................................................... 5-32
Power steering ..................................................................... 5-33
Brake system ........................................................................ 5-34
Braking precautions ...................................................... 5-34
Anti-lock brake system (ABS) .................................... 5-34
Vehicle Dynamic Control (VDC) system
(if so equipped).................................................................... 5-36
Cold weather driving .......................................................... 5-37
Freeing a frozen door lock .......................................... 5-37
Anti-freeze ....................................................................... 5-37
Battery .............................................................................. 5-37
Draining of coolant water ............................................ 5-37
Tire equipment................................................................ 5-37
Special winter equipment ............................................ 5-38
Driving on snow or ice ................................................. 5-38
Engine block heater (if so equipped) ....................... 5-39


04.3.9/R50-D/V5

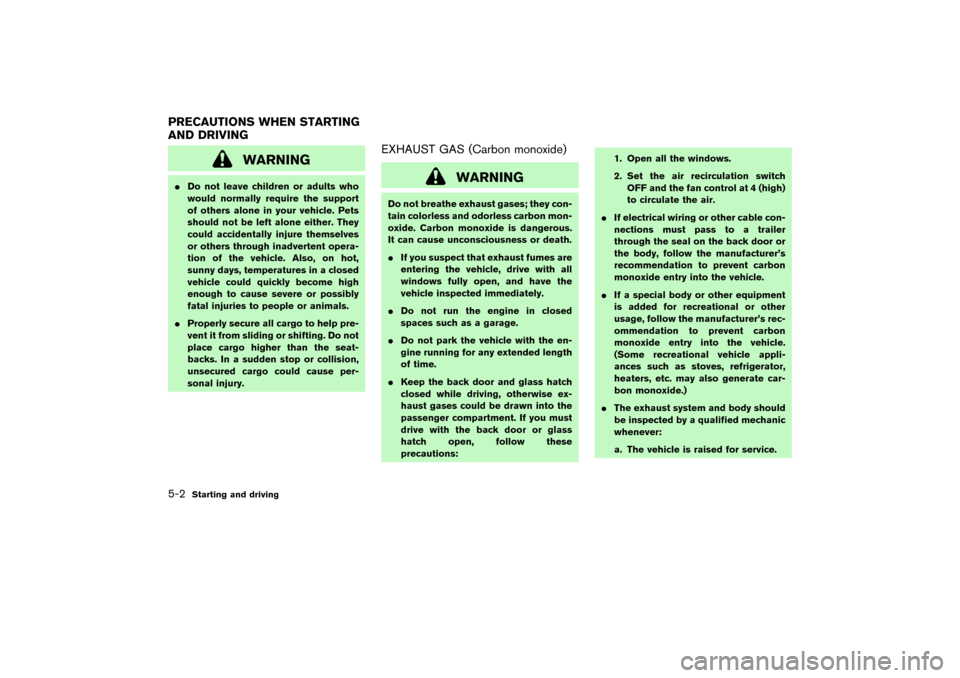

WARNING

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
EXHAUST GAS (Carbon monoxide)
WARNING
Do not breathe exhaust gases; they con-
tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous.
It can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

Do not run the engine in closed
spaces such as a garage.

Do not park the vehicle with the en-
gine running for any extended length
of time.

Keep the back door and glass hatch
closed while driving, otherwise ex-
haust gases could be drawn into the
passenger compartment. If you must
drive with the back door or glass
hatch open, follow these
precautions:1. Open all the windows.
2. Set the air recirculation switch
OFF and the fan control at 4 (high)
to circulate the air.

If electrical wiring or other cable con-
nections must pass to a trailer
through the seal on the back door or
the body, follow the manufacturer’s
recommendation to prevent carbon
monoxide entry into the vehicle.

If a special body or other equipment
is added for recreational or other
usage, follow the manufacturer’s rec-
ommendation to prevent carbon
monoxide entry into the vehicle.
(Some recreational vehicle appli-
ances such as stoves, refrigerator,
heaters, etc. may also generate car-
bon monoxide.)

The exhaust system and body should
be inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service.
PRECAUTIONS WHEN STARTING
AND DRIVING5-2
Starting and driving


04.3.9/R50-D/V5

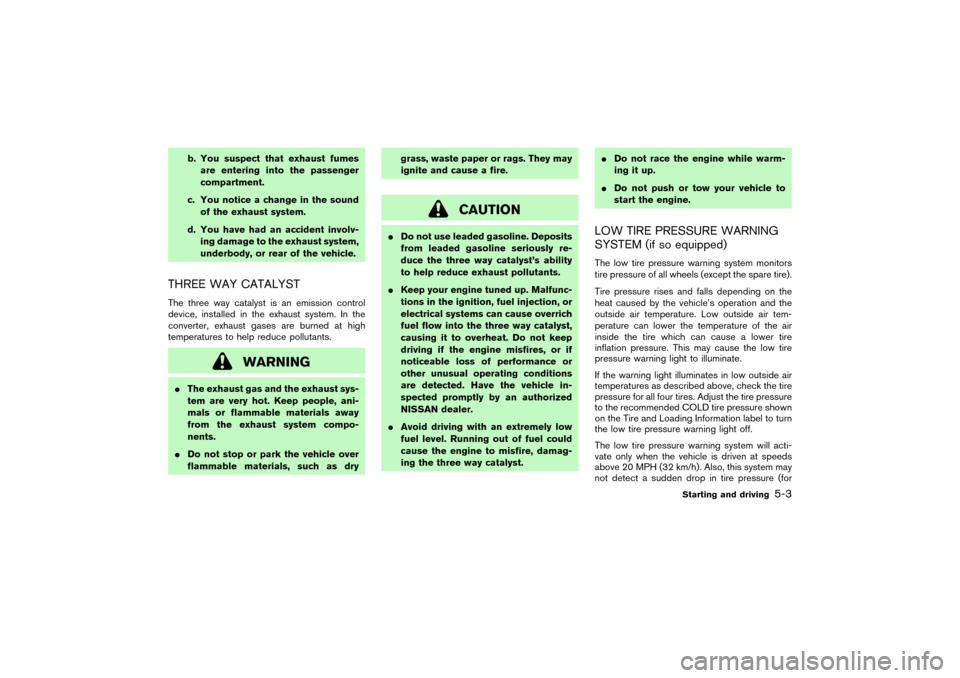

b. You suspect that exhaust fumes
are entering into the passenger
compartment.
c. You notice a change in the sound
of the exhaust system.
d. You have had an accident involv-
ing damage to the exhaust system,
underbody, or rear of the vehicle.
THREE WAY CATALYSTThe three way catalyst is an emission control
device, installed in the exhaust system. In the
converter, exhaust gases are burned at high
temperatures to help reduce pollutants.
WARNING

The exhaust gas and the exhaust sys-
tem are very hot. Keep people, ani-
mals or flammable materials away
from the exhaust system compo-
nents.

Do not stop or park the vehicle over
flammable materials, such as drygrass, waste paper or rags. They may
ignite and cause a fire.
CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline seriously re-
duce the three way catalyst’s ability
to help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly by an authorized
NISSAN dealer.

Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three way catalyst.
Do not race the engine while warm-
ing it up.

Do not push or tow your vehicle to
start the engine.
LOW TIRE PRESSURE WARNING
SYSTEM (if so equipped)The low tire pressure warning system monitors
tire pressure of all wheels (except the spare tire).
Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and the
outside air temperature. Low outside air tem-
perature can lower the temperature of the air
inside the tire which can cause a lower tire
inflation pressure. This may cause the low tire
pressure warning light to illuminate.
If the warning light illuminates in low outside air
temperatures as described above, check the tire
pressure for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure shown
on the Tire and Loading Information label to turn
the low tire pressure warning light off.
The low tire pressure warning system will acti-
vate only when the vehicle is driven at speeds
above 20 MPH (32 km/h). Also, this system may
not detect a sudden drop in tire pressure (for
Starting and driving
5-3


04.3.9/R50-D/V5

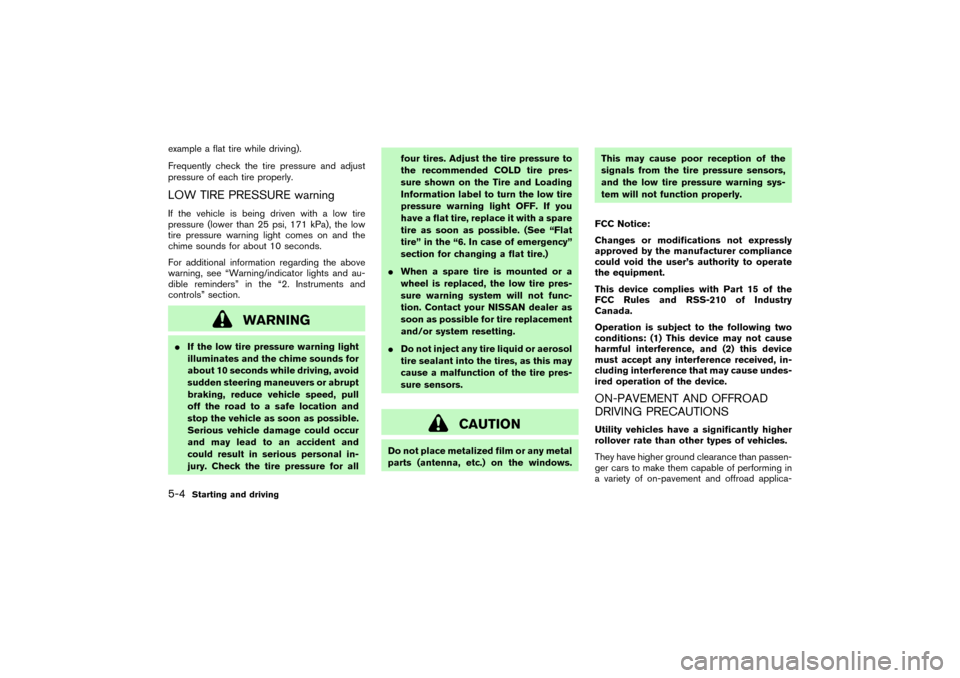

example a flat tire while driving).
Frequently check the tire pressure and adjust
pressure of each tire properly.LOW TIRE PRESSURE warningIf the vehicle is being driven with a low tire
pressure (lower than 25 psi, 171 kPa), the low
tire pressure warning light comes on and the
chime sounds for about 10 seconds.
For additional information regarding the above
warning, see “Warning/indicator lights and au-
dible reminders” in the “2. Instruments and
controls” section.
WARNING

If the low tire pressure warning light
illuminates and the chime sounds for
about 10 seconds while driving, avoid
sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for allfour tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If you
have a flat tire, replace it with a spare
tire as soon as possible. (See “Flat
tire” in the “6. In case of emergency”
section for changing a flat tire.)

When a spare tire is mounted or a
wheel is replaced, the low tire pres-
sure warning system will not func-
tion. Contact your NISSAN dealer as
soon as possible for tire replacement
and/or system resetting.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CAUTION
Do not place metalized film or any metal
parts (antenna, etc.) on the windows.This may cause poor reception of the
signals from the tire pressure sensors,
and the low tire pressure warning sys-
tem will not function properly.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliance
could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
ON-PAVEMENT AND OFFROAD
DRIVING PRECAUTIONSUtility vehicles have a significantly higher
rollover rate than other types of vehicles.
They have higher ground clearance than passen-
ger cars to make them capable of performing in
a variety of on-pavement and offroad applica-
5-4
Starting and driving


04.3.9/R50-D/V5


tions. This gives them a higher center of gravity
than ordinary cars. An advantage of higher
ground clearance is a better view of the road,
allowing you to anticipate problems. However,
they are not designed for cornering at the same
speeds as conventional two-wheel drive ve-
hicles any more than low-slung sports cars are
designed to perform satisfactorily under offroad
conditions. If at all possible, avoid sharp turns or
abrupt maneuvers, particularly at high speeds.
As with other vehicles of this type, failure to
operate this vehicle correctly may result in loss
of control or vehicle rollover.
Be sure to read the driving safety precautions
later in this section.AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle.Aswith any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways.Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness). Always
wear your seat belt as outlined in the “1. Seats,
restraints and supplemental air bag systems”
section of this manual, and also instruct your
passengers to do so. Seat belts help reduce the
risk of injury in collisions and rollovers.In a
rollover crash, an unbelted or improperly
belted person is significantly more likely to
be injured or killed than a person wearing
a seat belt.
DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alco-
hol or drugs. Alcohol in the bloodstream
reduces coordination, delays reaction
time and impairs judgement. Driving af-
ter drinking alcohol increases the likeli-hood of being involved in an accident
injuring yourself and others. Addition-
ally, if you are injured in the accident,
alcohol can increase the severity of the
injury.
Nissan is committed to safe driving. But, you
must choose not to drive under the influence of
alcohol. Every year thousands of people are
injured or killed in alcohol related accidents.
Although the local laws vary on what is consid-
ered to be legally intoxicated, the fact is that
alcohol affects all people differently and most
people underestimate the effects of alcohol.
Remember, drinking and driving don’t mix!
And that’s true for drugs too (over the counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired by
alcohol, drugs, or some other physical condition.
DRIVING SAFETY PRECAUTIONSYour NISSAN is designed for both normal and
offroad use. However, avoid driving in deep
water or mud as your NISSAN is mainly de-
signed for leisure use, unlike a conventional
offroad vehicle.
Remember that two wheel drive models are less
capable than four wheel drive models for rough
Starting and driving
5-5


04.3.9/R50-D/V5


road driving and extrication when stuck in deep
snow or mud, or the like.
Please observe the following precautions:
WARNING

Drive carefully when off the road and
avoid dangerous areas. Every person
who drives or rides in this vehicle
should be seated with their seat belt
fastened. This will keep you and your
passengers in position when driving
over rough terrain.

Before driving up or down grades,
check the road surface for bumps or
potholes. Be sure to climb a gentle
slope and descend a gentle slope.

Do not drive across steep slopes.
Instead drive either straight up or
straight down the slopes. Off-road
vehicles can tip over sideways much
more easily than they can forward or
backward.

Many hills are too steep for any ve-
hicle. If you drive up them, you maystall. If you drive down them, you may
not be able to control your speed. If
you drive across them, you may roll
over.

Do not shift gears while driving on
downhill grades as this could cause
loss of control of the vehicle.

Be sure to use the engine brake. The
foot brake performance may be re-
duced, resulting in a possible acci-
dent.

Stay alert when driving to the top of a
hill. At the top there could be a drop-
off or other hazard that could cause
an accident.

If your engine stalls or you cannot
make it to the top of a steep hill,
never attempt to turn around. Your
vehicle could tip or roll over. Always
back straight down in R (Reverse)
gear. Never back down in N (Neutral)
or with the clutch depressed (manual
transmission vehicles), using only the
brake, as this could cause loss of
control.
Heavy braking going down a hill
could cause your brakes to overheat
and fade, resulting in loss of control
and an accident. Apply brakes lightly
and use a low gear to control your
speed.

Unsecured cargo can be thrown
around when driving over rough ter-
rain. Properly secure all cargo so it
will not be thrown forward and cause
injury to you or your passengers.

To avoid raising the center of gravity
excessively, do not exceed the rated
capacity of the roof rack and evenly
distribute the load. Secure heavy
loads in the cargo area as far forward
and as low as possible. Do not equip
the vehicle with tires larger than
specified in this manual. This could
cause your vehicle to roll over.

Do not grip the inside or spokes of
the steering wheel when driving of-
froad. The steering wheel could move
suddenly and injure your hands. In-
stead drive with your fingers and5-6
Starting and driving


04.3.9/R50-D/V5


thumbs on the outside of the rim.

Before operating the vehicle, ensure
that the driver and all passengers
have their seat belts fastened.

Always drive with the floor mats in
place as the floor may become hot.

Lower your speed when encountering
strong crosswinds. With a higher
center of gravity, your NISSAN is
more affected by strong side winds.
Slower speeds ensure better vehicle
control.

Do not drive beyond the performance
of the tires, even with 4WD engaged.
Accelerating quickly, sharp steering
maneuvers or sudden braking may
cause loss of control.

If at all possible, avoid sharp turning
maneuvers, particularly at high
speeds. Your NISSAN four wheel
drive vehicle has a higher center of
gravity than a two wheel drive ve-
hicle. The vehicle is not designed for
cornering at the same speeds as con-ventional two wheel drive vehicles.
Failure to operate this vehicle cor-
rectly could result in loss of control
and/or a roll over accident.

Always use tires of the same type,
size, brand, construction (bias, bias-
belted or radial), and tread pattern on
all four wheels. Install tire chains on
the rear wheels when driving on slip-
pery roads and drive carefully.

Be sure to check the brakes immedi-
ately after driving in mud or water.
See “Brake system” later in this sec-
tion for wet brakes.

Avoid parking your vehicle on steep
hills. If you get out of the vehicle and
it rolls forward, backward or side-
ways, you could be injured.

Whenever you drive off-road through
sand, mud or water as deep as the
wheel hub, more frequent mainte-
nance may be required. See “Peri-
odic maintenance” in the “Service
and Maintenance Guide”.
AUTOMATIC TRANSMISSIONOn automatic transmission models, the ignition
lock is designed so that the key cannot be
turned to LOCK and removed until the selector
lever is moved to the P (Park) position.
When removing the key from the ignition, make
sure the selector lever is in the P (Park) position.
If the selector lever is not returned to P (Park),
the key cannot be moved toward LOCK.
When the key cannot be turned toward the
LOCK position, proceed as follows to remove
the key:
SSD0083
IGNITION SWITCH
Starting and driving
5-7


04.3.9/R50-D/V5
