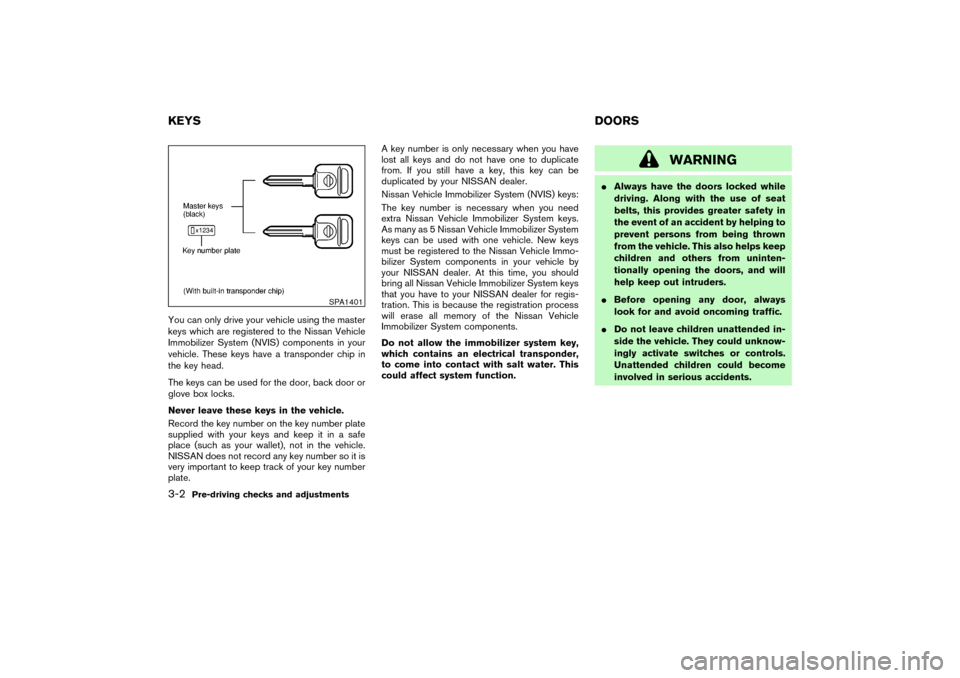

2004 NISSAN PATHFINDER Control

You can only drive your vehicle using the master
keys which are registered to the Nissan Vehicle
Immobilizer System (NVIS) components in your
vehicle. These keys have a transponder chip in
the key head.
The keys can be used for the door, back door or
glove box locks.
Never leave these keys in the vehicle.
Record the key number on the key number plate
supplied with your keys and keep it in a safe
place (such as your wallet), not in the vehicle.
NISSAN does not record any key number so it is
very important to keep track of your key number
plate.A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by your NISSAN dealer.
Nissan Vehicle Immobilizer System (NVIS) keys:
The key number is necessary when you need
extra Nissan Vehicle Immobilizer System keys.
As many as 5 Nissan Vehicle Immobilizer System
keys can be used with one vehicle. New keys
must be registered to the Nissan Vehicle Immo-
bilizer System components in your vehicle by
your NISSAN dealer. At this time, you should
bring all Nissan Vehicle Immobilizer System keys
that you have to your NISSAN dealer for regis-
tration. This is because the registration process
will erase all memory of the Nissan Vehicle
Immobilizer System components.
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with salt water. This
could affect system function.
WARNING

Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.

Before opening any door, always
look for and avoid oncoming traffic.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
SPA1401
KEYSDOORS3-2
Pre-driving checks and adjustments


04.3.9/R50-D/V5

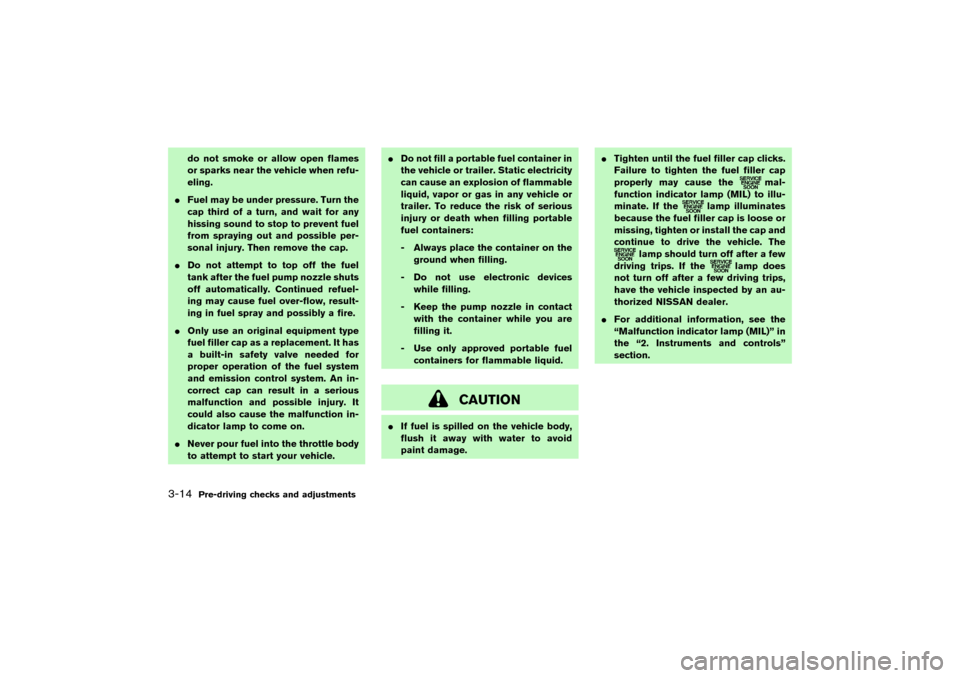

do not smoke or allow open flames
or sparks near the vehicle when refu-
eling.

Fuel may be under pressure. Turn the
cap third of a turn, and wait for any
hissing sound to stop to prevent fuel
from spraying out and possible per-
sonal injury. Then remove the cap.

Do not attempt to top off the fuel
tank after the fuel pump nozzle shuts
off automatically. Continued refuel-
ing may cause fuel over-flow, result-
ing in fuel spray and possibly a fire.

Only use an original equipment type
fuel filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious
malfunction and possible injury. It
could also cause the malfunction in-
dicator lamp to come on.

Never pour fuel into the throttle body
to attempt to start your vehicle.
Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
- Always place the container on the
ground when filling.
- Do not use electronic devices
while filling.
- Keep the pump nozzle in contact
with the container while you are
filling it.
- Use only approved portable fuel
containers for flammable liquid.
CAUTION

If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.
Tighten until the fuel filler cap clicks.
Failure to tighten the fuel filler cap
properly may cause the
mal-
function indicator lamp (MIL) to illu-
minate. If the
lamp illuminates
because the fuel filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
lamp should turn off after a few
driving trips. If the
lamp does
not turn off after a few driving trips,
have the vehicle inspected by an au-
thorized NISSAN dealer.

For additional information, see the
“Malfunction indicator lamp (MIL)” in
the “2. Instruments and controls”
section.
3-14
Pre-driving checks and adjustments


04.3.9/R50-D/V5

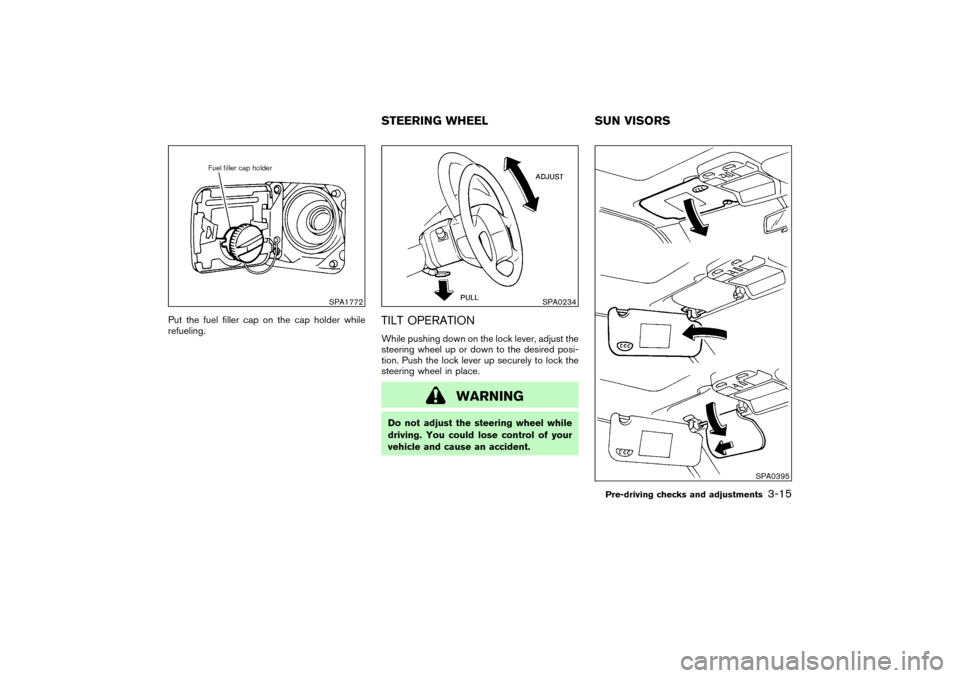

Put the fuel filler cap on the cap holder while
refueling.
TILT OPERATIONWhile pushing down on the lock lever, adjust the
steering wheel up or down to the desired posi-
tion. Push the lock lever up securely to lock the
steering wheel in place.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
SPA1772
SPA0234
SPA0395
STEERING WHEEL SUN VISORS
Pre-driving checks and adjustments
3-15


04.3.9/R50-D/V5

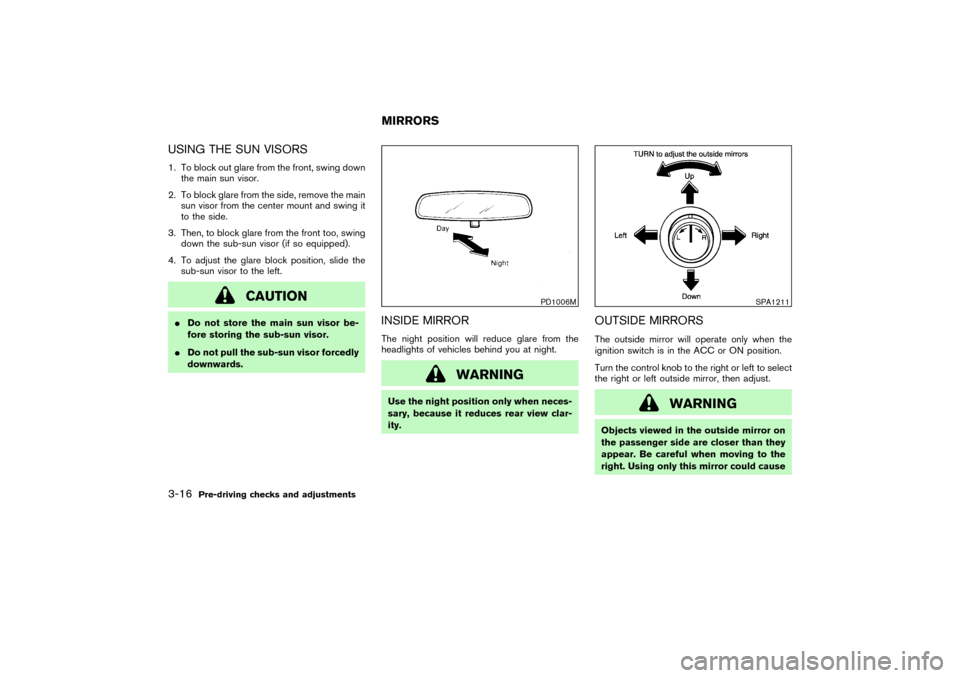

USING THE SUN VISORS1. To block out glare from the front, swing down
the main sun visor.
2. To block glare from the side, remove the main
sun visor from the center mount and swing it
to the side.
3. Then, to block glare from the front too, swing
down the sub-sun visor (if so equipped).
4. To adjust the glare block position, slide the
sub-sun visor to the left.
CAUTION

Do not store the main sun visor be-
fore storing the sub-sun visor.

Do not pull the sub-sun visor forcedly
downwards.
INSIDE MIRRORThe night position will reduce glare from the
headlights of vehicles behind you at night.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clar-
ity.
OUTSIDE MIRRORSThe outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the control knobto the right or left to select
the right or left outside mirror, then adjust.
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
PD1006M
SPA1211
MIRRORS
3-16
Pre-driving checks and adjustments


04.3.9/R50-D/V5

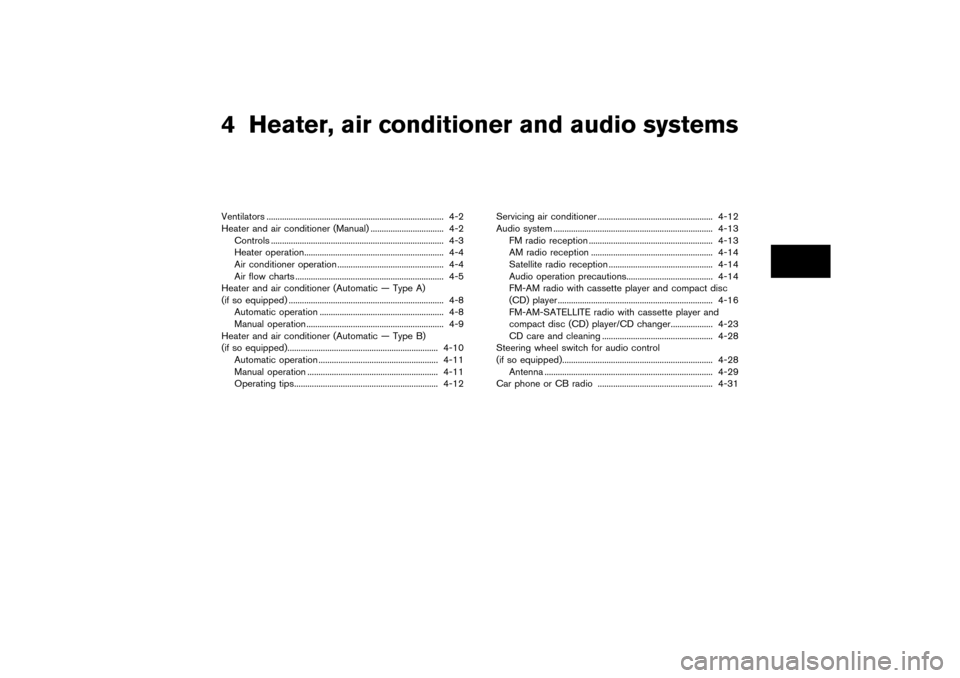

4 Heater, air conditioner and audio systemsVentilators ................................................................................ 4-2
Heater and air conditioner (Manual) ................................. 4-2
Controls .............................................................................. 4-3
Heater operation............................................................... 4-4
Air conditioner operation ................................................ 4-4
Air flow charts ................................................................... 4-5
Heater and air conditioner (Automatic — Type A)
(if so equipped) ...................................................................... 4-8
Automatic operation ........................................................ 4-8
Manual operation .............................................................. 4-9
Heater and air conditioner (Automatic — Type B)
(if so equipped).................................................................... 4-10
Automatic operation ...................................................... 4-11
Manual operation ........................................................... 4-11
Operating tips................................................................. 4-12Servicing air conditioner .................................................... 4-12
Audio system ........................................................................ 4-13
FM radio reception ........................................................ 4-13
AM radio reception ....................................................... 4-14
Satellite radio reception ............................................... 4-14
Audio operation precautions....................................... 4-14
FM-AM radio with cassette player and compact disc
(CD) player ...................................................................... 4-16
FM-AM-SATELLITE radio with cassette player and
compact disc (CD) player/CD changer................... 4-23
CD care and cleaning .................................................. 4-28
Steering wheel switch for audio control
(if so equipped).................................................................... 4-28
Antenna ............................................................................ 4-29
Car phone or CB radio .................................................... 4-31


04.3.9/R50-D/V5

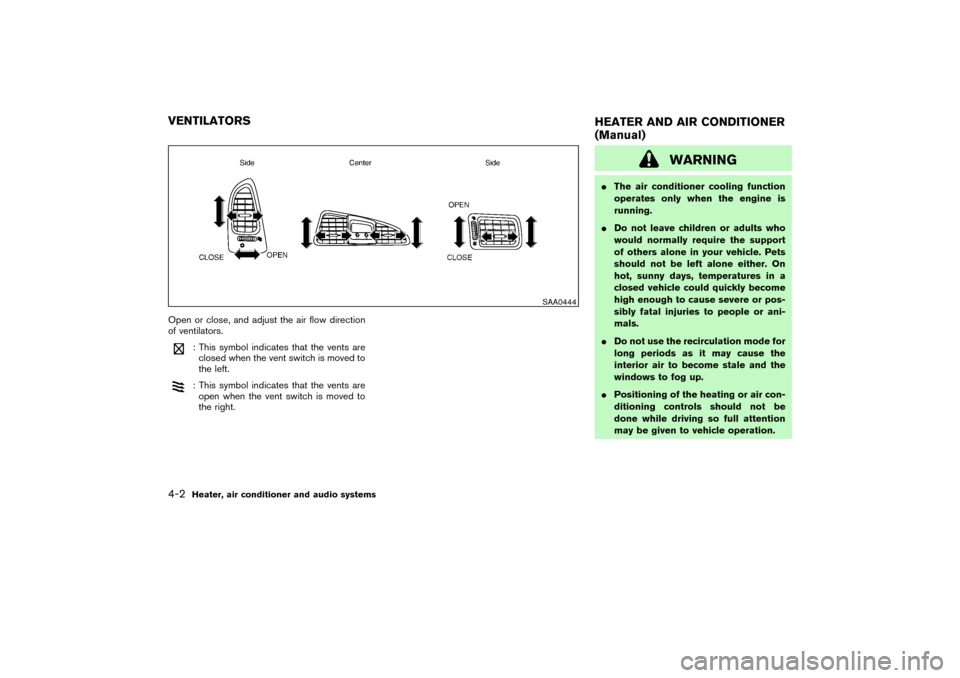

Open or close, and adjust the air flow direction
of ventilators.
: This symbol indicates that the vents are
closed when the vent switch is moved to
the left.: This symbol indicates that the vents are
open when the vent switch is moved to
the right.
WARNING

The air conditioner cooling function
operates only when the engine is
running.

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or pos-
sibly fatal injuries to people or ani-
mals.

Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.

Positioning of the heating or air con-
ditioning controls should not be
done while driving so full attention
may be given to vehicle operation.
SAA0444
VENTILATORS
HEATER AND AIR CONDITIONER
(Manual)4-2
Heater, air conditioner and audio systems


04.3.9/R50-D/V5

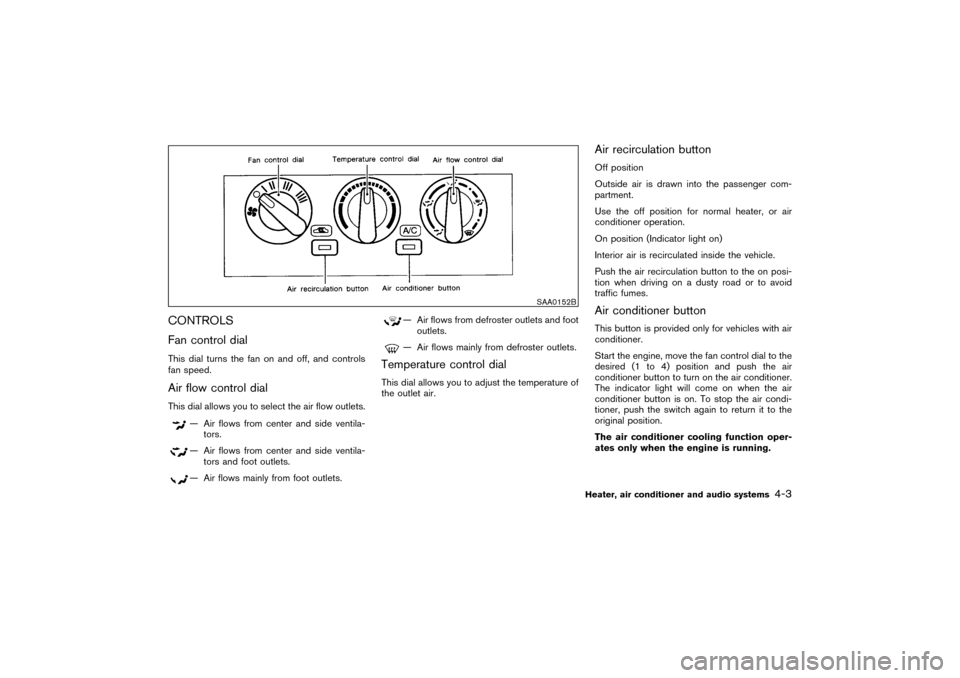

CONTROLS
Fan control dialThis dial turns the fan on and off, and controls
fan speed.Air flow control dialThis dial allows you to select the air flow outlets.
— Air flows from center and side ventila-
tors.— Air flows from center and side ventila-
tors and foot outlets.— Air flows mainly from foot outlets.
— Air flows from defroster outlets and foot
outlets.— Air flows mainly from defroster outlets.
Temperature control dialThis dial allows you to adjust the temperature of
the outlet air.
Air recirculation buttonOff position
Outside air is drawn into the passenger com-
partment.
Use the off position for normal heater, or air
conditioner operation.
On position (Indicator light on)
Interior air is recirculated inside the vehicle.
Push the air recirculation button to the on posi-
tion when driving on a dusty road or to avoid
traffic fumes.Air conditioner buttonThis button is provided only for vehicles with air
conditioner.
Start the engine, move the fan control dial to the
desired (1 to 4) position and push the air
conditioner button to turn on the air conditioner.
The indicator light will come on when the air
conditioner button is on. To stop the air condi-
tioner, push the switch again to return it to the
original position.
The air conditioner cooling function oper-
ates only when the engine is running.
SAA0152B
Heater, air conditioner and audio systems
4-3


04.3.9/R50-D/V5

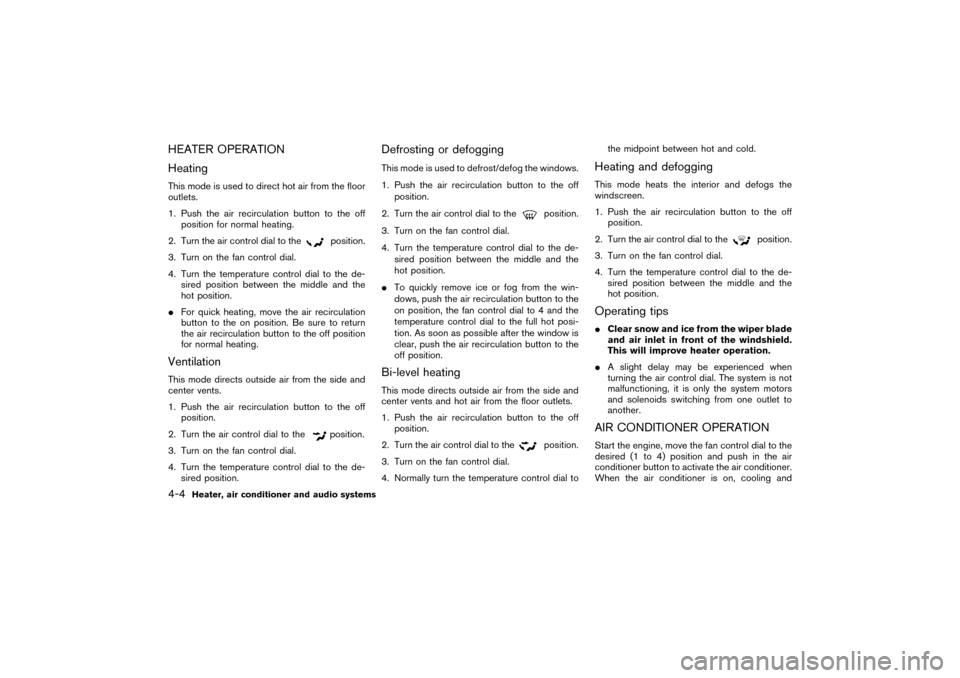

HEATER OPERATION
HeatingThis mode is used to direct hot air from the floor
outlets.
1. Push the air recirculation button to the off
position for normal heating.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.

For quick heating, move the air recirculation
button to the on position. Be sure to return
the air recirculation button to the off position
for normal heating.
VentilationThis mode directs outside air from the side and
center vents.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Turn the temperature control dial to the de-
sired position.
Defrosting or defoggingThis mode is used to defrost/defog the windows.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.

To quickly remove ice or fog from the win-
dows, push the air recirculation button to the
on position, the fan control dial to 4 and the
temperature control dial to the full hot posi-
tion. As soon as possible after the window is
clear, push the air recirculation button to the
off position.
Bi-level heatingThis mode directs outside air from the side and
center vents and hot air from the floor outlets.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Normally turn the temperature control dial tothe midpoint between hot and cold.
Heating and defoggingThis mode heats the interior and defogs the
windscreen.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.
Operating tips
Clear snow and ice from the wiper blade
and air inlet in front of the windshield.
This will improve heater operation.

A slight delay may be experienced when
turning the air control dial. The system is not
malfunctioning, it is only the system motors
and solenoids switching from one outlet to
another.AIR CONDITIONER OPERATIONStart the engine, move the fan control dial to the
desired (1 to 4) position and push in the air
conditioner button to activate the air conditioner.
When the air conditioner is on, cooling and
4-4
Heater, air conditioner and audio systems


04.3.9/R50-D/V5
