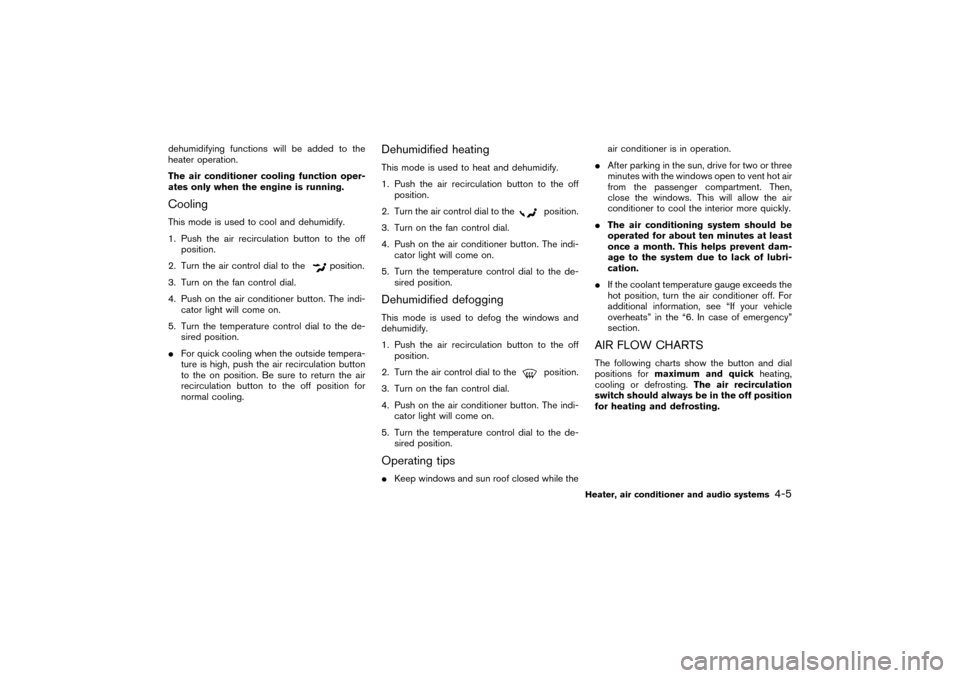

2004 NISSAN PATHFINDER Control

dehumidifying functions will be added to the
heater operation.
The air conditioner cooling function oper-
ates only when the engine is running.CoolingThis mode is used to cool and dehumidify.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.

For quick cooling when the outside tempera-
ture is high, push the air recirculation button
to the on position. Be sure to return the air
recirculation button to the off position for
normal cooling.
Dehumidified heatingThis mode is used to heat and dehumidify.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.
Dehumidified defoggingThis mode is used to defog the windows and
dehumidify.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.
Operating tips
Keep windows and sun roof closed while theair conditioner is in operation.

After parking in the sun, drive for two or three
minutes with the windows open to vent hot air
from the passenger compartment. Then,
close the windows. This will allow the air
conditioner to cool the interior more quickly.

The air conditioning system should be
operated for about ten minutes at least
once a month. This helps prevent dam-
age to the system due to lack of lubri-
cation.

If the coolant temperature gauge exceeds the
hot position, turn the air conditioner off. For
additional information, see “If your vehicle
overheats” in the “6. In case of emergency”
section.
AIR FLOW CHARTSThe following charts show the button and dial
positions formaximum and quickheating,
cooling or defrosting.The air recirculation
switch should always be in the off position
for heating and defrosting.Heater, air conditioner and audio systems
4-5


04.3.9/R50-D/V5


Start the engine and operate the controls to
activate the air conditioner.
WARNING

The air conditioner cooling function
operates only when the engine is
running.

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. Onhot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or pos-
sibly fatal injuries to people or ani-
mals.

Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.

Positioning of the heater and air con-
ditioner controls should not be donewhile driving so full attention may be
given to vehicle operation.
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)This mode may be normally used all year round
as the system automatically works to keep a
constant temperature. Air flow distribution and
fan speed are also controlled automatically.
1. Push the AUTO button on. (AUTO will be
displayed.)
2. Turn the temperature control dial to the right
or left to set the desired temperature.

Adjust the temperature control dial to about
75°F (24°C) for normal operation.

The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.Heating (ECON)The air conditioner does not activate. When you
need to heat only, use this mode.

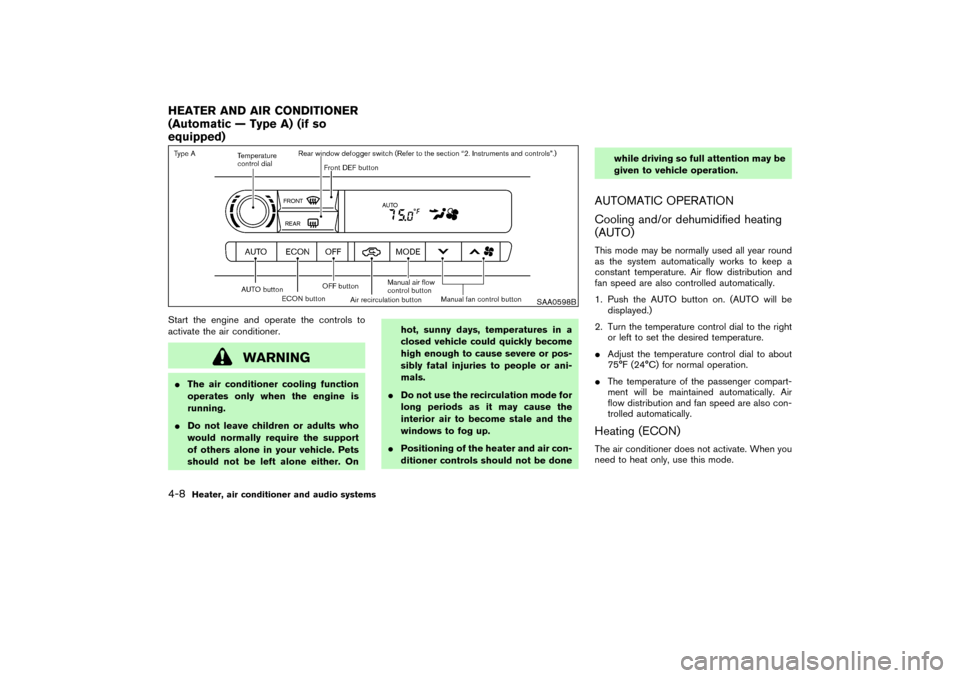

SAA0598B
HEATER AND AIR CONDITIONER
(Automatic — Type A) (if so
equipped)4-8
Heater, air conditioner and audio systems


04.3.9/R50-D/V5

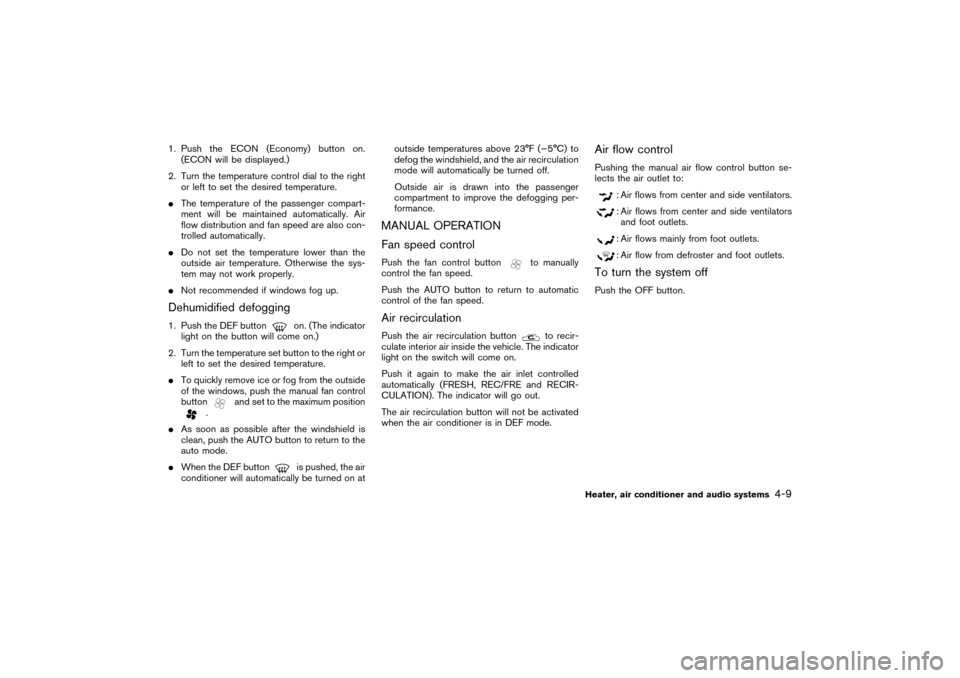

1. Push the ECON (Economy) button on.
(ECON will be displayed.)
2. Turn the temperature control dial to the right
or left to set the desired temperature.

The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.

Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.

Not recommended if windows fog up.Dehumidified defogging1. Push the DEF button
on. (The indicator
light on the button will come on.)
2. Turn the temperature set button to the right or
left to set the desired temperature.

To quickly remove ice or fog from the outside
of the windows, push the manual fan control
button
and set to the maximum position
.

As soon as possible after the windshield is
clean, push the AUTO button to return to the
auto mode.

When the DEF button
is pushed, the air
conditioner will automatically be turned on atoutside temperatures above 23°F (−5°C) to
defog the windshield, and the air recirculation
mode will automatically be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
MANUAL OPERATION
Fan speed controlPush the fan control button
to manually
control the fan speed.
Push the AUTO button to return to automatic
control of the fan speed.
Air recirculationPush the air recirculation button
to recir-
culate interior air inside the vehicle. The indicator
light on the switch will come on.
Push it again to make the air inlet controlled
automatically (FRESH, REC/FRE and RECIR-
CULATION). The indicator will go out.
The air recirculation button will not be activated
when the air conditioner is in DEF mode.
Air flow controlPushing the manual air flow control button se-
lects the air outlet to:
: Air flows from center and side ventilators.: Air flows from center and side ventilators
and foot outlets.: Air flows mainly from foot outlets.: Air flow from defroster and foot outlets.
To turn the system offPush the OFF button.Heater, air conditioner and audio systems
4-9


04.3.9/R50-D/V5


Start the engine and operate the controls to
activate the air conditioner.
WARNING

The air conditioner cooling function
operates only when the engine is
running.

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or pos-
sibly fatal injuries to people or ani-
mals.

Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.

Positioning of the heating or air con-
ditioning controls should not be
done while driving so full attention
may be given to vehicle operation.

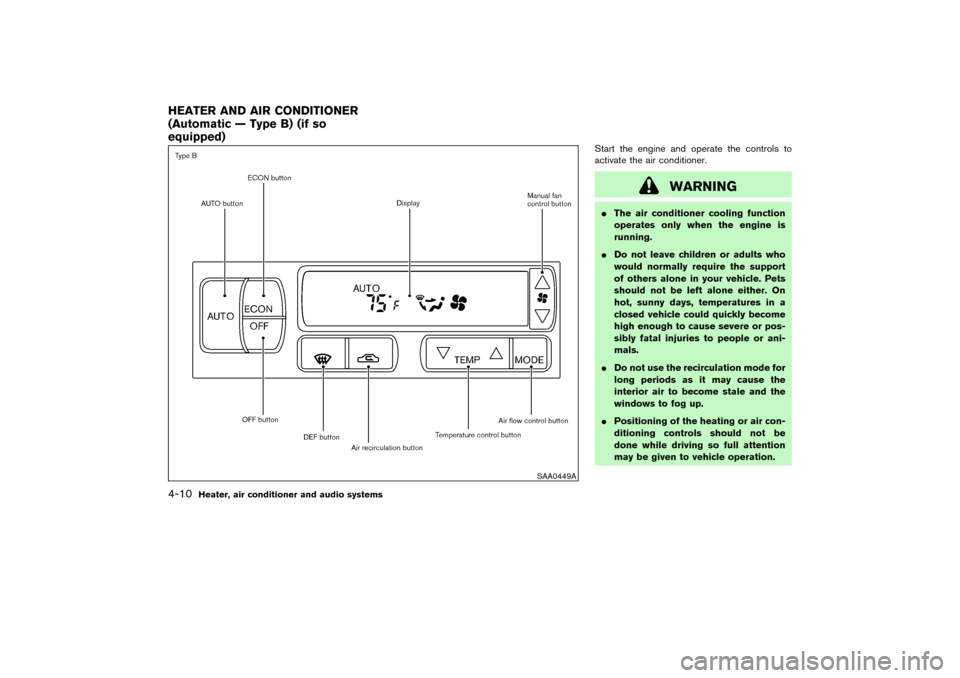

SAA0449A
HEATER AND AIR CONDITIONER
(Automatic — Type B) (if so
equipped)4-10
Heater, air conditioner and audio systems


04.3.9/R50-D/V5

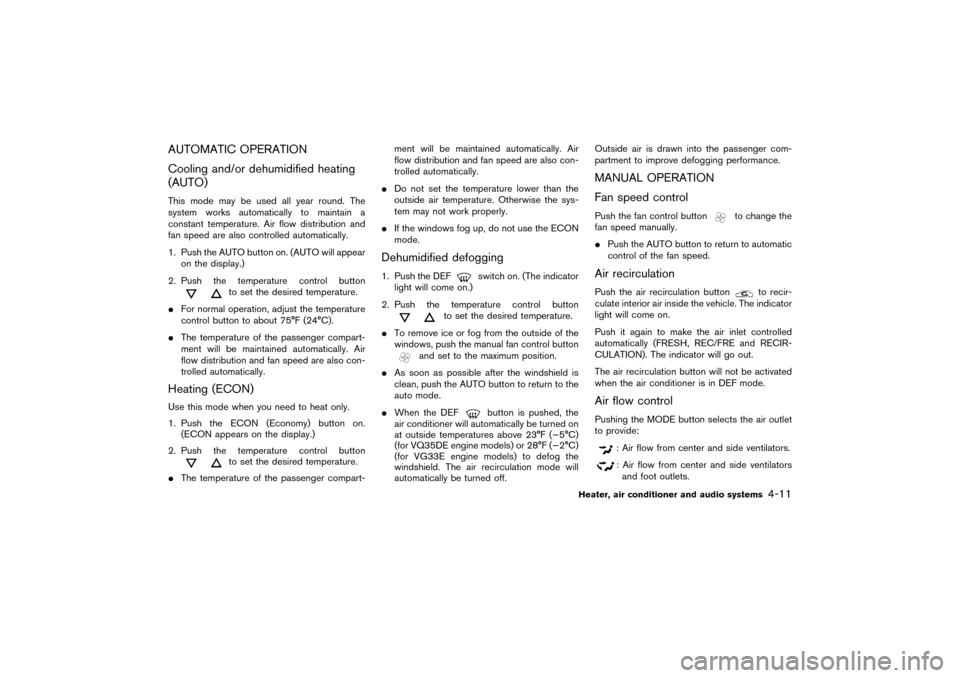

AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)This mode may be used all year round. The
system works automatically to maintain a
constant temperature. Air flow distribution and
fan speed are also controlled automatically.
1. Push the AUTO button on. (AUTO will appear
on the display.)
2. Push the temperature control button
to set the desired temperature.

For normal operation, adjust the temperature
control button to about 75°F (24°C).

The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
Heating (ECON)Use this mode when you need to heat only.
1. Push the ECON (Economy) button on.
(ECON appears on the display.)
2. Push the temperature control button
to set the desired temperature.

The temperature of the passenger compart-ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.

Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.

If the windows fog up, do not use the ECON
mode.
Dehumidified defogging1. Push the DEF
switch on. (The indicator
light will come on.)
2. Push the temperature control button
to set the desired temperature.

To remove ice or fog from the outside of the
windows, push the manual fan control button
and set to the maximum position.

As soon as possible after the windshield is
clean, push the AUTO button to return to the
auto mode.

When the DEF
button is pushed, the
air conditioner will automatically be turned on
at outside temperatures above 23°F (−5°C)
(for VQ35DE engine models) or 28°F (−2°C)
(for VG33E engine models) to defog the
windshield. The air recirculation mode will
automatically be turned off.Outside air is drawn into the passenger com-
partment to improve defogging performance.
MANUAL OPERATION
Fan speed controlPush the fan control button
to change the
fan speed manually.

Push the AUTO button to return to automatic
control of the fan speed.
Air recirculationPush the air recirculation button
to recir-
culate interior air inside the vehicle. The indicator
light will come on.
Push it again to make the air inlet controlled
automatically (FRESH, REC/FRE and RECIR-
CULATION). The indicator will go out.
The air recirculation button will not be activated
when the air conditioner is in DEF mode.
Air flow controlPushing the MODE button selects the air outlet
to provide:
: Air flow from center and side ventilators.: Air flow from center and side ventilators
and foot outlets.
Heater, air conditioner and audio systems
4-11


04.3.9/R50-D/V5

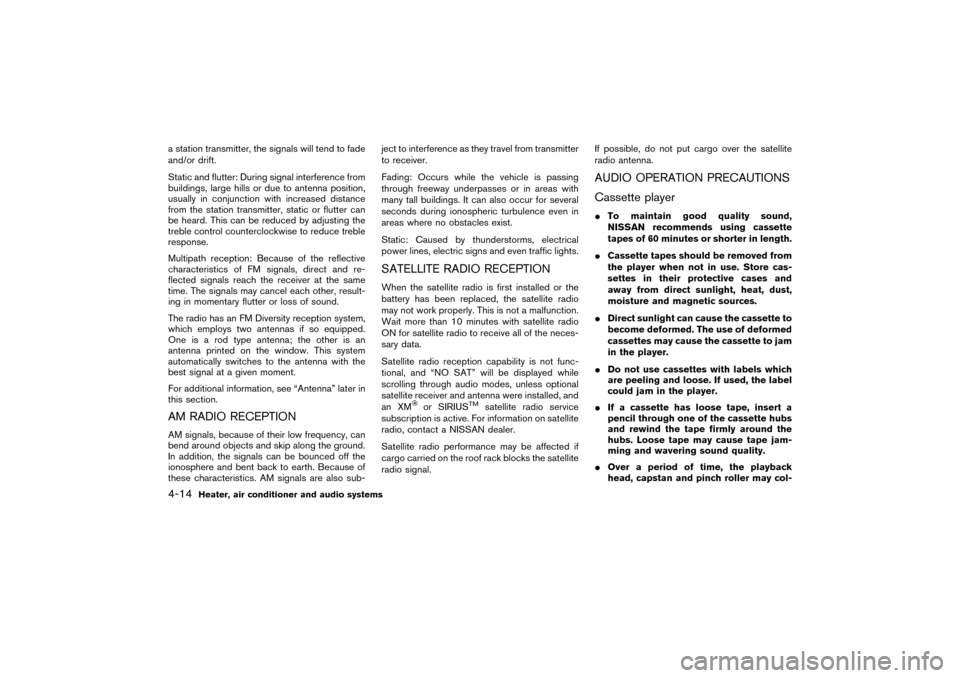

a station transmitter, the signals will tend to fade
and/or drift.
Static and flutter: During signal interference from
buildings, large hills or due to antenna position,
usually in conjunction with increased distance
from the station transmitter, static or flutter can
be heard. This can be reduced by adjusting the
treble control counterclockwise to reduce treble
response.
Multipath reception: Because of the reflective
characteristics of FM signals, direct and re-
flected signals reach the receiver at the same
time. The signals may cancel each other, result-
ing in momentary flutter or loss of sound.
The radio has an FM Diversity reception system,
which employs two antennas if so equipped.
One is a rod type antenna; the other is an
antenna printed on the window. This system
automatically switches to the antenna with the
best signal at a given moment.
For additional information, see “Antenna” later in
this section.AM RADIO RECEPTIONAM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics. AM signals are also sub-ject to interference as they travel from transmitter
to receiver.
Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.
Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic lights.
SATELLITE RADIO RECEPTIONWhen the satellite radio is first installed or the
battery has been replaced, the satellite radio
may not work properly. This is not a malfunction.
Wait more than 10 minutes with satellite radio
ON for satellite radio to receive all of the neces-
sary data.
Satellite radio reception capability is not func-
tional, and “NO SAT” will be displayed while
scrolling through audio modes, unless optional
satellite receiver and antenna were installed, and
an XM
or SIRIUS
TM
satellite radio service
subscription is active. For information on satellite
radio, contact a NISSAN dealer.
Satellite radio performance may be affected if
cargo carried on the roof rack blocks the satellite
radio signal.If possible, do not put cargo over the satellite
radio antenna.
AUDIO OPERATION PRECAUTIONS
Cassette player
To maintain good quality sound,
NISSAN recommends using cassette
tapes of 60 minutes or shorter in length.

Cassette tapes should be removed from
the player when not in use. Store cas-
settes in their protective cases and
away from direct sunlight, heat, dust,
moisture and magnetic sources.

Direct sunlight can cause the cassette to
become deformed. The use of deformed
cassettes may cause the cassette to jam
in the player.

Do not use cassettes with labels which
are peeling and loose. If used, the label
could jam in the player.

If a cassette has loose tape, insert a
pencil through one of the cassette hubs
and rewind the tape firmly around the
hubs. Loose tape may cause tape jam-
ming and wavering sound quality.

Over a period of time, the playback
head, capstan and pinch roller may col-
4-14
Heater, air conditioner and audio systems


04.3.9/R50-D/V5


lect a tape coating residue as the tape is
played. This residue accumulation can
cause weak or wavering sound, and
should be removed periodically with a
head cleaning tape. If the residue is not
removed periodically, the player may
need to be disassembled for cleaning.

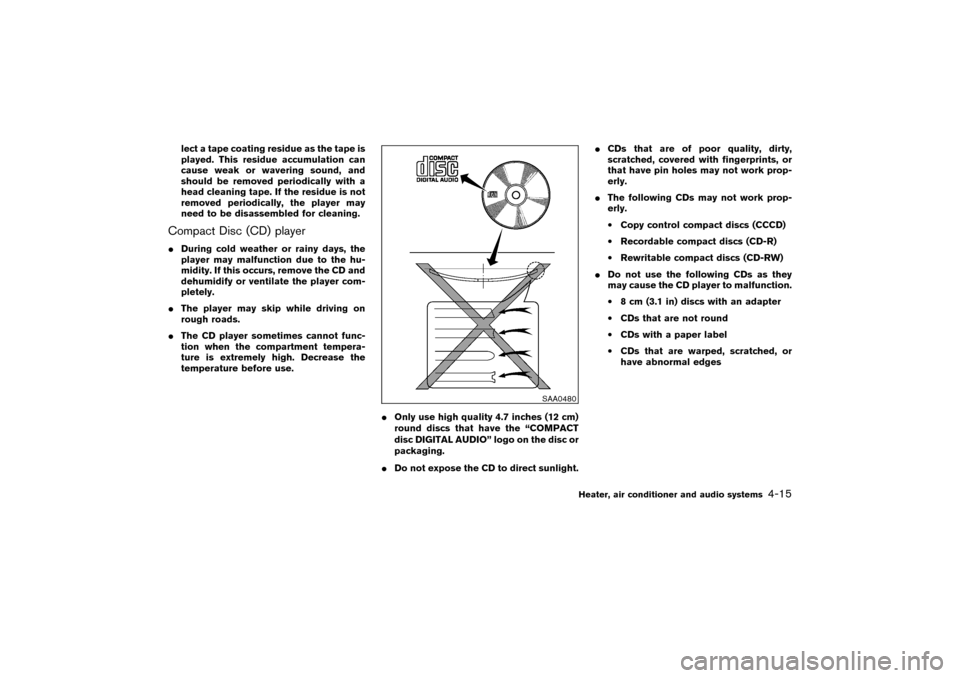

Compact Disc (CD) player
During cold weather or rainy days, the
player may malfunction due to the hu-
midity. If this occurs, remove the CD and
dehumidify or ventilate the player com-
pletely.

The player may skip while driving on
rough roads.

The CD player sometimes cannot func-
tion when the compartment tempera-
ture is extremely high. Decrease the
temperature before use.

Only use high quality 4.7 inches (12 cm)
round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc or
packaging.

Do not expose the CD to direct sunlight.
CDs that are of poor quality, dirty,
scratched, covered with fingerprints, or
that have pin holes may not work prop-
erly.

The following CDs may not work prop-
erly.
•Copy control compact discs (CCCD)
•Recordable compact discs (CD-R)
•Rewritable compact discs (CD-RW)

Do not use the following CDs as they
may cause the CD player to malfunction.
•8 cm (3.1 in) discs with an adapter
•CDs that are not round
•CDs with a paper label
•CDs that are warped, scratched, or
have abnormal edges
SAA0480
Heater, air conditioner and audio systems
4-15


04.3.9/R50-D/V5

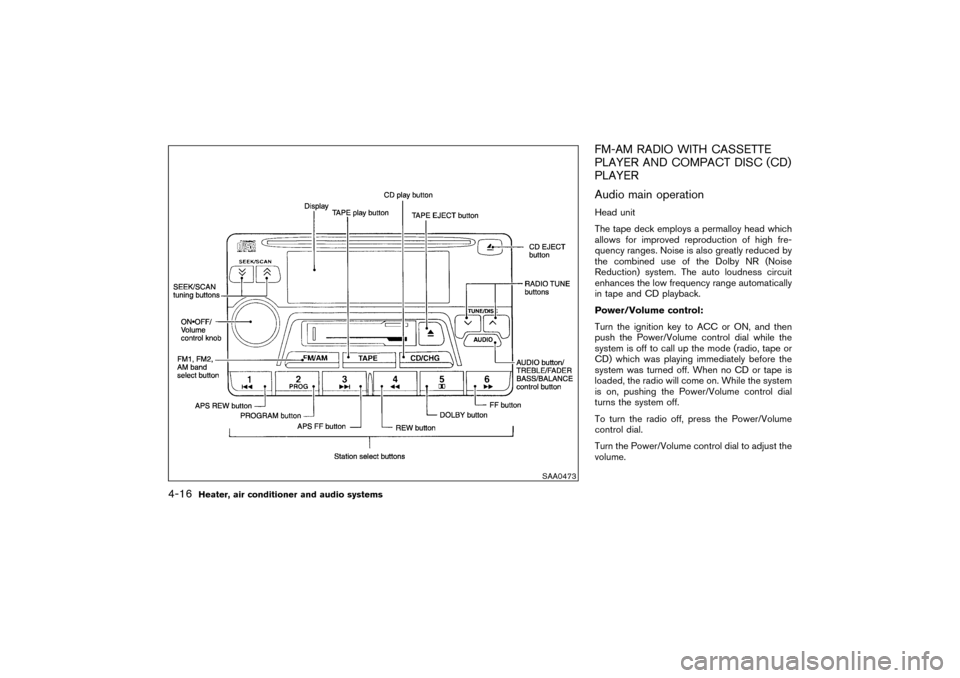

FM-AM RADIO WITH CASSETTE
PLAYER AND COMPACT DISC (CD)
PLAYER
Audio main operationHead unit
The tape deck employs a permalloy head which
allows for improved reproduction of high fre-
quency ranges. Noise is also greatly reduced by
the combined use of the Dolby NR (Noise
Reduction) system. The auto loudness circuit
enhances the low frequency range automatically
in tape and CD playback.
Power/Volume control:
Turn the ignition key to ACC or ON, and then
push the Power/Volume control dial while the
system is off to call up the mode (radio, tape or
CD) which was playing immediately before the
system was turned off. When no CD or tape is
loaded, the radio will come on. While the system
is on, pushing the Power/Volume control dial
turns the system off.
To turn the radio off, press the Power/Volume
control dial.
Turn the Power/Volume control dial to adjust the
volume.
SAA0473
4-16
Heater, air conditioner and audio systems


04.3.9/R50-D/V5
