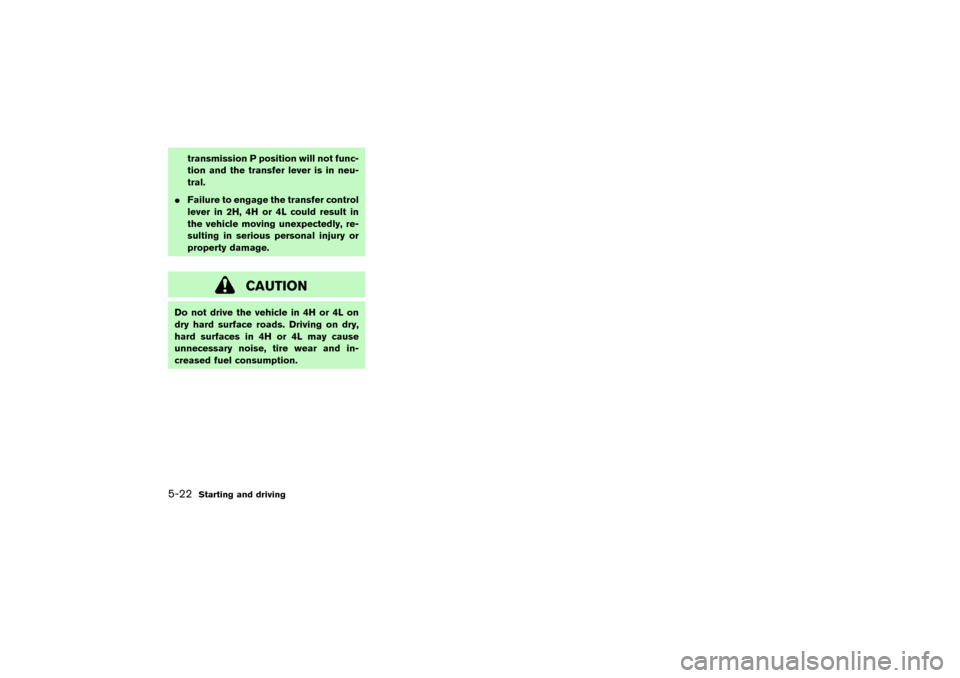

2004 NISSAN PATHFINDER Control

transmission P position will not func-
tion and the transfer lever is in neu-
tral.

Failure to engage the transfer control
lever in 2H, 4H or 4L could result in
the vehicle moving unexpectedly, re-
sulting in serious personal injury or
property damage.
CAUTION
Do not drive the vehicle in 4H or 4L on
dry hard surface roads. Driving on dry,
hard surfaces in 4H or 4L may cause
unnecessary noise, tire wear and in-
creased fuel consumption.5-22
Starting and driving


04.3.9/R50-D/V5

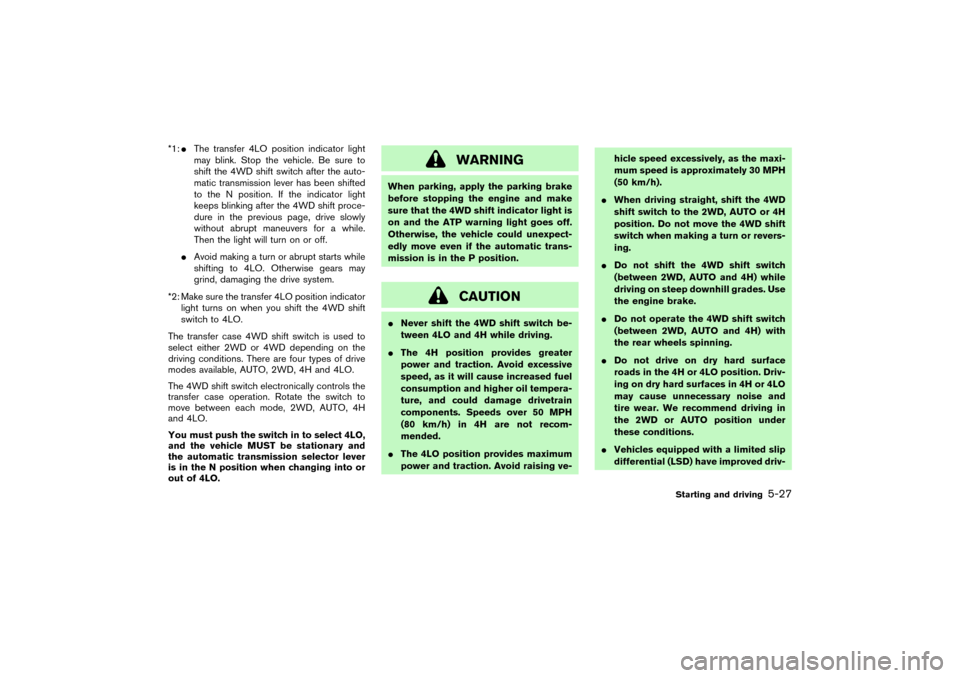

*1:
The transfer 4LO position indicator light
may blink. Stop the vehicle. Be sure to
shift the 4WD shift switch after the auto-
matic transmission lever has been shifted
to the N position. If the indicator light
keeps blinking after the 4WD shift proce-
dure in the previous page, drive slowly
without abrupt maneuvers for a while.
Then the light will turn on or off.

Avoid making a turn or abrupt starts while
shifting to 4LO. Otherwise gears may
grind, damaging the drive system.
*2: Make sure the transfer 4LO position indicator
light turns on when you shift the 4WD shift
switch to 4LO.
The transfer case 4WD shift switch is used to
select either 2WD or 4WD depending on the
driving conditions. There are four types of drive
modes available, AUTO, 2WD, 4H and 4LO.
The 4WD shift switch electronically controls the
transfer case operation. Rotate the switch to
move between each mode, 2WD, AUTO, 4H
and 4LO.
You must push the switch in to select 4LO,
and the vehicle MUST be stationary and
the automatic transmission selector lever
is in the Nposition when changing into or
out of 4LO.
WARNING
When parking, apply the parking brake
before stopping the engine and make
sure that the 4WD shift indicator light is
on and the ATP warning light goes off.
Otherwise, the vehicle could unexpect-
edly move even if the automatic trans-
mission is in the P position.
CAUTION

Never shift the 4WD shift switch be-
tween 4LO and 4H while driving.

The 4H position provides greater
power and traction. Avoid excessive
speed, as it will cause increased fuel
consumption and higher oil tempera-
ture, and could damage drivetrain
components. Speeds over 50 MPH
(80 km/h) in 4H are not recom-
mended.

The 4LO position provides maximum
power and traction. Avoid raising ve-hicle speed excessively, as the maxi-
mum speed is approximately 30 MPH
(50 km/h).

When driving straight, shift the 4WD
shift switch to the 2WD, AUTO or 4H
position. Do not move the 4WD shift
switch when making a turn or revers-
ing.

Do not shift the 4WD shift switch
(between 2WD, AUTO and 4H) while
driving on steep downhill grades. Use
the engine brake.

Do not operate the 4WD shift switch
(between 2WD, AUTO and 4H) with
the rear wheels spinning.

Do not drive on dry hard surface
roads in the 4H or 4LO position. Driv-
ing on dry hard surfaces in 4H or 4LO
may cause unnecessary noise and
tire wear. We recommend driving in
the 2WD or AUTO position under
these conditions.

Vehicles equipped with a limited slip
differential (LSD) have improved driv-
Starting and driving
5-27


04.3.9/R50-D/V5


Part time 4WD models:

If the ATP light is ON, this indicates
that the automatic transmission P
(park) position will not function and
the transfer shift lever is in the N
position. Failure to engage the trans-
fer shift lever in H or 4L could result
in the vehicle moving unexpectedly,
resulting in serious personal injury or
property damage.
All-mode 4WD models:

If the ATP light is ON, this indicates
that the automatic transmission P
(park) position will not function and
the transfer case is in neutral. Make
sure that the 4WD shift indicator light
(and transfer 4LO position indicator)
light remains illuminated before
stopping the engine. Otherwise, the
vehicle could unexpectedly move
even if the automatic transmission is
in the P (park) position.
3. To help prevent the vehicle rolling into the
street when parked on a sloping drive way, itis a good practice to turn the wheels as
illustrated.

HEADED DOWNHILL WITH CURB:
1
Turn the wheels into the curband move the
vehicle forward until the curbside wheel
gently touches the curb.

HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curband
move the vehicle back until the curb side
wheel gently touches the curb.

HEADED UPHILL OR DOWNHILL, NO
CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the center
of the road if it moves.
Make sure the ATP light is off before stop-
ping the engine.
4. Turn the ignition key to the LOCK position
and remove the key.The power assisted steering is designed to use
a hydraulic pump, driven by the engine, to assist
steering.
If the engine stops or drive belt breaks, you will
still have control of the vehicle. However, much
greater steering effort is needed, especially in
sharp turns or at low speeds.
WARNING
If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be much harder to operate.POWER STEERING
Starting and driving
5-33


04.3.9/R50-D/V5

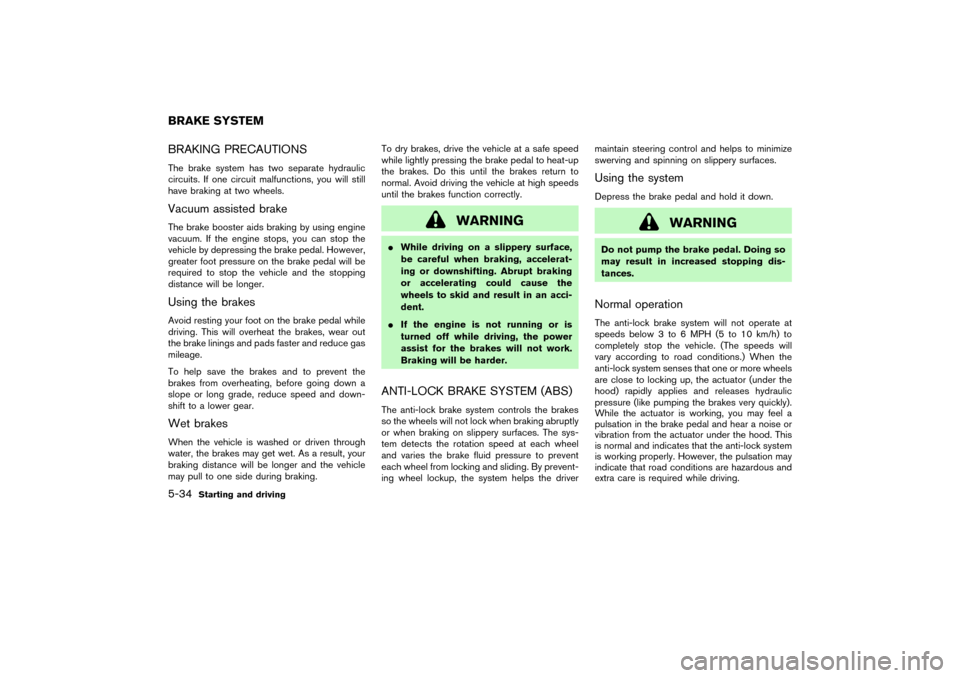

BRAKING PRECAUTIONSThe brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.Vacuum assisted brakeThe brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.Using the brakesAvoid resting your foot on the brake pedal while
driving. This will overheat the brakes, wear out
the brake linings and pads faster and reduce gas
mileage.
To help save the brakes and to prevent the
brakes from overheating, before going down a
slope or long grade, reduce speed and down-
shift to a lower gear.Wet brakesWhen the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.To dry brakes, drive the vehicle at a safe speed
while lightly pressing the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.
WARNING

While driving on a slippery surface,
be careful when braking, accelerat-
ing or downshifting. Abrupt braking
or accelerating could cause the
wheels to skid and result in an acci-
dent.

If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
Braking will be harder.ANTI-LOCK BRAKE SYSTEM (ABS)The anti-lock brake system controls the brakes
so the wheels will not lock when braking abruptly
or when braking on slippery surfaces. The sys-
tem detects the rotation speed at each wheel
and varies the brake fluid pressure to prevent
each wheel from locking and sliding. By prevent-
ing wheel lockup, the system helps the drivermaintain steering control and helps to minimize
swerving and spinning on slippery surfaces.
Using the systemDepress the brake pedal and hold it down.
WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.Normal operationThe anti-lock brake system will not operate at
speeds below 3 to 6 MPH (5 to 10 km/h) to
completely stop the vehicle. (The speeds will
vary according to road conditions.) When the
anti-lock system senses that one or more wheels
are close to locking up, the actuator (under the
hood) rapidly applies and releases hydraulic
pressure (like pumping the brakes very quickly).
While the actuator is working, you may feel a
pulsation in the brake pedal and hear a noise or
vibration from the actuator under the hood. This
is normal and indicates that the anti-lock system
is working properly. However, the pulsation may
indicate that road conditions are hazardous and
extra care is required while driving.
BRAKE SYSTEM5-34
Starting and driving


04.3.9/R50-D/V5

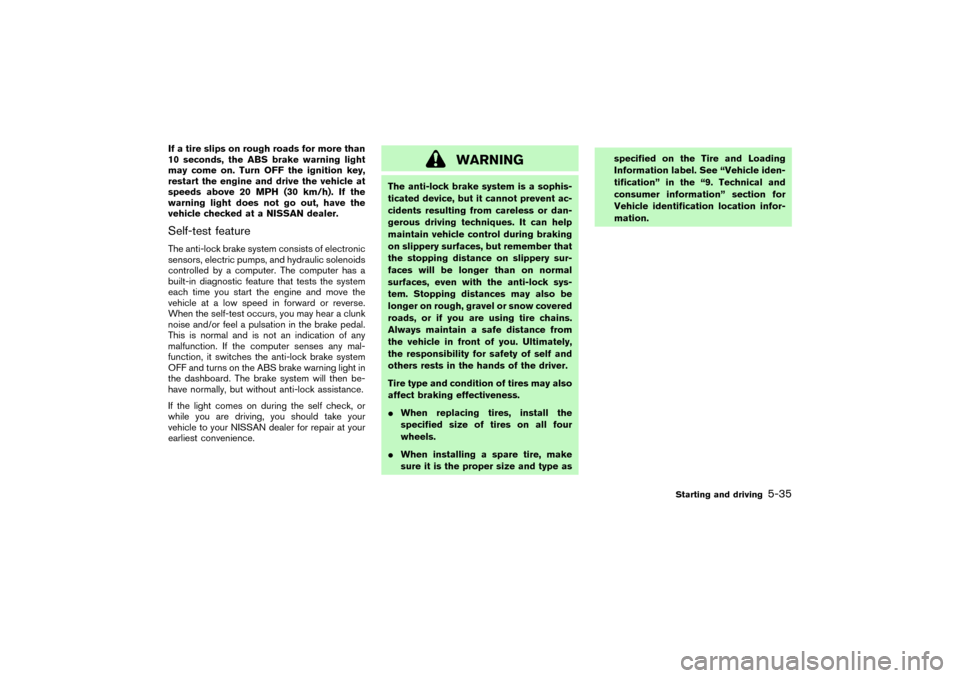

If a tire slips on rough roads for more than
10 seconds, the ABS brake warning light
may come on. Turn OFF the ignition key,
restart the engine and drive the vehicle at
speeds above 20 MPH (30 km/h). If the
warning light does not go out, have the
vehicle checked at a NISSAN dealer.Self-test featureThe anti-lock brake system consists of electronic
sensors, electric pumps, and hydraulic solenoids
controlled by a computer. The computer has a
built-in diagnostic feature that tests the system
each time you start the engine and move the
vehicle at a low speed in forward or reverse.
When the self-test occurs, you may hear a clunk
noise and/or feel a pulsation in the brake pedal.
This is normal and is not an indication of any
malfunction. If the computer senses any mal-
function, it switches the anti-lock brake system
OFF and turns on the ABS brake warning light in
the dashboard. The brake system will then be-
have normally, but without anti-lock assistance.
If the light comes on during the self check, or
while you are driving, you should take your
vehicle to your NISSAN dealer for repair at your
earliest convenience.
WARNING
The anti-lock brake system is a sophis-
ticated device, but it cannot prevent ac-
cidents resulting from careless or dan-
gerous driving techniques. It can help
maintain vehicle control during braking
on slippery surfaces, but remember that
the stopping distance on slippery sur-
faces will be longer than on normal
surfaces, even with the anti-lock sys-
tem. Stopping distances may also be
longer on rough, gravel or snow covered
roads, or if you are using tire chains.
Always maintain a safe distance from
the vehicle in front of you. Ultimately,
the responsibility for safety of self and
others rests in the hands of the driver.
Tire type and condition of tires may also
affect braking effectiveness.

When replacing tires, install the
specified size of tires on all four
wheels.

When installing a spare tire, make
sure it is the proper size and type asspecified on the Tire and Loading
Information label. See “Vehicle iden-
tification” in the “9. Technical and
consumer information” section for
Vehicle identification location infor-
mation.
Starting and driving
5-35


04.3.9/R50-D/V5

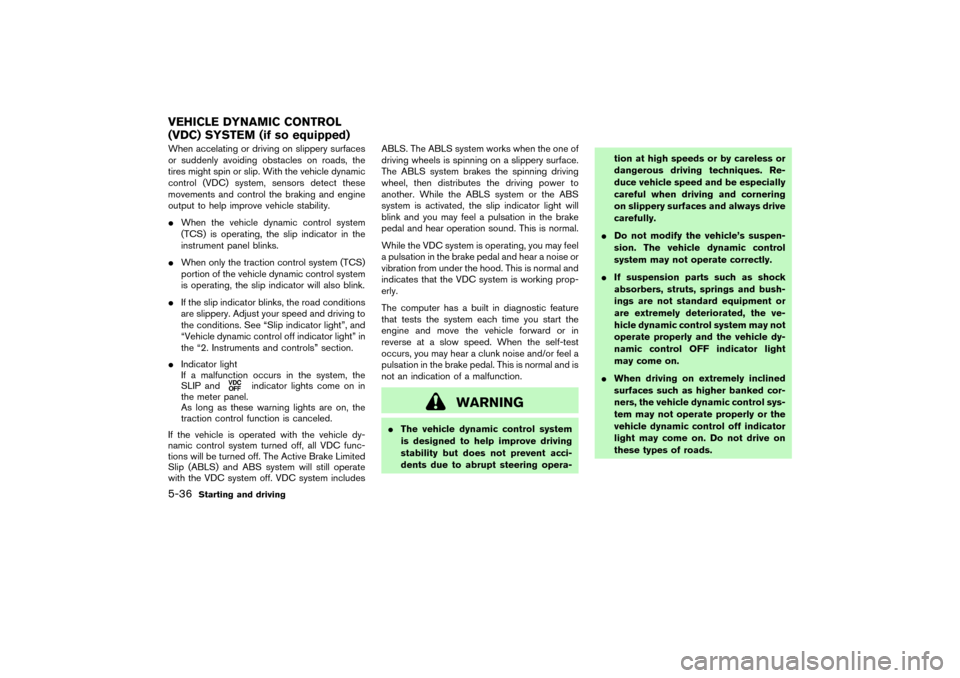

When accelating or driving on slippery surfaces
or suddenly avoiding obstacles on roads, the
tires might spin or slip. With the vehicle dynamic
control (VDC) system, sensors detect these
movements and control the braking and engine
output to help improve vehicle stability.

When the vehicle dynamic control system
(TCS) is operating, the slip indicator in the
instrument panel blinks.

When only the traction control system (TCS)
portion of the vehicle dynamic control system
is operating, the slip indicator will also blink.

If the slip indicator blinks, the road conditions
are slippery. Adjust your speed and driving to
the conditions. See “Slip indicator light”, and
“Vehicle dynamic control off indicator light” in
the “2. Instruments and controls” section.

Indicator light
If a malfunction occurs in the system, the
SLIP and
indicator lights come on in
the meter panel.
As long as these warning lights are on, the
traction control function is canceled.
If the vehicle is operated with the vehicle dy-
namic control system turned off, all VDC func-
tions will be turned off. The Active Brake Limited
Slip (ABLS) and ABS system will still operate
with the VDC system off. VDC system includesABLS. The ABLS system works when the one of
driving wheels is spinning on a slippery surface.
The ABLS system brakes the spinning driving
wheel, then distributes the driving power to
another. While the ABLS system or the ABS
system is activated, the slip indicator light will
blink and you may feel a pulsation in the brake
pedal and hear operation sound. This is normal.
While the VDC system is operating, you may feel
a pulsation in the brake pedal and hear a noise or
vibration from under the hood. This is normal and
indicates that the VDC system is working prop-
erly.
The computer has a built in diagnostic feature
that tests the system each time you start the
engine and move the vehicle forward or in
reverse at a slow speed. When the self-test
occurs, you may hear a clunk noise and/or feel a
pulsation in the brake pedal. This is normal and is
not an indication of a malfunction.
WARNING

The vehicle dynamic control system
is designed to help improve driving
stability but does not prevent acci-
dents due to abrupt steering opera-tion at high speeds or by careless or
dangerous driving techniques. Re-
duce vehicle speed and be especially
careful when driving and cornering
on slippery surfaces and always drive
carefully.

Do not modify the vehicle’s suspen-
sion. The vehicle dynamic control
system may not operate correctly.

If suspension parts such as shock
absorbers, struts, springs and bush-
ings are not standard equipment or
are extremely deteriorated, the ve-
hicle dynamic control system may not
operate properly and the vehicle dy-
namic control OFF indicator light
may come on.

When driving on extremely inclined
surfaces such as higher banked cor-
ners, the vehicle dynamic control sys-
tem may not operate properly or the
vehicle dynamic control off indicator
light may come on. Do not drive on
these types of roads.
VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM (if so equipped)5-36
Starting and driving


04.3.9/R50-D/V5

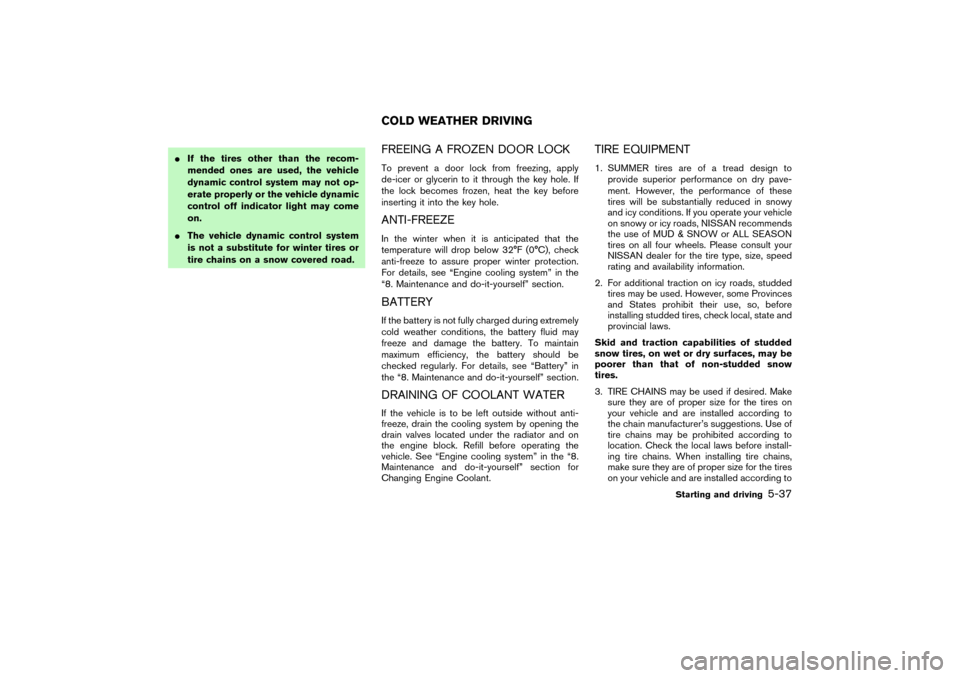

If the tires other than the recom-
mended ones are used, the vehicle
dynamic control system may not op-
erate properly or the vehicle dynamic
control off indicator light may come
on.

The vehicle dynamic control system
is not a substitute for winter tires or
tire chains on a snow covered road.
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
de-icer or glycerin to it through the key hole. If
the lock becomes frozen, heat the key before
inserting it into the key hole.ANTI-FREEZEIn the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check
anti-freeze to assure proper winter protection.
For details, see “Engine cooling system” in the
“8. Maintenance and do-it-yourself” section.BATTERYIf the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain
maximum efficiency, the battery should be
checked regularly. For details, see “Battery” in
the “8. Maintenance and do-it-yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system by opening the
drain valves located under the radiator and on
the engine block. Refill before operating the
vehicle. See “Engine cooling system” in the “8.
Maintenance and do-it-yourself” section for
Changing Engine Coolant.
TIRE EQUIPMENT1. SUMMER tires are of a tread design to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your vehicle
on snowy or icy roads, NISSAN recommends
the use of MUD & SNOW or ALL SEASON
tires on all four wheels. Please consult your
NISSAN dealer for the tire type, size, speed
rating and availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some Provinces
and States prohibit their use, so, before
installing studded tires, check local, state and
provincial laws.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
3. TIRE CHAINS may be used if desired. Make
sure they are of proper size for the tires on
your vehicle and are installed according to
the chain manufacturer’s suggestions. Use of
tire chains may be prohibited according to
location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure they are of proper size for the tires
on your vehicle and are installed according to
COLD WEATHER DRIVING
Starting and driving
5-37


04.3.9/R50-D/V5

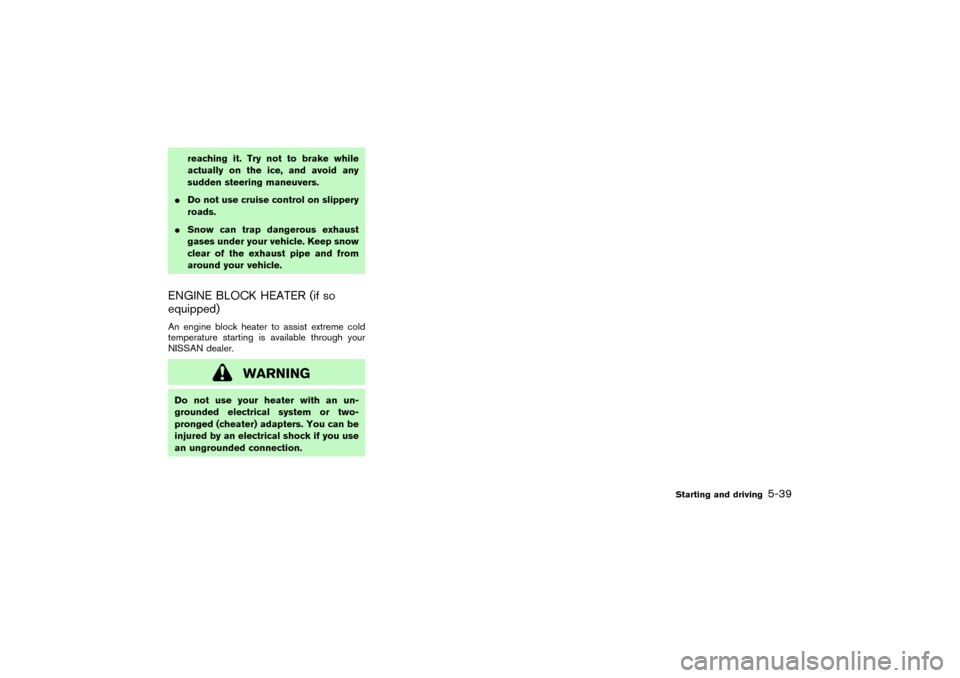

reaching it. Try not to brake while
actually on the ice, and avoid any
sudden steering maneuvers.

Do not use cruise control on slippery
roads.

Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)An engine block heater to assist extreme cold
temperature starting is available through your
NISSAN dealer.
WARNING
Do not use your heater with an un-
grounded electrical system or two-
pronged (cheater) adapters. You can be
injured by an electrical shock if you use
an ungrounded connection.
Starting and driving
5-39


04.3.9/R50-D/V5
