2004 NISSAN PATHFINDER Control

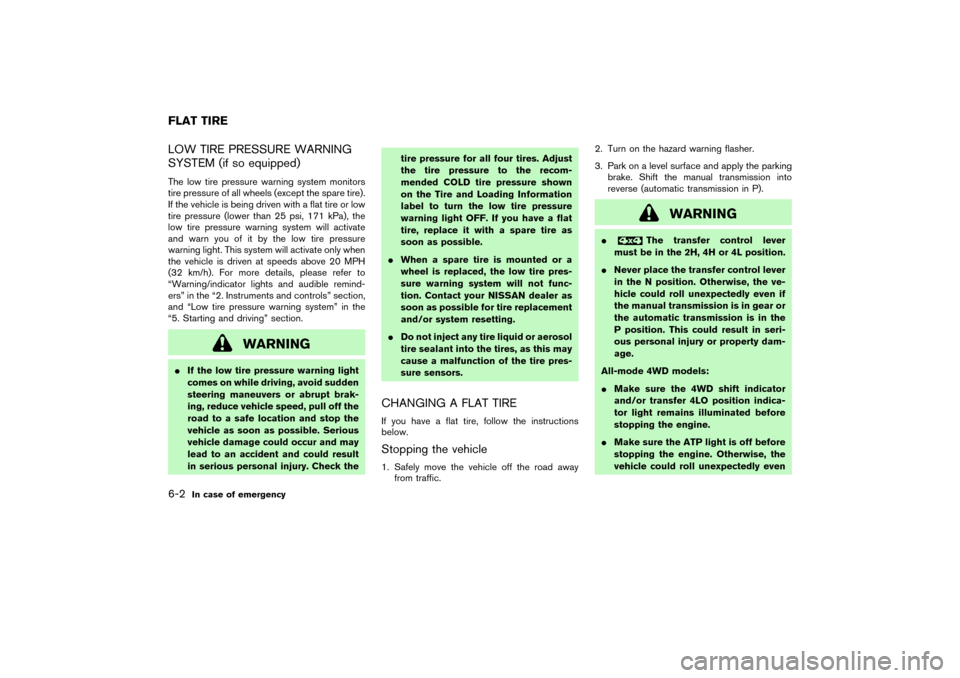

LOW TIRE PRESSURE WARNING
SYSTEM (if so equipped)The low tire pressure warning system monitors
tire pressure of all wheels (except the spare tire).
If the vehicle is being driven with a flat tire or low
tire pressure (lower than 25 psi, 171 kPa), the
low tire pressure warning system will activate
and warn you of it by the low tire pressure
warning light. This system will activate only when
the vehicle is driven at speeds above 20 MPH
(32 km/h). For more details, please refer to
“Warning/indicator lights and audible remind-
ers” in the “2. Instruments and controls” section,
and “Low tire pressure warning system” in the
“5. Starting and driving” section.
WARNING

If the low tire pressure warning light
comes on while driving, avoid sudden
steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the
road to a safe location and stop the
vehicle as soon as possible. Serious
vehicle damage could occur and may
lead to an accident and could result
in serious personal injury. Check thetire pressure for all four tires. Adjust
the tire pressure to the recom-
mended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If you have a flat
tire, replace it with a spare tire as
soon as possible.

When a spare tire is mounted or a
wheel is replaced, the low tire pres-
sure warning system will not func-
tion. Contact your NISSAN dealer as
soon as possible for tire replacement
and/or system resetting.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.2. Turn on the hazard warning flasher.
3. Park on a level surface and apply the parking
brake. Shift the manual transmission into
reverse (automatic transmission in P).
WARNING


The transfer control lever
must be in the 2H, 4H or 4L position.

Never place the transfer control lever
in the Nposition. Otherwise, the ve-
hicle could roll unexpectedly even if
the manual transmission is in gear or
the automatic transmission is in the
P position. This could result in seri-
ous personal injury or property dam-
age.
All-mode 4WD models:

Make sure the 4WD shift indicator
and/or transfer 4LO position indica-
tor light remains illuminated before
stopping the engine.

Make sure the ATP light is off before
stopping the engine. Otherwise, the
vehicle could roll unexpectedly even
FLAT TIRE6-2
In case of emergency


04.3.9/R50-D/V5

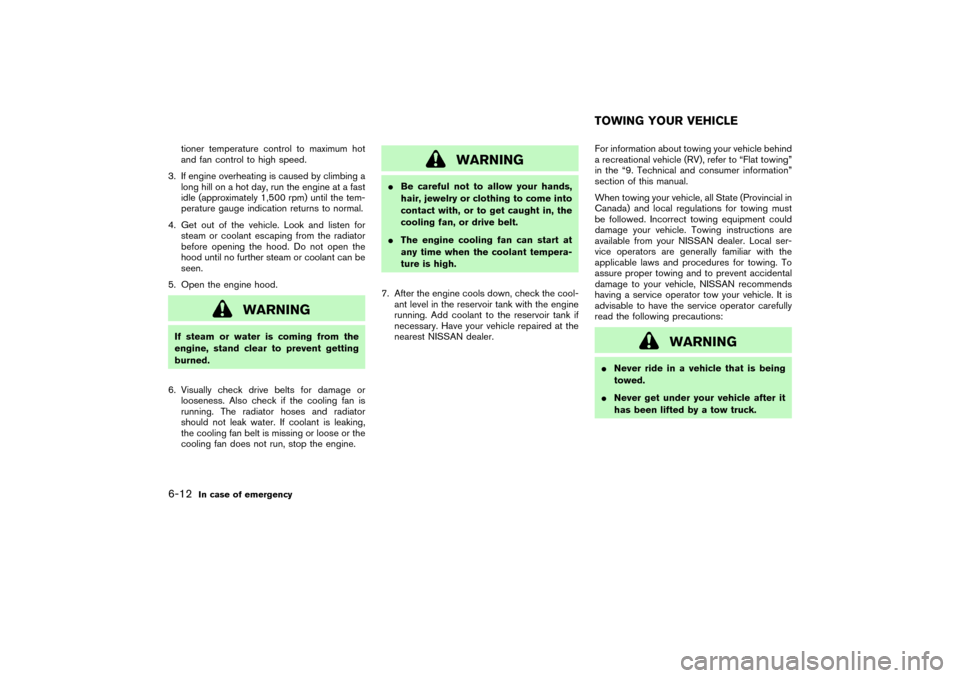

tioner temperature control to maximum hot
and fan control to high speed.
3. If engine overheating is caused by climbing a
long hill on a hot day, run the engine at a fast
idle (approximately 1,500 rpm) until the tem-
perature gauge indication returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. Do not open the
hood until no further steam or coolant can be
seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the cooling fan belt is missing or loose or the
cooling fan does not run, stop the engine.
WARNING

Be careful not to allow your hands,
hair, jewelry or clothing to come into
contact with, or to get caught in, the
cooling fan, or drive belt.

The engine cooling fan can start at
any time when the coolant tempera-
ture is high.
7. After the engine cools down, check the cool-
ant level in the reservoir tank with the engine
running. Add coolant to the reservoir tank if
necessary. Have your vehicle repaired at the
nearest NISSAN dealer.For information about towing your vehicle behind
a recreational vehicle (RV), refer to “Flat towing”
in the “9. Technical and consumer information”
section of this manual.
When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from your NISSAN dealer. Local ser-
vice operators are generally familiar with the
applicable laws and procedures for towing. To
assure proper towing and to prevent accidental
damage to your vehicle, NISSAN recommends
having a service operator tow your vehicle. It is
advisable to have the service operator carefully
read the following precautions:
WARNING

Never ride in a vehicle that is being
towed.

Never get under your vehicle after it
has been lifted by a tow truck.TOWING YOUR VEHICLE
6-12
In case of emergency


04.3.9/R50-D/V5

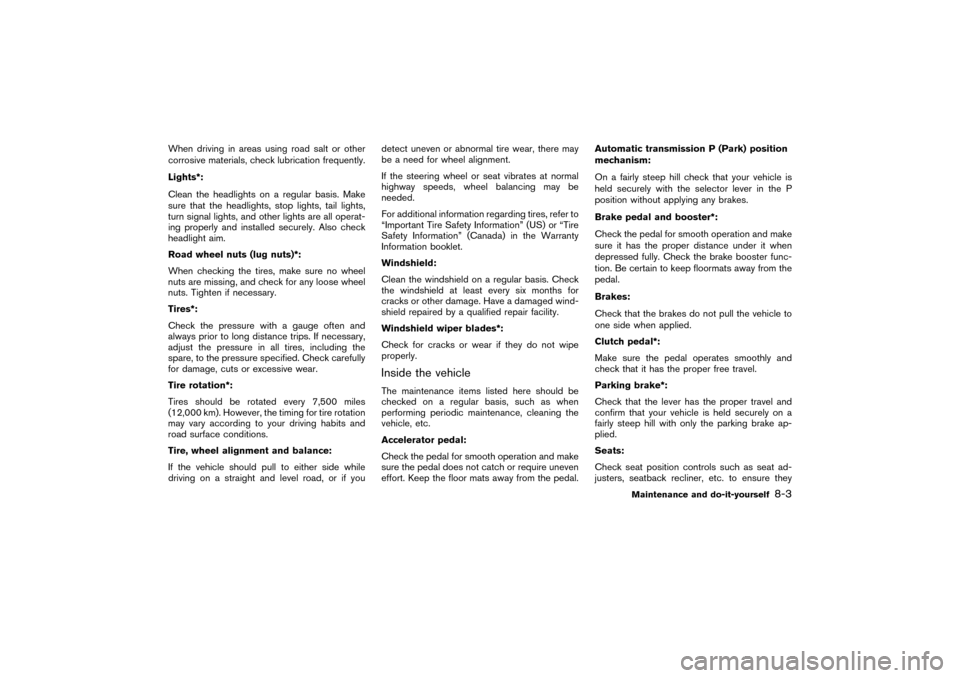

When driving in areas using road salt or other
corrosive materials, check lubrication frequently.
Lights*:
Clean the headlights on a regular basis. Make
sure that the headlights, stop lights, tail lights,
turn signal lights, and other lights are all operat-
ing properly and installed securely. Also check
headlight aim.
Road wheel nuts (lug nuts)*:
When checking the tires, make sure no wheel
nuts are missing, and check for any loose wheel
nuts. Tighten if necessary.
Tires*:
Check the pressure with a gauge often and
always prior to long distance trips. If necessary,
adjust the pressure in all tires, including the
spare, to the pressure specified. Check carefully
for damage, cuts or excessive wear.
Tire rotation*:
Tires should be rotated every 7,500 miles
(12,000 km). However, the timing for tire rotation
may vary according to your driving habits and
road surface conditions.
Tire, wheel alignment and balance:
If the vehicle should pull to either side while
driving on a straight and level road, or if youdetect uneven or abnormal tire wear, there may
be a need for wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information booklet.
Windshield:
Clean the windshield on a regular basis. Check
the windshield at least every six months for
cracks or other damage. Have a damaged wind-
shield repaired by a qualified repair facility.
Windshield wiper blades*:
Check for cracks or wear if they do not wipe
properly.
Inside the vehicleThe maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Accelerator pedal:
Check the pedal for smooth operation and make
sure the pedal does not catch or require uneven
effort. Keep the floor mats away from the pedal.Automatic transmission P (Park) position
mechanism:
On a fairly steep hill check that your vehicle is
held securely with the selector lever in the P
position without applying any brakes.
Brake pedal and booster*:
Check the pedal for smooth operation and make
sure it has the proper distance under it when
depressed fully. Check the brake booster func-
tion. Be certain to keep floormats away from the
pedal.
Brakes:
Check that the brakes do not pull the vehicle to
one side when applied.
Clutch pedal*:
Make sure the pedal operates smoothly and
check that it has the proper free travel.
Parking brake*:
Check that the lever has the proper travel and
confirm that your vehicle is held securely on a
fairly steep hill with only the parking brake ap-
plied.
Seats:
Check seat position controls such as seat ad-
justers, seatback recliner, etc. to ensure they
Maintenance and do-it-yourself
8-3


04.3.9/R50-D/V5

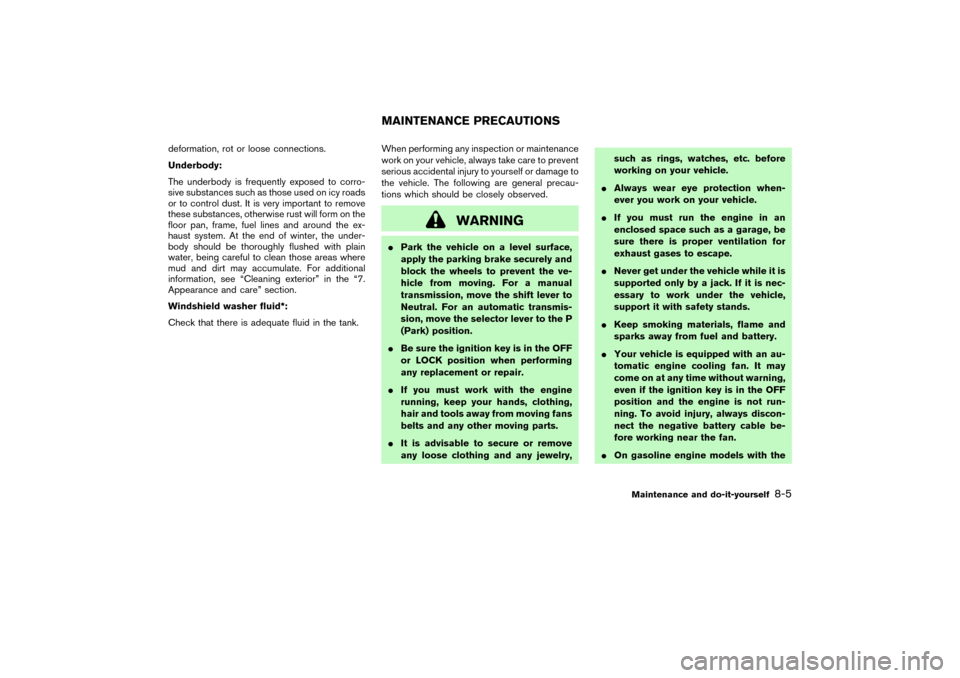

deformation, rot or loose connections.
Underbody:
The underbody is frequently exposed to corro-
sive substances such as those used on icy roads
or to control dust. It is very important to remove
these substances, otherwise rust will form on the
floor pan, frame, fuel lines and around the ex-
haust system. At the end of winter, the under-
body should be thoroughly flushed with plain
water, being careful to clean those areas where
mud and dirt may accumulate. For additional
information, see “Cleaning exterior” in the “7.
Appearance and care” section.
Windshield washer fluid*:
Check that there is adequate fluid in the tank.When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.
WARNING

Park the vehicle on a level surface,
apply the parking brake securely and
block the wheels to prevent the ve-
hicle from moving. For a manual
transmission, move the shift lever to
Neutral. For an automatic transmis-
sion, move the selector lever to the P
(Park) position.

Be sure the ignition key is in the OFF
or LOCK position when performing
any replacement or repair.

If you must work with the engine
running, keep your hands, clothing,
hair and tools away from moving fans
belts and any other moving parts.

It is advisable to secure or remove
any loose clothing and any jewelry,such as rings, watches, etc. before
working on your vehicle.

Always wear eye protection when-
ever you work on your vehicle.

If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.

Never get under the vehicle while it is
supported only by a jack. If it is nec-
essary to work under the vehicle,
support it with safety stands.

Keep smoking materials, flame and
sparks away from fuel and battery.

Your vehicle is equipped with an au-
tomatic engine cooling fan. It may
come on at any time without warning,
even if the ignition key is in the OFF
position and the engine is not run-
ning. To avoid injury, always discon-
nect the negative battery cable be-
fore working near the fan.

On gasoline engine models with theMAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself
8-5


04.3.9/R50-D/V5

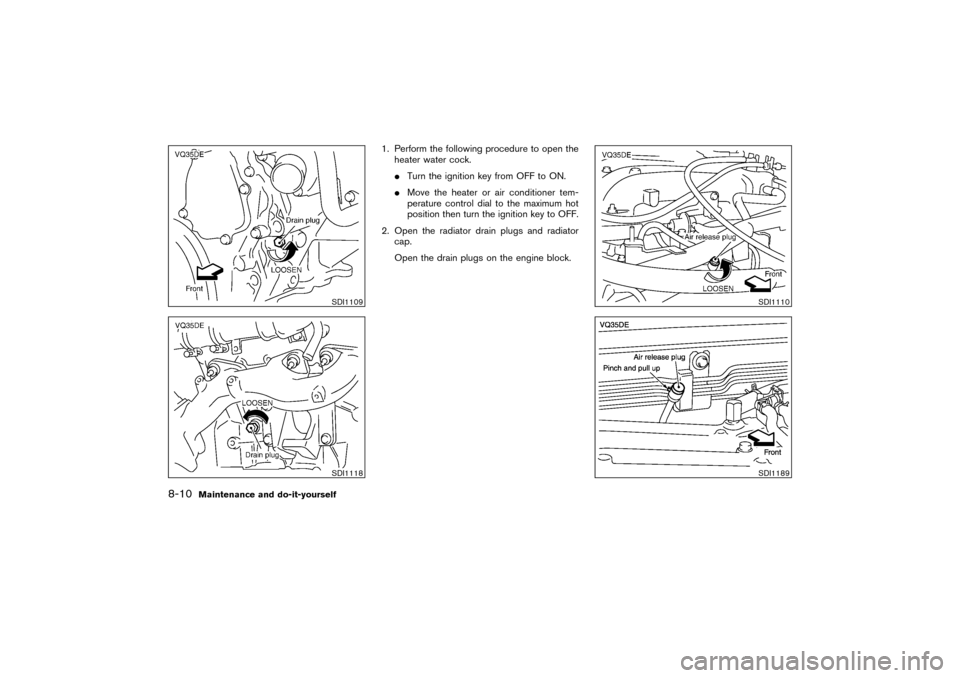

1. Perform the following procedure to open the
heater water cock.

Turn the ignition key from OFF to ON.

Move the heater or air conditioner tem-
perature control dial to the maximum hot
position then turn the ignition key to OFF.
2. Open the radiator drain plugs and radiator
cap.
Open the drain plugs on the engine block.
SDI1109SDI1118
SDI1110SDI1189
8-10
Maintenance and do-it-yourself


04.3.9/R50-D/V5

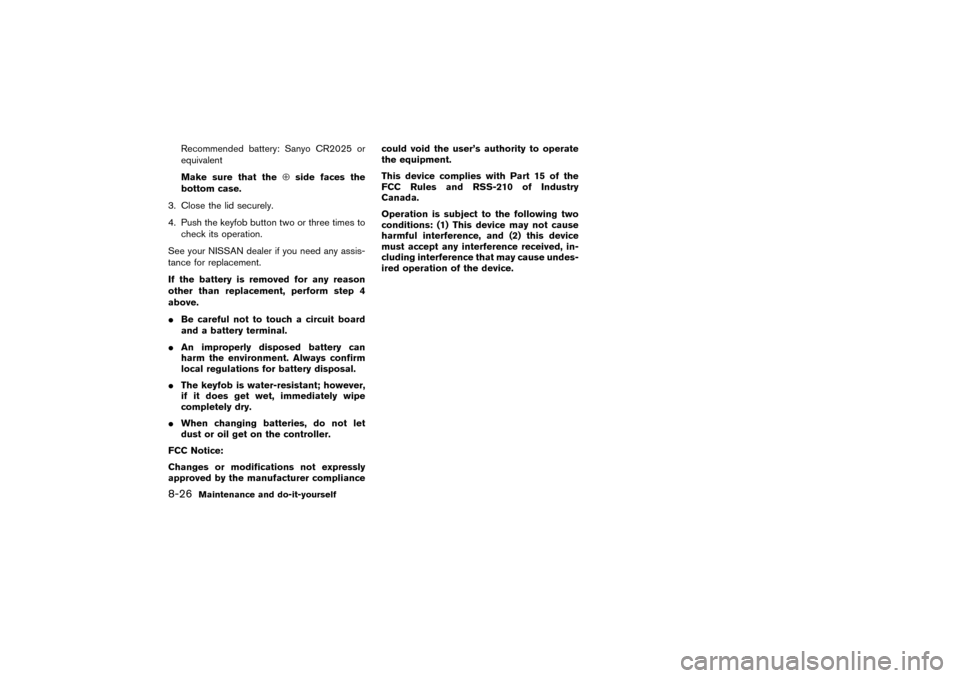

Recommended battery: Sanyo CR2025 or
equivalent
Make sure that the⊕side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See your NISSAN dealer if you need any assis-
tance for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.

Be careful not to touch a circuit board
and a battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it does get wet, immediately wipe
completely dry.

When changing batteries, do not let
dust or oil get on the controller.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliancecould void the user’s authority to operate
the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
8-26
Maintenance and do-it-yourself


04.3.9/R50-D/V5

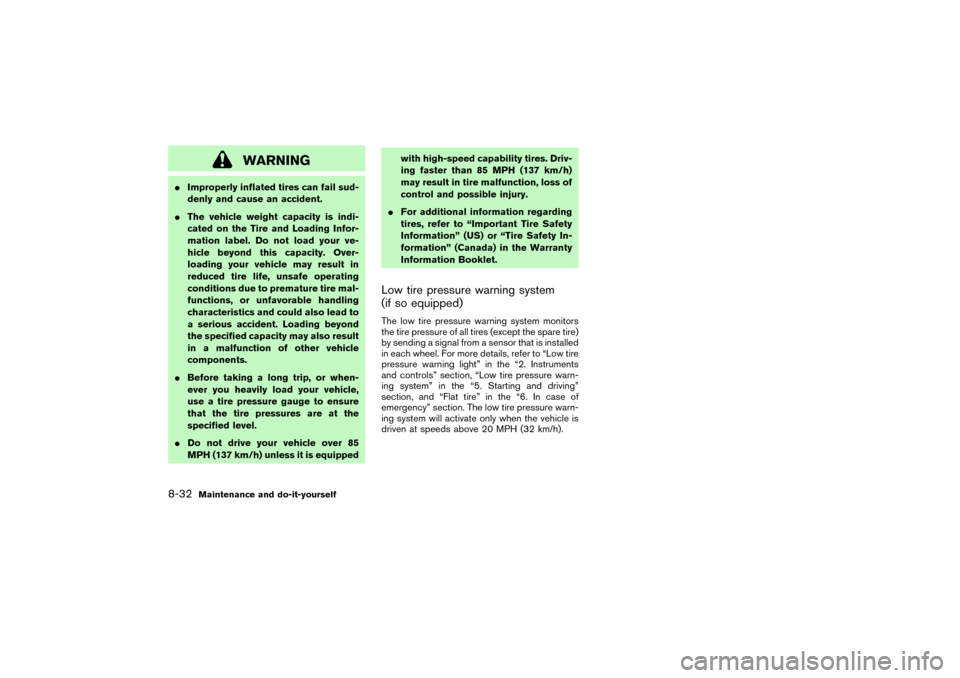

WARNING

Improperly inflated tires can fail sud-
denly and cause an accident.

The vehicle weight capacity is indi-
cated on the Tire and Loading Infor-
mation label. Do not load your ve-
hicle beyond this capacity. Over-
loading your vehicle may result in
reduced tire life, unsafe operating
conditions due to premature tire mal-
functions, or unfavorable handling
characteristics and could also lead to
a serious accident. Loading beyond
the specified capacity may also result
in a malfunction of other vehicle
components.

Before taking a long trip, or when-
ever you heavily load your vehicle,
use a tire pressure gauge to ensure
that the tire pressures are at the
specified level.

Do not drive your vehicle over 85
MPH (137 km/h) unless it is equippedwith high-speed capability tires. Driv-
ing faster than 85 MPH (137 km/h)
may result in tire malfunction, loss of
control and possible injury.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Low tire pressure warning system
(if so equipped)The low tire pressure warning system monitors
the tire pressure of all tires (except the spare tire)
by sending a signal from a sensor that is installed
in each wheel. For more details, refer to “Low tire
pressure warning light” in the “2. Instruments
and controls” section, “Low tire pressure warn-
ing system” in the “5. Starting and driving”
section, and “Flat tire” in the “6. In case of
emergency” section. The low tire pressure warn-
ing system will activate only when the vehicle is
driven at speeds above 20 MPH (32 km/h).
8-32
Maintenance and do-it-yourself


04.3.9/R50-D/V5

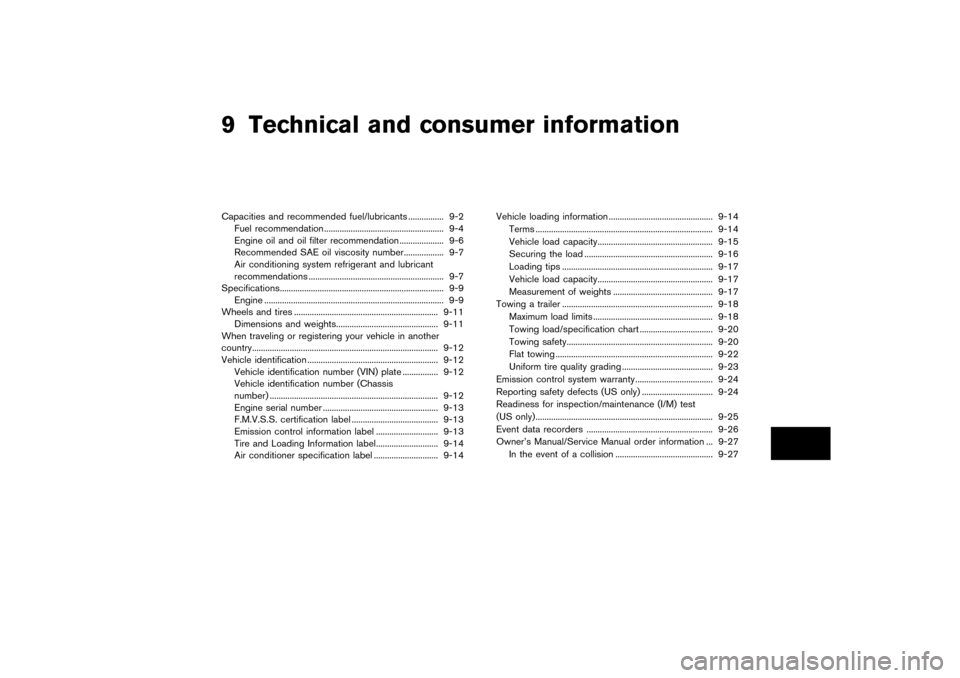

9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-4
Engine oil and oil filter recommendation.................... 9-6
Recommended SAE oil viscosity number.................. 9-7
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-7
Specifications.......................................................................... 9-9
Engine ................................................................................. 9-9
Wheels and tires ................................................................. 9-11
Dimensions and weights.............................................. 9-11
When traveling or registering your vehicle in another
country.................................................................................... 9-12
Vehicle identification ........................................................... 9-12
Vehicle identification number (VIN) plate ................ 9-12
Vehicle identification number (Chassis
number) ............................................................................ 9-12
Engine serial number .................................................... 9-13
F.M.V.S.S. certification label ....................................... 9-13
Emission control information label ............................ 9-13
Tire and Loading Information label............................ 9-14
Air conditioner specification label ............................. 9-14Vehicle loading information ............................................... 9-14
Terms ................................................................................ 9-14
Vehicle load capacity.................................................... 9-15
Securing the load .......................................................... 9-16
Loading tips .................................................................... 9-17
Vehicle load capacity.................................................... 9-17
Measurement of weights ............................................. 9-17
Towing a trailer .................................................................... 9-18
Maximum load limits ...................................................... 9-18
Towing load/specification chart ................................. 9-20
Towing safety.................................................................. 9-20
Flat towing ....................................................................... 9-22
Uniform tire quality grading ......................................... 9-23
Emission control system warranty ................................... 9-24
Reporting safety defects (US only) ................................ 9-24
Readiness for inspection/maintenance (I/M) test
(US only) ................................................................................ 9-25
Event data recorders ......................................................... 9-26
Owner’s Manual/Service Manual order information ... 9-27
In the event of a collision ............................................ 9-27


04.3.9/R50-D/V5
