2004 NISSAN 350Z display

points will be displayed. Guidance will be
made at each guide point for which direction
to turn.
The distance between the guide points and the
travel time will also be displayed.
It may take time to prepare the turn list. In such
cases, the
T urn List key will be highlighted
and you cannot select it until calculation is
completed.
INFO:

In the turn list, turning points more than 60
miles (100 km) away from the current ve-
hicle location will not be displayed.

When calculated routes include a freeway ,
information about freeway entrances and
exits will also be displayed.

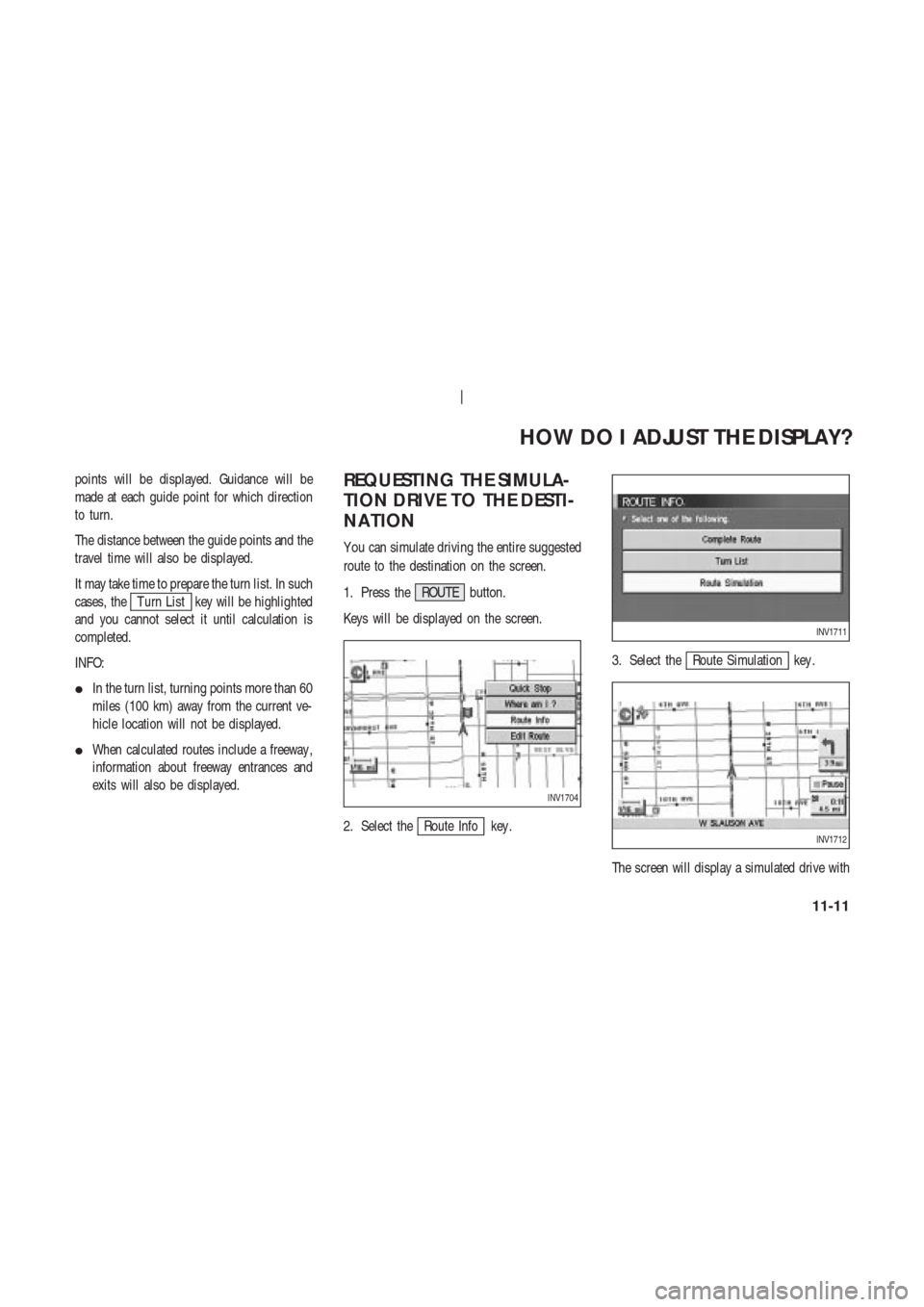

REQUESTING THE SIMULA-
TION DRIVE TO THE DESTI-
NA TION
Y ou can simulate driving the entire suggested
route to the destination on the screen.
1. Press the ROUTE button.
Keys will be displayed on the screen.
2. Select the
Route Info key .3. Select the
Route Simulation key .
The screen will display a simulated drive with
INV1704
INV1711
INV1712
HOW DO I ADJUST THE DISPLAY?
11-11

voice guidance on the suggested route to the
destination.
4. When the CANCEL or DEST button is
pressed, or the vehicle starts to run, the
route simulation will be canceled.
CANCEL SIMULATION
1. Press the ROUTE button during simula-
tion.
Select the
Route Info key .2. The [ROUTE INFO.] screen will be dis-
played.
Select the
Cancel Simulation key .
INFO:
When the CANCEL or DEST button is
pressed, or the vehicle starts to run, the route
simulation will be canceled.
INFO:
If you select the
Pause key , simulation ispaused. If you select the key again, the simu-
lation will restart.
DISPLA YING THE TRACK
Y ou can have the system track the road you
have taken, and display it with indication marks
().
1. Press the SETTING button.
2. Select the
Navigation key on the [SET -
TINGS] screen.
INV1713
INV1714
INV1466
HOW DO I ADJUST THE DISPLAY?
11-12

3. Select theT racking On/Off key .
4. Select the
On key .5. Press the MAP button.
The location of the vehicle will be displayed.
INFO:

Y ou can select the
On key to display the
indication marks (), and the
Off key to
stop displaying them.

The indication marks () may be spaced
differently , according to the scale of the
map.

If you reset the current vehicle location, theindication marks () will be cleared.
GPS INFORMA TION DIS-
PLA Y
The following GPS information will be dis-
played on the screen: latitude, longitude, alti-
tude, signal reception, and satellite locations.
1. Press the SETTING button.
2. Select the
Navigation key on the [SET -
TINGS] screen.
INV1716
INV1717
INV1718
INV1466
HOW DO I ADJUST THE DISPLAY?
11-13

3. Select theGPS Information key .
GPS information will be displayed.INFO:

The satellite with a strong enough signal
will be indicated in green.

The display will read, [3-dimensional po-
sitioning], [2-dimensional positioning], or
[positioning not possible], depending on
the signal strength. (Altitude will not be dis-
played in 2-dimensional positioning.)

When the MAP button is pressed, the
[CURRENT LOCA TION] screen will appear .
When the PREVIOUS button is pressed,the [NAVIGA TION SETTINGS] screen will
appear .
UPDA TING THE CURRENT
VEHICLE LOCA TION AND
THE DIRECTION
If the vehicle icon does not indicate the correct
location or the direction does not match the ac-
tual road, you can adjust them on the map
screen.
1. Press the SETTING button.
INV1720INV1721
INV1466
HOW DO I ADJUST THE DISPLAY?
11-14

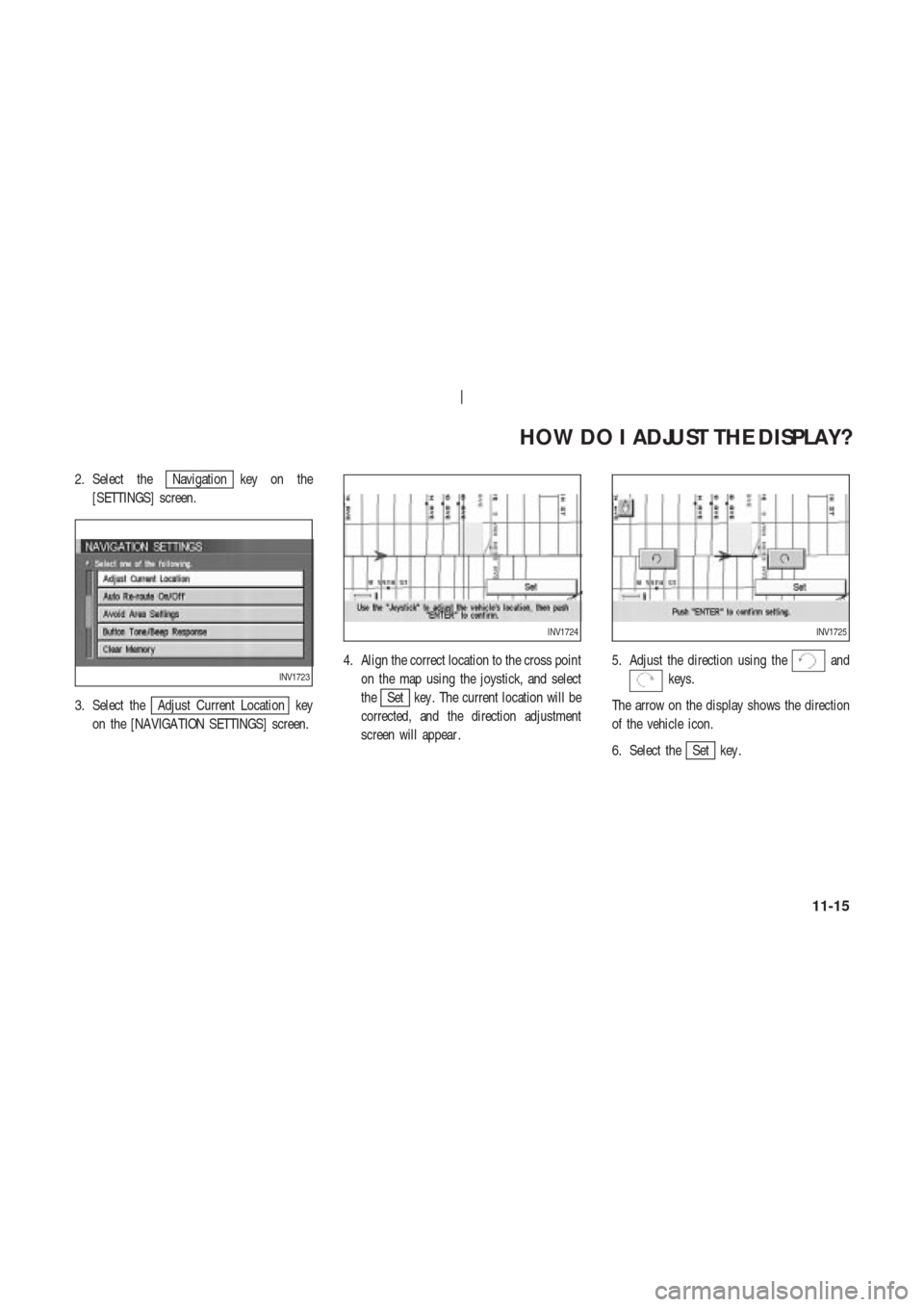

2. Select theNavigation key on the
[SETTINGS] screen.
3. Select the
Adjust Current Location key
on the [NAVIGA TION SETTINGS] screen.4. Align the correct location to the cross point
on the map using the joystick, and select
theSet key . The current location will be
corrected, and the direction adjustment
screen will appear .5. Adjust the direction using the
and
keys.
The arrow on the display shows the direction
of the vehicle icon.
6. Select the
Set key .
INV1723
INV1724INV1725
HOW DO I ADJUST THE DISPLAY?
11-15

INFO:

It is not possible to update the vehicle lo-
cation when the vehicle is moving.

Depending on the driving conditions, the
vehicle icon may not exactly correspond to
the actual location of the vehicle. T o verify
position, refer to map books or check actual
landmarks.

If you notice that the system is displaying
a different road from the one the vehicle is
actually traveling, and the vehicle icon doesnot go back to the right road after traveling
approximately 6-1/4 miles (10 km), update
the vehicle location.
SETTING AUTOMA TIC BEEP
SOUND
Y ou can set the automatic beep sound. (Acti-
vated during automatic rerouting, etc.)
1. Press the SETTING button.
The [SETTINGS] screen will be displayed.
Select the
Navigation key .2. The [NAVIGA TION SETTINGS] screen will
be displayed.
Select the
Button T one/Beep Responsekey .
INV1726
INV1466
INV1728
HOW DO I ADJUST THE DISPLAY?
11-16

3. The [BUTTON TONE/BEEP RESPONSE]
screen will be displayed.
When turning on/off the beep sound, select the
On orOff key .
When the PUSH ENTER button is pressed, the
selected key will be illuminated.
INFO:
Press the MAP button to return to the map.
SETTING THE DISPLA Y
MODE
Y ou can alter the display mode.
ADJUSTING THE DISPLAY
BRIGHTNESS
Y ou can choose the best brightness for the dis-
play .
1. Press the SETTING button.
2. Select the
Display key .3. The [DISPLA Y SETTINGS] screen will be
displayed.
Select the
Brightness/Contrast/Map Background
key .
INV1729
INV1730
INV1731
HOW DO I ADJUST THE DISPLAY?
11-17

4. Select theBrightness key .
When the joystick is tilted to the right, the
screen will brighten, and darken when tilted to
the left.
INFO:
The screen displayed before pressing the
SETTING button will be displayed as a
sample screen on the [DISPLA Y SETTINGS]
screen.
ADJUSTING THE DISPLAY
CONTRAST
Y ou can choose the best contrast for the dis-
play .
1. Press the SETTING button.
2. Select the
Display key .3. The [DISPLA Y SETTINGS] screen will be
displayed.
Select the
Brightness/Contrast/Map Background
key .
INV1732
INV1730
INV1731
HOW DO I ADJUST THE DISPLAY?
11-18
