ABOUT ROUTE GUIDANCE
The NISSAN Navigation System may
not calculate routes longer than
about 1,100 miles (1,770 km). If your
trip is longer than 1,100 miles (1,770
km), please divide your trip by se-
lecting one or two intermediate des-
tinations. Set your destination as the
first intermediate destination. Once
you pass the intermediate destina-
tion, you may set your final destina-
tion as your destination if it is within
1,100 miles (1,770 km). Otherwise,
set your destination using your sec-
ond intermediate destination.
NOTE:
The navigation system does not take
driving in “carpool lanes” into consid-
eration for the guidance, especially
when carpool lanes are separated from
other road lanes.
NOTES ON ROUTE GUIDANCE
The route selected by the system may not
be the shortest, nor are other circumstances
such as traffic jams considered.
Because of the inevitable difference in road
conditions and circumstances between the
time you use this system and the time the
information was produced for the DVD,
there may be discrepancies in roads and
regulations. In such cases, follow the actual
information available.
During route calculation, the map will not
scroll, however the vehicle icon will move
with the actual vehicle’s movement.
During route calculation, buttons such as
MAP , DEST , ZOOM OUT and
ZOOM IN and the joystick will be dis-
abled.
In some cases, after the calculation is com-
plete, it may take some time to get the cal-
culated route on the display .Waypoints that have been passed will not
be covered by the re-routing calculation.
If you scroll the map while the suggested
route is being drawn, it may take more time
to finish drawing.
If waypoints are set, the system is calculat-
ing multiple routes between waypoints si-
multaneously , and the following may result.
— If one section (or more) of the routes be-
tween the waypoints is not found, none of
the route will be displayed.
— The route may not connect completely at
some waypoints.
— The route may require a U-turn close to
some waypoints.
Route calculation may not be completed in
the following cases.
— If there is no main road within 3.1 miles (5
km) from the vehicle, a message saying so
will appear on the screen. T ry requesting
HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
4-21

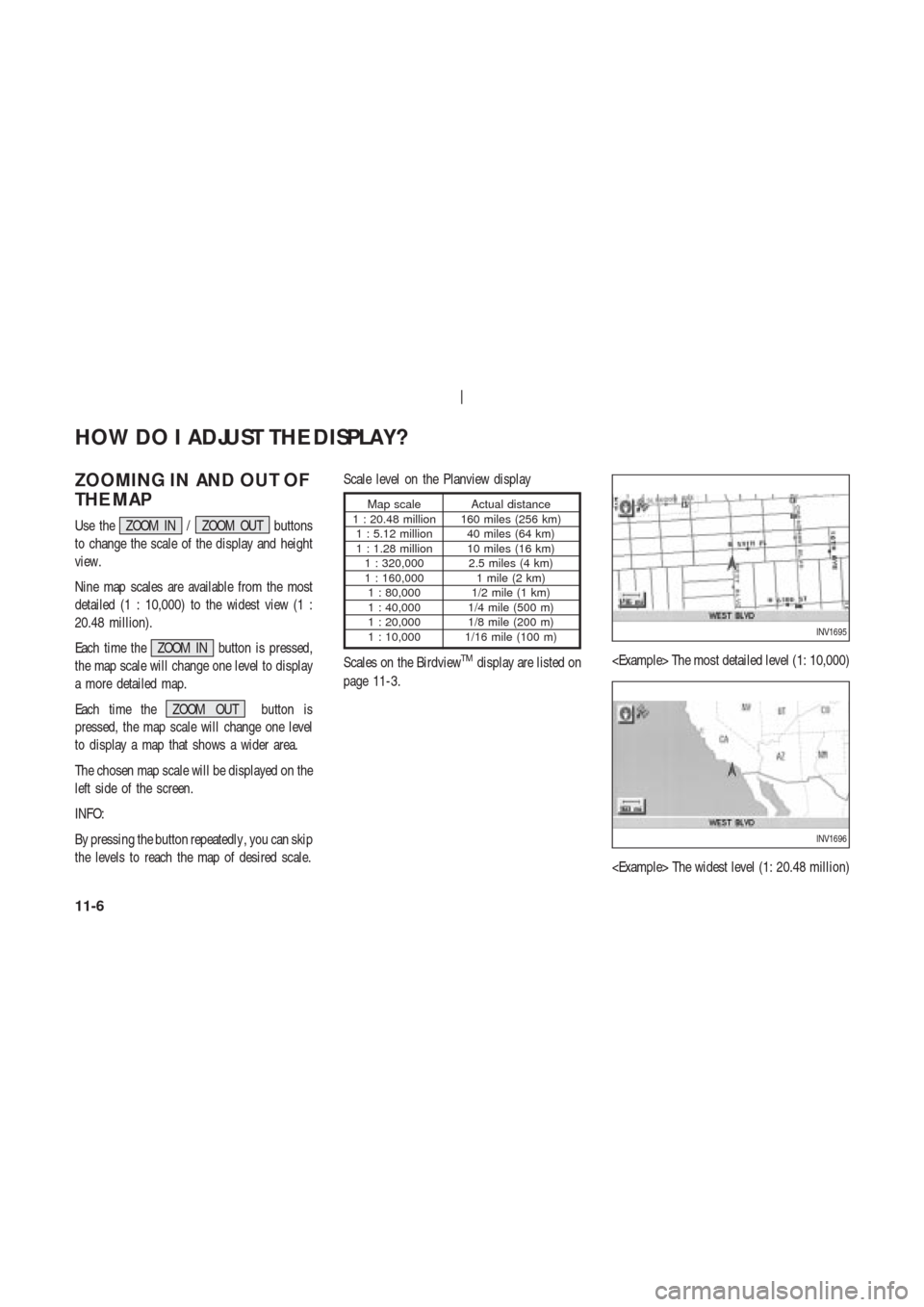

ZOOMING IN AND OUT OF
THE MAP
Use the ZOOM IN / ZOOM OUT buttons
to change the scale of the display and height
view.
Nine map scales are available from the most
detailed (1 : 10,000) to the widest view (1 :
20.48 million).
Each time the ZOOM IN button is pressed,
the map scale will change one level to display
a more detailed map.
Each time the ZOOM OUT button is
pressed, the map scale will change one level
to display a map that shows a wider area.
The chosen map scale will be displayed on the
left side of the screen.
INFO:
By pressing the button repeatedly , you can skip
the levels to reach the map of desired scale.Scale level on the Planview display
Map scale Actual distance
1 : 20.48 million 160 miles (256 km)
1 : 5.12 million 40 miles (64 km)
1 : 1.28 million 10 miles (16 km)
1 : 320,000 2.5 miles (4 km)
1 : 160,000 1 mile (2 km)
1 : 80,000 1/2 mile (1 km)
1 : 40,000 1/4 mile (500 m)
1 : 20,000 1/8 mile (200 m)
1 : 10,000 1/16 mile (100 m)
Scales on the BirdviewTMdisplay are listed on
page 11-3. The most detailed level (1: 10,000)
The widest level (1: 20.48 million)
INV1695
INV1696

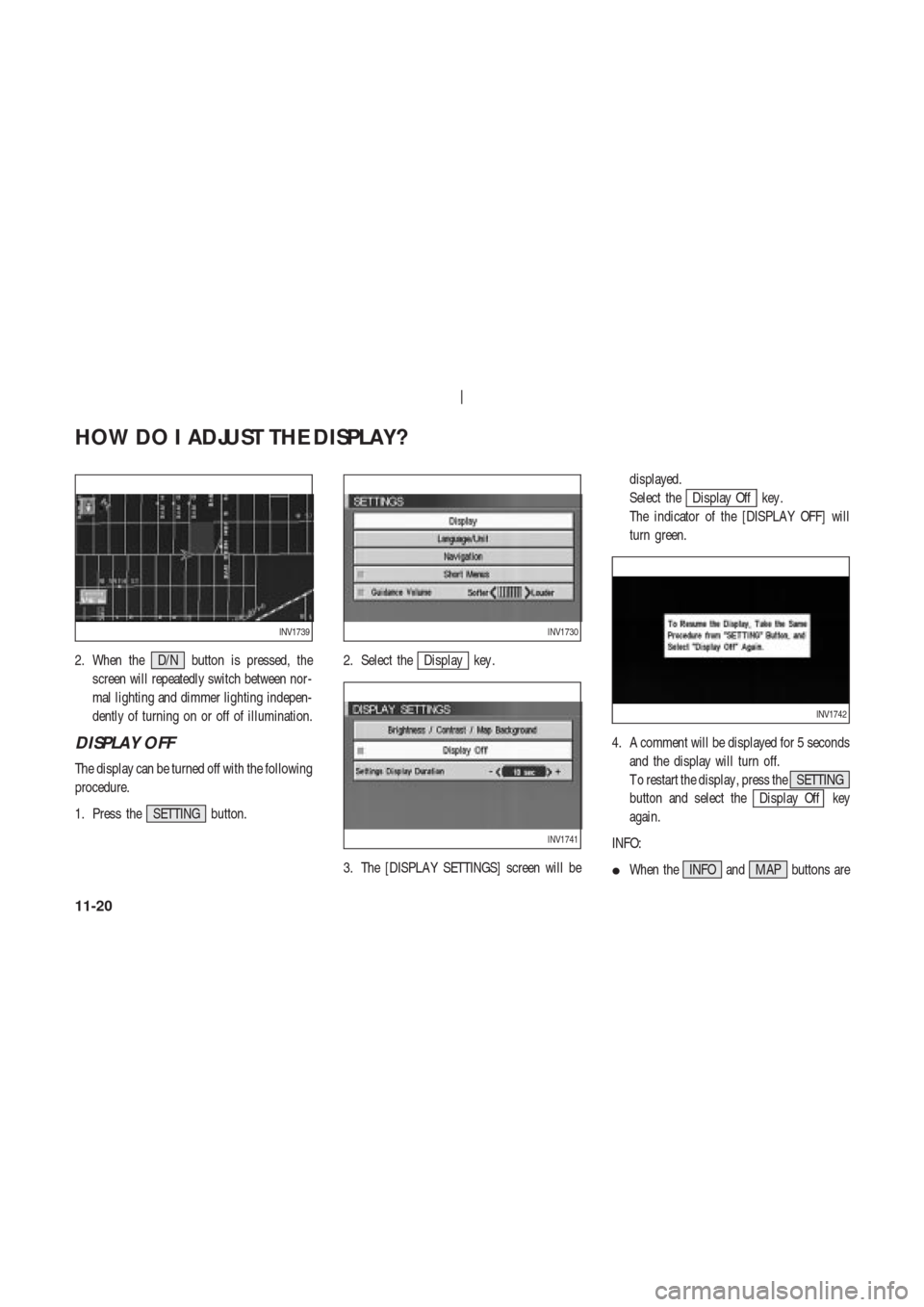

HOW DO I ADJUST THE DISPLAY?
11-6
2. When the D/N button is pressed, the
screen will repeatedly switch between nor-
mal lighting and dimmer lighting indepen-
dently of turning on or off of illumination.
DISPLAY OFF
The display can be turned off with the following
procedure.
1. Press the SETTING button.2. Select the
Display key .
3. The [DISPLA Y SETTINGS] screen will bedisplayed.
Select the
Display Off key .
The indicator of the [DISPLA Y OFF] will
turn green.
4. A comment will be displayed for 5 seconds
and the display will turn off.
T o restart the display , press the SETTING
button and select the
Display Off key
again.
INFO:
When the INFO and MAP buttons are
INV1739INV1730
INV1741
INV1742
HOW DO I ADJUST THE DISPLAY?
11-20
