mode will appear to input the home address.
Please refer to “Setting with the
Home key”
on page 5-26.
Address/Streetkey:
Same as in Expert Mode.
Point of Interest (POI)key:
Same as in Expert Mode.
Countrykey:
Same as in Expert Mode.
HOW TO USE THEROUTEBUT-
TON
When the ROUTE button is pressed while the
current location is displayed on the screen, the
display shows the following keys.
INFO:
When no operations are executed after a few
seconds, the keys will disappear automatically .
Quick Stopkey:
Selects the destination (waypoints) from a list
of 5 commonly used POI (Points of Interest).
Please refer to “Quick stop” on page 5-36.
Where am I?key:
Displays the street where the vehicle is cur-
rently located, the previous street, and the up-
coming street.
Please refer to “Where am I” on page 5-39.
Route Infokey:
Displays the route to the destination. There are
three types of display methods.
Complete Routekey:
Displays the entire route from the current
location to the destination.
Please refer to “Displaying the complete
route to the destination” on page 11-9.
T urn Listkey:
Displays a list of the guidance points for the
entire route to the destination on a simple
map.
Please refer to “Displaying turn list” on
page 11-10.
Route Simulationkey:
Performs a simulation drive on the map
screen by moving a vehicle icon on all the
routes from the current location to the des-
tination.
INV1455
HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
4-13
BASIC OPERA TIONS

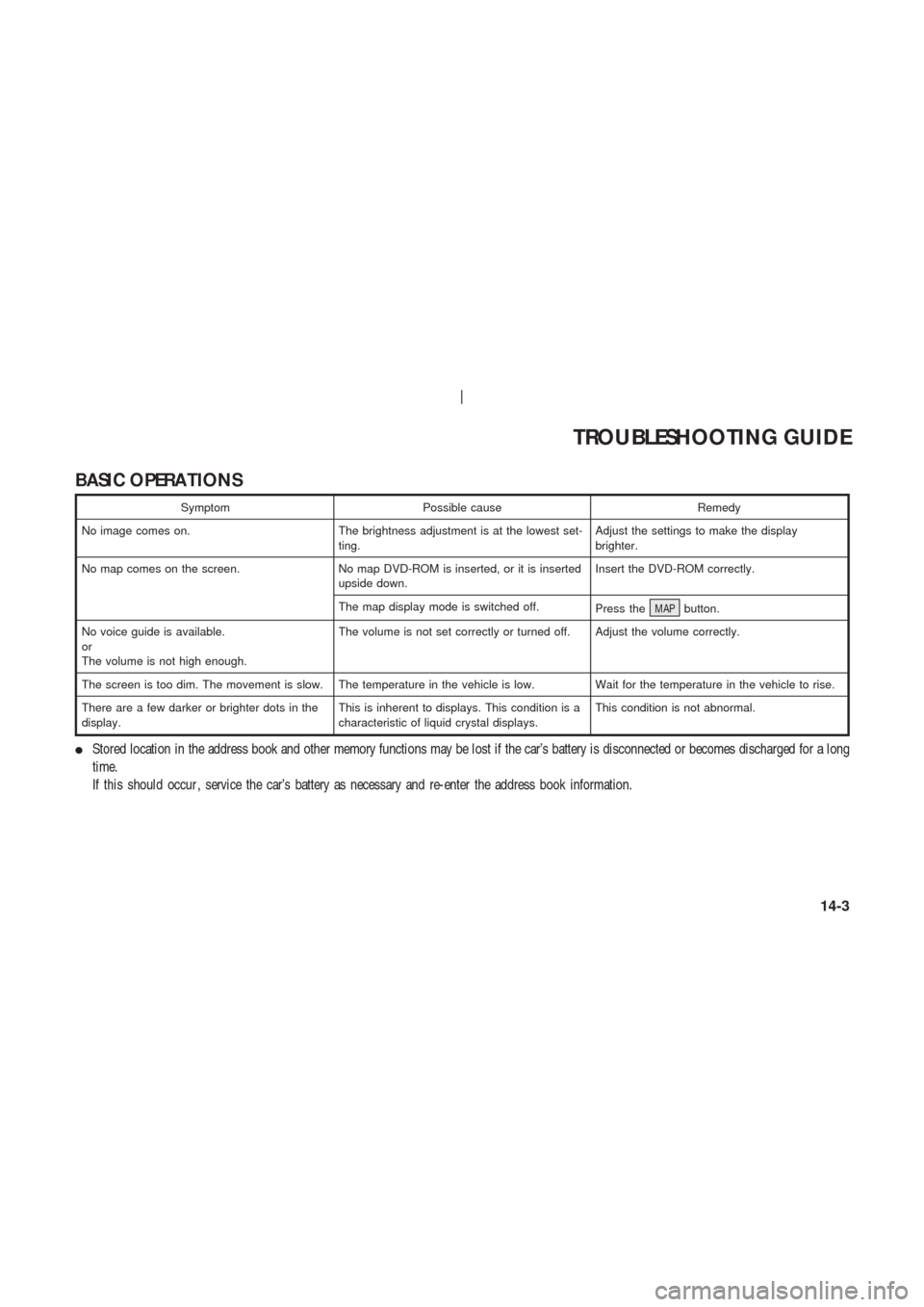

Symptom Possible cause Remedy
No image comes on. The brightness adjustment is at the lowest set-
ting.Adjust the settings to make the display
brighter.
No map comes on the screen. No map DVD-ROM is inserted, or it is inserted
upside down.Insert the DVD-ROM correctly.
The map display mode is switched off.
Press theMAPbutton.
No voice guide is available.
or
The volume is not high enough.The volume is not set correctly or turned off. Adjust the volume correctly.
The screen is too dim. The movement is slow. The temperature in the vehicle is low. Wait for the temperature in the vehicle to rise.
There are a few darker or brighter dots in the
display.This is inherent to displays. This condition is a
characteristic of liquid crystal displays.This condition is not abnormal.
Stored location in the address book and other memory functions may be lost if the car’s battery is disconnected or becomes discharged for a long
time.
If this should occur , service the car’s battery as necessary and re-enter the address book information.
TROUBLESHOOTING GUIDE
14-3
