2004 MITSUBISHI ENDEAVOR engine

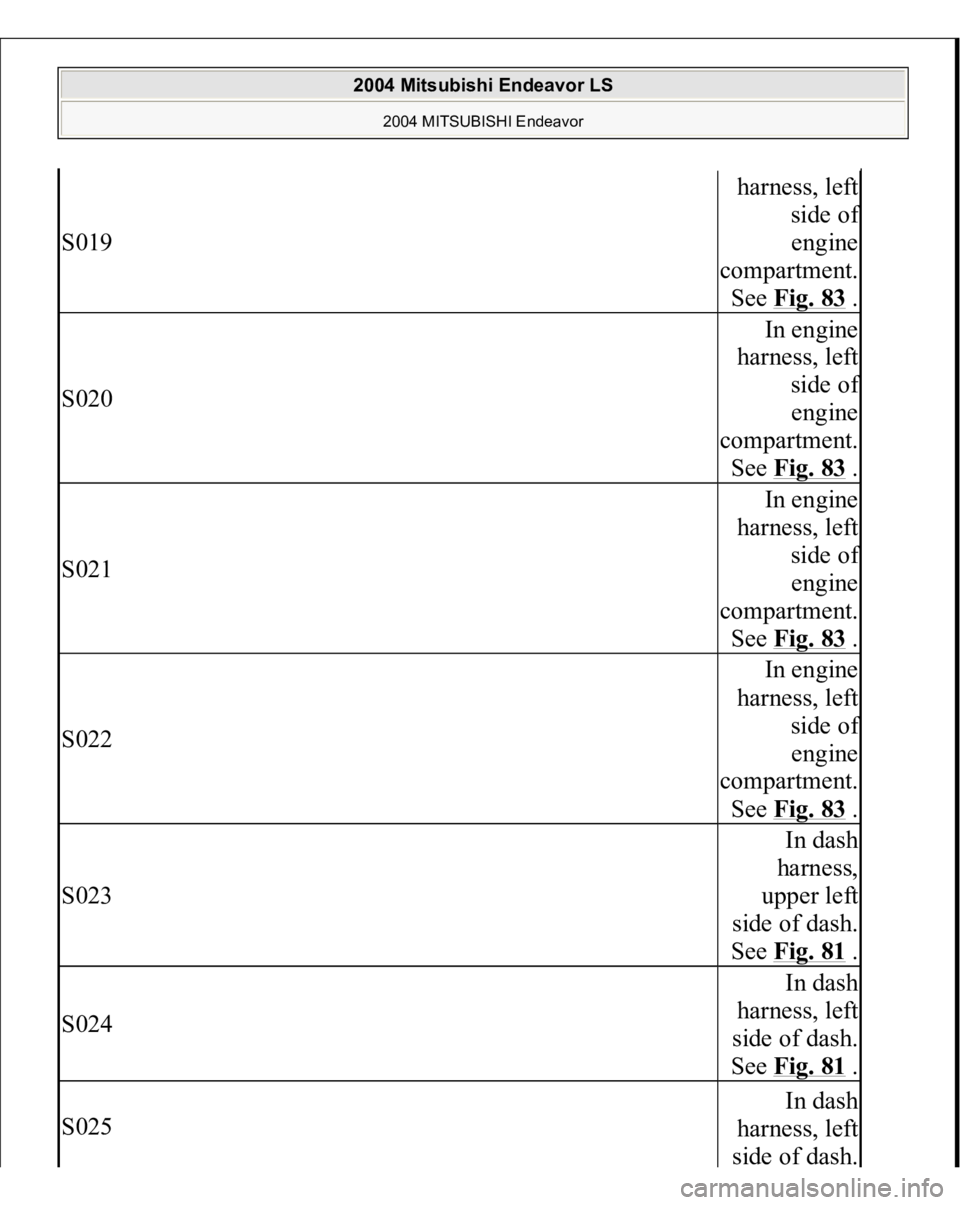

S019
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S020
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S021
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S022
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S023
In dash
harness,
upper left
side of dash.
See Fig. 81
.
S024
In dash
harness, left
side of dash.
See Fig. 81
.
S025
In dash
harness, left
side of dash.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

See Fig. 85
.

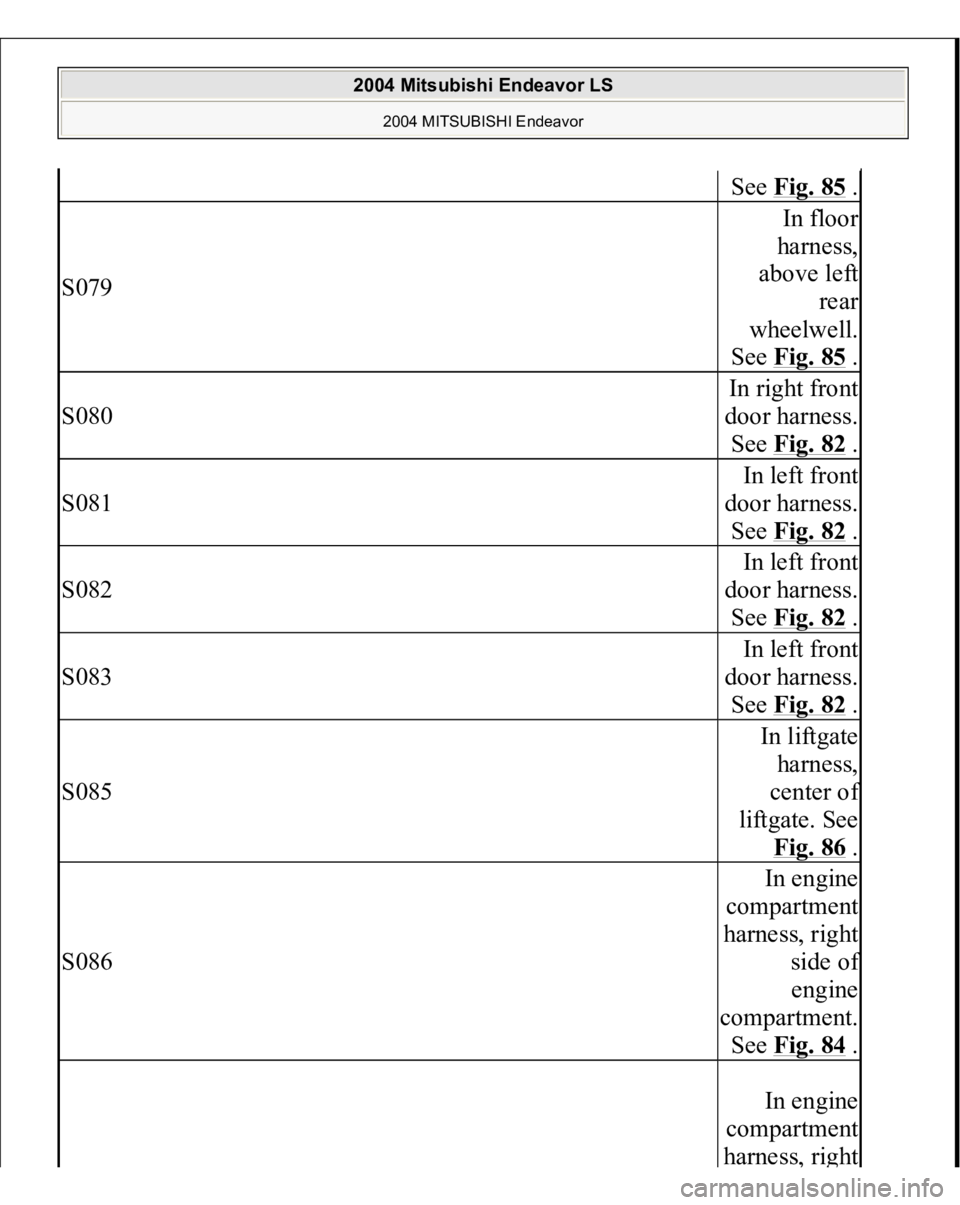

S079
In floor
harness,
above left
rear
wheelwell.
See Fig. 85
.
S080
In right front
door harness.
See Fig. 82
.
S081
In left front
door harness.
See Fig. 82
.
S082
In left front
door harness.
See Fig. 82
.
S083
In left front
door harness.
See Fig. 82
.
S085
In liftgate
harness,
center o
f
liftgate. See
Fig. 86 .
S086
In engine
compartment
harness, right
side o
f
engine
compartment.
See Fig. 84 .
In engine
compartment
harness
, right

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

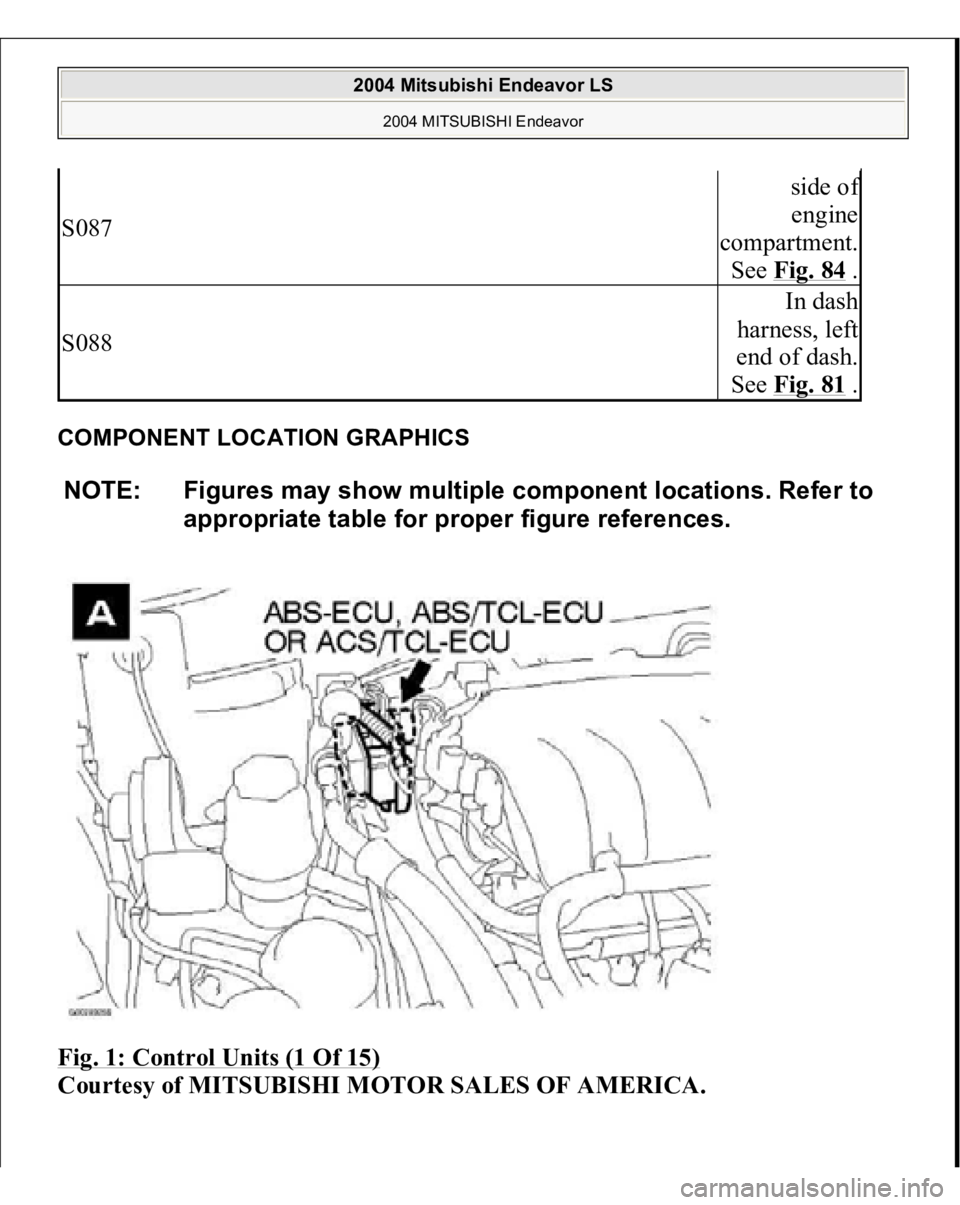

COMPONENT LOCATION GRAPHICS Fig. 1: Control Units (1 Of 15)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
S087
side o
f
engine
compartment.
See Fig. 84 .
S088
In dash
harness, left
end of dash.
See Fig. 81
.
NOTE: Figures may show multiple component locations. Refer to
appropriate table for proper figure references.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

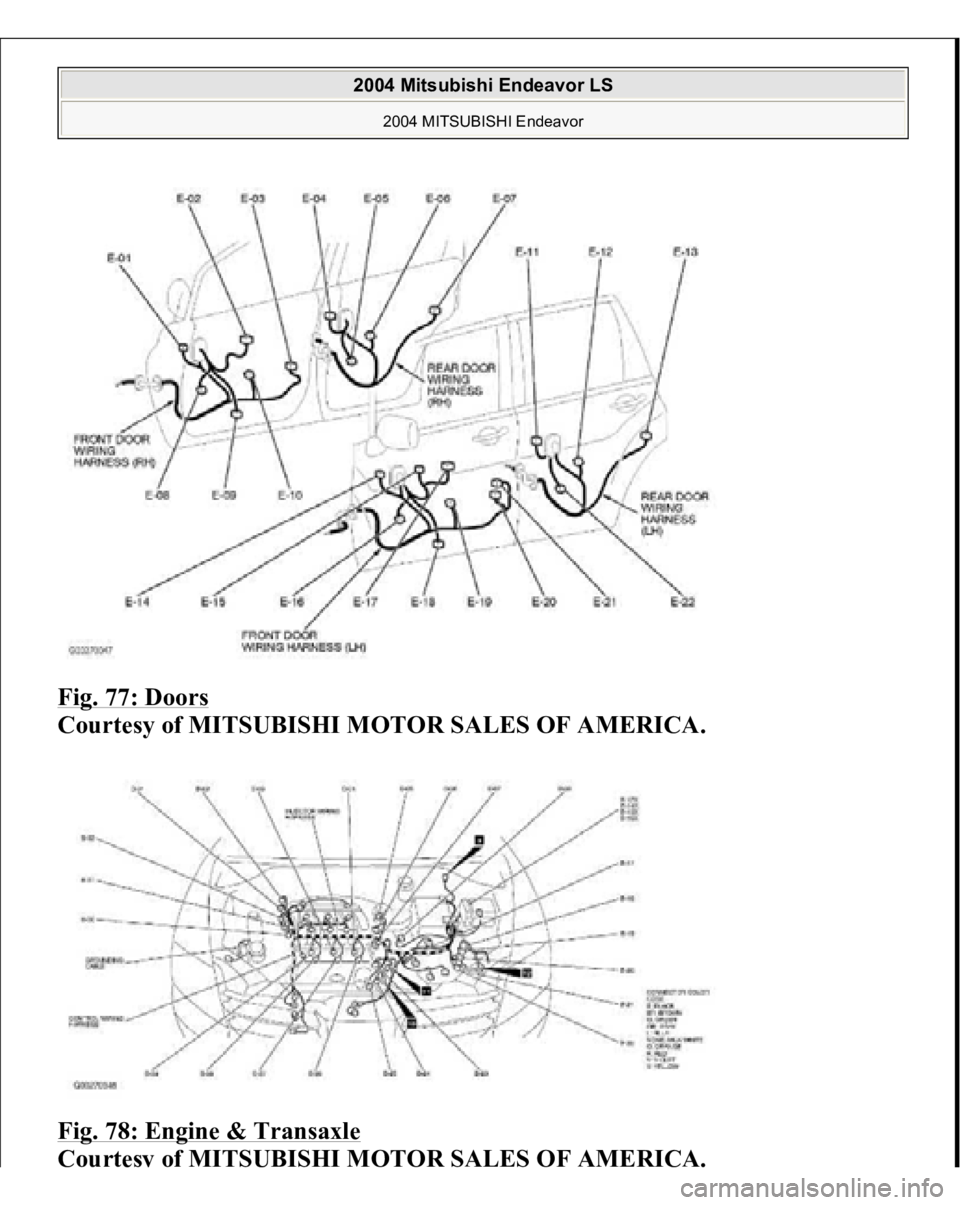

Fig. 77: Doors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 78: Engine & Transaxle

Cou
rtesy
of MIT
SU
BI
SHI M
OTOR SALE
S OF AMERI
CA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

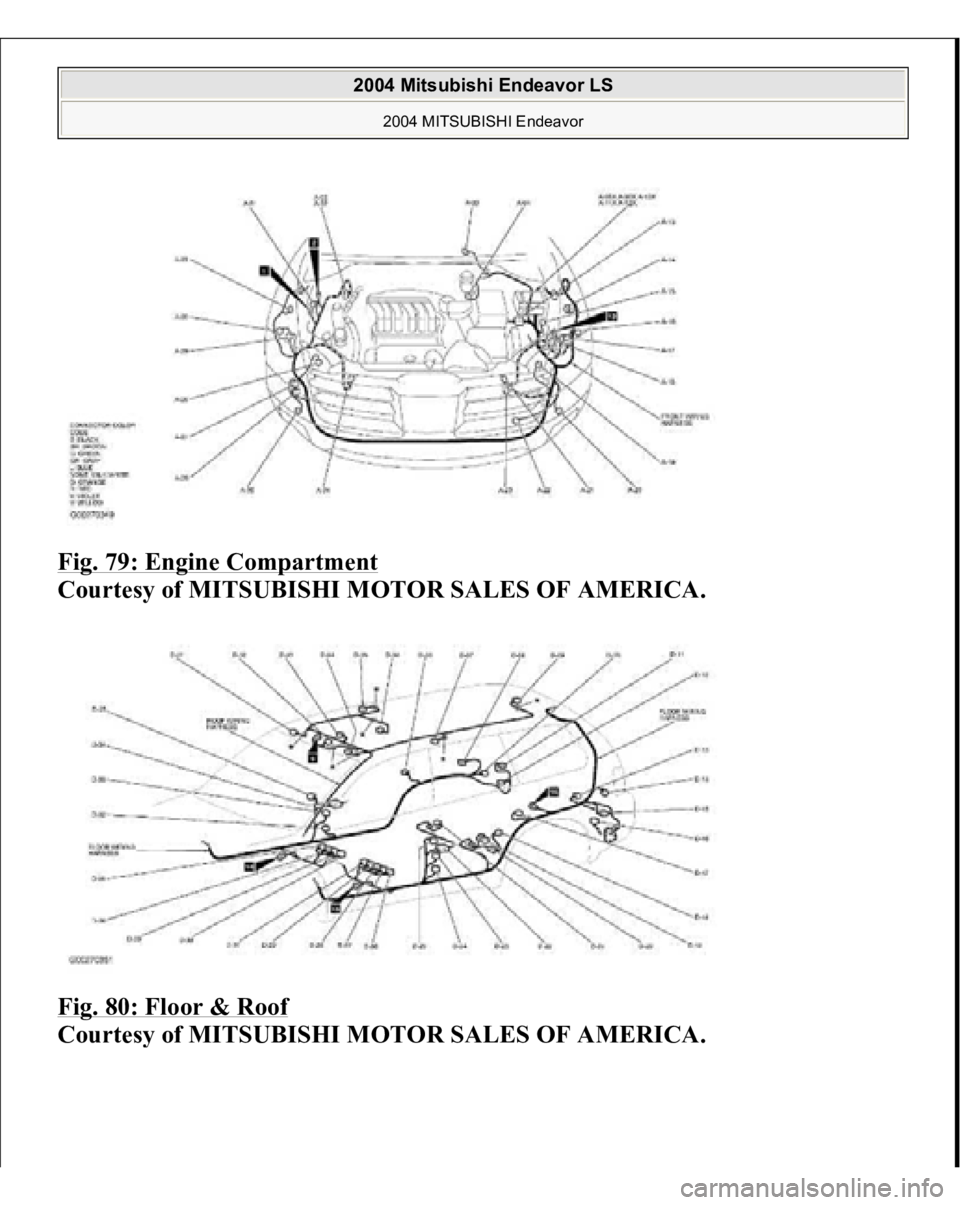

Fig. 79: Engine Compartment

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 80: Floor & Roof

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

Fig. 83: Engine & Transaxle Splices

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

Fig. 84: Engine Compartment Splices

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

2004 ENGINE
Engine Cooling - Endeavor
GENERAL DESCRIPTION The cooling system is designed to keep every part of the engine at appropriate
temperature in whatever condition the engine may be operated. The cooling method
is of the water-cooled, pressure forced circulation type in which the water pump
pressurizes coolant and circulates it throughout the engine. If the coolant
temperature exceeds the prescribed temperature, the thermostat opens to circulate
the coolant through the radiator as well so that the heat absorbed by the coolant may
be radiated into the air. The water pump is of the centrifugal type and is driven by
the drive belt from the crankshaft. The radiator is the corrugated fin, down flow
type. CONSTRUCTION DIAGRAM Fig. 1: Identifying Engine Cooling Construction Diagram
