Page 97 of 3870
Q: Is the voltage approximately 12 volts (battery positive voltage)?
YES: Go to Step 5 .
NO: Go to Step 4.
STEP 4. Check ABS-ECU connector A-02 for loose, corroded or damaged
terminals, or terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 98 of 3870

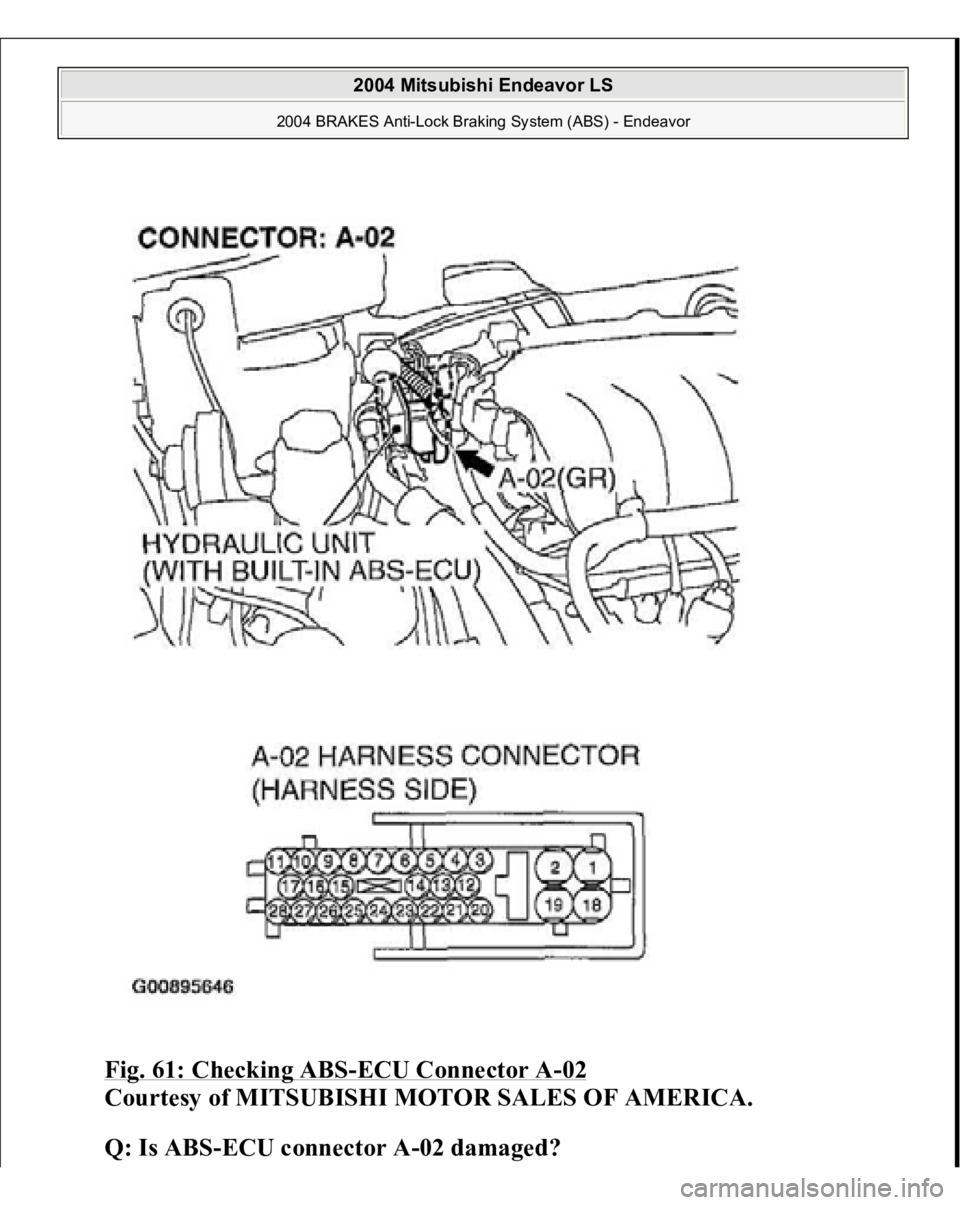

Fig. 61: Checking ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is ABS-ECU connector A-02 damaged?
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 99 of 3870
YES: Repair or replace the damaged component(s). Then go to Step 8 .
NO: An open or short circuit may be present in the solenoid valve power
supply circuit. Repair the wiring harness between ABS-ECU connector A-
02 terminal 1 and fusible link No. 3. Then go to Step 8 .
STEP 5. Measure the resistance at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Measure the resistance between terminal 2 and ground. It should be 2
ohms or less. NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 100 of 3870

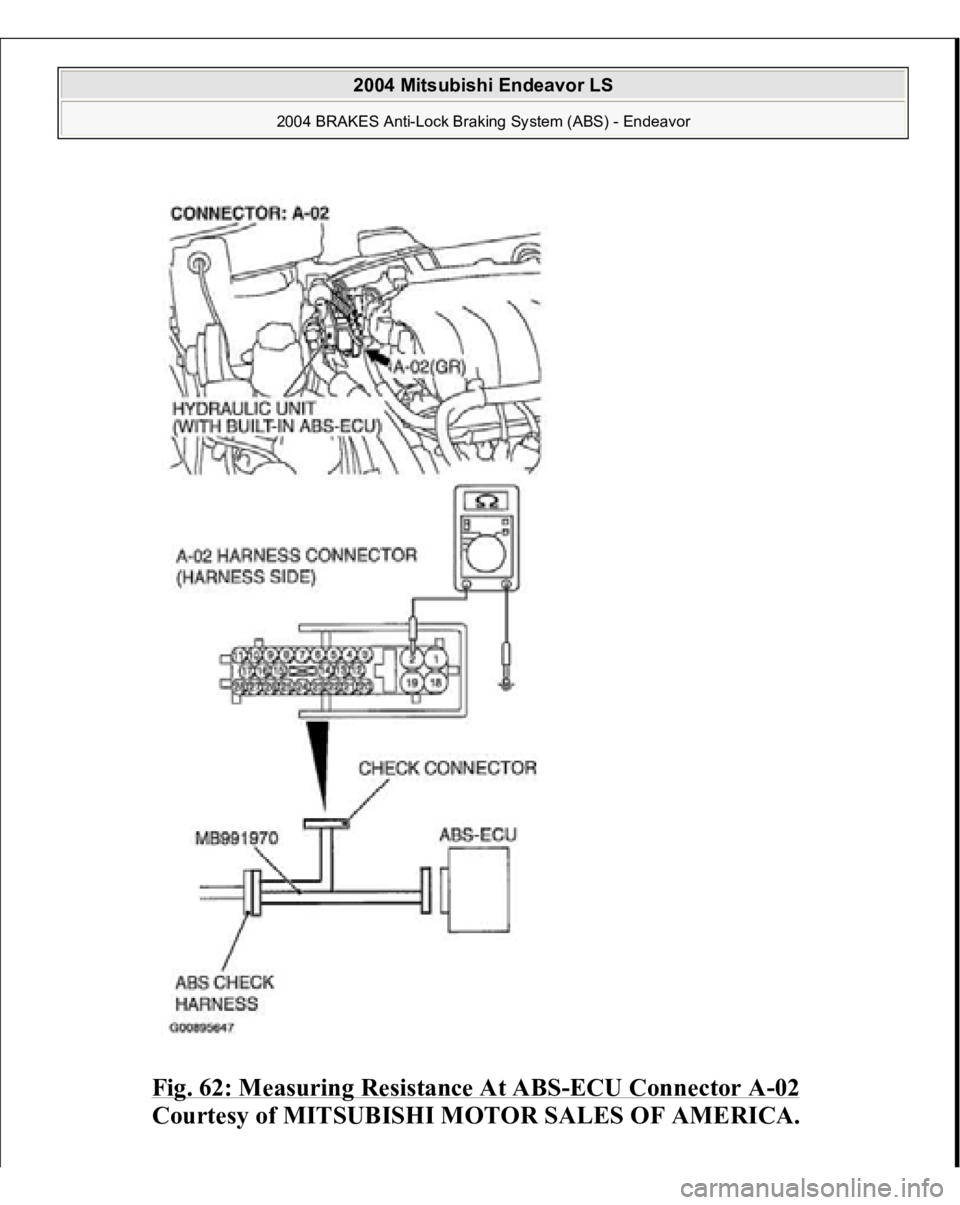

Fig. 62: Measuring Resistance At ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 101 of 3870

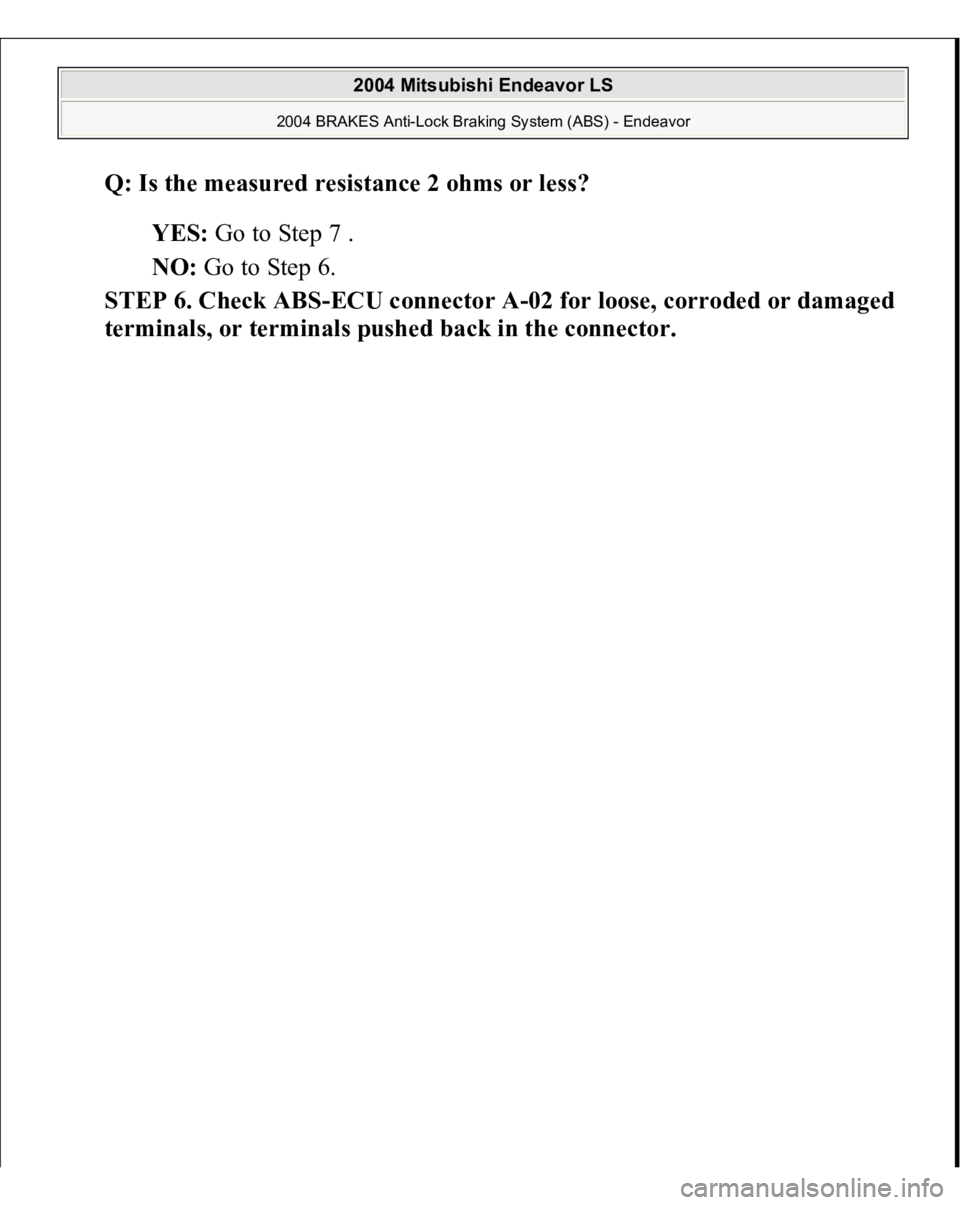

Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 7 .
NO: Go to Step 6.
STEP 6. Check ABS-ECU connector A-02 for loose, corroded or damaged
terminals, or terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 102 of 3870
Fig. 63: Checking ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is ABS-ECU connector A-02 damaged?
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 103 of 3870
YES: Repair or replace the damaged component(s). Then go to Step 8 .
NO: An open circuit may be present in the ground circuit. Repair the
wiring harness between ABS-ECU connector A-02 terminal 2 and the
body ground. Then go to Step 8 .
STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 105 of 3870
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1226, C1231, C1236, C1241, C1246, C1251, C1256 or C1261
set?
YES: Replace the hydraulic unit (integrated with ABS-ECU). Then go to
Step 8.
NO: It can be assumed that this malfunction is intermittent. Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
STEP 8. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
