2004 MITSUBISHI ENDEAVOR engine

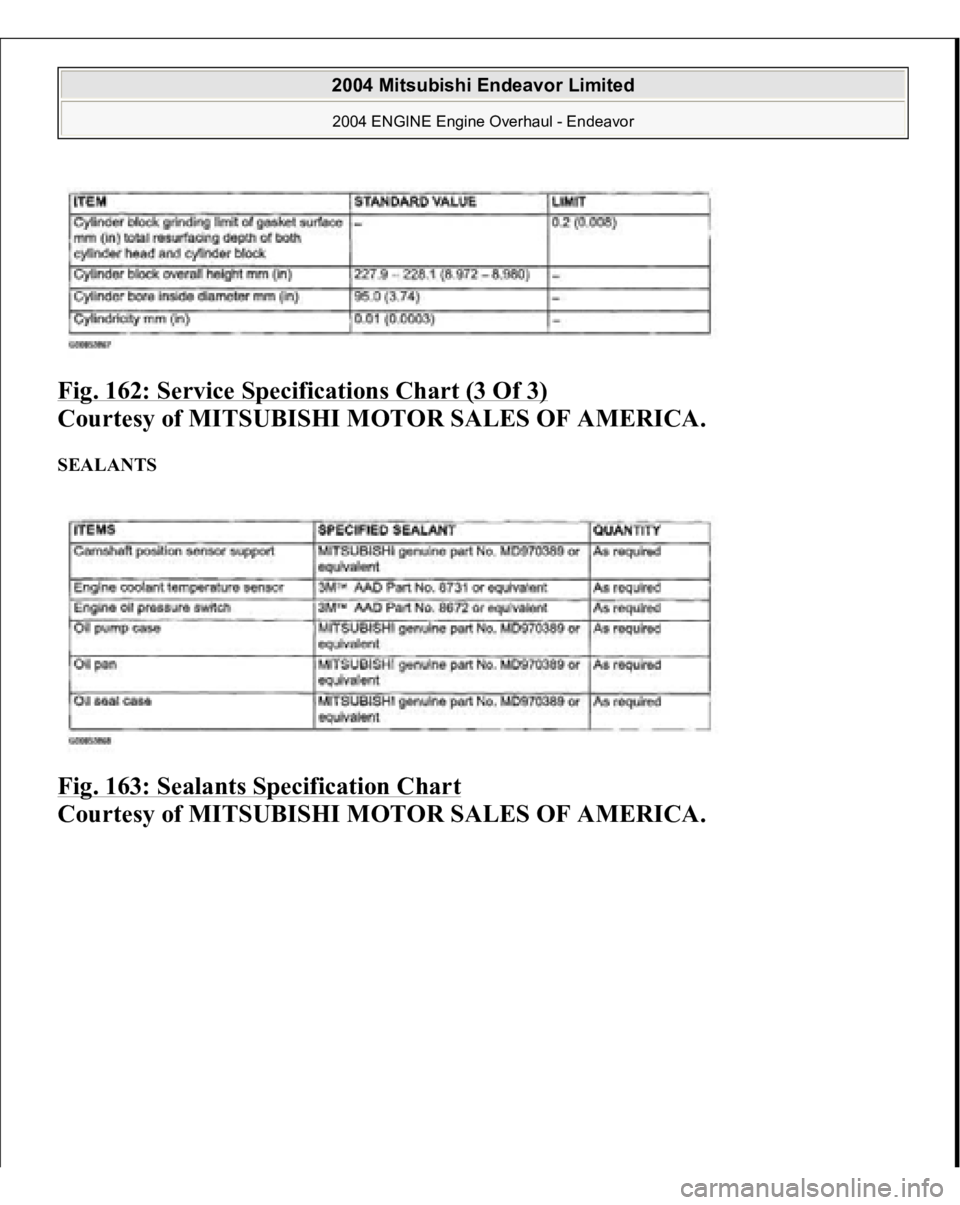

Fig. 162: Service Specifications Chart (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SEALANTS Fig. 163: Sealants Specification Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

2004 ENGINE
Engine - Endeavor
GENERAL DESCRIPTION The 6G75 (3.8L) engine is a six-cylinder engine. The cylinder numbers are assigned
as 1-3-5 for the right bank and 2-4-6 for the left bank from the front of the engine
(timing belt side). This engine is fired in the order of 1-2-3-4-5-6 cylinders.

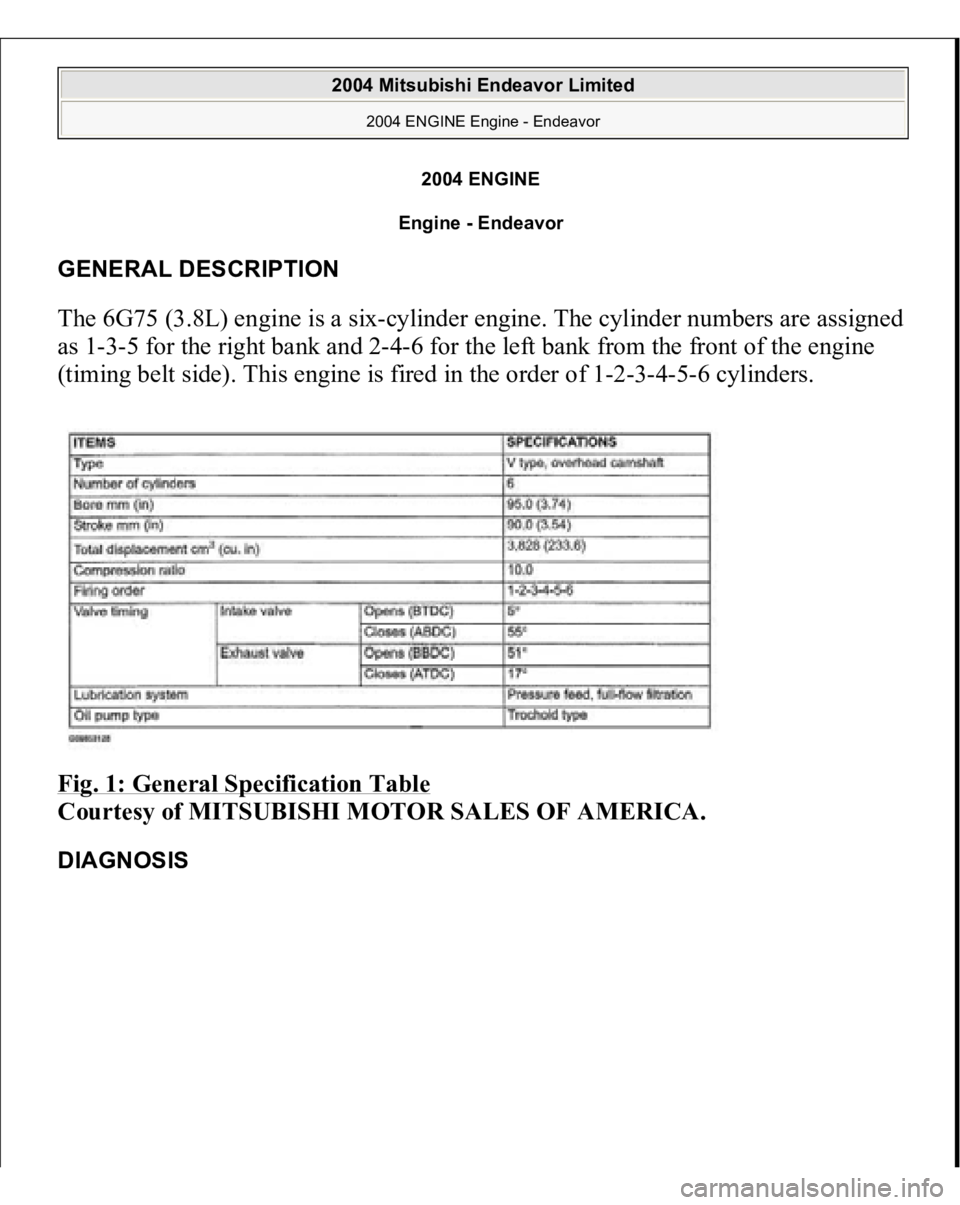

Fig. 1: General Specification Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DIAGNOSIS
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor


2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

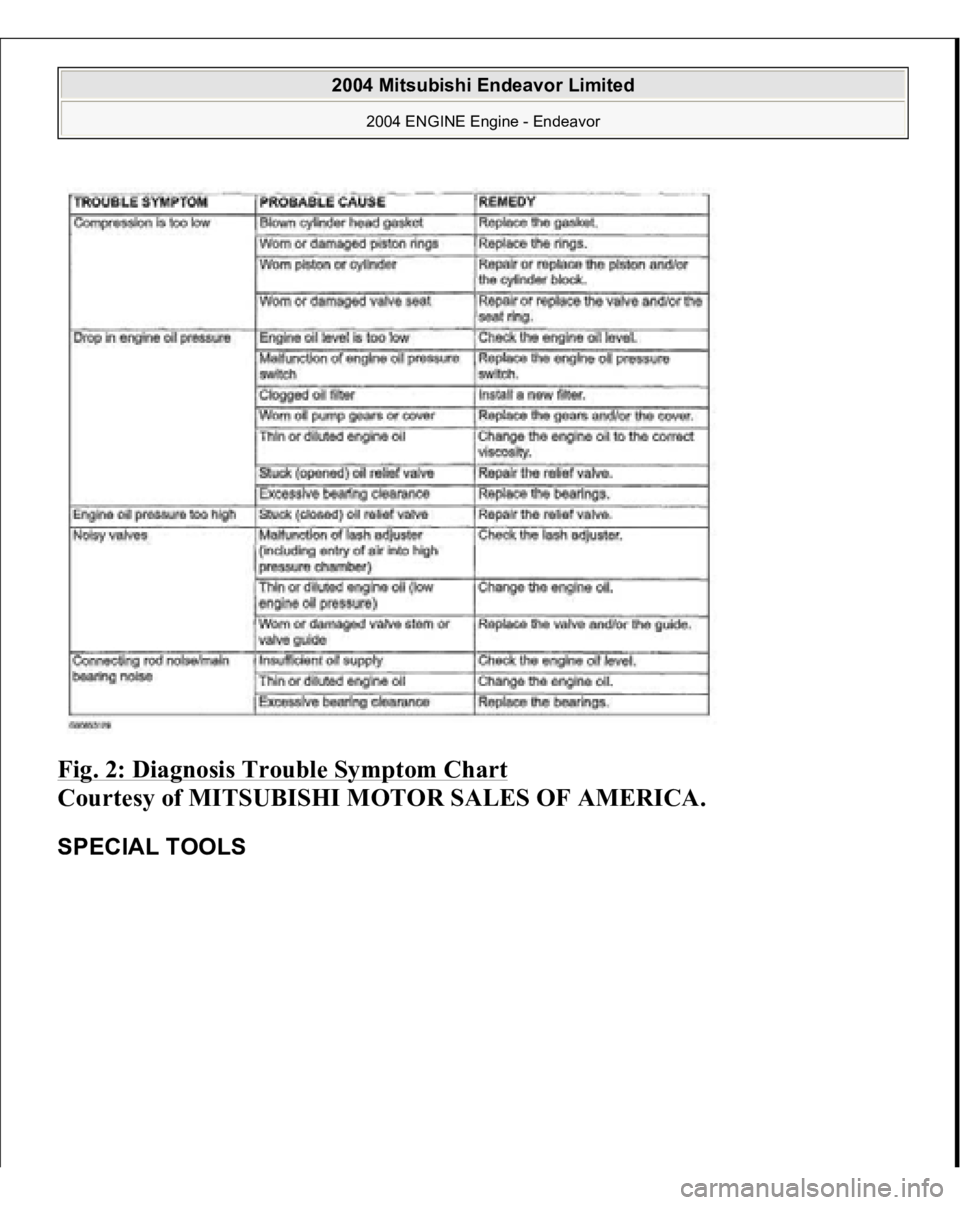

Fig. 2: Diagnosis Trouble Symptom Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPECIAL TOOLS
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

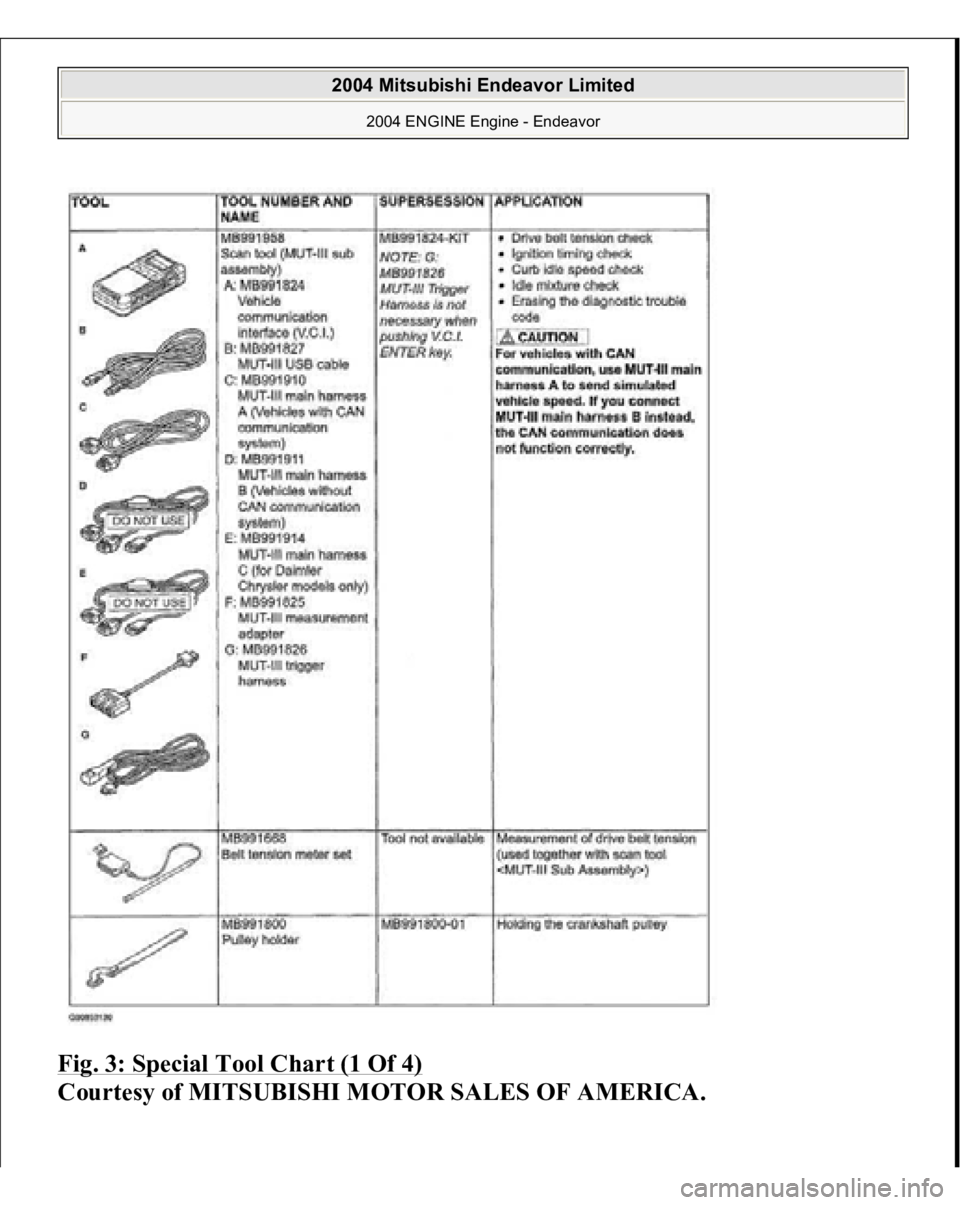

Fig. 3: Special Tool Chart (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

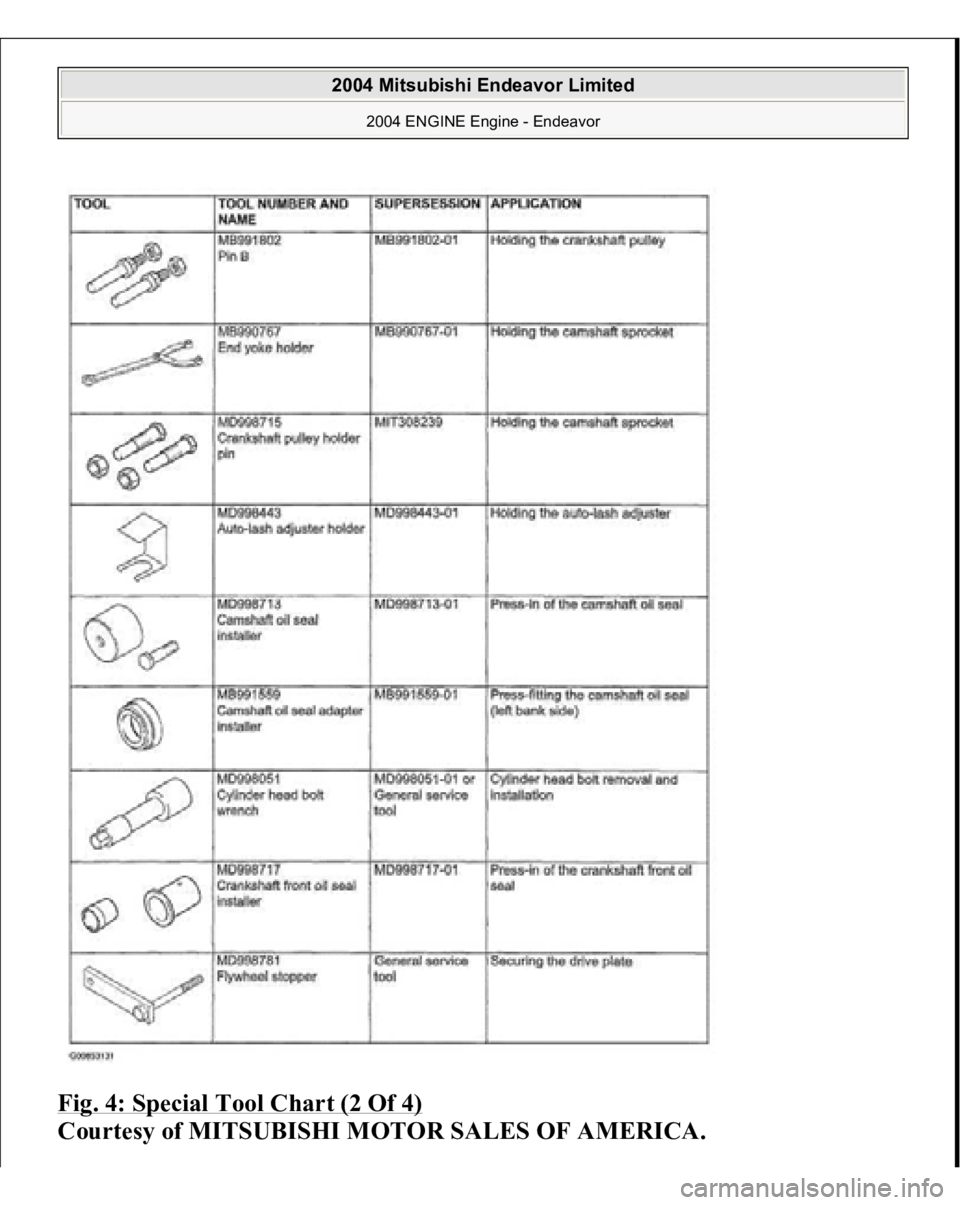

Fig. 4: Special Tool Chart (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 5: Special Tool Chart (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 6: Special Tool Chart (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE 7. DRIVE BELTS (FOR GENERATOR, POWER STEERING OIL PUMP AND AIR CONDITIONING)
(CHECK) GENERATOR DRIVE BELT TENSION CHECK < WHEN USING SCAN TOOL MB991958 > Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly) [MB991824: Vehicle
Communication Interface (V.C.I.)] MB991668: Belt Tension Meter Set
CAUTION: To prevent damage to scan tool MB991958, always

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

1. Connect s
pecial tool MB991668 to scan tool MB991958.
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
