2004 MITSUBISHI ENDEAVOR light

CIRCUIT OPERATION
The steering wheel sensor is energized via the ignition switch, and
communicates the TCL/ASC-ECU via a CAN bus-line. The steering wheel sensor has a self-diagnosis function and a memory
function. If the diagnosis function finds a trouble, it sends these DTC codes to
the TCL/ASC-ECU. Then the ECU will illuminate the TCL/ASC indicator
light. At this time, the TCL/ASC-ECU sets DTC No. C1506 (Steering angle
sensor error).
TCL/ASC/ASC DTC SET CONDITIONS These diagnostic trouble codes will be set under the cases below. DTC C1551: HALL-IC OUTPUT VOLTAGE
The Hall cell sends incorrect voltage signal for at least one second.
DTC C1552: HALL-IC OUTPUT PATTERN
Invalid Hall cell pattern fluctuates at least once.
DTC C1553: OPTICAL SENSOR
The optical sensor output is invalid.
DTC C1554: SPEED SENSOR IS OUT OF RANGE
The sensor speed is -25°/10 ms or more.
DTC C1555: STEERING ANGLE SNS. OUT OF RANGE
The sensor is out of a predetermined operation range.
DTC C1608: EEPROM FAILURE
The sensor detects an EEPROM error. CAUTION: If these DTCs has been set, TCL/ASC-ECU related
DTC C1506 is also set. After these DTCs has been
diagnosed, don't forget to erase DTC C1506.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

4. After checking that the selector lever is in "P" range, start the engine.
5. Select "Interactive Diagnosis" from the start-up screen.
6. Select "System Select."
7. Choose "ABS/ASC/ASTC" from the "CHASSIS" tab.
8. Select "Actuator Test" from "ABS/ASC/ASTC" screen
Fig. 243: Selecting Scan Tool Actuator Test

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. Choose an appropriate item for hydraulic unit check.
NOTE: The TCL/ASC system will switch to the scan tool mode
and the ABS warning light, TCL/ASC indicator and TCL
OFF indicator will illuminates.
NOTE: When the ABS and TCL/ASC has been interrupted by
the fail-safe function, scan tool MB991958 actuator
testing cannot be used.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

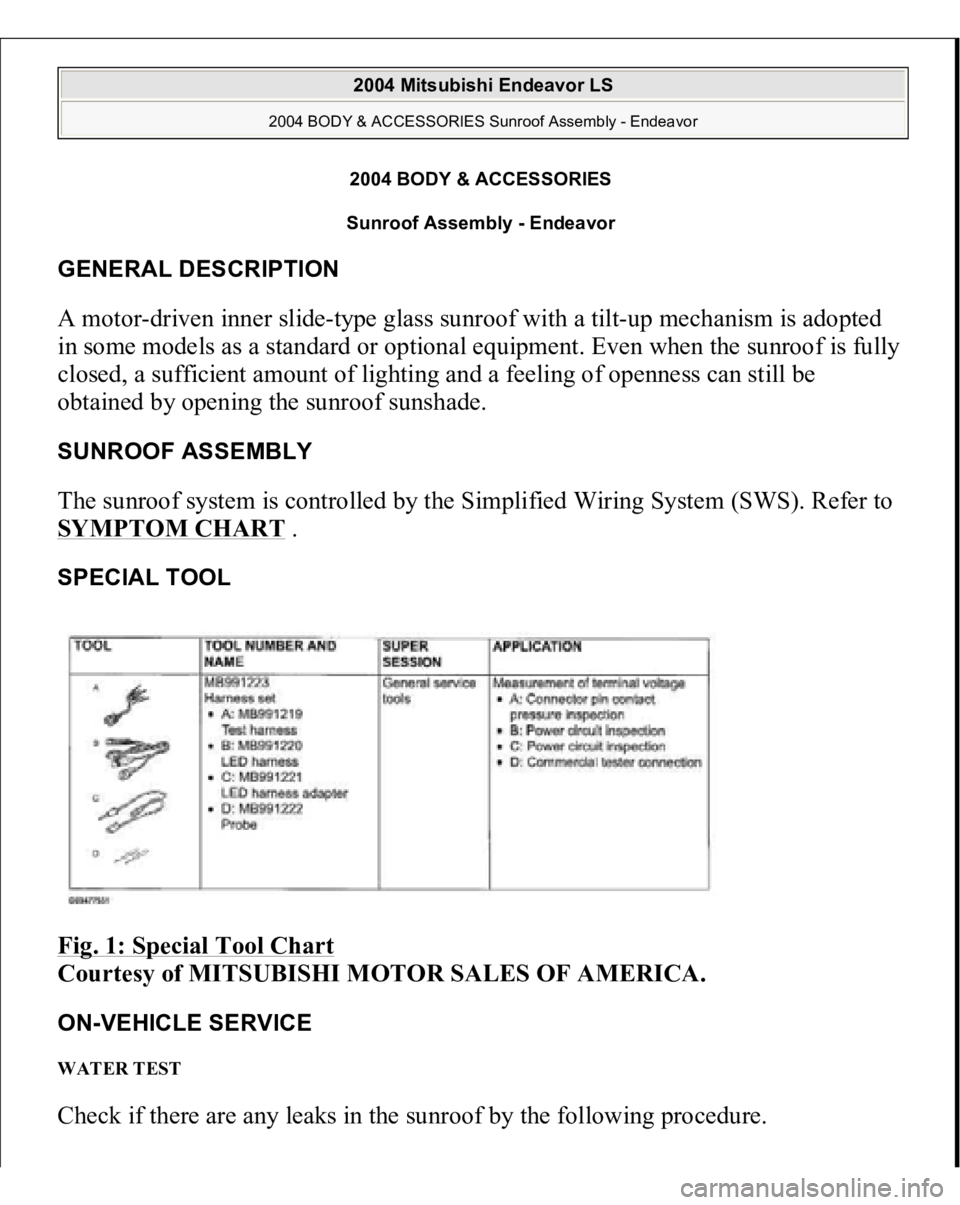

2004 BODY & ACCESSORIES
Sunroof Assembly - Endeavor
GENERAL DESCRIPTION A motor-driven inner slide-type glass sunroof with a tilt-up mechanism is adopted
in some models as a standard or optional equipment. Even when the sunroof is fully
closed, a sufficient amount of lighting and a feeling of openness can still be
obtained by opening the sunroof sunshade. SUNROOF ASSEMBLY The sunroof system is controlled by the Simplified Wiring System (SWS). Refer to
SYMPTOM CHART
.
SPECIAL TOOL Fig. 1: Special Tool Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE WATER TEST Check if there are an
y leaks in the sunroof b
y the followin
g procedure.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
6. Turn the power switch of special tool MB991824 to the "ON" position.
7. Start the MUT-III system on the personal computer.
HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES
MB991958: Scan tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: MUT-III USB cable MB991910: MUT-III main harness A
1. Connect scan tool MB991958 to the data link connec
tor. NOTE: When special tool MB991824 is energized, special tool
MB991824 indicator light will be illuminated in a green
color.
NOTE: Disconnect the scan tool MB991958 is the reverse of
the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.
CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does
not display.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Fig. 34: Identifying Symptom Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: When the Ignition Switch is Turned to the "ON" Position (Engine Stopped), the "TCL
OFF" Indicator Light does not Illuminate. INSPECTION PROCEDURE 2: When the Ignition Switch is Turned to the
"ON" Position (Engine Stopped), the TCL Work Indicator Light does not Illuminate. INSPECTION PROCEDURE 3:
The "TCL OFF" Indicator Li
ght Remains Illuminated After the En
gine is Started. INSPECTION PROCEDURE 4: The
TCL Work Indicator Light Remains Illuminated After the Engine is Started.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

CIRCUIT OPERATION
ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > send the illumination
signal of "TCL OFF" indicator light and TCL work indicator light to the
combination meter via the CAN communication. ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > operates the "TCL
OFF" indicator light and the TCL work indicator light for three seconds after
the ignition switch is turned "ON" position for bulb check.
COMMENT This may be caused by faults in the CAN bus line, the combination meter or the
ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD >. TROUBLESHOOTING HINTS
Malfunction of the combination meter
Damaged harness, connector Malfunction of the ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD
>
DIAGNOSIS
Required Special Tool:
MB991958: Scan tool (MUT-III sub Assembly)
MB991824: V.C.I. MB991827: MUT-III USB cable MB991910: MUT-III main harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2. Turn the ignition switch to the "ON" position.
3. Check for Combination meter system diagnostic trouble code. (Refer to
COMBINATION METERS ASSEMBLY AND VEHICLE SPEED
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC U1102 set?
YES: Replace the hydraulic unit (integrated with ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD >). (Refer to HYDRAULIC UNIT
). Then go to Step
4.
NO: Replace the combination meter assembly. (Refer to COMBINATION
METER ASSEMBLY
). Then go to Step 4.
STEP 4. Retest the system
Q: Turn the ignition switch to the "ON" position. Do the "TCL OFF"
indicator light and the TCL work indicator light illuminate for three
seconds, and then go out after the engine starts?
YES: The procedure is complete.
NO: Return to Step 1 .
INSPECTION PROCEDURE 5: When the TCL Switch is Push On, TCL S
ystem does not Cancelled
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Fig. 63: Identifying Special Tools (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE TCL INDICATOR LIGHT CHECK 1. Check that the "TCL OFF" indicator light and the TCL work indicator light
illuminate for three seconds when the ignition switch is turned to the "ON"
position.
