2004 MITSUBISHI ENDEAVOR heater

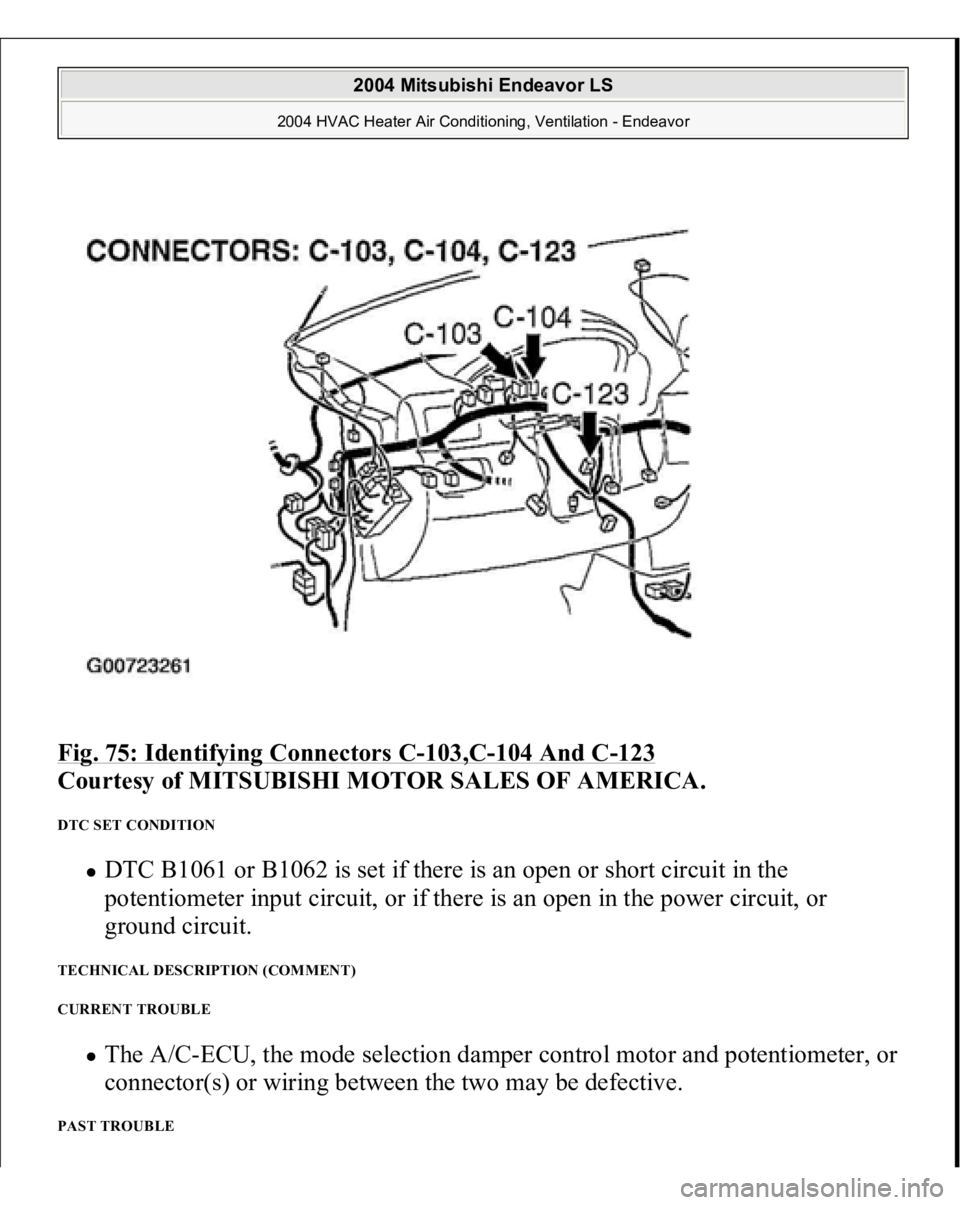

Fig. 75: Identifying Connectors C
-103,C
-104 And C
-123

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

DTC SET CONDITION
DTC B1061 or B1062 is set if there is an open or short circuit in the
potentiometer input circuit, or if there is an open in the power circuit, or
ground circuit.
TECHNICAL DESCRIPTION (COMMENT)
CURRENT TROUBLE
The A/C-ECU, the mode selection damper control motor and potentiometer, or
connector(s) or wiring between the two may be defective.
PAST TROUBLE
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

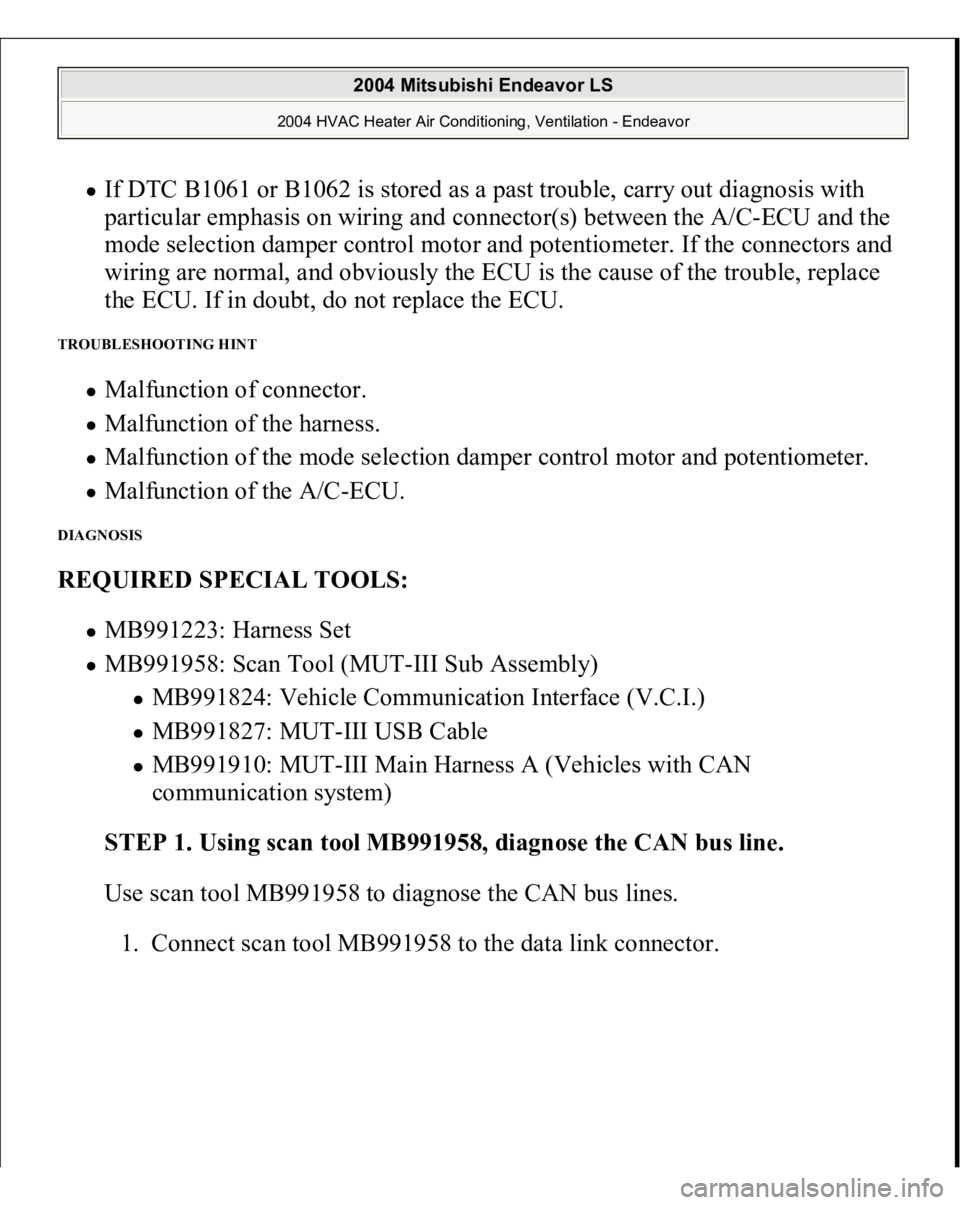

If DTC B1061 or B1062 is stored as a past trouble, carry out diagnosis with
particular emphasis on wiring and connector(s) between the A/C-ECU and the
mode selection damper control motor and potentiometer. If the connectors and
wiring are normal, and obviously the ECU is the cause of the trouble, replace
the ECU. If in doubt, do not replace the ECU.
TROUBLESHOOTING HINT
Malfunction of connector. Malfunction of the harness. Malfunction of the mode selection damper control motor and potentiometer. Malfunction of the A/C-ECU.
DIAGNOSIS REQUIRED SPECIAL TOOLS:

MB991223: Harness Set MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A (Vehicles with CAN
communication system)
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connec
tor.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

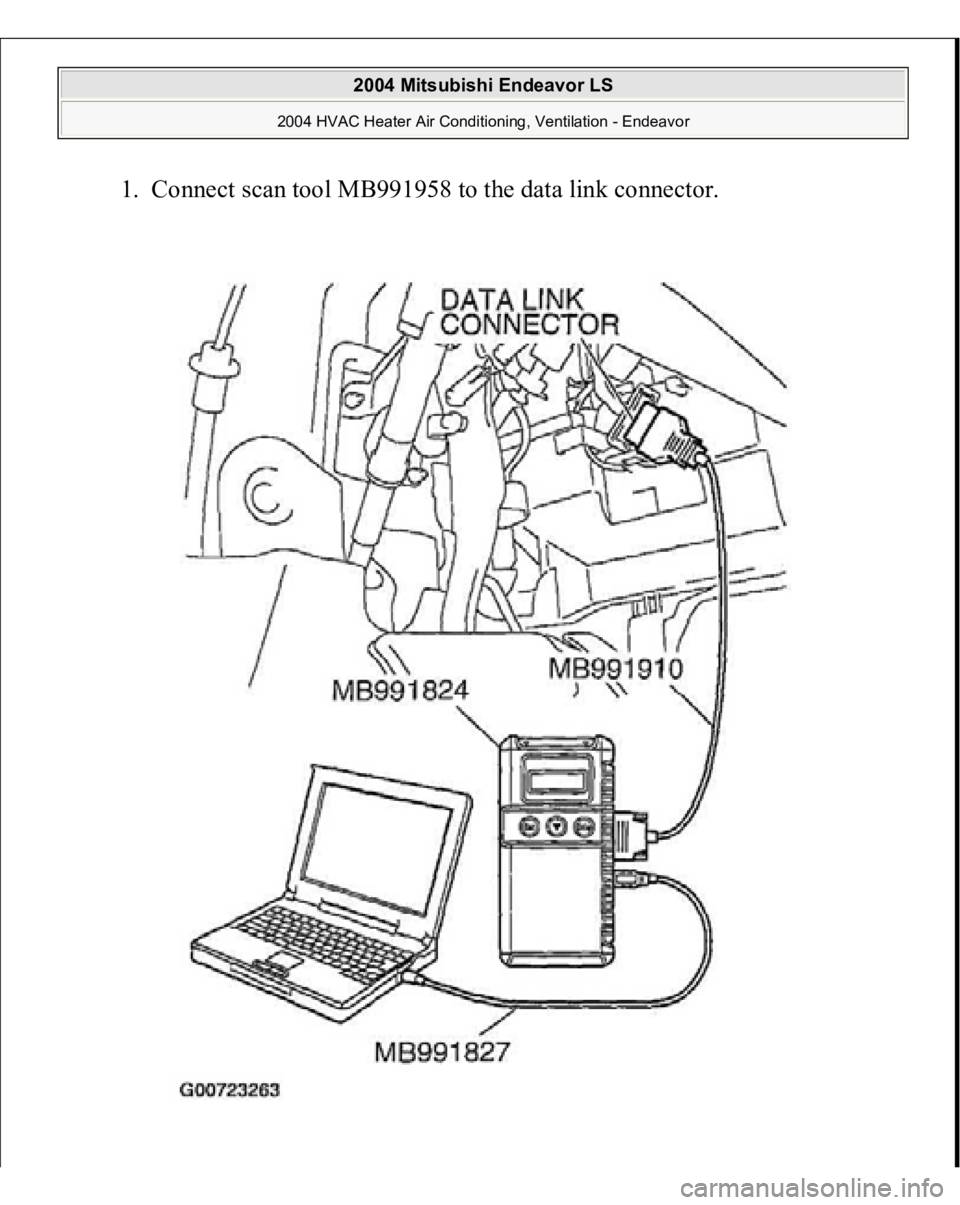

Fig. 76: Connectin
g Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?

YES:
Go to Step 2.
NO:
Repair the CAN bus lines (Refer to
CAN BUS DIAGNOSTICS
TABLE
).
Then go to Step 7 .
STEP 2. Recheck for diagnostic trouble code.

Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?

YES:
It can be assumed that this malfunction is intermittent.
Refer to
HOW TO USE TROUBLESHOOTING/ INSPECTION
SERVICE POINTS
.
NO:
Go to Step 3.
STEP 3. Using scan tool MB991958, check data list item 12: Air outlet c/o
potentiometer.

CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

1. Connect scan tool MB991958 to the data link connector.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Fig. 77: Connecting Scan Tool MB991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2. Start the engine.
3. Check the data list.
Item 12: Air outlet c/o potentiometer.
Check that the set position of the heater control matches the displayed
position on the scan tool.
4. Turn the ignition switch to the "LOCK" (OFF) position
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and mode selection
damper control motor and potentiometer connector C-123 for loose,
corroded or damaged terminals, or terminals pushed back in the
connector.

Q: Are A/C-ECU connectors C-16, C-17 and mode selection damper
control motor and potentiometer connector C-123 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then
go to Ste
p 7 .

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

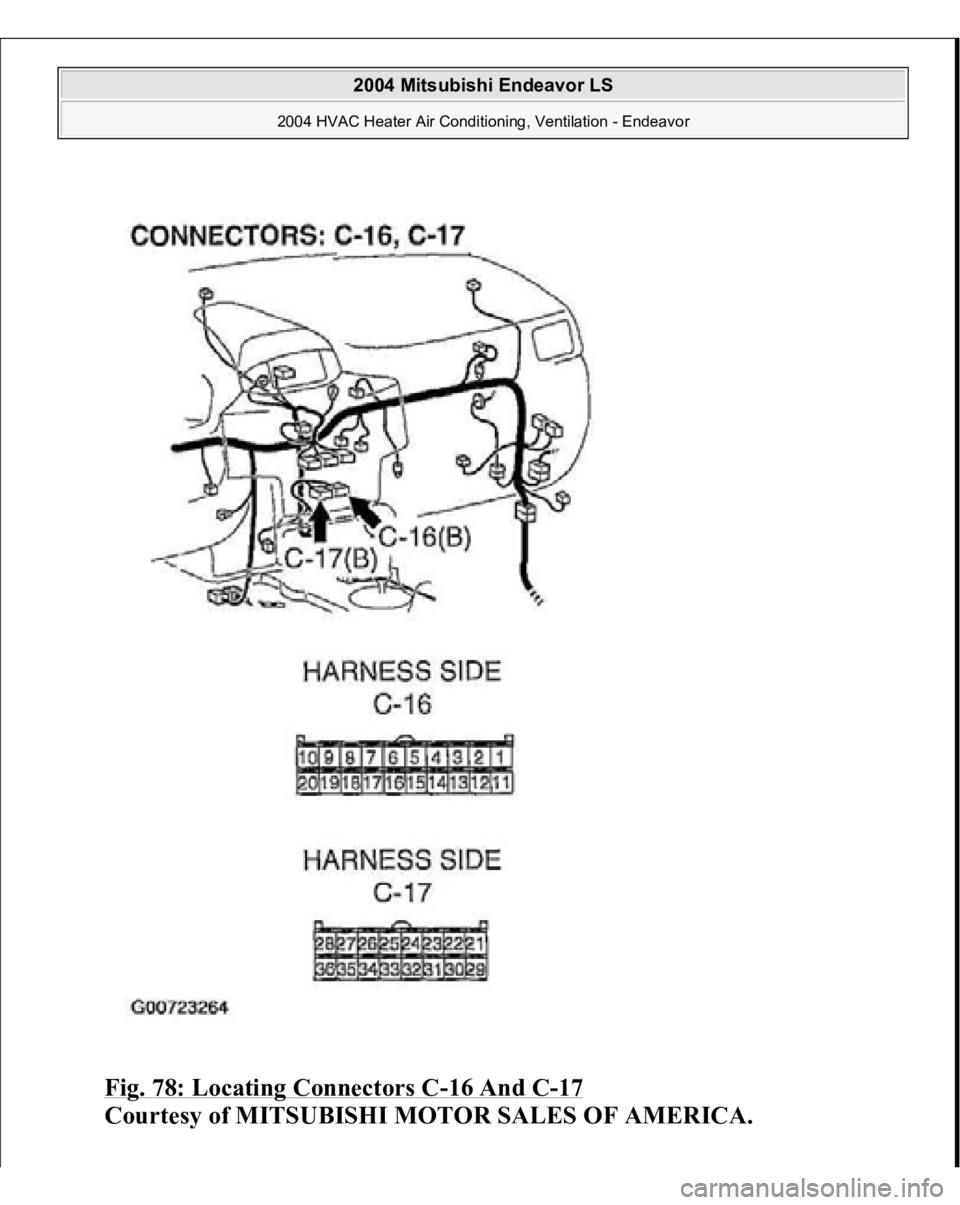

Fig. 78: Locating Connectors C
-16 And C
-17
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

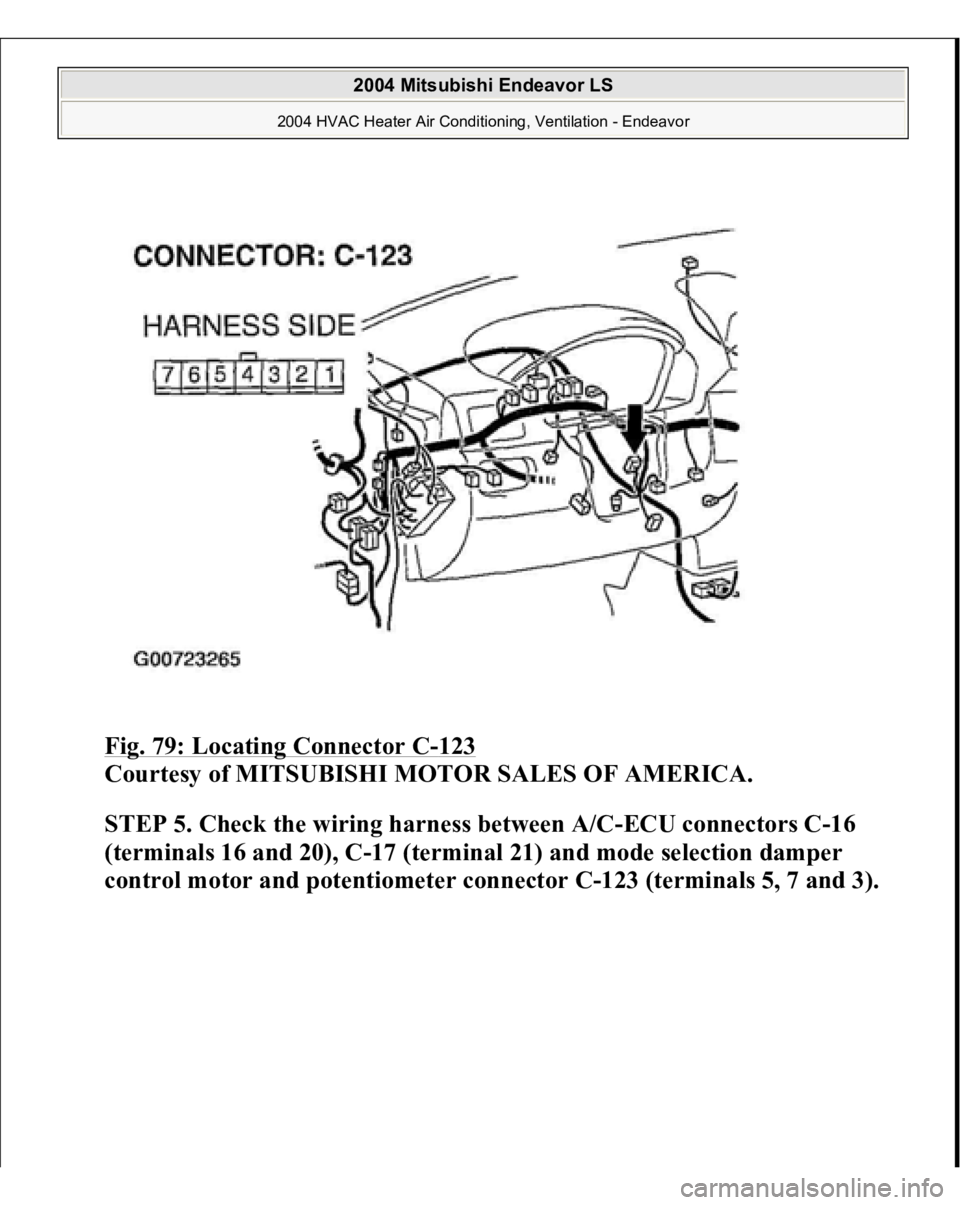

Fig. 79: Locating Connector C
-123

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

STEP 5. Check the wiring harness between A/C-ECU connectors C-16
(terminals 16 and 20), C-17 (terminal 21) and mode selection damper
control motor and potentiometer connector C-123 (terminals 5, 7 and 3).

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
