2004 MITSUBISHI ENDEAVOR can bus

Fig. 41: Identifying Connector C
-37 Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DTC B1489: PASSENGER AIR BAG OFF INDICATOR LIGHT DOES NOT TURN OFF 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTCs are retrieved, go to next
step. If DTCs are not retrieved, an intermittent condition may exist.
3. If DTC B1540, B1541, B1542, B1543, B1545 or B1546 is retrieved, diagnose
appropriate DTC. See DIAGNOSTIC TROUBLE CODES (DTCS)
IDENTIFICATION WITH SINGLE
-STAGE AIR BAG SYSTEM
table. If
DTC B1540, B1541, B1542, B1543, B1545 or B1546 is not retrieved, go to
next step.
4. Using scan tool, request ACTUATOR TEST ITEM No. 03: PASSENGER AIR
BAG OFF WARNING LIGHT ILLUMINATION. If PASSENGER AIR BAG
OFF warning light comes on and goes off after 7 seconds, go to next step. If
PASSENGER AIR BAG OFF warning light does not come on and go off after
7 seconds, replace PASSENGER AIR BAG OFF warning light. Go to step 6 .
5. Check Blue/Yellow wire between connector C-37, terminal No. 3 and SRS
ECU connector C-26, terminal No. 21, for damage, shorts or open circuits. See

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

Fig. 33
& Fig. 41
. If wire is okay, erase, then retrieve DTCs. If DTC B1489 is
retrieved, replace SRS ECU. Go to next step. If wire is not okay, repair as
necessary. Go to next step.
6. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1489 is retrieved, go to step 1 . If DTC B1489 is not
retrieved, system is normal at this time.
DTC B1490: PASSENGER-SIDE AIR BAG MODULE SECOND-STAGE SHORT CIRCUIT 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1490 is retrieved, go to
next step. If DTC B1490 is not retrieved, an intermittent condition may exist.
3. Turn ignition on. If DTC B1519 is retrieved by scan tool, go to next step. If
DTC B1519 is not retrieved by scan tool, go to step 5 .
4. Inspect SRS ECU connector C-26. See SRS ELECTRONIC CONTROL
UNIT (SRS ECU)
under REMOVAL & INSTALLATION. See Fig. 30
. If
connectors are connected correctly, go to next step. If connectors are not
connected correctly, reconnect correctly. Go to step 9 .
5. Disconnect negative battery cable. Disconnect, then reconnect SRS ECU
connector C-26 and passenger-side air bag module C-09. Connect negative
battery cable. Using scan tool, erase, then retrieve DTCs. If DTC B1490 is
retrieved, go to next step. If DTC B1490 is not retrieved, intermittent condition
may have existed.
6. Disconnect negative battery cable. Disconnect passenger-side air bag module
connector C-09. See PASSENGER
-SIDE AIR BAG MODULE
under
REMOVAL & INSTALLATION. Connect Load Resistor (MB991865) to
Load Resistor Adapter (MB991866). Insert load resistor adapter leads into
harness-side terminals No. 3 (Yellow/Pink wire) and No. 4 (Yellow/Gray wire)
of connector C-09. See Fig. 35
. Connect negative battery cable. Erase, then
retrieve DTCs. If DTC B1490 is retrieved, go to next step. If DTC B1490 is
not retrieved, re
place
passen
ger-side air ba
g module.

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

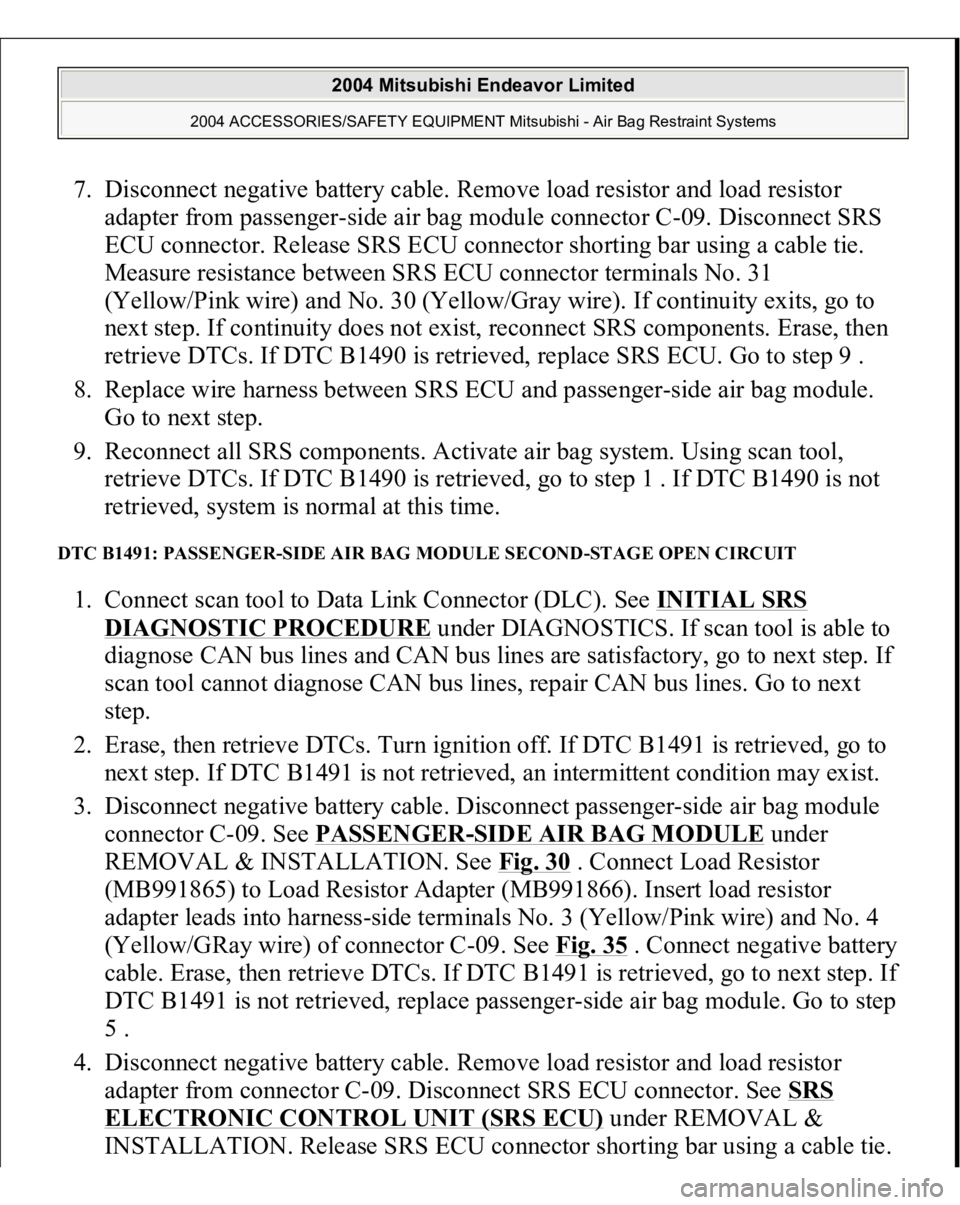

7. Disconnect negative battery cable. Remove load resistor and load resistor
adapter from passenger-side air bag module connector C-09. Disconnect SRS
ECU connector. Release SRS ECU connector shorting bar using a cable tie.
Measure resistance between SRS ECU connector terminals No. 31
(Yellow/Pink wire) and No. 30 (Yellow/Gray wire). If continuity exits, go to
next step. If continuity does not exist, reconnect SRS components. Erase, then
retrieve DTCs. If DTC B1490 is retrieved, replace SRS ECU. Go to step 9 .
8. Replace wire harness between SRS ECU and passenger-side air bag module.
Go to next step.
9. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1490 is retrieved, go to step 1 . If DTC B1490 is not
retrieved, system is normal at this time. DTC B1491: PASSENGER-SIDE AIR BAG MODULE SECOND-STAGE OPEN CIRCUIT 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1491 is retrieved, go to
next step. If DTC B1491 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect passenger-side air bag module
connector C-09. See PASSENGER
-SIDE AIR BAG MODULE
under
REMOVAL & INSTALLATION. See Fig. 30
. Connect Load Resistor
(MB991865) to Load Resistor Adapter (MB991866). Insert load resistor
adapter leads into harness-side terminals No. 3 (Yellow/Pink wire) and No. 4
(Yellow/GRay wire) of connector C-09. See Fig. 35
. Connect negative battery
cable. Erase, then retrieve DTCs. If DTC B1491 is retrieved, go to next step. If
DTC B1491 is not retrieved, replace passenger-side air bag module. Go to step
5 .
4. Disconnect negative battery cable. Remove load resistor and load resistor
adapter from connector C-09. Disconnect SRS ECU connector. See SRS
ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. Release SRS ECU connector shortin
g bar usin
g a cable tie.

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

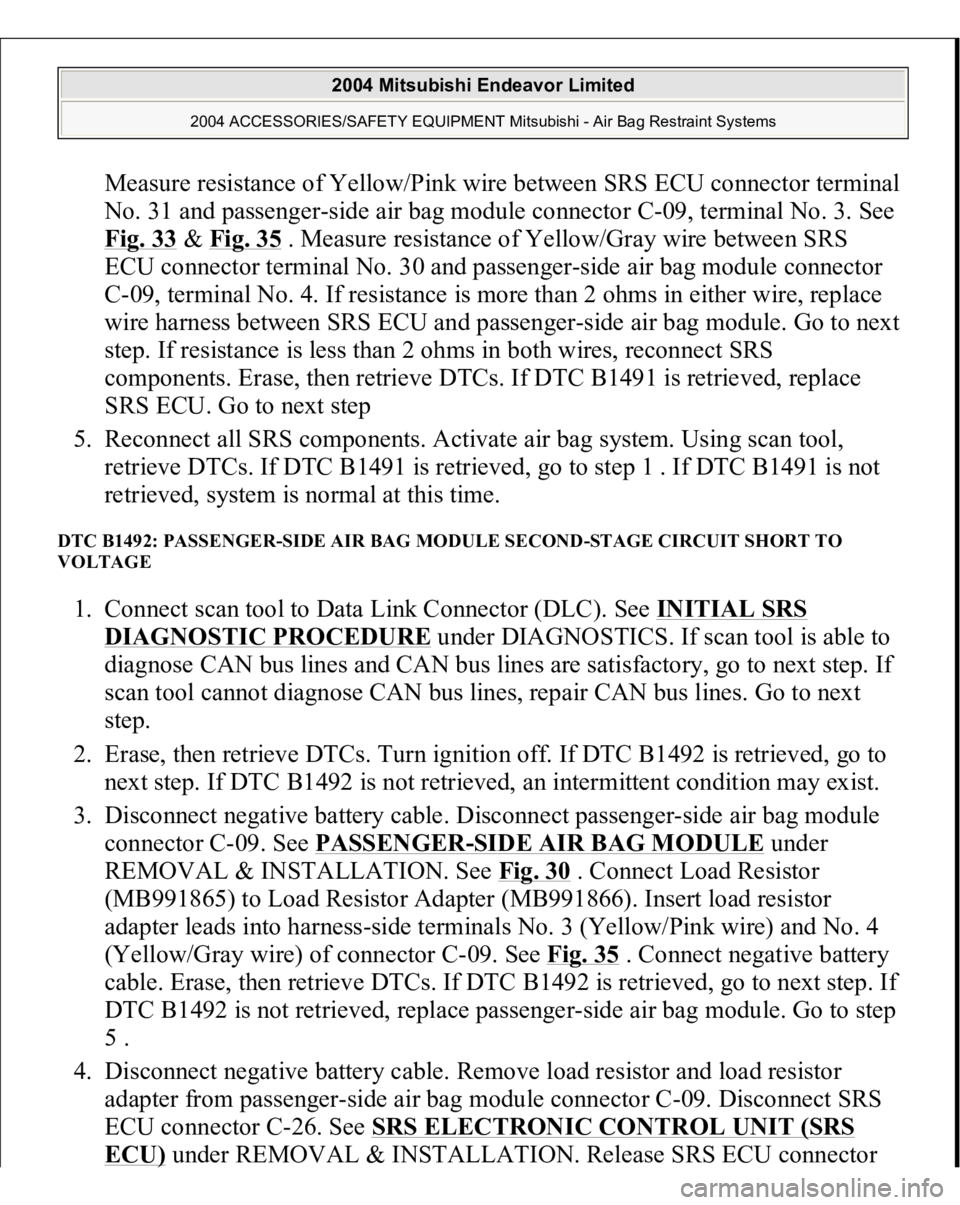

Measure resistance of Yellow/Pink wire between SRS ECU connector terminal
No. 31 and passenger-side air bag module connector C-09, terminal No. 3. See
Fig. 33
& Fig. 35
. Measure resistance of Yellow/Gray wire between SRS
ECU connector terminal No. 30 and passenger-side air bag module connector
C-09, terminal No. 4. If resistance is more than 2 ohms in either wire, replace
wire harness between SRS ECU and passenger-side air bag module. Go to next
step. If resistance is less than 2 ohms in both wires, reconnect SRS
components. Erase, then retrieve DTCs. If DTC B1491 is retrieved, replace
SRS ECU. Go to next step
5. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1491 is retrieved, go to step 1 . If DTC B1491 is not
retrieved, system is normal at this time.
DTC B1492: PASSENGER-SIDE AIR BAG MODULE SECOND-STAGE CIRCUIT SHORT TO
VOLTAGE 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1492 is retrieved, go to
next step. If DTC B1492 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect passenger-side air bag module
connector C-09. See PASSENGER
-SIDE AIR BAG MODULE
under
REMOVAL & INSTALLATION. See Fig. 30
. Connect Load Resistor
(MB991865) to Load Resistor Adapter (MB991866). Insert load resistor
adapter leads into harness-side terminals No. 3 (Yellow/Pink wire) and No. 4
(Yellow/Gray wire) of connector C-09. See Fig. 35
. Connect negative battery
cable. Erase, then retrieve DTCs. If DTC B1492 is retrieved, go to next step. If
DTC B1492 is not retrieved, replace passenger-side air bag module. Go to step
5 .
4. Disconnect negative battery cable. Remove load resistor and load resistor
adapter from passenger-side air bag module connector C-09. Disconnect SRS
ECU connector C-26. See SRS ELECTRONIC CONTROL UNIT (SRS
ECU
) under REMOVAL & INSTALLATION. Release SRS ECU connecto
r

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

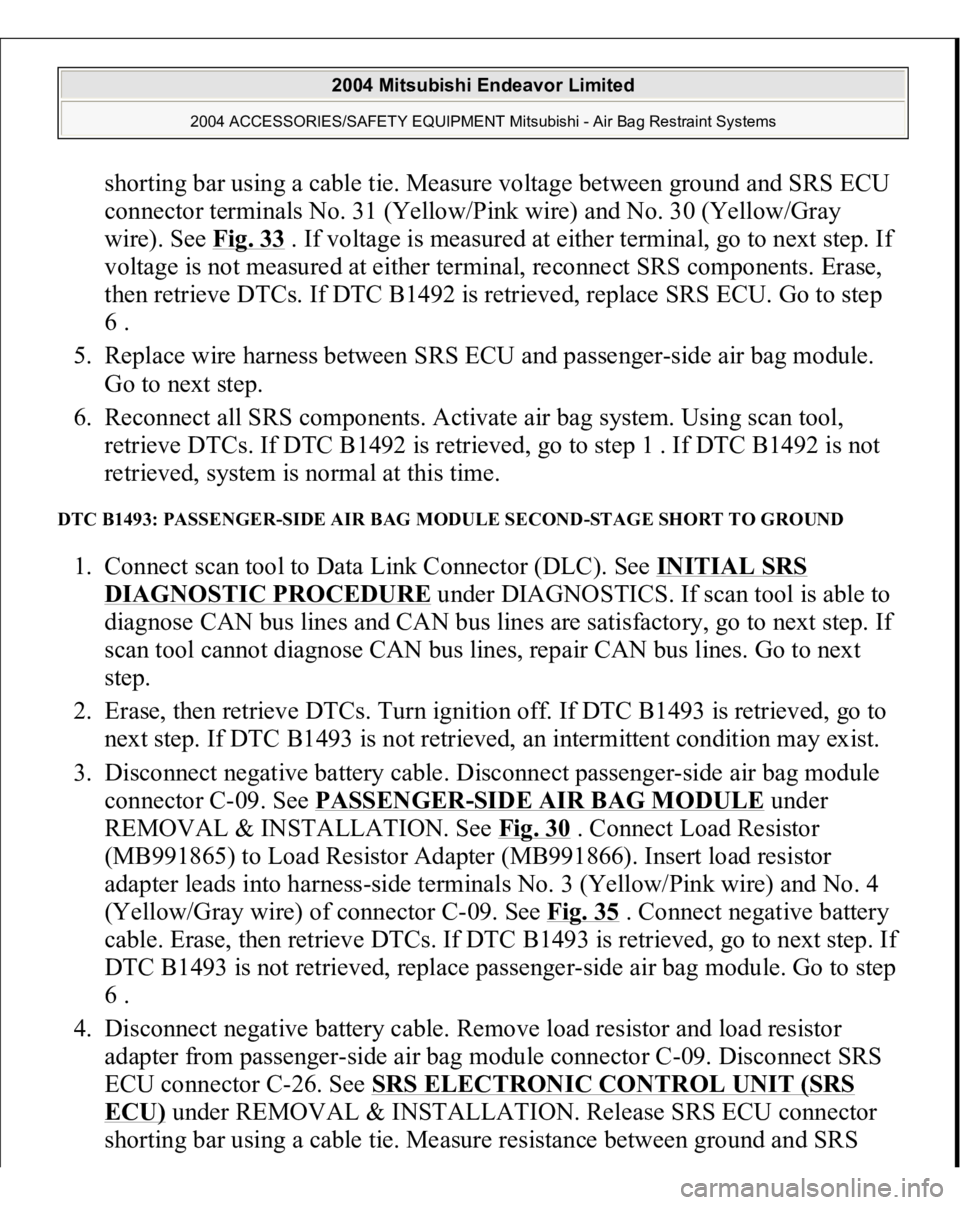

shorting bar using a cable tie. Measure voltage between ground and SRS ECU
connector terminals No. 31 (Yellow/Pink wire) and No. 30 (Yellow/Gray
wire). See Fig. 33
. If voltage is measured at either terminal, go to next step. If
voltage is not measured at either terminal, reconnect SRS components. Erase,
then retrieve DTCs. If DTC B1492 is retrieved, replace SRS ECU. Go to step
6 .
5. Replace wire harness between SRS ECU and passenger-side air bag module.
Go to next step.
6. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1492 is retrieved, go to step 1 . If DTC B1492 is not
retrieved, system is normal at this time.
DTC B1493: PASSENGER-SIDE AIR BAG MODULE SECOND-STAGE SHORT TO GROUND 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1493 is retrieved, go to
next step. If DTC B1493 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect passenger-side air bag module
connector C-09. See PASSENGER
-SIDE AIR BAG MODULE
under
REMOVAL & INSTALLATION. See Fig. 30
. Connect Load Resistor
(MB991865) to Load Resistor Adapter (MB991866). Insert load resistor
adapter leads into harness-side terminals No. 3 (Yellow/Pink wire) and No. 4
(Yellow/Gray wire) of connector C-09. See Fig. 35
. Connect negative battery
cable. Erase, then retrieve DTCs. If DTC B1493 is retrieved, go to next step. If
DTC B1493 is not retrieved, replace passenger-side air bag module. Go to step
6 .
4. Disconnect negative battery cable. Remove load resistor and load resistor
adapter from passenger-side air bag module connector C-09. Disconnect SRS
ECU connector C-26. See SRS ELECTRONIC CONTROL UNIT (SRS
ECU)
under REMOVAL & INSTALLATION. Release SRS ECU connector
shorting bar usin
g a cable tie. Measure resistance
between
ground and SRS

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

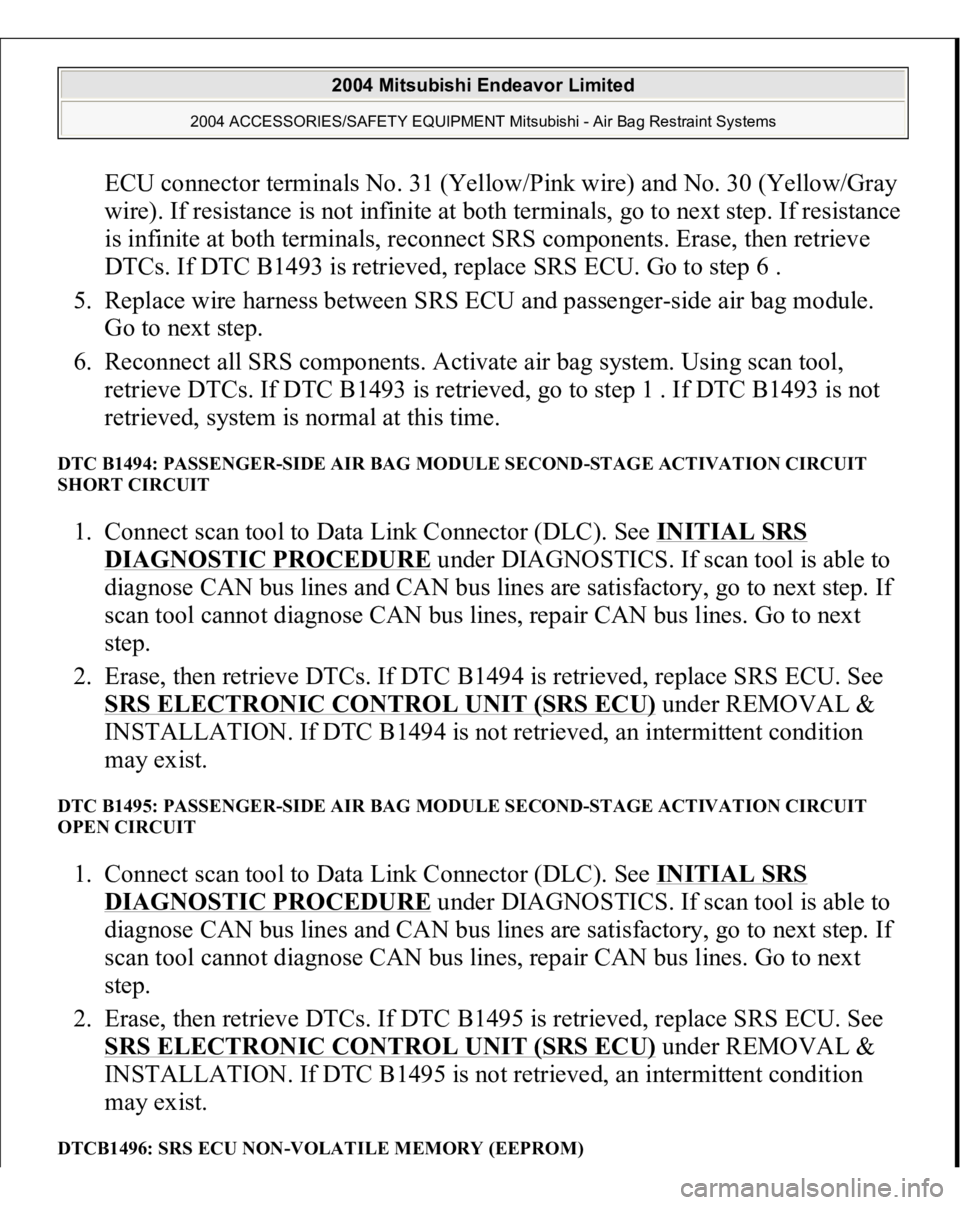

ECU connector terminals No. 31 (Yellow/Pink wire) and No. 30 (Yellow/Gray
wire). If resistance is not infinite at both terminals, go to next step. If resistance
is infinite at both terminals, reconnect SRS components. Erase, then retrieve
DTCs. If DTC B1493 is retrieved, replace SRS ECU. Go to step 6 .
5. Replace wire harness between SRS ECU and passenger-side air bag module.
Go to next step.
6. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1493 is retrieved, go to step 1 . If DTC B1493 is not
retrieved, system is normal at this time.
DTC B1494: PASSENGER-SIDE AIR BAG MODULE SECOND-STAGE ACTIVATION CIRCUIT
SHORT CIRCUIT 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. If DTC B1494 is retrieved, replace SRS ECU. See
SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. If DTC B1494 is not retrieved, an intermittent condition
may exist.
DTC B1495: PASSENGER-SIDE AIR BAG MODULE SECOND-STAGE ACTIVATION CIRCUIT
OPEN CIRCUIT 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. If DTC B1495 is retrieved, replace SRS ECU. See
SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. If DTC B1495 is not retrieved, an intermittent condition
may exist.
DTCB1496: SRS ECU NON-VOLATILE MEMORY (EEPROM)
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

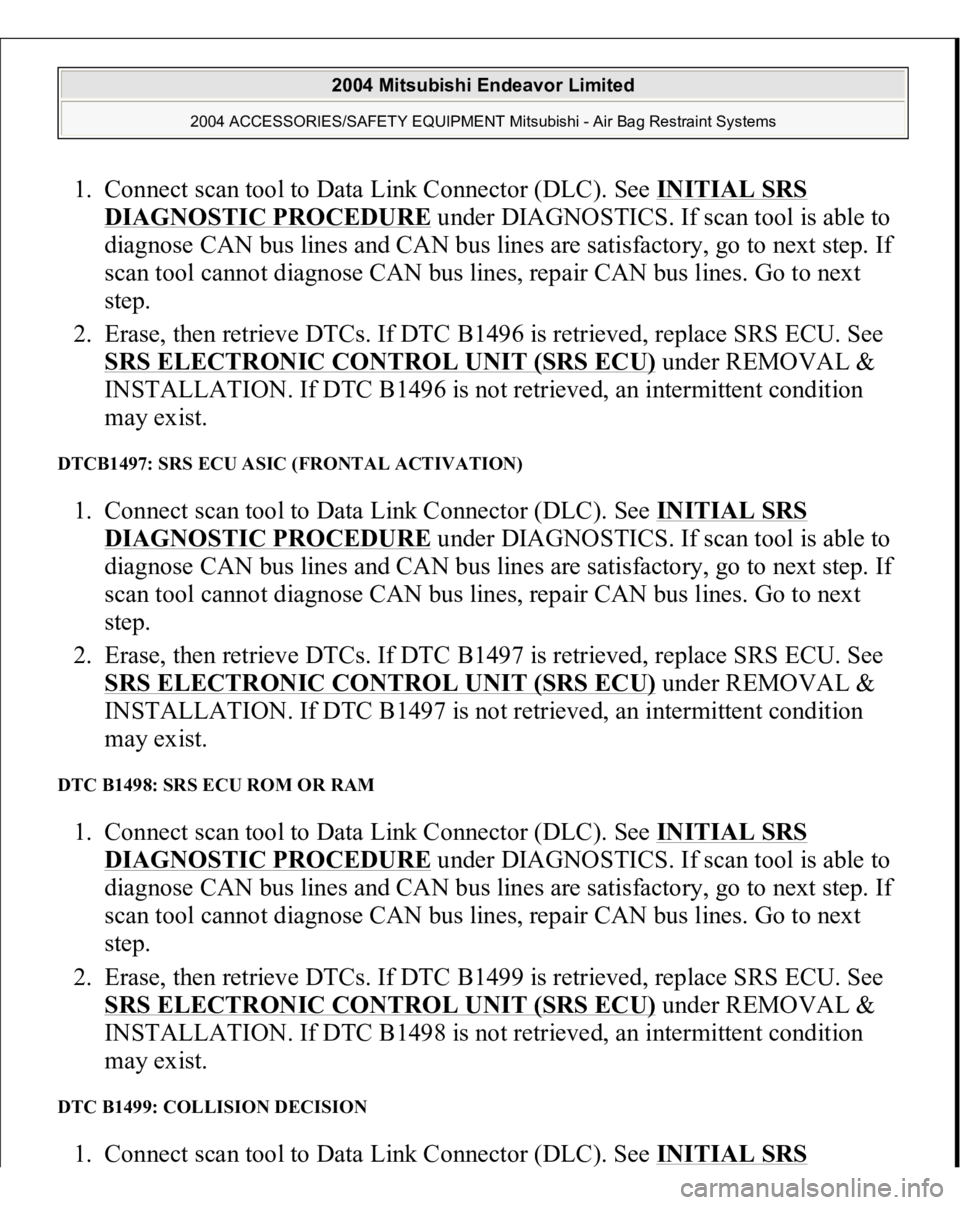

1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. If DTC B1496 is retrieved, replace SRS ECU. See
SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. If DTC B1496 is not retrieved, an intermittent condition
may exist.
DTCB1497: SRS ECU ASIC (FRONTAL ACTIVATION) 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. If DTC B1497 is retrieved, replace SRS ECU. See
SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. If DTC B1497 is not retrieved, an intermittent condition
may exist.
DTC B1498: SRS ECU ROM OR RAM 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. If DTC B1499 is retrieved, replace SRS ECU. See
SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. If DTC B1498 is not retrieved, an intermittent condition
may exist.
DTC B1499: COLLISION DECISION 1. Connect scan tool to Data Link Connector (DLC). SeeINITIAL SRS
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. If DTC B1498 is retrieved, replace SRS ECU. See
SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. If DTC B1499 is not retrieved, an intermittent condition
may exist.
DTC B1506: SEAT SLIDE SENSOR OPEN 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1506 is retrieved, go to
next step. If DTC B1506 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect seat slide sensor connector D-
37, located under passenger-side front seat. See SEAT SLIDE SENSOR

under REMOVAL & INSTALLATION. Connect Load Resistor (MB991865)
to Load Resistor Adapter (MB991866). Insert load resistor adapter leads into
harness-side terminals No. 1 (Brown wire) and No. 2 (Brown/White wire) of
connector D-37. See Fig. 42
. Connect negative battery cable. Using scan tool,
erase, then retrieve DTCs. If DTC B1506 is retrieved, go to next step. If DTC
B1506 is not retrieved, replace seat slide sensor. Go to step 5 .
4. Disconnect SRS ECU connector C-40. See SRS ELECTRONIC CONTROL
UNIT (SRS ECU)
under REMOVAL & INSTALLATION. See Fig. 30
.
Remove load resistor and load resistor adapter from connector D-37. Check
continuity in Brown wire between SRS ECU connector C-40, terminal No. 2
and connector D-37, terminal No. 1. See Fig. 33
. Check continuity in
Brown/White wire between SRS ECU connector C-40, terminal No. 1 and
connector D-37, terminal No. 2. If continuity exists in both wires, reconnect
SRS components. Erase, then retrieve DTCs. If DTC B1506 is retrieved,
replace SRS ECU. If continuity does not exist either wire, replace wire harness

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
