2004 MITSUBISHI ENDEAVOR intro

LONG STOPPING DISTANCES ON LOOSE ROAD SURFACESWhen braking on loose surfaces like snow-covered or gravel roads, the stopping
distance can be longer for an ABS-equipped vehicle than the stopping distance for a
vehicle with a conventional brake system. SHOCK AT STARTING CHECK Shock may be felt when the brake pedal is lightly pressed while driving at a low
speed. This is a normal characteristic because the ABS system operation check is
carried out when vehicle speed is 8 km/h (5 mph) or less. ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS INTRODUCTION TO ANTI-LOCK BRAKING SYSTEM DIAGNOSIS The anti-lock braking system (ABS) operates differently from conventional brake
systems. These differences include sounds, sensations, and vehicle performance that
owners and service technicians who are not familiar with ABS may not be used to.
Some operational characteristics may seem to be malfunctions, but they are simply
signs of normal ABS operation. When diagnosing the ABS system, keep these
operational characteristics in mind. Inform the owner of the kind of performance
characteristics to expect from an ABS-equipped vehicle. ABS DIAGNOSTIC TROUBLE CODE DETECTION CONDITIONS ABS diagnostic trouble codes (ABS DTCs) are set under different conditions,
depending on the malfunction detected. Most ABS DTCs will only be set during
vehicle operation. Some ABS DTCs will also be set during the ABS self-check
immediately after the engine is started.
When you check if an ABS DTC will be displayed again after the DTC has been
erased, you should duplicate the ABS DTC set conditions. Depending on the
detection timing and set conditions for the specific ABS DTC, you must either drive
the vehicle or turn the engine off and restart it. To set the proper conditions for that
DTC again, refer to ABS DTC SET CONDITIONS
for each ABS DTC that you
are trying to reset.
ABS DIAGNOSTIC TROUBLESHOOTING STRATEGY
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

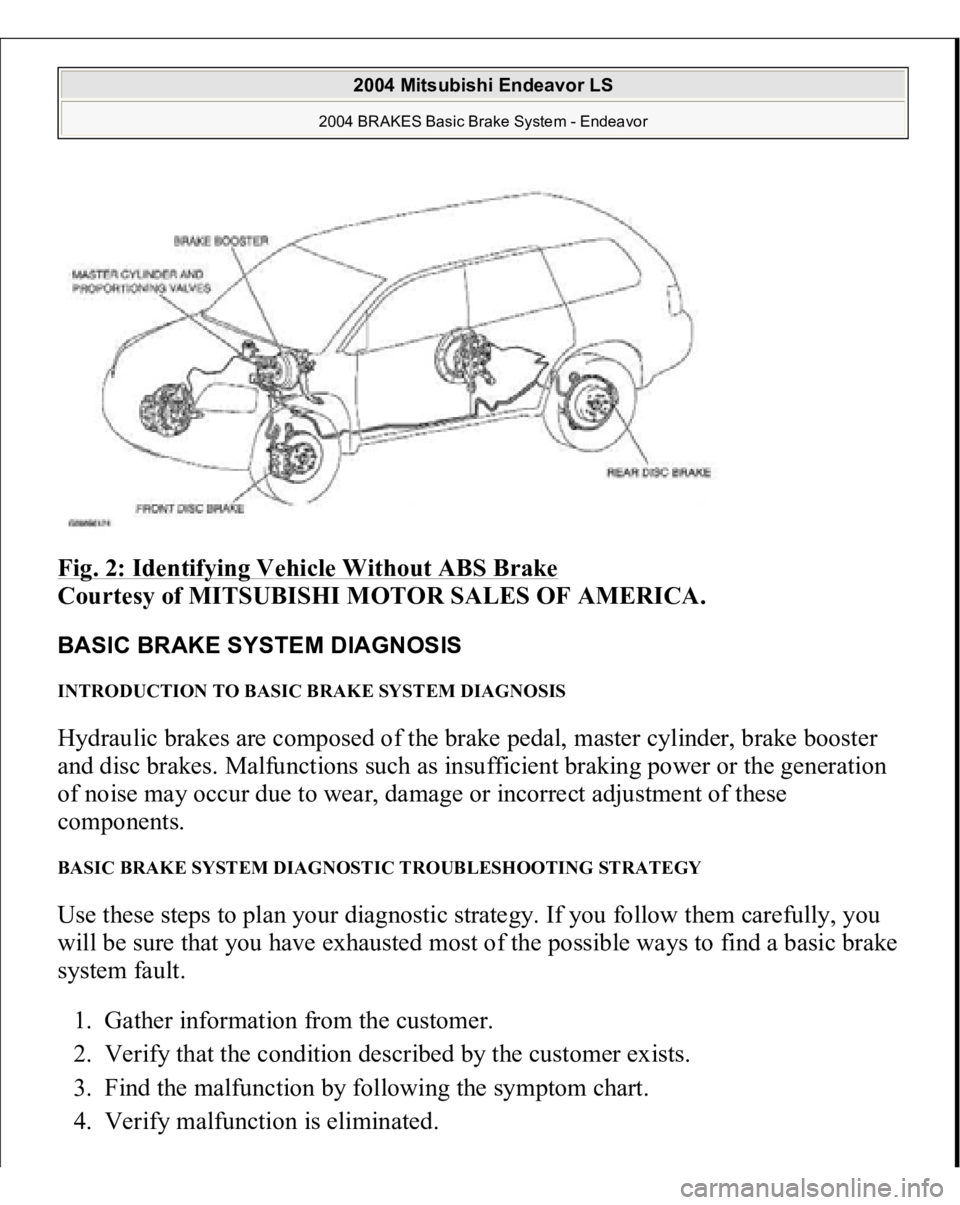

Fig. 2: Identifying Vehicle Without ABS Brake

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
BASIC BRAKE SYSTEM DIAGNOSIS INTRODUCTION TO BASIC BRAKE SYSTEM DIAGNOSIS Hydraulic brakes are composed of the brake pedal, master cylinder, brake booster
and disc brakes. Malfunctions such as insufficient braking power or the generation
of noise may occur due to wear, damage or incorrect adjustment of these
components. BASIC BRAKE SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will be sure that you have exhausted most of the possible ways to find a basic brake
system fault.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the symptom chart.
4. Verif
y malfunction is eliminated.

2004 Mitsubishi Endeavor LS
2004 BRAKES Basic Brake System - Endeavor

Fig. 3: Identifying Special Tools (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS INTRODUCTION TO AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS The auto-cruise control system allows driving without stepping on the accelerator
pedal by setting a random speed between 40 km/h (25 mph) and 170 km/h (106
mph). Problems in this system can be investigated by the following methods. Auto-cruise control system diagnostic trouble codes The auto-cruise control system consists of the powertrain control module (PCM),
control switches and sensors. The control switches and sensors monitor the state of
the vehicle. The PCM controls the throttle valve opening angle in the throttle body
in accordance with the in
put si
gnals from the switches and sensors. If the PCM

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS The central door locking system is controlled by the simplified wiring system
(SWS). Refer to SYMPTOM CHART
.
POWER WINDOW DIAGNOSIS The power window is controlled by the simplified wiring system (SWS). Refer to
SYMPTOM CHART
.
DOOR DIAGNOSIS INTRODUCTION TO GLASS AND DOOR DIAGNOSIS Glass and door faults include water leaks and improper opening and closing. Causes
for these faults can include faults in the glass, weatherstrip, drain hole, waterproof
film or door installation. GLASS AND DOOR DIAGNOSTIC TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will be sure that you have exhausted most of the possible ways to find a glass and
door fault.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the Symptom Chart.
4. Verify malfunction is eliminated. SYMPTOM CHART SYMPTOM REFERENCE SYMPTOM
INSPECTION
PROCEDURE
REFERENCE PAGE
Water leak through door
window glass
1
INSPECTION
PROCEDURE 1: Water
Leak Throu
gh Door
Window Glass

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

2004 DRIVELINE/AXL
E
Propeller Shaft - Endeavor
GENERAL DESCRIPTION For AWD vehicles, 3 way split 4-joint type propeller shaft with center bearing is
adopted, and it has the following features.
The DOJ, which is of less sliding resistance, is used for the No.3 joint. This
reduces the idling vibration. A insulator is located at the center bearing to vehicle body joint, reducing
vibration.
CONSTRUCTION DIAGRAM Fig. 1: Identifying Construction Diagram Of Propeller Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
PROPELLER SHAFT DIAGNOSIS INTRODUCTION TO PROPELLER SHAFT DIAGNOSIS If an abnormal noise is heard from the propeller shaft while driving, some parts of
the
propeller shaft ma
y be worn or dama
ged, or some mountin
g bolts ma
y be loose.
NOTE: DOJ: Double Offset Joint
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLE Propeller Shaft - Endeavor


2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLE Propeller Shaft - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
SPECIAL TOOLS Fig. 2: Identifying Engine Cooling Special Tools

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ENGINE COOLING DIAGNOSIS INTRODUCTION The system cools the engine so that it does not over-heat and maintains the engine
at an optimum temperature. The system components are the radiator, water pump,
thermostat, condenser fan assembly. Possible faults include low coolant,
contamination, belt loosening and component damage. TROUBLESHOOTING STRATEG
Y

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

2004 BODY & ACCESSORIES
Radio With Tape Player & Cd Player - Endeavor
RADIO WITH TAPE PLAYER AND CD PLAYER GENERAL DESCRIPTION < Vehicles with six speakers >
Radio and CD player Shows textual information regarding audio system operation on the low grade
type multi-center display.
< Vehicles with seven speakers > Radio, CD player and CD changer A woofer is fitted. Audio amplifier is fitted. Shows graphical information regarding audio system operation on the middle
grade type multi-center display.
RADIO WITH TAPE PLAYER AND CD PLAYER, SPEAKER AND ANTENNA DIAGNOSIS INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS The diagnosis for symptoms such as noise being emitted, no sound being played, or
sound coming only out of one speaker (or set of speakers) is provided. AUDIO ERROR CODES If the radio and CD player or radio, or CD player and CD changer detects any
malfunction in itself or the inserted CD, the error codes below will be shown on the
multi-center dis
play.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

2004 SUSPENSION
Front - Endeavor
GENERAL DESCRIPTION The front suspension is a McPherson strut with coil spring. The shock absorber is
gas-filled hydraulic double-acting type. CONSTRUCTION DIAGRAM Fig. 1: Front Suspension Construction Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
FRONT SUSPENSION DIAGNOSIS INTRODUCTION TO FRONT SUSPENSION DIAGNOSIS
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Front - Endeavor


2004 Mitsubishi Endeavor LS 2004 SUSPENSION Front - Endeavor
