2004 MERCEDES-BENZ S500 Owner's Manual

32 Getting startedUnlockingUnlocking with KEYLESS-GO*
If your vehicle is equipped with the
KEYLESS-GO function, your vehicle checks
whether the SmartKey with KEYLESS-GO is
valid when you grasp the door handle. If
your SmartKey with KEYLESS-GO is valid,
the doors will unlock, and you can open
them.
The function of the SmartKey overrules the
KEYLESS-GO function.

Grasp the outside door handle.
All turn signal lamps flash once. The
locking knobs in the doors move up.
If the SmartKey is inside the vehicle, press-
ing the KEYLESS-GO start/stop button on
the gear selector lever corresponds to
turning the SmartKey to the various starter
switch positions.iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approximately
3 feet (1 meter) away from the door.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO with you and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

33 Getting started
Unlocking
1KEYLESS-GO start/stop button
Before you press the KEYLESS-GO
start/stop button1, the vehicle’s
on-board electronics have status 0 (as with
SmartKey removed).The SmartKey with KEYLESS-GO must be
located in the vehicle.

Make sure the gear selector lever is set
toP.

Do not depress the brake pedal.
Position 1

Press the KEYLESS-GO start/stop
button1 once.
This supplies power to some electrical
consumers, such as seat adjustment.Ignition (or position 2)

Press the KEYLESS-GO start/stop
button1 twice.
This supplies power to all electrical
consumers. All the lamps in the instru-
ment cluster come on.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 91).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 44).
iIf you now press the KEYLESS-GO
start/stop button

once again, the ignition (position2)
is switched on


twice, the power supply is again
switched off
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.

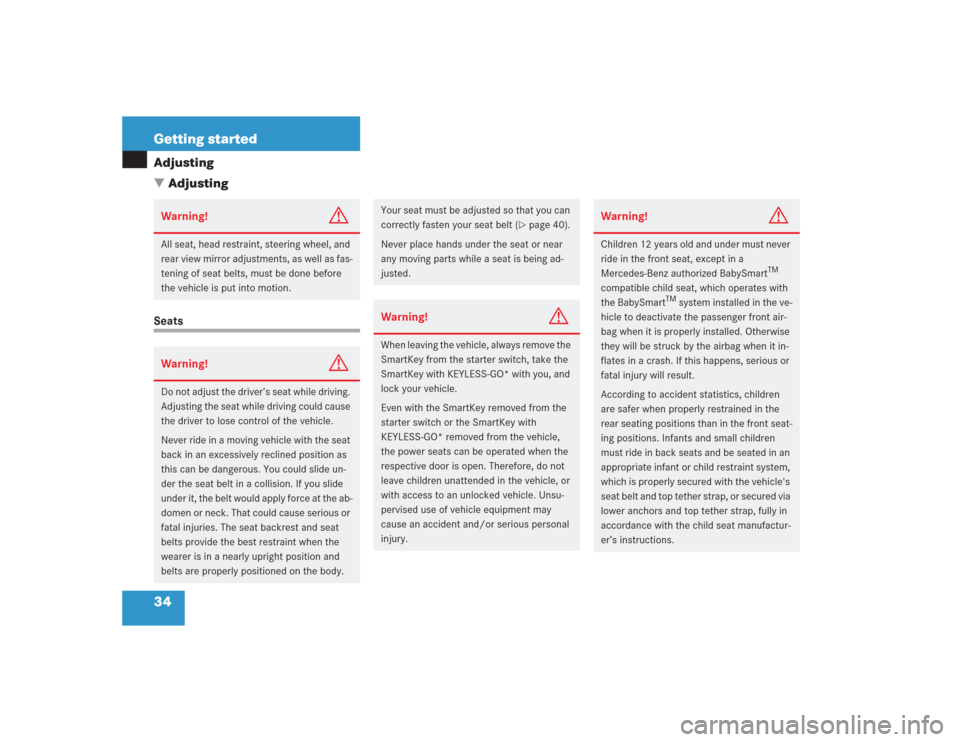

34 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 40).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle.
Even with the SmartKey removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle's
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.

35 Getting started
Adjusting
Seat adjustment
The seat adjustment switches are located
on the front doors.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat cushion depth
5Seat fore and aft adjustment
6Seat backrest tilt

Switch on ignition.
or

Open the respective door.
Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow5.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.Seat cushion tilt

Press the switch up or down in the di-
rection of arrow3until your upper
legs are lightly supported.
Seat cushion depth

Press the switch forward or backward
in the direction of arrow4 until your
legs are supported comfortably.
Seat backrest tilt

Press the switch forward or backward
in the direction of arrow6 until your
arms are slightly angled when holding
the steering wheel.
Seat height

Press the switch up or down in the di-
rection of arrow2.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iWhen moving the seat, make sure
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.
The memory function (
page 121) lets
you store the setting for the seat posi-
tion together with the settings for the
steering wheel and the exterior rear
view mirrors.

36 Getting startedAdjustingHead restraint height
Press the switch up or down in the di-
rection of arrow1.Head restraint tilt
Manually adjust the angle of the head re-
straint.

Push or pull on the lower edge of the
head restraint cushion.
For more information, see “Seats”
(
page 108).
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
iThe feature below is deactivated at the
factory. If you wish to have it activated,
contact an authorized Mercedes-Benz
Center:
The front passenger seat head restraint
automatically lowers after a few sec-
onds when the front passenger seat is
not occupied. This improves the
driver's outward view as well as the for-
ward view from the rear passenger
compartment.
When the front passenger seat is occu-
pied again, the front passenger seat
head restraint returns to the last set
position within a few seconds.
If the front passenger seat was moved
fore or aft while not being occupied,
the front passenger seat head restraint
returns to a position that corresponds
best with the seat’s axial position when
the seat is occupied again.

37 Getting started
Adjusting
Steering wheel Steering wheel adjustment
The stalk for steering wheel adjustment is
located on the steering column (lower left).
1Adjusting steering column, in or out
2Adjusting steering column, up or down

Switch on ignition.
or

Open the driver’s door.Adjusting steering column in or out

Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Adjusting steering column up or down

Move the stalk up or down in the direc-
tion of arrow2.
Make sure your legs can move freely
and all the displays (incl. malfunction
and indicator lamps) on the instrument
cluster are clearly visible.
For more information, see “Heated steer-
ing wheel*” (
page 240).
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO
* with you and
lock your vehicle.
Even with the SmartKey removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the steering wheel adjustment feature can
be operated when the driver’s door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
iThe memory function (
page 121) lets
you store settings for the steering
wheel together with the settings for the
exterior rear view mirrors and the seat
position.

38 Getting startedAdjustingMirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror

Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
ror” (page 174).Exterior rear view mirror
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their liq-
uid state and by applying plenty of wa-
ter.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.

39 Getting started
Adjusting
The buttons are located on the driver’s
door.
1 Driver’s side exterior rear view mirror
button
2Passenger-side exterior rear view mir-
ror button
3Adjustment button

Switch on ignition.

Press button1 for the left mirror or
button2 for the right mirror.

Push adjustment button3 up, down,
left, or right according to the desired
setting.
For more information, see “Folding the ex-
terior mirrors in and out automatically”
(
page 176).
!For information on how to reposition
the exterior mirror housing when it was
forcibly pushed forward (hit from the
rear) or forcibly pushed rearward (hit
from the front), see “Folding the exteri-
or mirrors in and out manually”
(page 176).
iThe memory function (
page 121) lets
you store the setting for the exterior
rear view mirrors together with the set-
ting for the steering wheel and the seat
position.
At low ambient temperatures, the mir-
rors will be heated automatically.
