2004 MERCEDES-BENZ S500 Owner's Manual

64 Safety and SecurityOccupant safetyThe side impact airbags and window cur-
tain airbags are deployed:

on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front airbags
In addition, the window curtain airbags are
deployed:


in certain vehicle rollovers
The side impact airbags and window cur-
tain airbags are not deployed in impacts
which do not exceed the system’s deploy-
ment threshold.
The front passenger side impact airbag will
only deploy if the system senses that the
front passenger seat is occupied.
Seat belts
When the engine is started, the seat belt
telltale< illuminates to remind you and
your passengers to fasten your seat belts.
If the driver’s seat belt is not fastened be-
fore the engine is started, the seat belt
telltale< illuminates and a warning
chime sounds for approximately
six seconds when the engine is started.
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
For more information, see “Fastening the
seat belts” (
page 40).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 69).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.

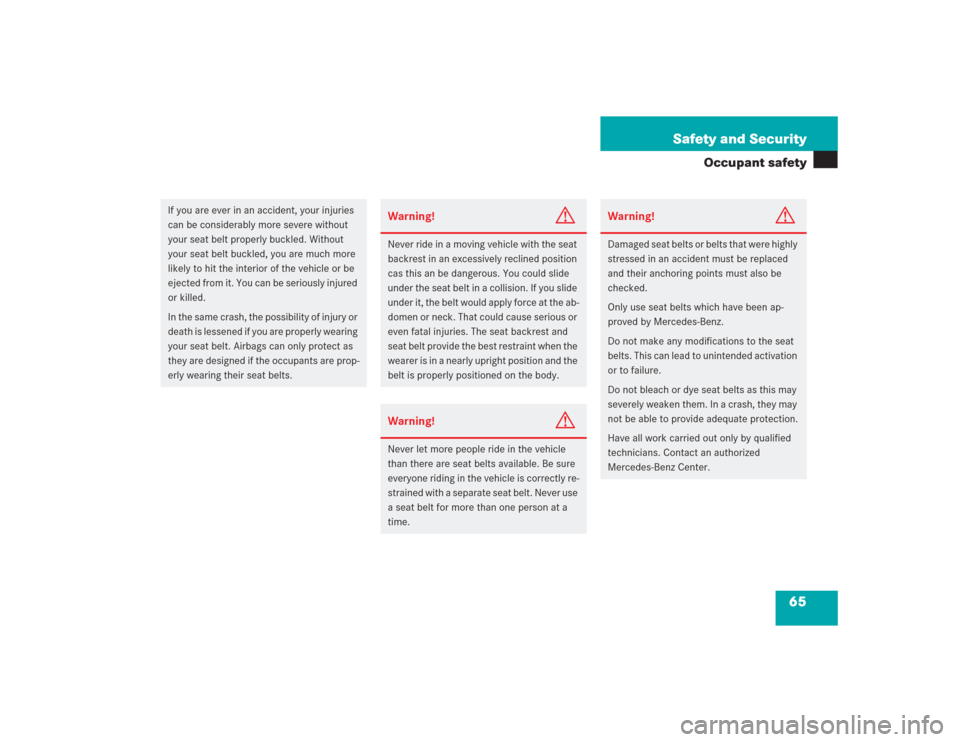

65 Safety and Security
Occupant safety
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Airbags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
cas this an be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt. Never use
a seat belt for more than one person at a
time.
Warning!
G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been ap-
proved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.

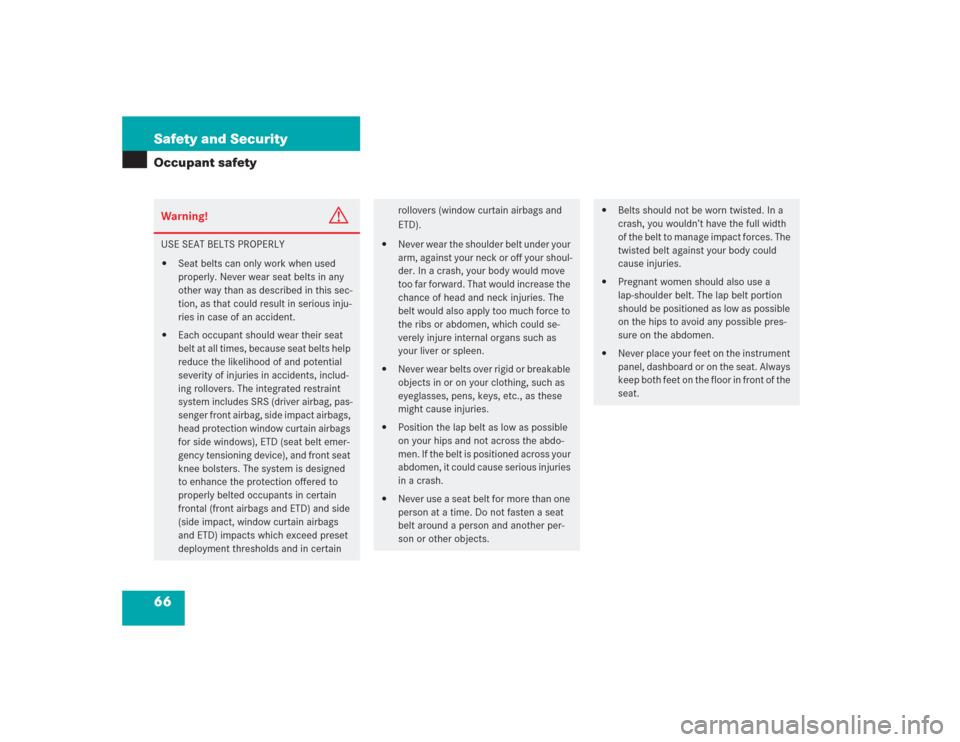

66 Safety and SecurityOccupant safetyWarning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver airbag, pas-
senger front airbag, side impact airbags,
head protection window curtain airbags
for side windows), ETD (seat belt emer-
gency tensioning device), and front seat
knee bolsters. The system is designed
to enhance the protection offered to
properly belted occupants in certain
frontal (front airbags and ETD) and side
(side impact, window curtain airbags
and ETD) impacts which exceed preset
deployment thresholds and in certain
rollovers (window curtain airbags and
ETD).


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to manage impact forces. The
twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.

67 Safety and Security
Occupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and belt force limiters.
The ETD is designed to activate in the fol-
lowing cases:

in frontal or rear-end impact exceeding
a preset severity level


in certain vehicle rollovers


if the restraint systems are operational
and functioning correctly, see
1indicator lamp (
page 58)In an impact, emergency tensioning devic-
es remove slack from the belts in such a
way that the seat belts fit more snugly
against the body. Belt force limiters reduce
the force exerted by the seat belts on oc-
cupants during a crash.
Automatic comfort-fit feature seat belt
An automatic comfort-fit feature for front
seats and for the rear outer seats (only for
vehicles with electrically adjustable rear
bench seat* or with individual seats* in the
rear) reduces the retracting force of the
seat belts when they are in normal use.
iThe ETDs for the front seats will only
activate if the respective front seat belt
is fastened (latch plate properly insert-
ed into buckle).
The ETDs for the rear outer seats will
activate with or without the respective
seat belt fastened.
Warning!
G
A pyrotechnic emergency tensioning device
(ETD) that was activated must be replaced.
When disposing of the pyrotechnic emer-
gency tensioning device, our safety instruc-
tions must be followed. These are available
at your authorized Mercedes-Benz Center.
PRE-SAFE has electrically operated revers-
ible pre-tensioners that do not require
replacement after activation.
!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.

68 Safety and SecurityOccupant safetyPreventive occupant safety (PRE-SAFE)
Your vehicle automatically takes preven-
tive measures to better protect the occu-
pants in the following hazardous
situations:

You execute an emergency braking ma-
neuver and the Brake Assist System
(page 78) is activated.


The PRE-SAFE system detects a critical
driving dynamics situation.In such cases, the following systems are
automatically activated:


A front seat belt with the seat belt
buckled is pre-tensioned electrically.


If the occupied front passenger seat or
rear seats are in an unfavorable posi-
tion, they are adjusted to a better posi-
tion. Rear seat adjustment occurs only
in vehicles with individual seats* in the
rear.


The sliding/pop-up roof closes if the
vehicle is in a severe skid or is spin-
ning.
If the seat belts do not release:

Adjust the backrest or seat slightly to
the rear until the seat belt tension is di-
minished.
The locking mechanism releases.
Warning
G
The PRE-SAFE system is intended to reduce
the effects of an accident on properly seat
belted vehicle occupants. Despite having
the PRE-SAFE systems in your car, the pos-
sibility of injuries occurring as a result of an
accident cannot be totally eliminated.
Therefore you should always drive carefully
and adjust your driving to the prevailing
road, weather, and traffic conditions.
iThe PRE-SAFE systems are activated in
the previously described circumstanc-
es only at speeds exceeding 22 mph
(35 km/h).
When the driving dynamic situation has
passed without an accident occurring,
the pre-tensioning on the seat belts is
deactivated.
You can then adjust the seats and the
sliding sunroof to their previous posi-
tion.

69 Safety and Security
Occupant safety
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate for the age and
size of the child.


Make sure the infant or child is proper-
ly secured by a belt at all times while
the vehicle is in motion.
Infant and child restraint seats and infor-
mation on choosing an appropriate re-
straint system can be obtained from any
authorized Mercedes-Benz Center.
Infant and child restraint systems
Use only a BabySmart
TM1
compatible child
restraint for the front passenger seat in
this vehicle.
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child re-
straint instructions for mounting. Then pull
the shoulder belt out completely and let it
retract. During seat belt retraction, a ratch-
eting sound can be heard to indicate that
the special seat belt retractor is activated.
The belt is now locked. Push down on child
restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.
1BabySmart
TM is a trademark of Siemens Automo-
tive Corp.
iFor more information on child seats
with mounting fittings for tether an-
chorages, see “Installation of infant
and child restraint systems”
(page 72).
For information on LATCH-type child
seat mounts (
page 73).
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.!The use of infant or child restraints is
required by law in all 50 states, the Dis-
trict of Columbia, the U.S. territories,
and all Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system properly secured by a
lap-shoulder belt or, if so equipped, a
child restraint lower anchorage system
that complies with U.S. Federal Motor
Vehicle Safety Standards 213 and 225
and Canadian Motor Vehicle Safety
Standards 213 and 210.2.

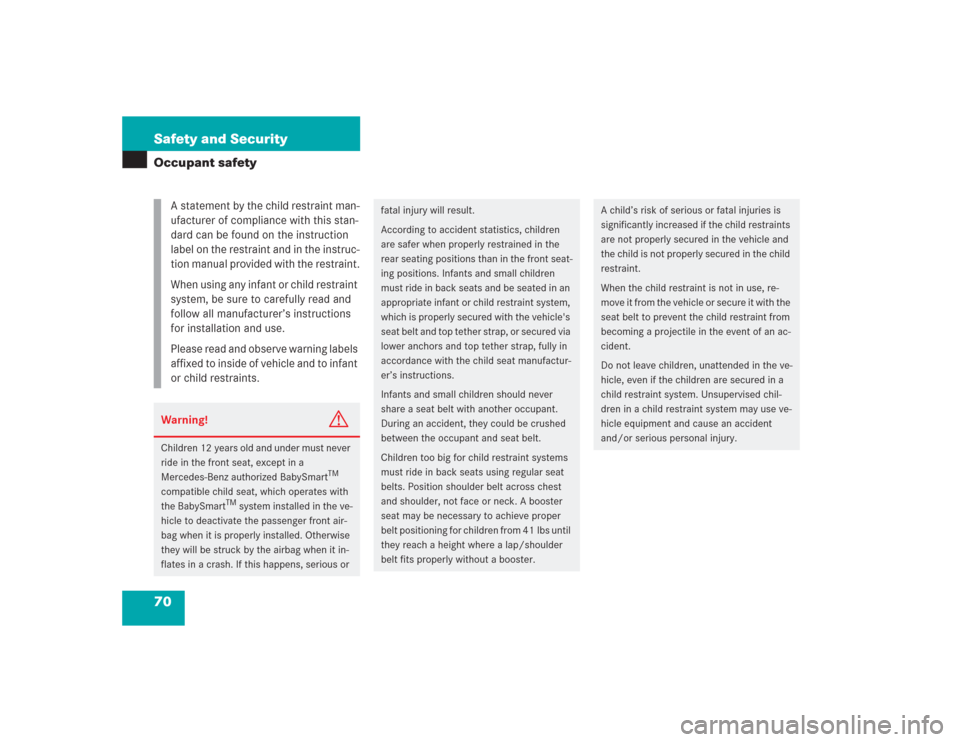

70 Safety and SecurityOccupant safety
A statement by the child restraint man-
ufacturer of compliance with this stan-
dard can be found on the instruction
label on the restraint and in the instruc-
tion manual provided with the restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to inside of vehicle and to infant
or child restraints.Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle's
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs until
they reach a height where a lap/shoulder
belt fits properly without a booster.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
When the child restraint is not in use, re-
move it from the vehicle or secure it with the
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.
Do not leave children, unattended in the ve-
hicle, even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and cause an accident
and/or serious personal injury.

71 Safety and Security
Occupant safety
BabySmart
TM1
airbag deactivation
system
1Indicator lamp
Special BabySmart
TM compatible child
seats, designed for use with the
Mercedes-Benz system and available at
any authorized Mercedes-Benz Center are
required for use with the BabySmart
TM air-
bag deactivation system. With the special
child seat properly installed, the passenger
front airbag will not deploy.The “PASSENGER AIRBAG OFF” indicator
lamp1 located in the center console will
be illuminated, except with the SmartKey
removed or in starter switch position0.
Self-test BabySmart
TM without special
child seat installed
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the PASSENGER AIRBAG OFF indi-
cator lamp1 located in the center con-
sole comes on for approximately
six seconds and then goes out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the front passenger seat.For more information, see “Practical hints”
(
page 303).
1BabySmart
TM is a trademark of Siemens Automo-
tive Corp.
iThe system does not deactivate the
side impact airbag or the emergency
tensioning device.
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
