2004 MERCEDES-BENZ S500 Owner's Manual

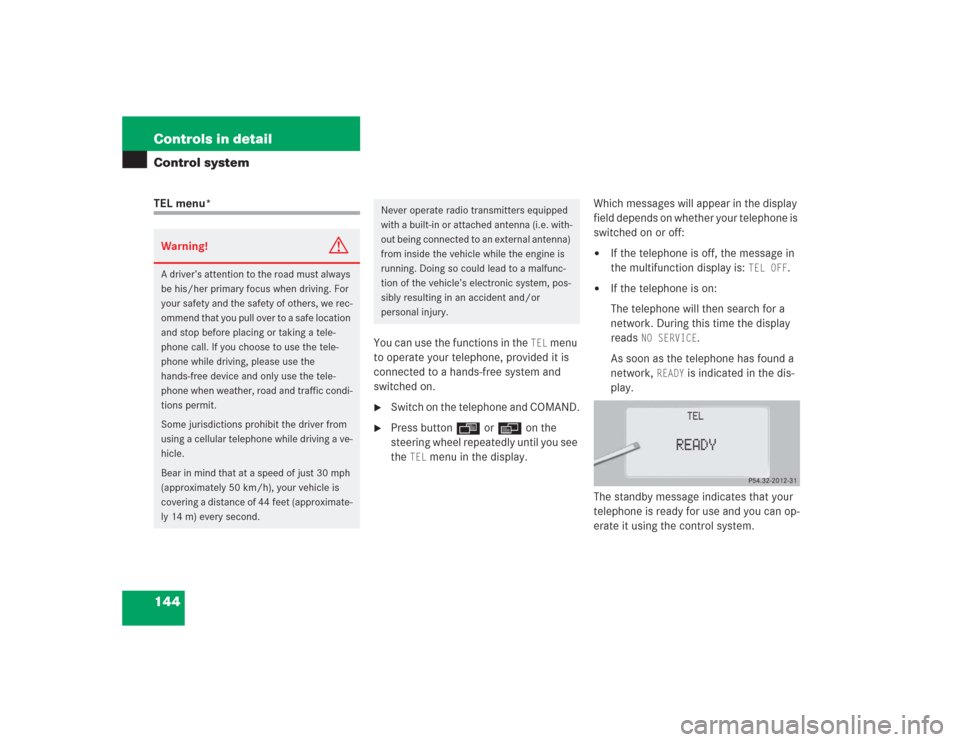

144 Controls in detailControl systemTEL menu*
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and COMAND.

Press buttonÿ orè on the
steering wheel repeatedly until you see
the
TEL
menu in the display.Which messages will appear in the display
field depends on whether your telephone is
switched on or off:


If the telephone is off, the message in
the multifunction display is:
TEL OFF
.


If the telephone is on:
The telephone will then search for a
network. During this time the display
reads
NO SERVICE
.
As soon as the telephone has found a
network,
READY
is indicated in the dis-
play.
The standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.

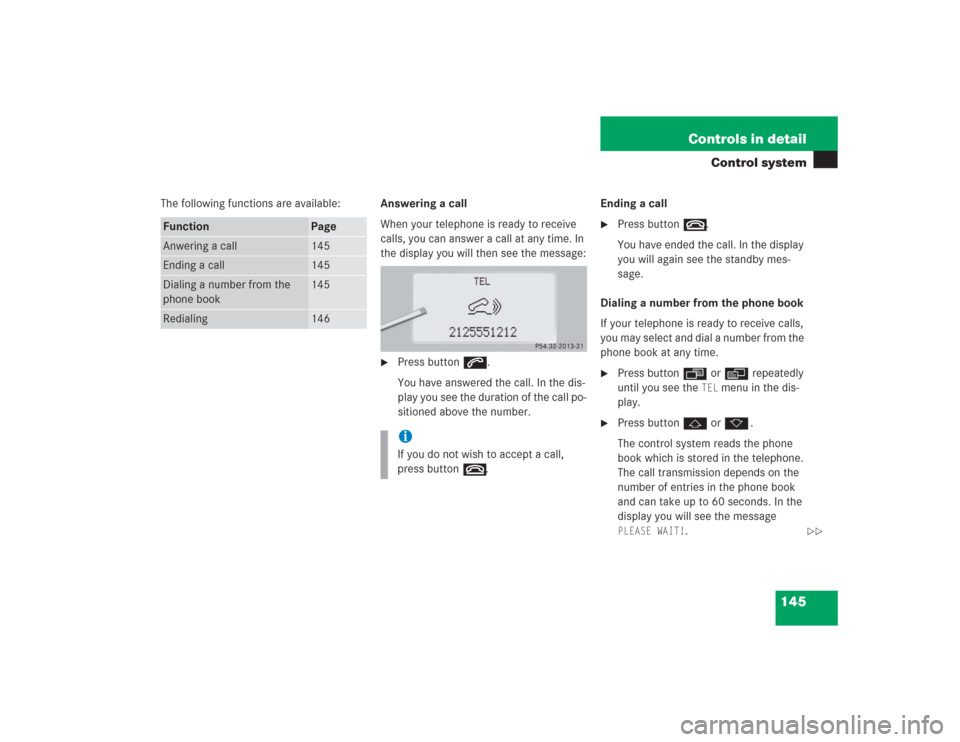

145 Controls in detail
Control system
The following functions are available:Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the display you will then see the message:

Press buttons.
You have answered the call. In the dis-
play you see the duration of the call po-
sitioned above the number.Ending a call

Press buttont.
You have ended the call. In the display
you will again see the standby mes-
sage.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press buttonÿ orè repeatedly
until you see the
TEL
menu in the dis-
play.

Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
The call transmission depends on the
number of entries in the phone book
and can take up to 60 seconds. In the
display you will see the message PLEASE WAIT!
.
Function
Page
Anwering a call
145
Ending a call
145
Dialing a number from the
phone book
145
Redialing
146
iIf you do not wish to accept a call,
press buttont.

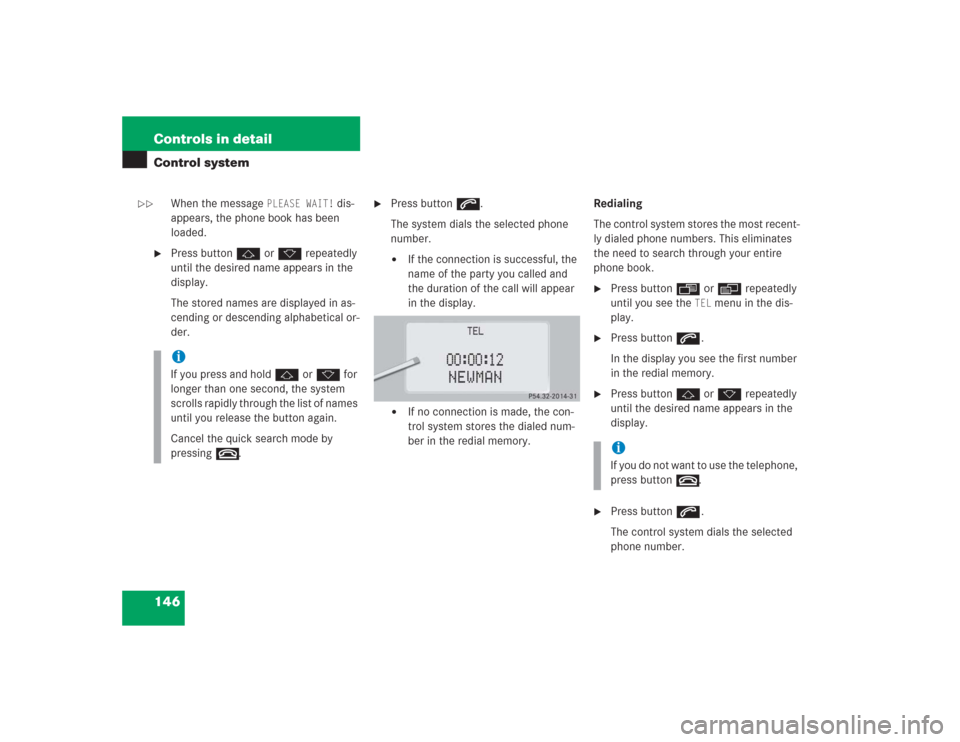

146 Controls in detailControl system
When the message
PLEASE WAIT!
dis-
appears, the phone book has been
loaded.

Press buttonj ork repeatedly
until the desired name appears in the
display.
The stored names are displayed in as-
cending or descending alphabetical or-
der.

Press buttons.
The system dials the selected phone
number.

If the connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.

Press buttonÿ orè repeatedly
until you see the
TEL
menu in the dis-
play.

Press buttons.
In the display you see the first number
in the redial memory.

Press buttonj ork repeatedly
until the desired name appears in the
display.

Press buttons.
The control system dials the selected
phone number.
iIf you press and holdj ork for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressingt.
iIf you do not want to use the telephone,
press buttont.


147 Controls in detail
Control system
NAVI menu
In the
NAVI
menu, you will see which status
the navigation system has.

Press buttonè orÿ repeatedly
until you see the message
NAV
I in the
display.


If the navigation system is switched off,
the message
NAVI OFF
is shown in the
display.


If the navigation system is on and no
destination has been entered, you will
see the current direction in which the
vehicle is moving and the names of
streets in the display.
Please refer to the COMAND manual for in-
structions on how to activate the route
guidance system.
Distronic* menu
Use the
DISTRONIC
menu to display the
current settings for your Distronic system.
What information is shown in the display
depends on whether the Distronic system
is active or inactive.
Please refer to the “Driving systems” sec-
tion of this manual (page 206) for in-
structions on how to activate Distronic.

Press buttonè orÿ repeatedly
until you see one of the following two
pictures in the display.Distronic deactivated
When Distronic is deactivated you will see
the standard display in the display.
1Vehicle ahead, if detected
2Actual distance to vehicle ahead
3Preset distance threshold to vehicle
ahead
4Symbol for activated distance warning
function
5Your vehicle

148 Controls in detailControl systemDistronic activated
When you activate Distronic, you will see
the set speed for about five seconds in the
Distronic display. The following display
then appears:
1Distronic activated
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:Fuel consumption statistics after start

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the left
display:
AFTER START
.
1Distance driven since start
2Time elapsed since start
3Average fuel consumption since start
4Average speed since start
Function
Page
Fuel consumption statistics after
start
148
Fuel consumption statistics
since last reset
149
Resetting fuel consumption sta-
tistics
149
Call up range (distance to empty)
150

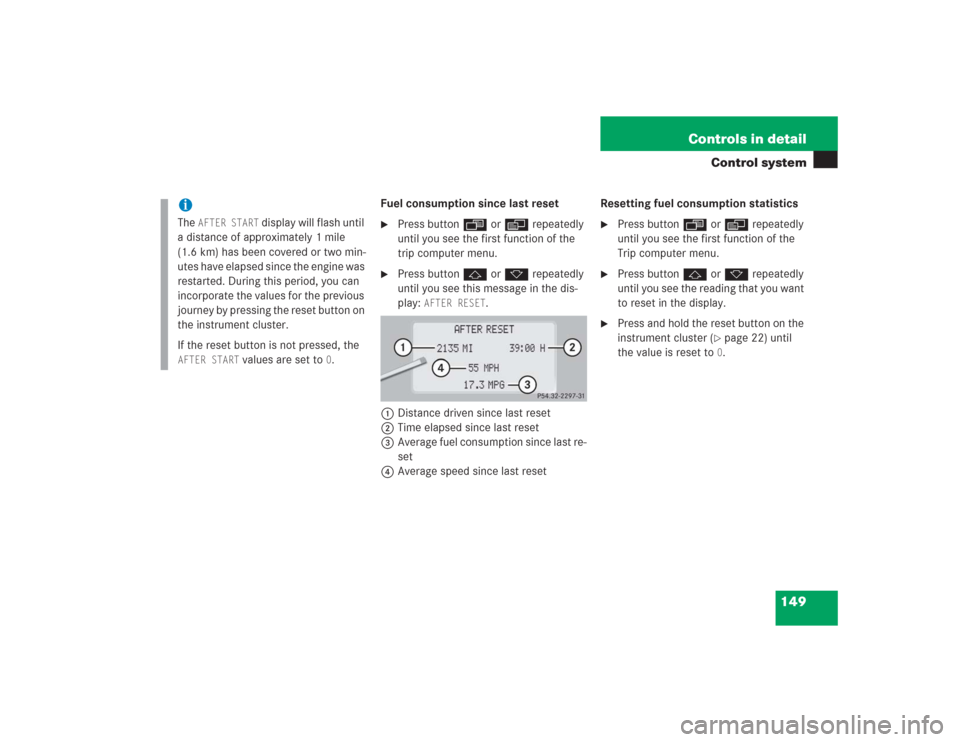

149 Controls in detail
Control system
Fuel consumption since last reset
Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AFTER RESET
.
1Distance driven since last reset
2Time elapsed since last reset
3Average fuel consumption since last re-
set
4Average speed since last resetResetting fuel consumption statistics

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset button on the
instrument cluster (
page 22) until
the value is reset to 0.
iThe
AFTER START
display will flash until
a distance of approximately 1 mile
(1.6 km) has been covered or two min-
utes have elapsed since the engine was
restarted. During this period, you can
incorporate the values for the previous
journey by pressing the reset button on
the instrument cluster.
If the reset button is not pressed, the
AFTER START
values are set to
0.

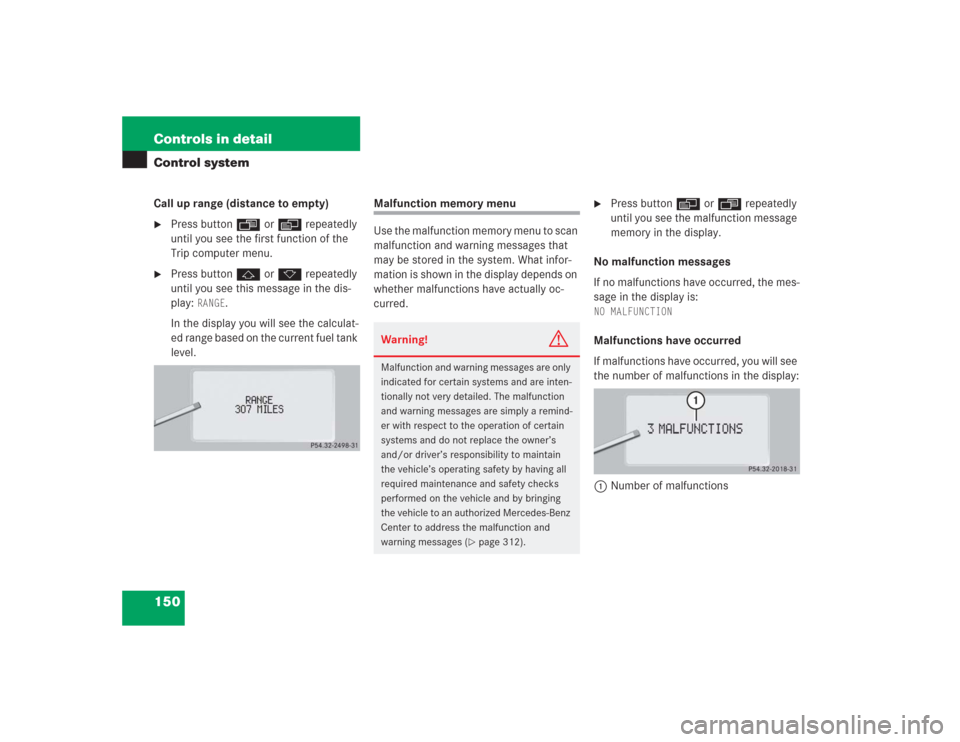

150 Controls in detailControl systemCall up range (distance to empty)
Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
RANGE
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
Malfunction memory menu
Use the malfunction memory menu to scan
malfunction and warning messages that
may be stored in the system. What infor-
mation is shown in the display depends on
whether malfunctions have actually oc-
curred.

Press buttonè orÿ repeatedly
until you see the malfunction message
memory in the display.
No malfunction messages
If no malfunctions have occurred, the mes-
sage in the display is:
NO MALFUNCTIONMalfunctions have occurred
If malfunctions have occurred, you will see
the number of malfunctions in the display:
1Number of malfunctions
Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 312).

151 Controls in detail
Control system

Press buttonk orj.
The stored messages will now be dis-
played in the order in which the mal-
functions have occurred. See the
“Practical hints” section for malfunc-
tion and warning messages
(page 312).
Should any malfunctions occur while driv-
ing, the number of malfunctions will reap-
pear in the display when the SmartKey in
the starter switch is turned to position0 or
removed from the starter switch.
Settings menu
In the
SETTINGS
menu there are two func-
tions:


The function
RESET WITH R BUTTON FOR
3 SEC.
, with which you can reset all
settings to the original factory settings.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press buttonè orÿ repeatedly
until the
SETTINGS
menu appears in the
display.Resetting all settings
You can reset all the functions of all sub-
menus to the factory settings.

Press the reset button on the instru-
ment cluster (
page 22) for approxi-
mately three seconds.
In the display you will see the request
to press the reset button again to con-
firm.

Press the reset button again.
The functions of all the submenus will
reset to factory settings.
iThe message memory will be cleared
when you turn the SmartKey in the
starter switch to position1 or2. You
will then only see high priority malfunc-
tions (
page 312).
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time.
Due to safety reasons, resetting all of
the settings while driving will not reset
all of the values in the
LIGHTING
or the
VEHICLE
menu.
