48 Getting startedDrivingHigh beam
Push the combination switch forward.
The high beam headlamps are switched
on.
The high beam headlamp
indicatorA in the tachometer
comes on.
For more information, see “High beam
flasher” (
page 128).
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
2Switching on windshield wipers
Make sure the ignition is switched on.
All the lamps in the instrument cluster
come on.Switching on windshield wipers

Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping (interval depen-
dent on wetness of windshield)
IINormal wiper speed
IIIFast wiper speediThe intermittent wiping interval is de-
pendent on wetness of windshield.
Wiping will not occur with a door open.

49 Getting started
Driving
Single wipe
Press switch briefly in the direction of
arrow1.
The windshield wipers wipe one time
without washer fluid.Wiping with windshield washer fluid

Press switch in the direction of
arrow1 past the resistance point.
The windshield wiper operates with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 281).
!Do not leave windshield wipers in inter-
mittent setting when vehicle is taken to
an automatic car wash or during wind-
shield cleaning. Wipers will operate in
the presence of water sprayed on the
windshield, and wipers may be dam-
aged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and/or damage the wiper blades
when wiping occurs on a dry wind-
shield.
!If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.

For safety reasons,

turn off the engine by turning
the SmartKey to position0 and
withdraw SmartKey from starter
switch
or


turn off the engine by pressing the
KEYLESS-GO* start/stop button
and open the driver’s door (with the
driver’s door open, starter switch is
in position0, same as with
SmartKey removed from starter
switch)
before attempting to remove any block-
age.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center

50 Getting startedDrivingProblems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature is above
248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 278).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.
iExcessive coolant temperatures trigger
a warning message in the multifunction
display (
page 323).

51 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.Warning!
G
Wait until the vehicle is stationary before re-
moving the SmartKey from the starter
switch. The vehicle cannot be steered when
the SmartKey is removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and the
steering systems. In this case, it is impor-
tant to keep in mind that a considerably
higher degree of effort is necessary to brake
and steer the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay, or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
start / stop button (vehicles with
KEYLESS-GO*).


Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.

52 Getting startedParking and lockingParking brake
1Parking brake
2Release handle
Step firmly on parking brake1.
When the engine is running, the
indicator lamp ; (USA only) or
3 (Canada only) in the instrument
cluster illuminates.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake and/or move the gear selec-
tor lever from positionP, either of which
could result in an accident and/or serious
injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 166).
When parked on an incline, turn front wheels
towards the road curb.

53 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch toM.
For more information, see “Lighting”
(
page 124).
Turning off the engine
Place the gear selector lever in
positionP.
Turning off with the SmartKey

Turn the SmartKey in the starter switch
(page 31) to position0 and remove
it.
The immobilizer is activated.

Press the seat belt release button
(page 41).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.

After exiting the vehicle press the lock
button‹ on the SmartKey
(page 30).
All turn signal lamps flash three times.
The locking knobs on the doors move
down.
iAlways set the parking brake in addi-
tion to shifting to position P.
On steep slopes, turn the front wheels
towards the curb.
iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.iWith the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.

54 Getting startedParking and lockingFor more information, see “Locking and
unlocking” (
page 88).Turning off the engine with
KEYLESS-GO*

Place the gear selector lever in
positionP.

Press the KEYLESS-GO start/stop
button to shut off the engine.
With the driver's door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(page 31).

Press the seat belt release button
(page 41).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
your vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious injury.
!If you hear a warning signal, you have
either

forgotten to turn off the lights be-
fore opening the driver’s door
or


tried to turn off the engine while the
gear selector lever is not inP.
Turn off the lights or place the gear se-
lector lever inP.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.

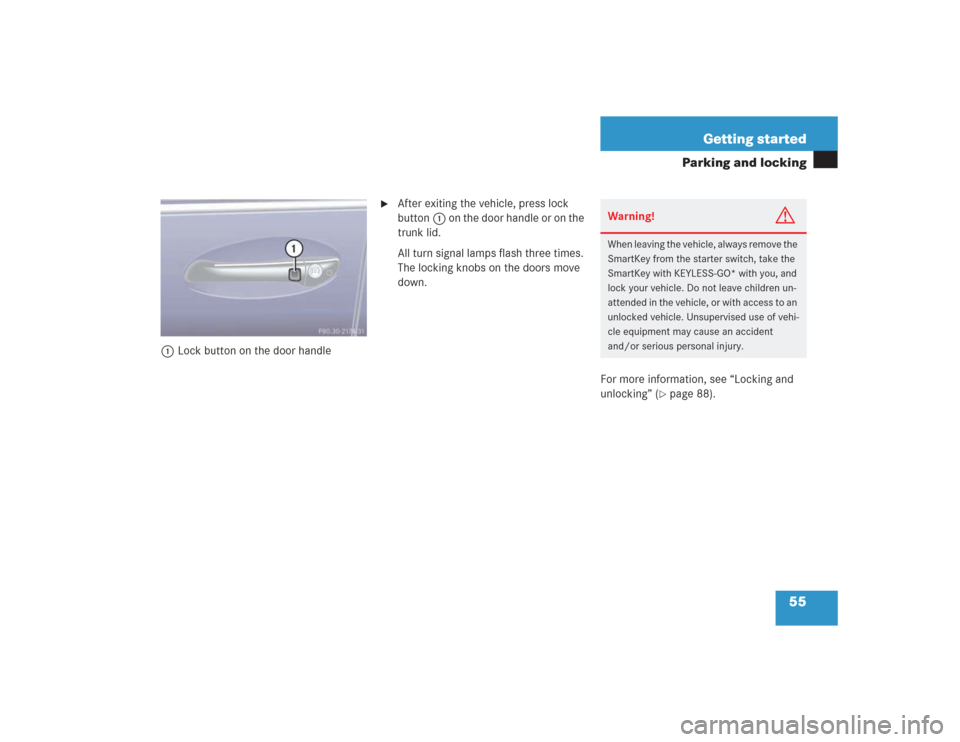

55 Getting started
Parking and locking
1Lock button on the door handle

After exiting the vehicle, press lock
button1 on the door handle or on the
trunk lid.
All turn signal lamps flash three times.
The locking knobs on the doors move
down.
For more information, see “Locking and
unlocking” (
page 88).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
