2004 MERCEDES-BENZ S500 Owner's Manual

152 Controls in detailControl systemSubmenus in the Settings menu
Press buttonk orj.
In the display you see the collection of
the submenus.

Press buttonçor æ.
The selection marker moves to the next
submenu.The submenus are arranged by hierarchy.
Scroll down with theç button, scroll up
with theæ button.
Move within the submenus with thek
orj button to the individual functions.
The settings themselves are made with
buttonæ orç.Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.

Move to a function in the submenu.

Press the reset button on the instru-
ment cluster (
page 22) for approxi-
mately three seconds.
In the display you will see the request
to press the reset button again to con-
firm.

Press the reset button again.
All functions of the submenu will reset
to factory settings.

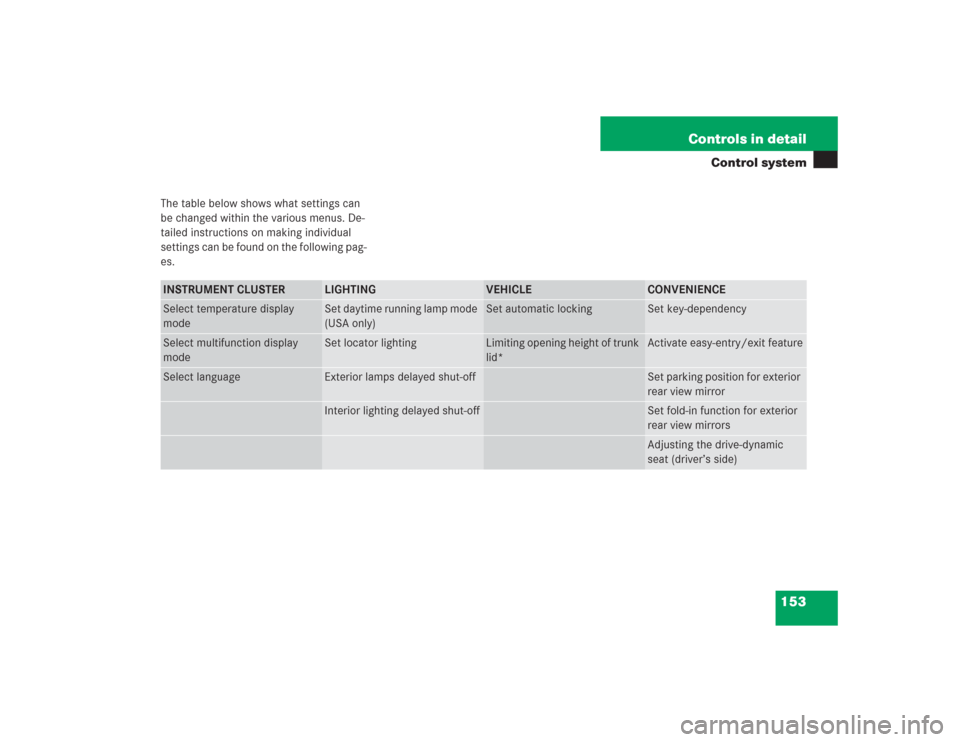

153 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Select temperature display
mode
Set daytime running lamp mode
(USA only)
Set automatic locking
Set key-dependency
Select multifunction display
mode
Set locator lighting
Limiting opening height of trunk
lid*
Activate easy-entry/exit feature
Select language
Exterior lamps delayed shut-off
Set parking position for exterior
rear view mirror
Interior lighting delayed shut-off
Set fold-in function for exterior
rear view mirrorsAdjusting the drive-dynamic
seat (driver’s side)

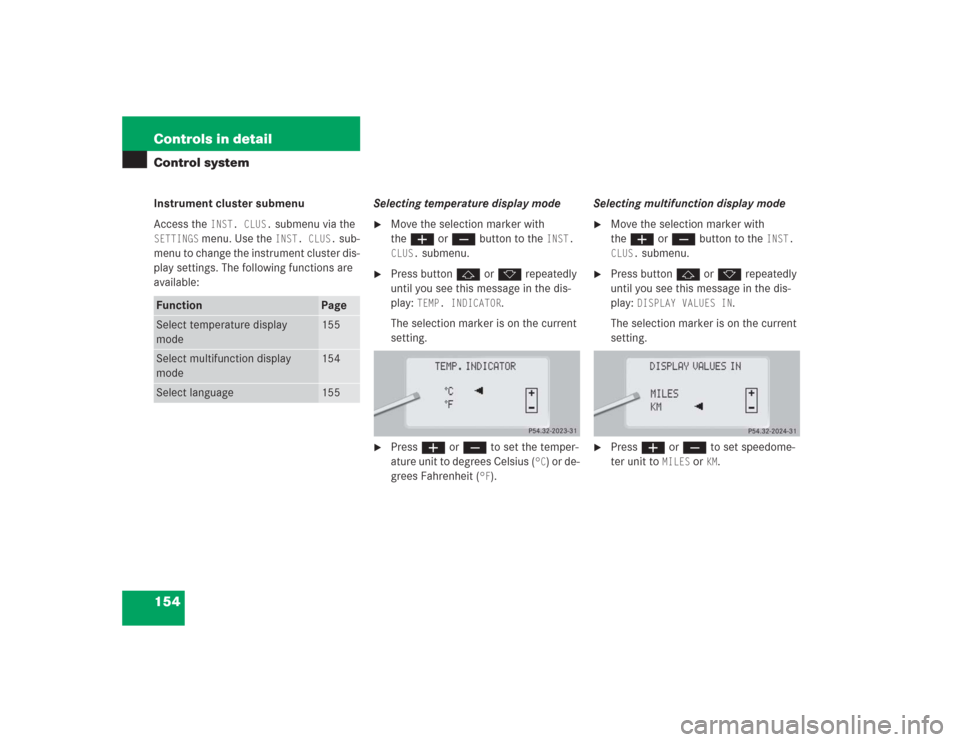

154 Controls in detailControl systemInstrument cluster submenu
Access the
INST. CLUS.
submenu via the
SETTINGS
menu. Use the
INST. CLUS.
sub-
menu to change the instrument cluster dis-
play settings. The following functions are
available:Selecting temperature display mode

Move the selection marker with
theæ orç button to the
INST.
CLUS.
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
TEMP. INDICATOR
.
The selection marker is on the current
setting.

Pressæ orç to set the temper-
ature unit to degrees Celsius (
°C) or de-
grees Fahrenheit (
°F).Selecting multifunction display mode

Move the selection marker with
theæ orç button to the
INST.
CLUS.
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
DISPLAY VALUES IN
.
The selection marker is on the current
setting.

Press æ or ç to set speedome-
ter unit to
MILES
or
KM.
Function
Page
Select temperature display
mode
155
Select multifunction display
mode
154
Select language
155

155 Controls in detail
Control system
Selecting language
Move the selection marker with
theæ orç button to the
INST.
CLUS.
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
TEXT
.
The selection marker is on the current
setting.

Pressæ orç to select the lan-
guage to be used for the multifunction
display messages.
Available languages:

German


English


French


Italian


SpanishLighting submenu
Access the
LIGHTING
submenu via the
SET-
TINGS
menu. Use the
LIGHTING
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:
Function
Page
Set daytime running lamp mode
(USA only)
156
Set locator lighting
156
Exterior lamps delayed shut-off
157
Interior lighting delayed shut-off
158

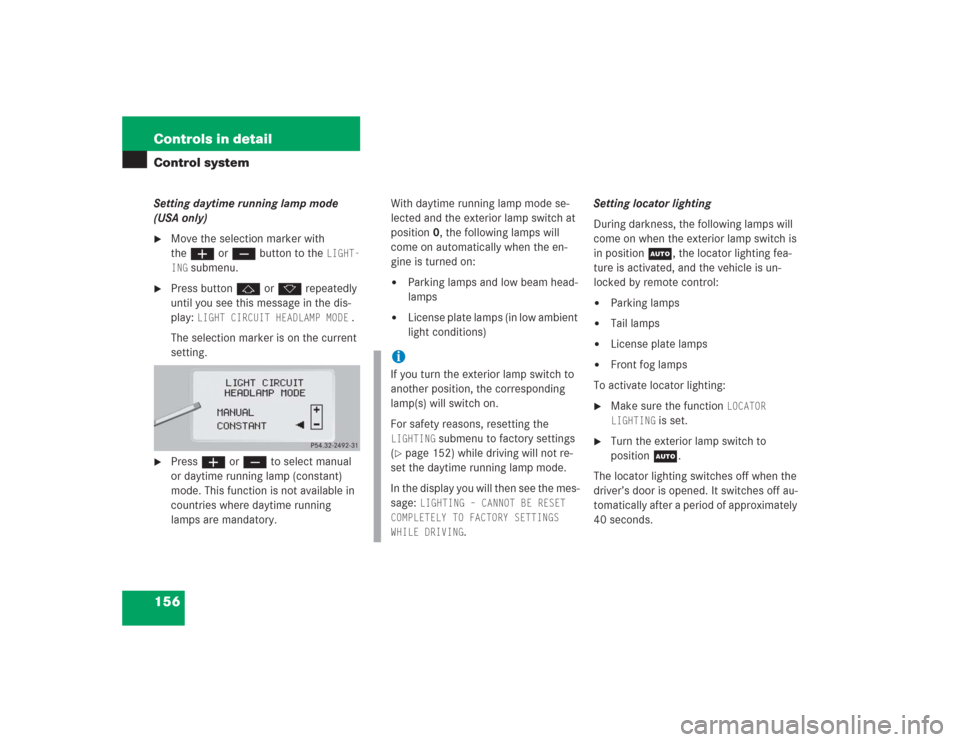

156 Controls in detailControl systemSetting daytime running lamp mode
(USA only)
Move the selection marker with
theæ orç button to the
LIGHT-
ING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
LIGHT CIRCUIT HEADLAMP MODE
.
The selection marker is on the current
setting.

Pressæ orç to select manual
or daytime running lamp (constant)
mode. This function is not available in
countries where daytime running
lamps are mandatory.With daytime running lamp mode se-
lected and the exterior lamp switch at
position0, the following lamps will
come on automatically when the en-
gine is turned on:


Parking lamps and low beam head-
lamps


License plate lamps (in low ambient
light conditions) Setting locator lighting
During darkness, the following lamps will
come on when the exterior lamp switch is
in position U, the locator lighting fea-
ture is activated, and the vehicle is un-
locked by remote control:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
To activate locator lighting:

Make sure the function
LOCATOR
LIGHTING
is set.

Turn the exterior lamp switch to
positionU.
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the LIGHTING
submenu to factory settings
(
page 152) while driving will not re-
set the daytime running lamp mode.
In the display you will then see the mes-
sage:
LIGHTING – CANNOT BE RESET
COMPLETELY TO FACTORY SETTINGS
WHILE DRIVING
.

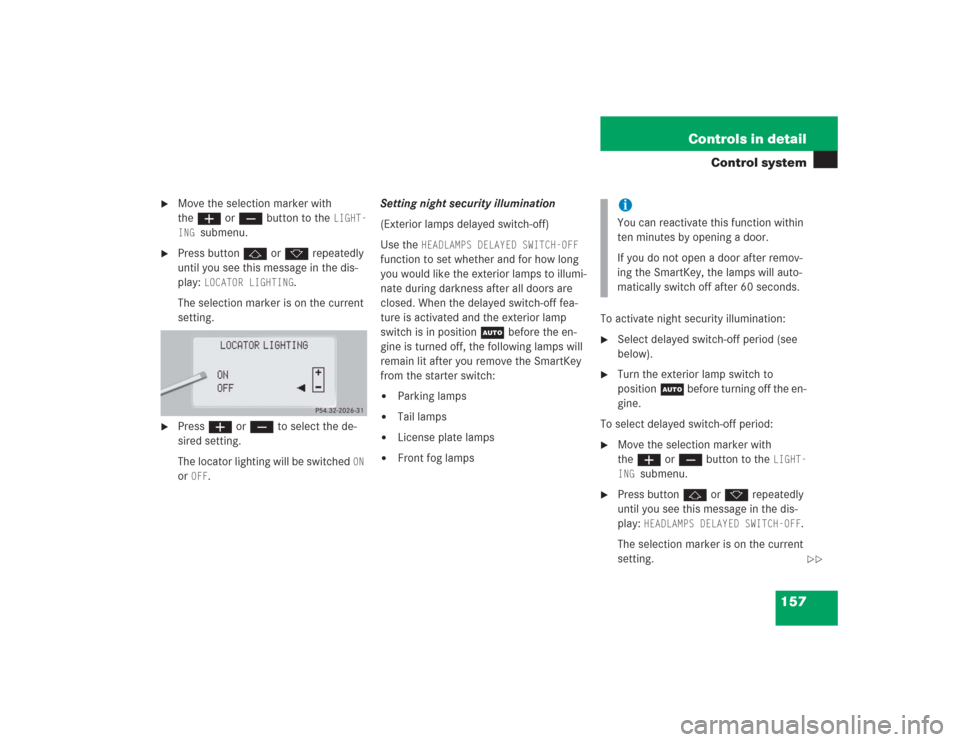

157 Controls in detail
Control system

Move the selection marker with
theæ orç button to the
LIGHT-
ING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
LOCATOR LIGHTING
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired setting.
The locator lighting will be switched
ON
or
OFF
.Setting night security illumination
(Exterior lamps delayed switch-off)
Use the
HEADLAMPS DELAYED SWITCH-OFF

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed switch-off fea-
ture is activated and the exterior lamp
switch is in position U before the en-
gine is turned off, the following lamps will
remain lit after you remove the SmartKey
from the starter switch:


Parking lamps


Tail lamps


License plate lamps


Front fog lampsTo activate night security illumination:

Select delayed switch-off period (see
below).

Turn the exterior lamp switch to
positionU before turning off the en-
gine.
To select delayed switch-off period:

Move the selection marker with
theæ orç button to the
LIGHT-
ING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
HEADLAMPS DELAYED SWITCH-OFF
.
The selection marker is on the current
setting.
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the SmartKey, the lamps will auto-
matically switch off after 60 seconds.

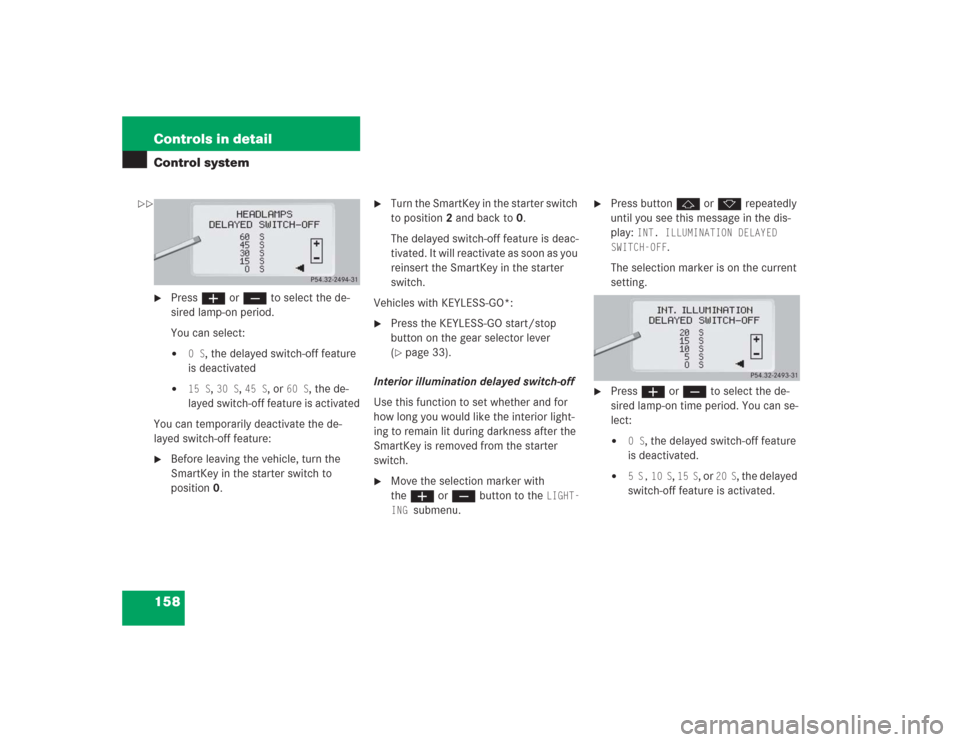

158 Controls in detailControl system
Pressæ orç to select the de-
sired lamp-on period.
You can select:

0 S
, the delayed switch-off feature
is deactivated


15 S
, 30 S
, 45 S
, or
60 S
, the de-
layed switch-off feature is activated
You can temporarily deactivate the de-
layed switch-off feature:

Before leaving the vehicle, turn the
SmartKey in the starter switch to
position0.

Turn the SmartKey in the starter switch
to position2 and back to0.
The delayed switch-off feature is deac-
tivated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*:

Press the KEYLESS-GO start/stop
button on the gear selector lever
(page 33).
Interior illumination delayed switch-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
SmartKey is removed from the starter
switch.

Move the selection marker with
theæ orç button to the
LIGHT-
ING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
INT. ILLUMINATION DELAYED
SWITCH-OFF
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired lamp-on time period. You can se-
lect:

0 S
, the delayed switch-off feature
is deactivated.


5 S,
10 S
, 15 S
, or
20 S
, the delayed
switch-off feature is activated.

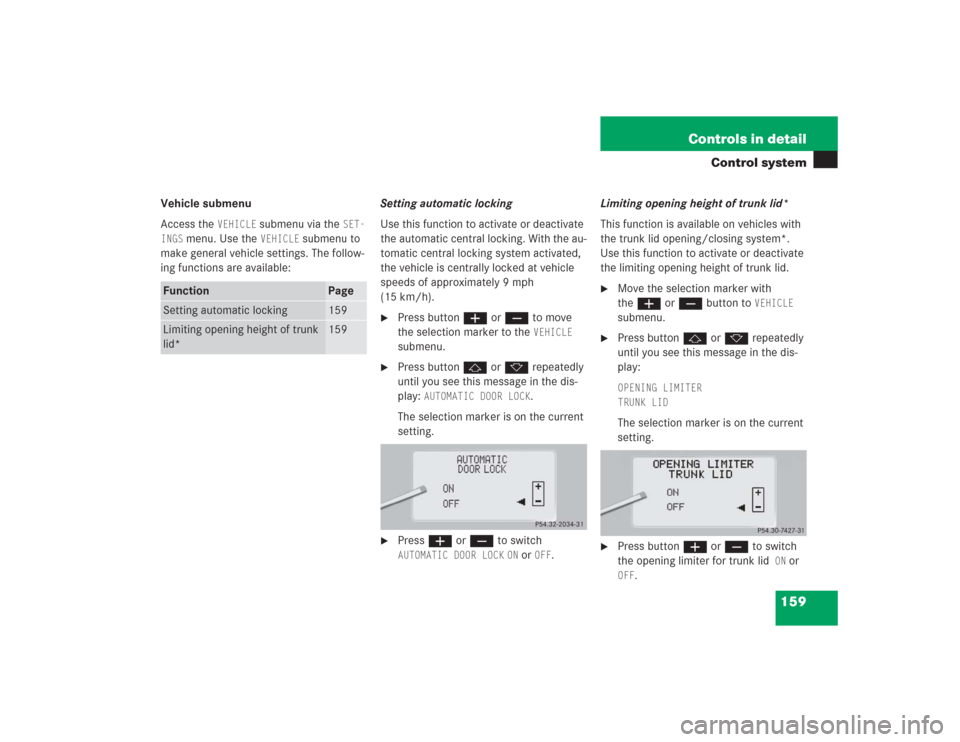

159 Controls in detail
Control system
Vehicle submenu
Access the
VEHICLE
submenu via the
SET-
INGS
menu. Use the
VEHICLE
submenu to
make general vehicle settings. The follow-
ing functions are available:Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Press buttonæ orç to move
the selection marker to the
VEHICLE

submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Pressæ orç to switch AUTOMATIC DOOR LOCK
ON or
OFF
.Limiting opening height of trunk lid*
This function is available on vehicles with
the trunk lid opening/closing system*.
Use this function to activate or deactivate
the limiting opening height of trunk lid.

Move the selection marker with
theæ orç button to
VEHICLE

submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:OPENING LIMITER
TRUNK LIDThe selection marker is on the current
setting.

Press buttonæ orç to switch
the opening limiter for trunk lid
ON
or
OFF
.
Function
Page
Setting automatic locking
159
Limiting opening height of trunk
lid*
159
