2004 MAZDA MODEL RX 8 Owners Manual (in English)

5-46
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

Headlight Auto-Leveling
Malfunction Indicator Light*
This indicator light stays on far a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the indicator light will
illuminate when the headlight auto-
leveling system has a malfunction.
If the indicator light illuminates, contact
an Authorized Mazda Dealer.

Turn-Signal/Hazard Warning
Indicator Lights
When operating the turn-signal lights, the
left or right turn-signal indicator light
flashes to indicate which turn-signal light
is operating (page 5-50).
When operating the hazard warning
lights, both turn-signal indicator lights
flash (page 5-55).
NOTE
The power steering system is
inoperable when the malfunction
indicator light illuminates. Manual
steering is possible, but requires more
physical effort.
NOTE
If an indicator light remains
illuminated (does not flash) or if it
flashes abnormally, the turn signal bulb
may be burned out.
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 46 Saturday, April 26, 2003 1:48 PM

5-47
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

Seat Belt Warning Beep
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when the
driver’s door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when the driver’s door is opened.

Engine Overrev Warning Beep
The beep sounds to indicate engine
overrev when the tachometer needle
enters the striped zone (page 5-31).

Tire Inflation Pressure Warning
Beep*
The warning beep sounds for about 3
seconds when there is any abnormality in
tire inflation pressures.
(page 5-24)
Beeps
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 47 Saturday, April 26, 2003 1:48 PM

5-48
Driving Your Mazda
Form No. 8R65-EA-03C
Switches and Controls

Headlights
To turn on the lights, turn the headlight
switch on the end of the control lever.
Xenon fusion headlight bulbs*
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when the driver’s door is opened.

Headlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.
Lighting Control
Switch Position OFF
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery,
don’t leave the lights on while the
engine is off.
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the
brightness weakens, the bulb-life may
be depleted and a replacement is
necessary. Consult an Authorized
Mazda Dealer.
WARNING
Low beamHigh beam
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 48 Saturday, April 26, 2003 1:48 PM

5-49
Driving Your Mazda
Switches and Controls
Form No. 8R65-EA-03C

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.

Headlight Leveling*
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The angle of the headlights will be
automatically adjusted when turning on
the headlights.Headlight auto-leveling malfunction
indicator light
This indicator light stays on far a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the indicator light will
illuminate when the headlight auto-
leveling system has a malfunction.
If the indicator light illuminates, contact
an Authorized Mazda Dealer.

Daytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The running lights go off when the
parking brake is applied.
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 49 Saturday, April 26, 2003 1:48 PM

5-50
Driving Your Mazda
Switches and Controls
Form No. 8R65-EA-03C

Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change —until the
indicator flashes— and hold it there. It
will return to the off position when
released.Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the position.
The headlight switch must be in the
position to turn on the front fog lights.
To turn them off, rotate the fog light
switch to the or OFF position or turn
the headlight switch to the OFF position.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn Right lane
change
Left lane
changeOFF
Fog Lights*
NOTE
The fog lights will turn off when the
headlights are set at high beam.
Fog light switch
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 50 Saturday, April 26, 2003 1:48 PM

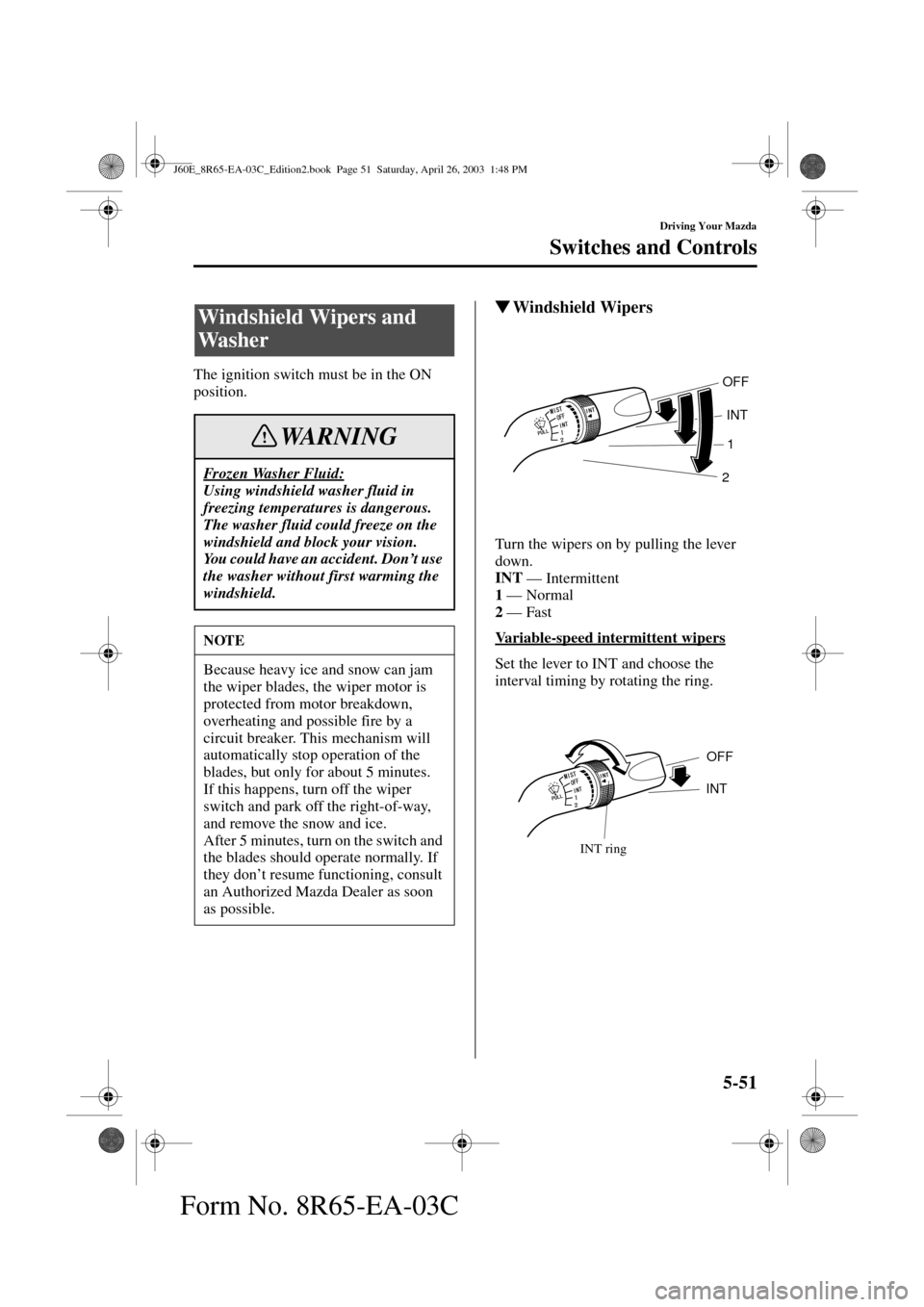

5-51
Driving Your Mazda
Switches and Controls
Form No. 8R65-EA-03C
The ignition switch must be in the ON
position.

Windshield Wipers
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1
— Normal
2
— Fast
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.
Windshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision.
You could have an accident. Don’t use
the washer without first warming the
windshield.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
OFF
INT
1
2
OFF
INT
INT ring
J60E_8R65-EA-03C_Edition2.book Page 51 Saturday, April 26, 2003 1:48 PM

5-52
Driving Your Mazda
Switches and Controls
Form No. 8R65-EA-03C
One-touch wipers
For a single wiping cycle, push the lever
up to MIST.

Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
If the washer doesn’t work, inspect the
fluid level (page 8-17). If it’s OK, consult
an Authorized Mazda Dealer.
NOTE
With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.
OFF MIST
NOTE
(With headlight washers)
When the headlights are on, the
headlight washers operate
automatically once every fifth time the
windshield washer operates.
Refer to Headlight Washer (page 5-53).
J60E_8R65-EA-03C_Edition2.book Page 52 Saturday, April 26, 2003 1:48 PM

5-53
Driving Your Mazda
Switches and Controls
Form No. 8R65-EA-03C
The ignition switch must be in the ON
position and the headlights must be turned
on.
The headlight washers operate
automatically once every fifth time the
windshield washer operates.
If you want to operate only the headlight
washers, pull the windshield wiper lever
toward you twice rapidly.The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Headlight Washer*
NOTE
When you pull the windshield wiper
lever twice, the windshield washer
may spray a little.
Rear Window Defroster
Don’t use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
Indicator light
CAUTION
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 53 Saturday, April 26, 2003 1:48 PM
