2004 MAZDA MODEL RX 8 Owners Manual (in English)

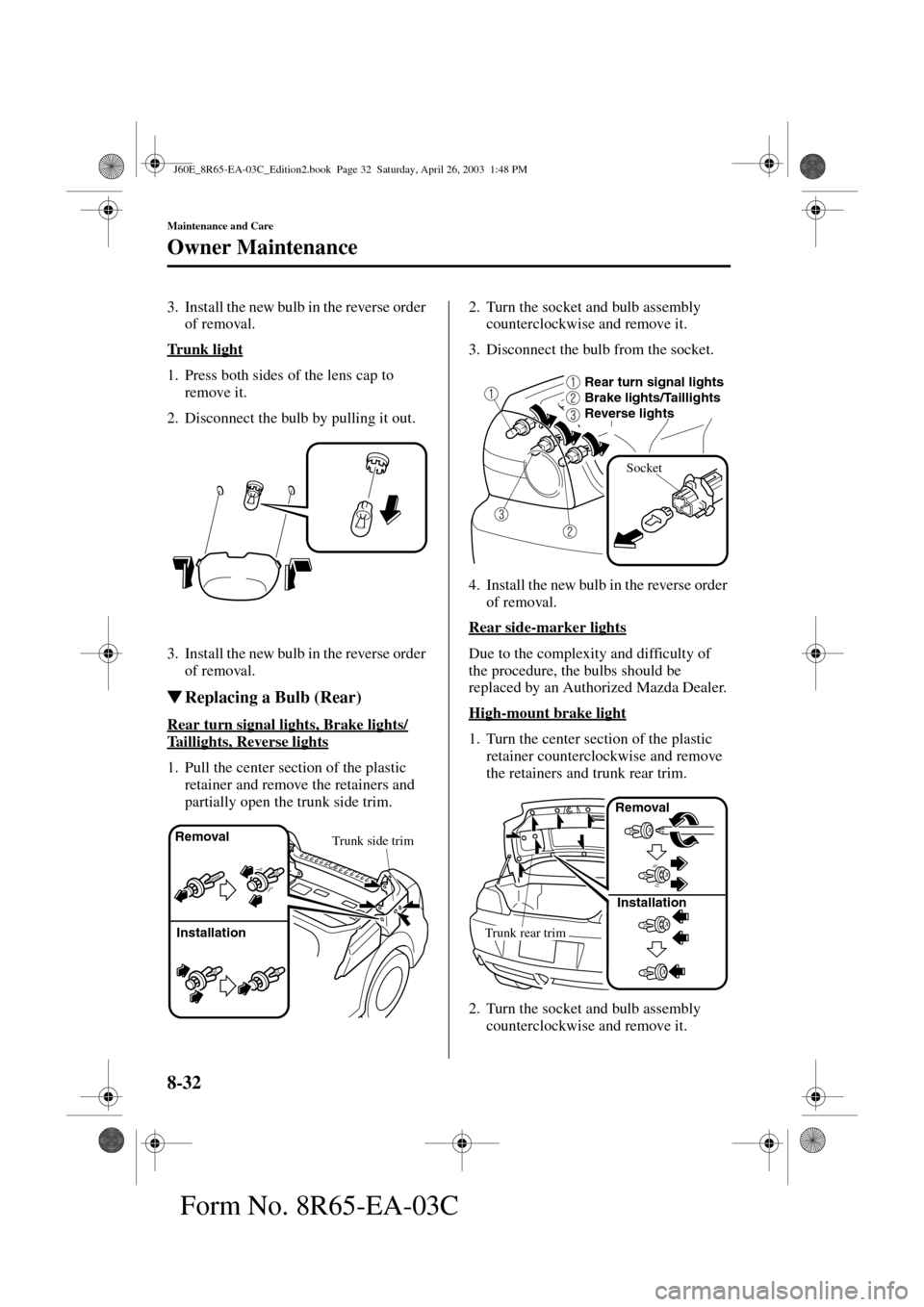

8-32
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
3. Install the new bulb in the reverse order
of removal.
Trunk light
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.

Replacing a Bulb (Rear)
Rear turn signal lights, Brake lights/
Taillights, Reverse lights
1. Pull the center section of the plastic
retainer and remove the retainers and
partially open the trunk side trim.2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Rear side-marker lights
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
High-mount brake light
1. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and trunk rear trim.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
Removal
InstallationTrunk side trim
Rear turn signal lights
Brake lights/Taillights
Reverse lights
Socket
Removal
Installation
Trunk rear trim
J60E_8R65-EA-03C_Edition2.book Page 32 Saturday, April 26, 2003 1:48 PM

8-33
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
License plate light
1. Press the front of the lens to detach the
front tabs.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of removal.Yo u r v e h i c l e’s electrical system is
protected by fuses.
If any lights, accessories, or controls don’t
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

Fuse Replacement
If the electrical system doesn’t work, first
inspect fuses on the driver’s side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.
Socket
Edge
Fuses
Fuse panel cover
J60E_8R65-EA-03C_Edition2.book Page 33 Saturday, April 26, 2003 1:48 PM

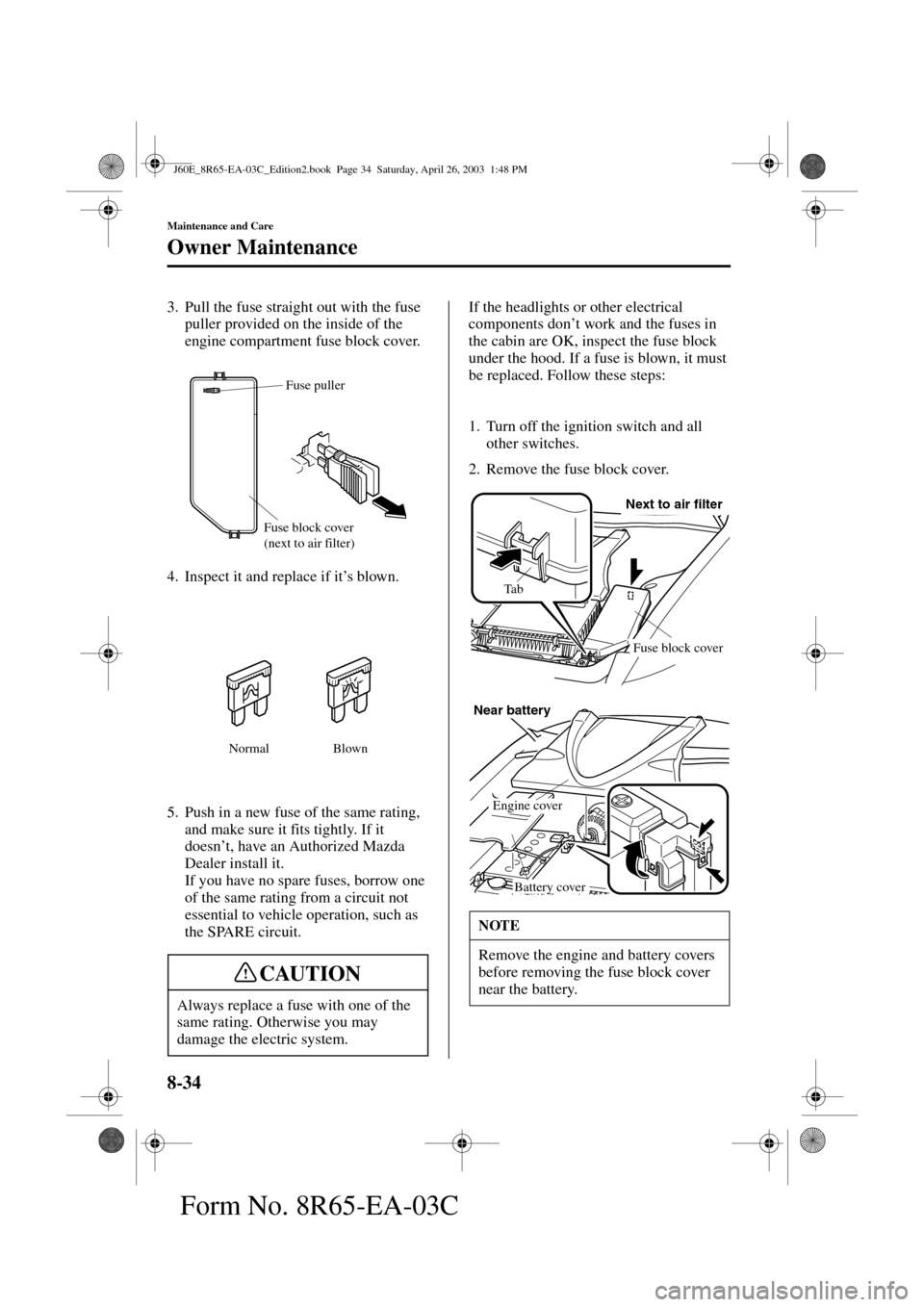

8-34
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect it and replace if it’s blown.
5. Push in a new fuse of the same rating,
and make sure it fits tightly. If it
doesn’t, have an Authorized Mazda
Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the SPARE circuit.If the headlights or other electrical
components don’t work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Fuse puller
Fuse block cover
(next to air filter)
Normal Blown
CAUTION
NOTE
Remove the engine and battery covers
before removing the fuse block cover
near the battery.
Fuse block cover
Ta bNext to air filter
Engine cover
Near battery
Battery cover
J60E_8R65-EA-03C_Edition2.book Page 34 Saturday, April 26, 2003 1:48 PM

8-35
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
3. If a fuse is blown, replace it with a new
one of the same rating
.
NOTE
•To replace the MAIN fuse, contact
an Authorized Mazda Dealer (page
8-36).
•Verify that the engine cover is
securely installed.
Normal Blown
J60E_8R65-EA-03C_Edition2.book Page 35 Saturday, April 26, 2003 1:48 PM

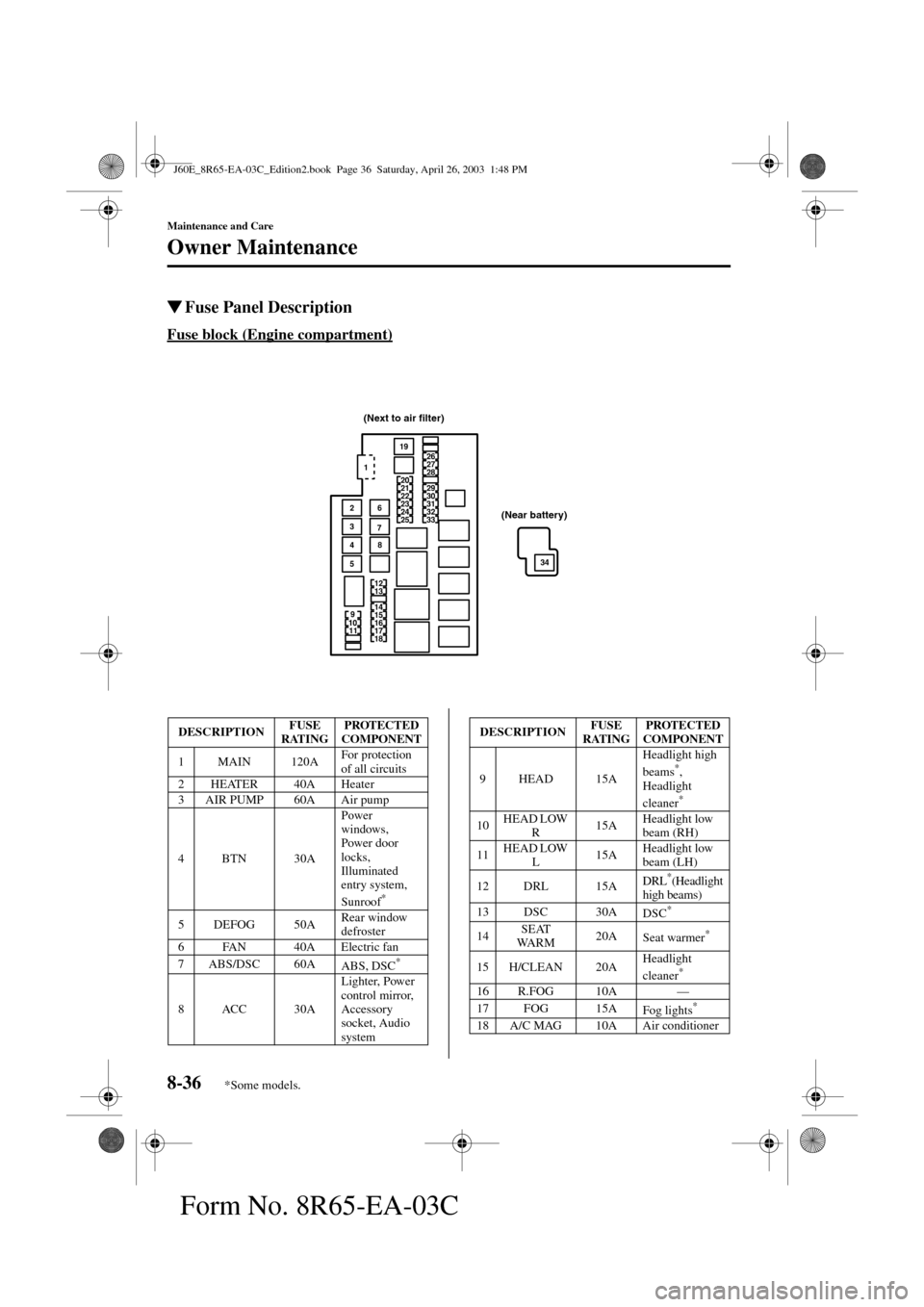

8-36
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C

Fuse Panel Description
Fuse block (Engine compartment)
(Next to air filter)
(Near battery)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 MAIN 120AFor protection
of all circuits
2 HEATER 40A Heater
3 AIR PUMP 60A Air pump
4BTN 30APower
windows,
Power door
locks,
Illuminated
entry system,
Sunroof
*
5DEFOG 50ARear window
defroster
6 FAN 40A Electric fan
7ABS/DSC 60A
ABS, DSC
*
8ACC 30ALighter, Power
control mirror,
Accessory
socket, Audio
system
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
9HEAD 15AHeadlight high
beams
*,
Headlight
cleaner
*
10HEAD LOW
R15AHeadlight low
beam (RH)
11HEAD LOW
L15AHeadlight low
beam (LH)
12 DRL 15A
DRL*(Headlight
high beams)
13 DSC 30A
DSC*
14SEAT
WA R M20A
Seat warmer*
15 H/CLEAN 20AHeadlight
cleaner*
16 R.FOG 10A—
17 FOG 15A
Fog lights*
18 A/C MAG 10A Air conditioner
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 36 Saturday, April 26, 2003 1:48 PM

8-37
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
19 IG 30AFor protection
of various
circuits
20 IG KEY 15AFor protection
of various
circuits
21 STOP 15A Brake lights
22 FUEL PUMP 20A Fuel pump
23 HORN 15A Horn
24 HAZARD 15AHazard warning
flashers, Turn
signals
25 ETV 15AElectric throttle
valve
26 WIPER 20AWindshield
wiper and
washer
27 P.WIND 20A Power windows
28 ENGINE 15AEngine control
system,
Supplemental
restraint
system, ABS,
Power steering
29 TAIL 10ATaillights,
License plate
light,
Parking lights,
Front side-
maker lights,
Rear side-
marker lights
30 ILLUMI 10AIlluminated
entry system
31 EGI COMP1 10AEngine control
system
32 EGI COMP2 10AEngine control
system
33 EGI INJ 15A Fuel injector
34 EPS 60A Power steering
J60E_8R65-EA-03C_Edition2.book Page 37 Saturday, April 26, 2003 1:48 PM

8-38
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
Fuse panel (Driver’s side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 CIGAR 15A Lighter
2 ACC 7.5AAudio system,
Power control
mirror
3AUX PWR 20AAccessory
socket
4 A/C 7.5A Air conditioner
5—— —
6—— —
7 SPARE 7.5A—
8SPARE 20A—
9M.DEF 10AMirror
defroster
*
10 DSC 7.5A
DSC*
11 AUDIO 20A
Audio system*
12 D.LOCK 30APower door
locks, Sunroof*
13 P.WIND 30A Power windows
14 ROOM 15A Interior lights
15 SPARE 15A—
16 SPARE 10A—
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 38 Saturday, April 26, 2003 1:48 PM

8-39
Maintenance and Care
Form No. 8R65-EA-03C
Appearance Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint’s protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent them.

Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle
emissions drift into the air and mix with
rain or dew to form acids. These acids can
settle on a vehicle’s finish. As the water
evaporates, the acid becomes concentrated
and can damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle’s finish.

Damage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren’t removed they can eat away the clear
and color base coat of the vehicle’s
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle’s paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according
to the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
How to Minimize
Environmental Paint
Damage
