2004 MAZDA MODEL RX 8 Owners Manual (in English)

5-6
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-14).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-40).Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, after checking that
the parking brake is released, have
the brakes inspected immediately.
Don’t drive with this light on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 6 Saturday, April 26, 2003 1:48 PM

5-7
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C

Anti-Lock Brake System (ABS)
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel’s brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don’t
pump the brakes, continue to press down
on the brake pedal.

ABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you’re driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function
normally as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don’t rely on ABS as a
substitute for safe driving.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 7 Saturday, April 26, 2003 1:48 PM

5-8
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C

Brake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.

Manual Transmission Shift
Pattern
The shift pattern of the transmission is
conventional, as shown.
Press the clutch pedal all the way down
while shifting; then release it slowly.
Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift to
R.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
Driving with Worn Disc Pads:
Driving with worn disc pads is
dangerous. The brakes could fail and
cause a serious accident. As soon as
you hear a screeching noise consult
an Authorized Mazda Dealer.
WARNING
Manual Transmission
Operation
Neutral position
J60E_8R65-EA-03C_Edition2.book Page 8 Saturday, April 26, 2003 1:48 PM

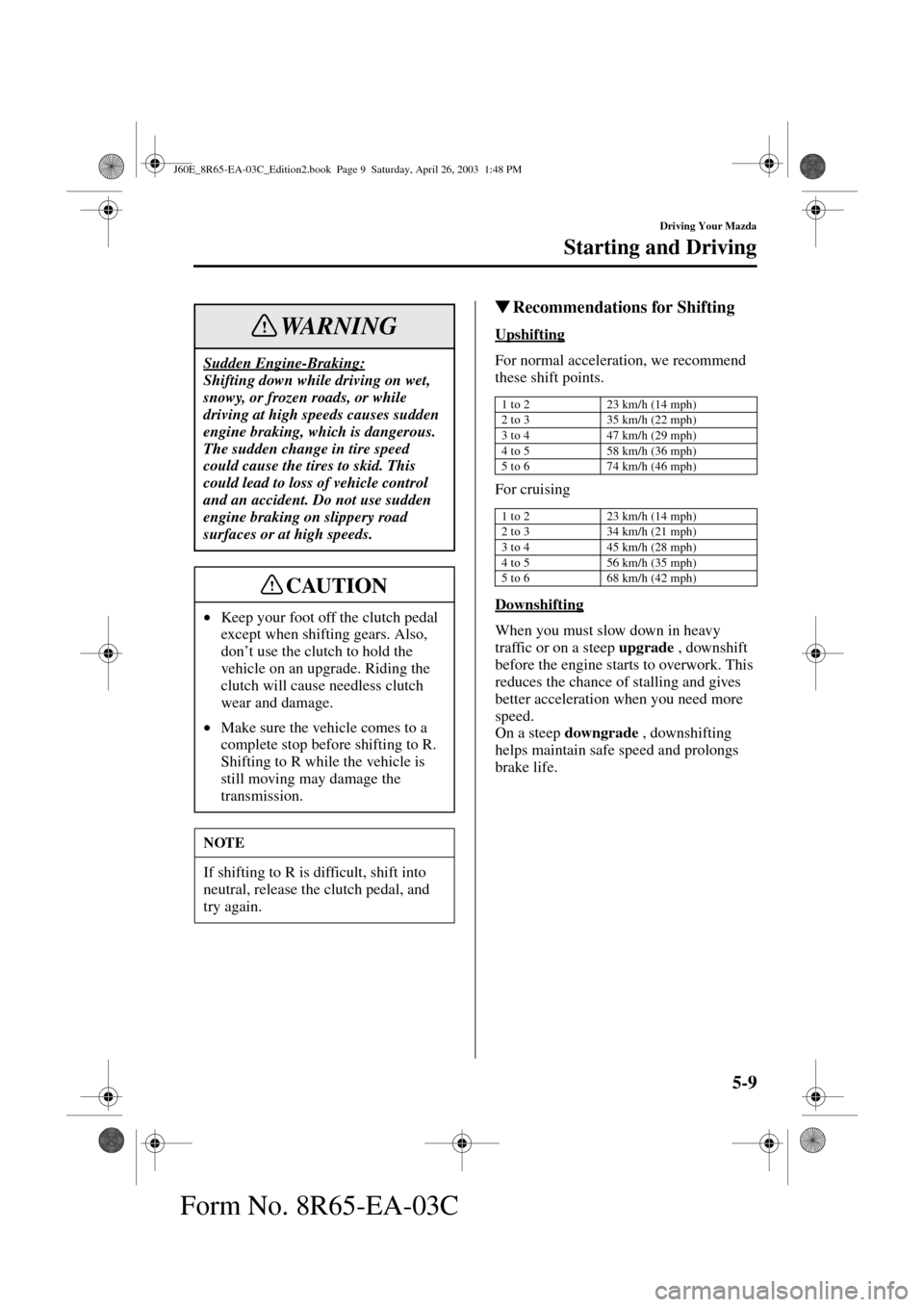

5-9
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C

Recommendations for Shifting
Upshifting
For normal acceleration, we recommend
these shift points.
For cruising
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade
, downshift
before the engine starts to overwork. This
reduces the chance of stalling and gives
better acceleration when you need more
speed.
On a steep downgrade
, downshifting
helps maintain safe speed and prolongs
brake life.
Sudden Engine-Braking:
Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed
could cause the tires to skid. This
could lead to loss of vehicle control
and an accident. Do not use sudden
engine braking on slippery road
surfaces or at high speeds.
•Keep your foot off the clutch pedal
except when shifting gears. Also,
don’t use the clutch to hold the
vehicle on an upgrade. Riding the
clutch will cause needless clutch
wear and damage.
•Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is
still moving may damage the
transmission.
NOTE
If shifting to R is difficult, shift into
neutral, release the clutch pedal, and
try again.
WARNING
CAUTION
1 to 2 23 km/h (14 mph)
2 to 3 35 km/h (22 mph)
3 to 4 47 km/h (29 mph)
4 to 5 58 km/h (36 mph)
5 to 6 74 km/h (46 mph)
1 to 2 23 km/h (14 mph)
2 to 3 34 km/h (21 mph)
3 to 4 45 km/h (28 mph)
4 to 5 56 km/h (35 mph)
5 to 6 68 km/h (42 mph)
J60E_8R65-EA-03C_Edition2.book Page 9 Saturday, April 26, 2003 1:48 PM

5-10
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
Various Lockouts:

Transmission Ranges
The shift lever must be in P or N to
operate the starter.
P (Park)
P locks the transmission and prevents the
rear wheels from rotating.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 4-8).
N (Neutral)
In N, the wheels and transmission are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
Automatic Transmission
Controls
Indicates that you must depress the
brake pedal to shift (The ignition
switch must be in the ACC or ON
position).
Indicates the shift lever can be
shifted freely into any position.
Holding the Vehicle with P:
Setting the shift lever to the P position
without using the parking brake to
hold the vehicle is dangerous. If P
fails to hold, the vehicle could move
and cause an accident. To hold the
vehicle, set the shift lever to P AND
set the parking brake.
•Shifting into P, N or R while the
vehicle is moving can damage your
transmission.
•Shifting into a driving gear or
reverse when the engine is running
faster than idle can damage the
transmission.
WARNING
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 10 Saturday, April 26, 2003 1:48 PM

5-11
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
D (Drive)
D is the normal driving position. From a
stop, the transmission will automatically
shift through a 4-gear sequence.
M (Manual)
M is the manual shift mode position.
Gears can be shifted up or down by
operating the shift lever or steering shift
switches.
Refer to Manual Shift Mode (page 5-11).

Shift-Lock System
The shift-lock system prevents shifting
out of P unless the brake pedal is
depressed.

To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Move the shift lever.

Manual Shift Mode
This mode gives you the feel of driving a
manual transmission vehicle by operating
the shift lever or steering shift switches
and allows you to control engine rpm and
torque to the rear wheels much like a
manual transmission when more control is
desired.
To change to manual shift mode, shift the
lever from D to M.
To return to automatic shift mode, shift
the lever from M to D.
Shifting from N or P:
It’s dangerous to shift from N or P
into a driving gear when the engine is
running faster than idle. If this is
done, the vehicle could move
suddenly, causing an accident or
serious injury. If the engine is
running faster than idle, don’t shift
from N or P into a driving gear.
Shifting into N while Driving:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which
could lead to an accident or serious
injury. Do not shift into N when
driving the vehicle.
Do not shift into N when driving the
vehicle. Doing so can cause
transmission damage.
WARNING
CAUTION
NOTE
•When the ignition switch is in the
LOCK position, the transaxle
cannot be shifted from P.
•To be sure the vehicle is in park,
the ignition key cannot be
removed unless the shift lever is in
P.
J60E_8R65-EA-03C_Edition2.book Page 11 Saturday, April 26, 2003 1:48 PM

5-12
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
Indicators
Shift position indicator
In manual shift mode, the "M" of the shift
position indicator in the instrument panel
illuminates.
Gear position indicator
In manual shift mode, the numeral for the
selected gear illuminates.Shifting
You can shift gears up and down by
operating the shift lever or the steering
shift switches.NOTE
•If you change to manual shift mode
when the vehicle is stopped, the
gear will shift to M1.
•If you shift up once when the
vehicle is stopped and the gear is at
M1, the gear will shift to M2. M2 is
helpful for starting on slippery
surfaces.
NOTE
If the gears cannot be shifted down
when driving at higher speeds, the gear
position indicator will flash twice to
signal that the gears cannot be shifted
down.
Gear position
indicator
Shift position
indicator
NOTE
•If the steering shift switches on both
sides (left and right) are operated
simultaneously, the gear will shift
once.
•The gear will not shift if:
The steering shift switch and the
shift lever are operated
simultaneously.
The UP switch and DOWN
switch are operated
simultaneously.
J60E_8R65-EA-03C_Edition2.book Page 12 Saturday, April 26, 2003 1:48 PM

5-13
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
Manually shifting up
(M1
→M2
→M3
→M4)
To shift up to a higher gear with the shift
lever, tap the shift lever back (+) once.To shift up to a higher gear with the
steering shift switches, tap either of the
UP switches toward you once with your
fingers.
NOTE
•When driving slowly, the gears may
not shift up depending on vehicle
speed.
•In manual shift mode, gears do not
shift up automatically. Don’t run the
engine with the tachometer needle
in the RED ZONE. If the
tachometer needle enters the RED
ZONE, you may feel engine-
braking because the fuel delivery
will be stopped to protect the
engine. However, this does not
indicate an abnormality.
•Gears may not be shifted from M1
to M2 right after shifting the lever
from D to M. Wait a few seconds
and then shift up to M2.
•When depressing the accelerator
fully, the transmission will shift to a
lower gear, depending on vehicle
speed.
Hand Position When Using Steering
Shift Switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous.
If the driver air bag were to deploy in
a collision, your hands could be
impacted causing injury. Keep your
hands on the steering wheel rim when
using fingers or thumbs on the
steering shift switches.
UP switches
WARNING
J60E_8R65-EA-03C_Edition2.book Page 13 Saturday, April 26, 2003 1:48 PM
