2004 MAZDA MODEL RX 8 Owners Manual (in English)

2-38
Essential Safety Equipment
SRS Air Bags
Form No. 8R65-EA-03C

Constant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
•SAS unit
•Front air bag sensor
•Air bag modules
•Side and curtain air bag crash sensor
•Front seat belt pretensioners
•Related wiring
•Driver’s seat slide position sensor
•Front seat belt buckle switches
A diagnostic module continuously
monitors the systems’ readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.

Air Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is OK, the warning light comes on
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn’t come on at all when the
ignition switch is turned to the ON
position. If any of these occur, consult an
Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.

Maintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
•The air bag system warning light
flashes.
•The air bag system warning light stays
on.
•The air bag system warning light stays
off when the ignition switch is turned
to the ON position.
•The air bags inflate.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 38 Saturday, April 26, 2003 1:48 PM

2-39
Essential Safety Equipment
SRS Air Bags
Form No. 8R65-EA-03C
Damaged Air Bag Sensors:
Driving with damaged air bag sensors
is dangerous. A collision, even one
not strong enough to inflate the air
bags, could damage the sensors. If
there was a subsequent collision, a
damaged sensor would not inflate the
air bags. Always have an Authorized
Mazda Dealer inspect the air bag
systems after a collision.
Removing Interior Parts:
Removing any components such as
the front seat, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag parts. The
air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 39 Saturday, April 26, 2003 1:48 PM

2-40
Form No. 8R65-EA-03C
J60E_8R65-EA-03C_Edition2.book Page 40 Saturday, April 26, 2003 1:48 PM

3-1
Form No. 8R65-EA-03C
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks
............................................................................ 3-2
Keys ........................................................................................... 3-2
Keyless Entry System ................................................................ 3-3
Door Locks ................................................................................ 3-7
Trunk Lid ................................................................................. 3-11
Trunk Release Slide Lever ....................................................... 3-13
Power Windows ....................................................................... 3-14
Rear Quarter Windows ............................................................ 3-16
Fuel-Filler Lid and Cap ........................................................... 3-16
Hood ........................................................................................ 3-18
Sunroof* .................................................................................. 3-19
Security System
........................................................................... 3-21
Immobilizer System ................................................................ 3-21
Theft-Deterrent System* ......................................................... 3-23
Steering Wheel and Mirrors
...................................................... 3-25
Steering Wheel ........................................................................ 3-25
Mirrors ..................................................................................... 3-25
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 1 Saturday, April 26, 2003 1:48 PM

3-2
Knowing Your Mazda
Form No. 8R65-EA-03C
Doors and Locks
Your Mazda has two kinds of keys.
Here’s what the keys are used for:
If you must leave your vehicle with
another person, such as a parking
attendant, protect items by locking the
glove box, storage box and trunk lid with
the master key. Keep that key and give the
other person only the valet key.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.Keys
Keys and Children:
Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don’t
leave the keys in your vehicle with
children.
•To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
•When starting the engine, do not let
the following materials touch or
come near the key grip. The engine
may not start:
Spare keys.
Keys for other vehicles equipped
with an immobilizer system.
Metal objects that touch or pass
through the hole in the key.
Devices for electronic purchases,
and security passage.
WARNING
CAUTION
Lock Operates Master key
Va l e t k e y
Ignition switch
and steering
column lockYe s Ye s
Doors Yes Yes
Glove box Yes No
Storage box Yes No
Trunk lid Yes No
Key code number plate
Master key
(Black)
Valet key
(Gray)
J60E_8R65-EA-03C_Edition2.book Page 2 Saturday, April 26, 2003 1:48 PM

3-3
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C
This system locks and unlocks the doors
and opens the trunk.
It can also help you signal for attention in
an emergency.
Press the button slowly and accurately.
Keyless Entry System
To avoid damage to the transmitter, do
not:
•Drop it.
•Get it wet.
•Disassemble it.
•Expose it to heat or sunlight.
CAUTION
NOTE
•The keyless entry system is
designed to operate up to about
2.5 m (8 ft) from the center of the
vehicle, but this may vary because
of local conditions.
•The system doesn’t operate when
the key is in the ignition switch.
•Doors cannot be locked by pressing
the LOCK button while any other
door is open. The hazard warning
lights will also not flash.
•If the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-5).
•Additional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be
reset.
J60E_8R65-EA-03C_Edition2.book Page 3 Saturday, April 26, 2003 1:48 PM

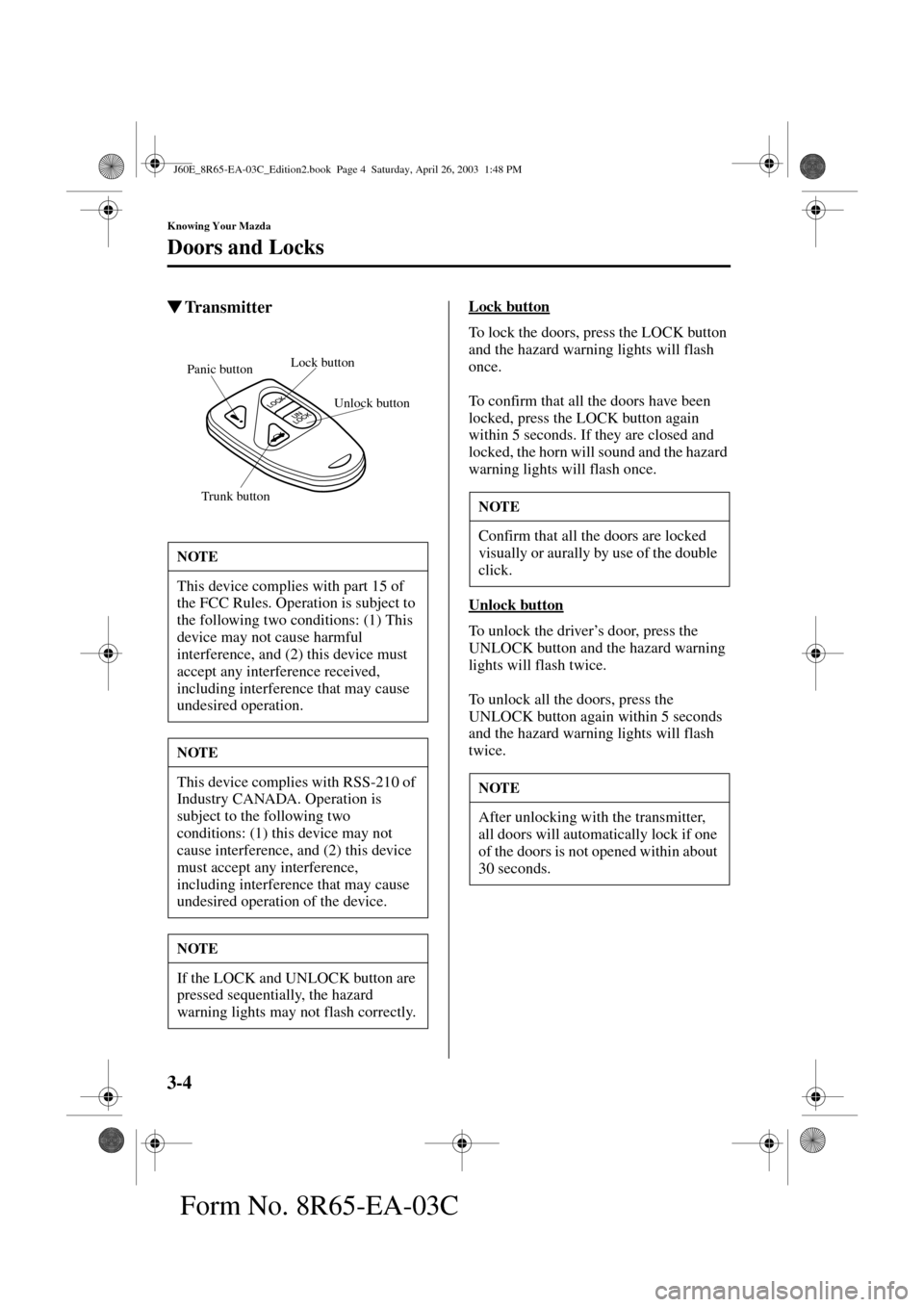

3-4
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C

TransmitterLock button
To lock the doors, press the LOCK button
and the hazard warning lights will flash
once.
To confirm that all the doors have been
locked, press the LOCK button again
within 5 seconds. If they are closed and
locked, the horn will sound and the hazard
warning lights will flash once.
Unlock button
To unlock the driver’s door, press the
UNLOCK button and the hazard warning
lights will flash twice.
To unlock all the doors, press the
UNLOCK button again within 5 seconds
and the hazard warning lights will flash
twice.
NOTE
This device complies with part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
NOTE
This device complies with RSS-210 of
Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
If the LOCK and UNLOCK button are
pressed sequentially, the hazard
warning lights may not flash correctly.
Panic buttonLock button
Trunk buttonUnlock button
NOTE
Confirm that all the doors are locked
visually or aurally by use of the double
click.
NOTE
After unlocking with the transmitter,
all doors will automatically lock if one
of the doors is not opened within about
30 seconds.
J60E_8R65-EA-03C_Edition2.book Page 4 Saturday, April 26, 2003 1:48 PM

3-5
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C
Trunk button
To open the trunk, press the button.
Panic button
You can use the button to turn on the
alarm, which allows you to signal for
attention in an emergency.
Turning on the alarm
Pressing the button once will trigger the
alarm for about 2 minutes and 30 seconds,
and do the following:
•The horn sounds intermittently.
•The hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter or
insert the key into the ignition switch.

Transmitter Maintenance
NOTE
The trunk button is disabled when the
glove box-mounted trunk lid release
lock-out button is in the OFF position
(page 3-12).
NOTE
The alarm will work whether any door
is open or closed.
•Make sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
•When replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could damage it.
•Danger of battery explosion if it is
incorrectly replaced.
•Replace only with the same type
battery (CR2025 or the equivalent).
•Dispose of used batteries according
to the following instructions.
Insulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
Never disassemble.
Never throw the battery into fire
and/or water.
Never deform or crush.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 5 Saturday, April 26, 2003 1:48 PM
