2004 ISUZU TF SERIES Transmission

8A-2 ELECTRICAL-BODY AND CHASSIS
PAGE
Fuse and Slow Blow Fuse Location (Relay and Fuse Box) .................................... 8A- 31
Fuse Location ............................................................................................................. 8A- 33
Diode Location ........................................................................................................... 8A- 34
Fuse Block Circuit ...................................................................................................... 8A- 35
Fuse Block Circuit (C24SE) ....................................................................................... 8A- 35
Fuse Block Circuit (6VE1) ......................................................................................... 8A- 37
Fuse Block Circuit (4JA1-TC/4JH1-TC) - RHD ......................................................... 8A- 39
Fuse Block Circuit (4JA1-TC/4JH1-TC) – LHD ......................................................... 8A- 41
Fuse Block Circuit (4JH1-L) ...................................................................................... 8A- 43
Grounding Point ............................................................................................................. 8A- 45
Ground Point .............................................................................................................. 8A- 45
Ground Point Location .............................................................................................. 8A- 61
Main Cable harness Routing .......................................................................................... 8A- 63
C24SE / 6VE1 / 4JA1-L / 4JH1-TC .............................................................................. 8A- 63
Instrument Harness .................................................................................................... 8A- 71
System Repair .................................................................................................................8A- 73
Start and Charging ..................................................................................................... 8A- 73
Engine Control Module (ECM) ................................................................................... 8A- 89
Exhaust Gas Recalculation (EGR): 4JA1-L Only ...................................................... 8A- 109
Lighting ....................................................................................................................... 8A- 114
Front Fog Light ........................................................................................................... 8A- 136
Rear Fog Light ............................................................................................................ 8A- 144
Head Light Leveling ................................................................................................... 8A- 149
Illumination ................................................................................................................. 8A- 154
Hazard Warning Flasher, Turn Signal Light, Back Up Light,
Horn and Stop Light ................................................................................................. 8A- 161
Dome Light, Spot Light and Warning Buzzer .......................................................... 8A- 181
Windshield Wiper and Washer .................................................................................. 8A- 196
Transmission Control Module (TCM) ....................................................................... 8A- 214
Meter, Warning Light and Indicator Light ................................................................ 8A- 223
Heater and Air Conditioning ...................................................................................... 8A- 281
Power Door Lock ....................................................................................................... 8A- 293

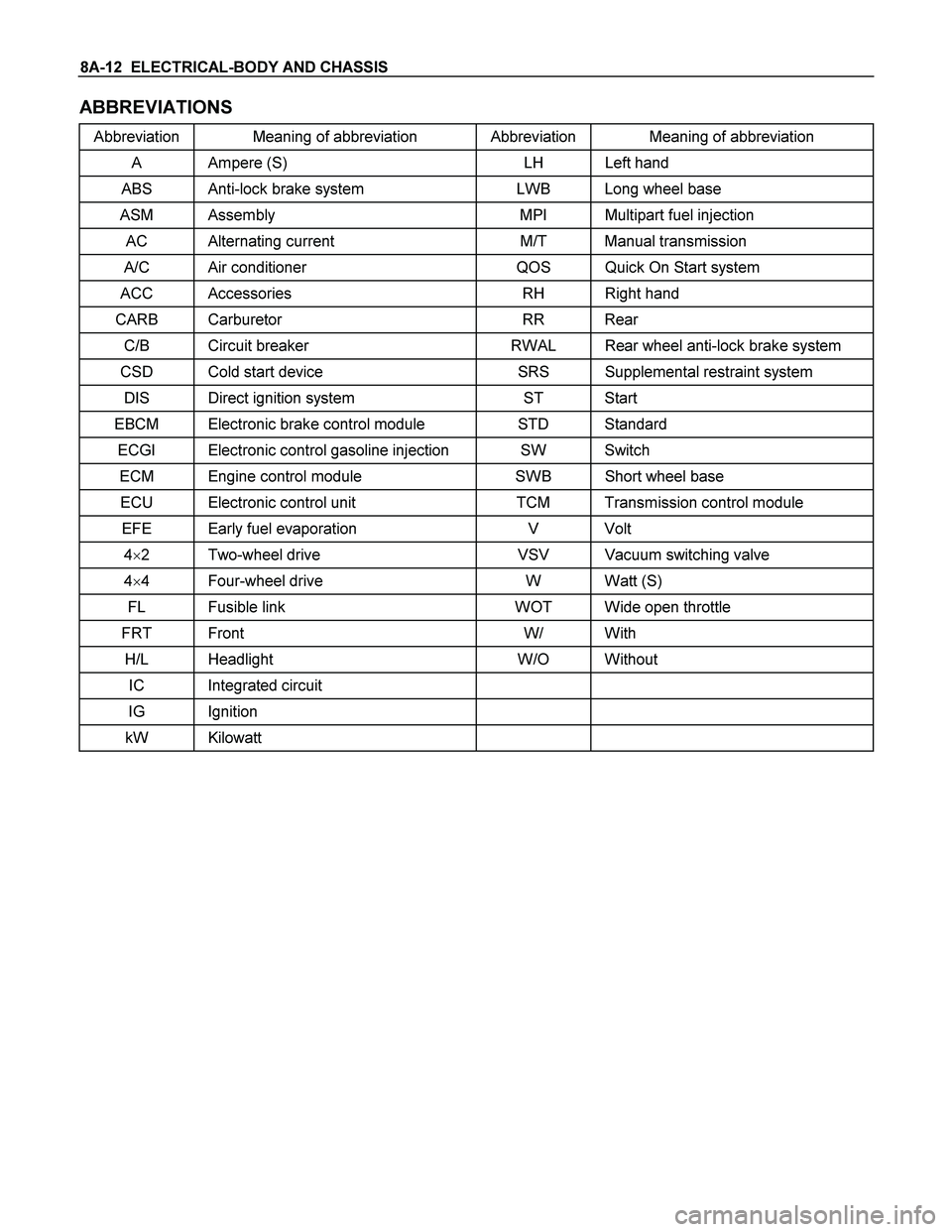

8A-12 ELECTRICAL-BODY AND CHASSIS
ABBREVIATIONS
Abbreviation Meaning of abbreviation Abbreviation Meaning of abbreviation
A Ampere (S) LH Left hand
ABS Anti-lock brake system LWB Long wheel base
ASM Assembly MPI Multipart fuel injection
AC Alternating current M/T Manual transmission
A/C Air conditioner QOS Quick On Start system
ACC Accessories RH Right hand
CARB Carburetor RR Rear
C/B Circuit breaker RWAL Rear wheel anti-lock brake system
CSD Cold start device SRS Supplemental restraint system
DIS Direct ignition system ST Start
EBCM Electronic brake control module STD Standard
ECGI Electronic control gasoline injection SW Switch
ECM Engine control module SWB Short wheel base
ECU Electronic control unit TCM Transmission control module
EFE Early fuel evaporation V Volt
42 Two-wheel drive VSV Vacuum switching valve
44 Four-wheel drive W Watt (S)
FL Fusible link WOT Wide open throttle
FRT Front W/ With
H/L Headlight W/O Without
IC Integrated circuit
IG Ignition
kW Kilowatt

8A-20 ELECTRICAL-BODY AND CHASSIS

Caution:
Never push or tow the vehicle in an attempt to start it.
Extensive damage to the emission system and other
vehicle parts will result.
(Only catalytic converter vehicle)
Treat both the discharged battery and the booster battery
with great care when using jumper cables.
Carefully follow the procedure outlined below.
Always be aware of the dangers of sparking.
Failure to follow the following procedure can result in:
a. Serious personal injury, specially to your eyes.
b. Extensive property damage from a battery explosion,
battery acid discharge, or electrical file.
c. Extensive damage to the electronic components o
f
both vehicles.
Do not use a 24 volt booster battery.
Serious damage to the vehicle's electrical system and
electronic components will result.

Jump Starting Procedure
1. Set the parking brake on both vehicles.
2. If one or both vehicles is equipped with a manual
transmission, place the gear shift in the "NEUTRAL"
position.
3. Turn off the ignition on both vehicles.
4. Turn off all vehicle lights and accessories.
5 Be sure that the two vehicles are not touching.

Attach the end of one jumper cable to the booster battery
positive terminal.
6
Attach the other end of the same cable to the discharged
battery positive terminal.
7. Once again, check that the booster battery has a 12 vol
t
rating.
8.
Attach one end of the remaining booster cable to the
booster battery negative terminal.
9.
Attach the other end of the booster cable to a solid ground
(such as the air conditioner compressor mounting bracke
t
or the alternator mounting bracket) in the engine room o
f
the vehicle with the discharged battery.
Be sure that the ground connection is at least 500 mm (20
in) from the discharged battery.

8A-178 ELECTRICAL-BODY AND CHASSIS
BACK UP LIGHT SWITCH
Removal
1. Disconnect the battery ground cable.
2. Disconnect the connector
1.
3. Remove the back up light switch from the transmission
2.



Installation
Follow the removal procedure in the reverse order to install the
back up light switch.
Pay close attention to the important points mentioned in the
following paragraphs.



Back up Light Switch Threads
Apply liquid gasket to the threaded portion and install the back
up light switch.



Connector
Be absolutely sure that the back up light connector is securely
connected.
This will prevent a poor contact and an open circuit.

HORN
Removal
1. Remove the radiator grille.
Refer to the “HEADLIGHT” removal procedure.
2. Loosen the horn bolt.
3. Disconnect the horn connector.


Installation
Follow the removal procedure in the reverse order to install the
horn.
Pay close attention to the important point mentioned in the
following paragraphs.



Connector
Be absolutely sure the horn connector is securely connected.
This will prevent a poor contact and open circuit.

8A-214 ELECTRICAL-BODY AND CHASSIS
TRANSMISSION CONTROL MODULE (TCM)
PARTS LOCATION (RHD)









RTW48AXF017801 & RTW48AXF017901

8A-264 ELECTRICAL-BODY AND CHASSIS
Installation

Rubber Seal
Be absolutely sure that the fuel tank unit rubber seal is
correctly seated.



Connector
Be absolutely sure that the fuel tank unit connector is securely
connected.
This will prevent a poor contact and an open circuit.



VEHICLE SPEED SENSOR (INSTALLED
ON THE TRANSMISSION)
Removal
1. Disconnect the connector.
2. Remove the vehicle speed sensor body by rotating it.







Installation
To Install, follow the removal steps in the reverse order, noting
the following point.
Tighten the vehicle speed sensor to the specified torque.
Vehicle Speed Sensor Tightening Torque Nm (kgfm/lb.ft)
25  4.9 (2.5  0.5/18  3.6)

ELECTRICAL-BODY AND CHASSIS 8A-269

SPEEDOMETER AND TACHOMETER
Speedometer On-Vehicle Inspection
Check the speedometer accuracy with a speedometer tester.
Carefully follow the tester manufacturer’s instructions.

Manual Transmission
RTW38DSH000201


Auto Transmission
RTW38DSH000101

km/h meter km/h

Permissible Range

Indication
G.EXP EC, SAUDI
ISRAEL, SA
20 17.5 - 22.5 20 – 25
40 37.5 - 42.5 40 – 45
60 57.5 - 62.5 60 – 65
80 77.5 - 82.5 80 – 85
100 97.6 - 103.4 99.8 – 105.6
120 117.6 - 123.4 119.8 – 125.6
140 137.6 - 143.4 139.8 – 145.6
160 157.2 - 163.8 159.4 - 166

Auto Transmission (mPH)





RTW48ASH000201

mPH meter km/h

Permissible Range
Indication
G.EXP UK
20 18.5 - 21.5 20 – 23
40 48.5 - 41.5 40 – 43
60 58.5 - 61.5 60 – 63
80 79.1 - 82.5 80 – 83.4
100 98.9 – 102.7 99.8 – 103.6







Tachometer On-Vehicle Inspection
1. Attach a tune-up tester to the engine.
2. Start the engine.
3. Compare the tachometer reading and the tester reading.
If the tachometer indication is outside the permissible
range, the tachometer must be replaced.
4. Gradually increase and decrease the engine speed.
Note the movement of the tachometer needle.
If the needle movement is sluggish, the tachometer must be
replaced.

ELECTRICAL-BODY AND CHASSIS 8A-279




VEHICLE SPEED SENSOR (INSTALLED
ON THE TRANSMISSION)
The speed sensor is installed on the rear portion of the
transmission.
The number of pulses generated is four pulses per one rotation
of the pinion shaft.


RTW38DLF000201
