2004 ISUZU TF SERIES Cylinder head removal

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-379

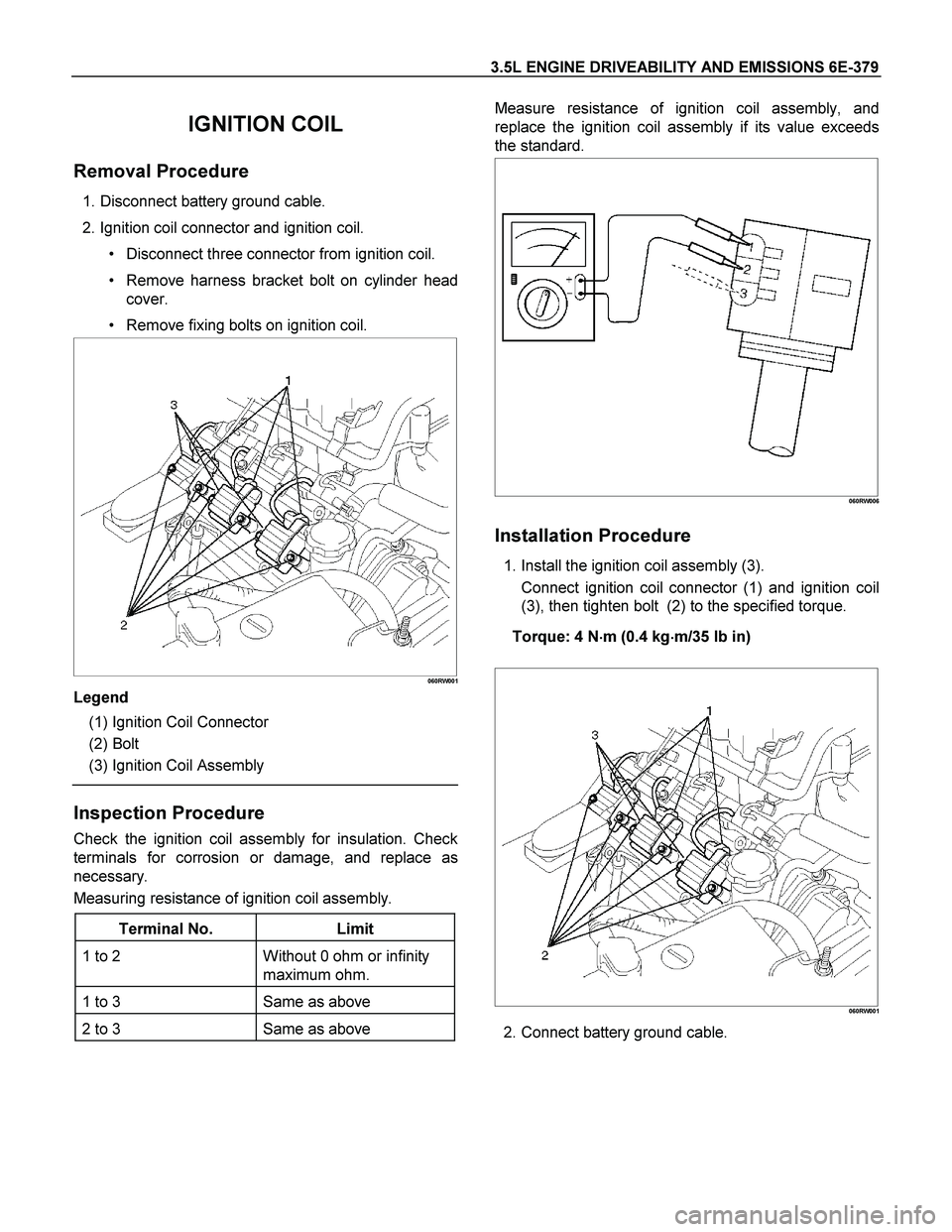

IGNITION COIL

Removal Procedure
1. Disconnect battery ground cable.
2. Ignition coil connector and ignition coil.
 Disconnect three connector from ignition coil.
 Remove harness bracket bolt on cylinder head
cover.
 Remove fixing bolts on ignition coil.




060RW001
Legend
(1) Ignition Coil Connector
(2) Bolt
(3) Ignition Coil Assembly


Inspection Procedure
Check the ignition coil assembly for insulation. Check
terminals for corrosion or damage, and replace as
necessary.
Measuring resistance of ignition coil assembly.


Terminal No. Limit
1 to 2 Without 0 ohm or infinity
maximum ohm.
1 to 3 Same as above
2 to 3 Same as above


Measure resistance of ignition coil assembly, and
replace the ignition coil assembly if its value exceeds
the standard.





060RW006

Installation Procedure
1. Install the ignition coil assembly (3).
Connect ignition coil connector (1) and ignition coil
(3), then tighten bolt (2) to the specified torque.
Torque: 4 N




m (0.4 kg




m/35 lb in)





060RW001
2. Connect battery ground cable.

ENGINE MECHANICAL (C24SE) 6A-1
SECTION 6A
ENGINE MECHANICAL
CONTENTS
PAGE
General Description......................................................................................................... 6A- 4
ENGINE PICTORIAL .................................................................................................... 6A- 6
Main Data and Specification ........................................................................................... 6A-11
CRANKCASE VENTILATION SYSTEM ....................................................................... 6A-16
ENGINE ASSEMBLY & LOOSE PARTS ..................................................................... 6A-17
OPERATIONS ON ENGINE AGGREGATES .................................................................... 6A-18
Engine Damping Blocks(Engine without Transmission)......................................... 6A-18
Toothed Belt and Timing Check ............................................................................... 6A-21
Toothed Belt Tension, Adjust .................................................................................... 6A-23
Toothed Belt, Replace ................................................................................................ 6A-24
OPERATIONS ON INSTALLED ENGINE ......................................................................... 6A-26
Gasket, Exhaust Manifold, Cylinder Head ................................................................ 6A-26
Gasket, Intake Manifold, Cylinder Head .................................................................... 6A-26
Seal Ring, Camshaft Housing, Timing Side .............................................................. 6A-27
Seal Ring, Thermostat Housing, Cylinder Head ....................................................... 6A-27
Seal Ring - Front Camshaft Housing, Replace ......................................................... 6A-28
Toother Belt Rear Cover ............................................................................................. 6A-30
Toother Belt Tension Roller ....................................................................................... 6A-31
COMPONENT PARTS ...................................................................................................... 6A-32
Cylinder Head .............................................................................................................. 6A-32
Hydraulic Valve Lifter.................................................................................................. 6A-33
OPERATIONS ON CYLINDER HEAD AND CAMSHAFT HOUSING ............................... 6A-34
Camshaft...................................................................................................................... 6A-34
Camshaft Housing Removal and Installation ........................................................... 6A-35
Cylinder Head .............................................................................................................. 6A-35
Hydraulic Valve Lifers, Replace ................................................................................. 6A-37
Camshaft Housing, Replace....................................................................................... 6A-37

6A-2 ENGINE MECHANICAL (C24SE)
PAGE
Camshaft Housing, Check for Plance Surface ......................................................... 6A-39
Cylinder Head, Removal and Installation .................................................................. 6A-39
Cylinder Head, Disassemble and Assemble ............................................................. 6A-42
Valve, Grind ................................................................................................................. 6A-44
Valve Guide, Ream ..................................................................................................... 6A-44
Valve Seating, Mill ....................................................................................................... 6A-45
Cylinder Head, Overhaul............................................................................................. 6A-45
Flywheel ....................................................................................................................... 6A-46
Starter Ring Gear(Manual Transmission) ................................................................. 6A-47
Seal Ring, Crankshaft ................................................................................................. 6A-48
Seal Ring, Crankshaft Rear ........................................................................................ 6A-48
Oil Pan and Bearing Bridge........................................................................................ 6A-49
OPERATIONS ON CRANK DRIVE ................................................................................... 6A-51
Con-Rod Bearing......................................................................................................... 6A-51
Piston with Con-Rod ................................................................................................... 6A-51
Con-Rod ....................................................................................................................... 6A-52
Pistion Rings ............................................................................................................... 6A-53
OPERATIONS ON REMOVED ENGINE ........................................................................... 6A-55
Crankshaft ................................................................................................................... 6A-55
Bearing Free Play Measurement ................................................................................ 6A-57
Plastigage Method ...................................................................................................... 6A-57
Micrometer and gauge method .................................................................................. 6A-58
Bypass Valve ............................................................................................................... 6A-59
Oil Filter ....................................................................................................................... 6A-59
Oil Pump ...................................................................................................................... 6A-59
Oil Pump Safety Valve ................................................................................................ 6A-60
Oil Pump(Overhaul) .................................................................................................... 6A-60
OPERATIONS ON OIL CIRCULATION ............................................................................ 6A-61
Cylinder Head Safety Valve ........................................................................................ 6A-61
OPERATIONS ON COOLING SYSYTEM ......................................................................... 6A-63
Cooling System, Check for Leakes ........................................................................... 6A-63
Cooling System, Fill Up and Bleed ............................................................................ 6A-63
Refill Coolant ............................................................................................................... 6A-64
Ignition Timing, Check................................................................................................ 6A-64

6A-26 ENGINE MECHANICAL (C24SE)
OPERATIONS ON INSTALLED ENGINE
SEALING OPERATIONS

Gasket, Exhaust Manifold, Cylinder Head
Removal
1. Remove front exhaust pipe from exhaust manifold.
2. Remove exhaust manifold heat shield.
3. Remove exhaust manifold retaining nut.
4. Remove exhaust manifold from cylinder head.




Clean
Sealing surfaces.

Tighten (Torque)
Exhaust manifold to cylinder head - 22 N

m (2.2 kgf

m)
Front exhaust pipe to exhaust manifold - 25 N

m (2.6 kgf

m)


Gasket, Intake Manifold, Cylinder Head
Removal
1. Remove air intake hose.
2. Remove drive belt for alternator.
3. Remove bolt clamping bracket for alternator from intake
manifold.
4. Remove intake manifold from cylinder head.








Clean
Sealing surfaces

Tighten (Torque)
Intake manifold to cylinder head - 22 N

m (2.2 kgf

m)
Clamping bracket for alternator to intake manifold - 25 N

m (2.5
kgf

m)

Installation
1. Install V-belt according to the corresponding operation.
2. Install air intake hose.

ENGINE MECHANICAL (C24SE) 6A-27



Seal Ring, Camshaft Housing, Timing Side
Removal
1. Remove front toothed belt cover toothed belt from
camshaft timing gear according to the corresponding
operation.
2. Remove camshaft housing cover and camshaft timing
gear.
3. Remove sealing ring by making hole in middle of ring,
turning in self-tapping screw and edging out.


Installation
1. Install sealing ring by using 5-8840-0451-0 with camshaft
sprocket bolt and washer.
2. Install coat seal lips of shaft seal ring slightly.



Seal Ring, Thermostat Housing, Cylinder Head
Removal
1. Open radiator drain tap and collect coolant.
2. Remove toothed belt rear cover and toothed belt
according to the corresponding operation.
3. Remove camshaft housing cover.
4. Remove camshaft timing gear by counterholding
camshaft with a flat spanner.
5. Remove cable from temperature sensor.






6. Remove upper inner hex bolts of rear toothed belt cover.
7. Turn rear toothed belt cover to one side.
8. Remove thermostat housing.
9. Remove sealing ring from cylinder head.

Clean
Sealing surfaces in cylinder head and thermostat housing.

Installation
1. Install sealing ring in recess of cylinder head.

6A-28 ENGINE MECHANICAL (C24SE)


2. Install cable to temperature sensor.
3. Install upper bolts of rear toothed belt rear cover.
4. Install camshaft timing gear then check timing according
to the corresponding operation.
5. Install camshaft housing cover.
6. Install toothed belt and front cover.
7. Fill up and bleed cooling system according to the
corresponding operation.


Tighten (Torque)
Thermostat housing to cylinder head - 15 N
m/1.5 kgf
m.




Seal Ring - Front Camshaft Housing, Replace
Removal
Mark running direction of toothed belt.
Remove toothed belt-see operation “Toothed Belt, Replace”.

Camshaft housing cover, camshaft pulley-counterhold on hex
of camshaft.


Removal
Screw self-tapping screw into seal ring.

Edge out seal ring.

Installation
Lightly coat sealing lip of seal ring with protective grease.

Install seal ring with 5-8840-0451-0 into camshaft housing-use
screw and washer of camshaft pulley.

6A-34 ENGINE MECHANICAL (C24SE)
OPERATIONS ON CYLINDER HEAD AND CAMSHAFT
HOUSING
Camshaft



Removal
1. Remove cylinder head according to the corresponding
operation.
2. Remove camshaft housing from cylinder head and lay
housing on base provided
3. Remove rear sealing gasket and plate camshaft housing
with taking care not to damage housing.
4. Remove thrust plate.





5. Remove camshaft.
6. Remove front sealing gasket and plate from camshaft
housing with taking care not to damage housing.

Inspection
All parts.







Installation
1. Install camshaft.
2. Coat sliding surfaces with molybdenum disulphate paste.

Tighten (Torque)
Thrust plate for camshaft housing - 8 N

m (0.8 kgf

m)

ENGINE MECHANICAL (C24SE) 6A-35
Camshaft Housing, Removal and
Installation

Cylinder Head
Important!
Remove cylinder head only from cold engine (room
temperature).



Removal
1. Remove ground cable from battery.
2. Open radiator drain tap and collect coolant.
3. Remove air intake hose.
4. Remove all cable connections, hoses and lines to the
cylinder head.
5. Remove accelerator cable on the throttle valve.
6. Remove V-belt for alternator.



7. Remove front toothed belt cover according to the
corresponding operation.
8. Bring piston of 1st cylinder to TDC and mark the position.
9. Remove camshaft housing cover.
10. Remove camshaft timing gear after releasing tension on
toothed belt.


11. Remove upper bolts of rear toothed belt cover.
12. Remove exhaust pipe from exhaust manifold.
13. Remove cylinder head after loosening bolts from outside
inwards (at first quarter turn then half turn) in a spiral
pattern.
14. Remove camshaft housing from cylinder head.
15. Remove rocker arm, pressure parts and hydraulic valve
lifter adjuster.
