2004 INFINITI QX56 Back up

REAR WINDOW GLASS AND MOLDING
GW-13
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56

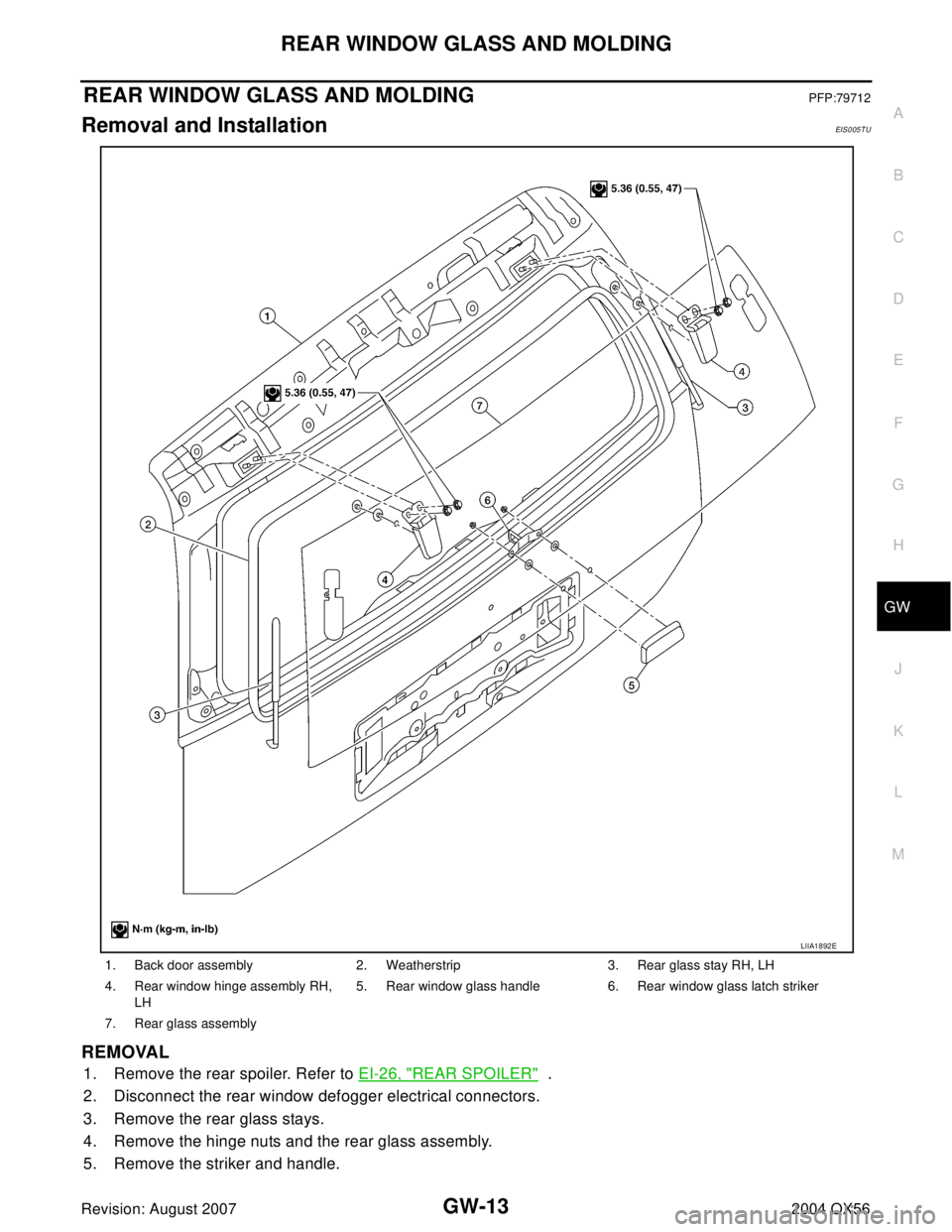

REAR WINDOW GLASS AND MOLDINGPFP:79712
Removal and InstallationEIS0 05 T U
REMOVAL
1. Remove the rear spoiler. Refer to EI-26, "REAR SPOILER" .
2. Disconnect the rear window defogger electrical connectors.
3. Remove the rear glass stays.
4. Remove the hinge nuts and the rear glass assembly.
5. Remove the striker and handle.
1. Back door assembly 2. Weatherstrip 3. Rear glass stay RH, LH
4. Rear window hinge assembly RH,
LH5. Rear window glass handle 6. Rear window glass latch striker
7. Rear glass assembly
LIIA1892E

DOOR MIRROR
GW-101
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: August 20072004 QX56
INSTALLATION
1. Set mirror holder bracket and mirror glass and holder in the hor-
izontal position.
2. Connect two electrical connectors to the back of the mirror
holder.
3. Align mirror glass and holder with mirror holder bracket and
push mirror glass and holder onto mirror holder bracket.
4. Rotate mirror to ensure proper installation.
LIIA1592E

IDX-2
ALPHABETICAL INDEX
Numerics
2-4WD shift solenoid valve ................................ TF-95
4LO indicator lamp ............................................. TF-90
4WD shift indicator lamp .................................... TF-85
4WD shift switch ................................................ TF-95
4WD solenoid valve ........................................... TF-95
4WD warning lamp ............................................ TF-13
A
A/C air flow ...................................................... ATC-29
A/C compressor clutch removal and installation .. ATC-
167
A/C compressor mounting ............................. ATC-166
A/C compressor precaution ............................. ATC-11
A/C compressor special service tool ................ ATC-14
A/C control operation (auto A/C) ...................... ATC-26
A/C diagnostic work flow (auto A/C) .............. ATC-120
A/C evaporator ............................................... ATC-175
A/C HFC134a (R134a) system identification ..... ATC-7
A/C HFC134a (R134a) system precaution ........ ATC-5
A/C HFC134a (R134a) system service procedure ATC-
162
A/C HFC134a (R134a) system service tools ... ATC-14
A/C HFC134a system service equipment precaution ...
ATC-11
A/C lubricant (R134a) ...................................... ATC-22
A/C lubrication oil ............................................. ATC-22
A/C operational check ....................... ATC-56, ATC-59
A/C self-diagnoses (auto A/C) ........ ATC-53, ATC-120
A/C service data specification ........................ ATC-182
A/C trouble diagnoses (auto A/C) .................... ATC-33
A/C, A - Wiring diagram ................................... ATC-41
A/T - Wiring diagram .......................................... AT-52
A/T fluid checking ...................... AT-13, AT-58, MA-21
A/T fluid cooler cleaning .................................... AT-15
A/T fluid replacement ............................. AT-13, MA-23
A/T fluid temperature sensor ........................... AT-131
A/T IND - Wiring diagram .................................... DI-41
A/T indicator ........................................................ DI-41
A/T shift lock system ........................................ AT-236
A/T trouble diagnoses ........................................ AT-43
ABS - Wiring diagram ..................................... BRC-16
ABS (anti-lock brake system) ........................... BRC-7
Accelerator control system ............................... ACC-2
Accelerator pedal position (APP) sensor . EC-556, EC-
562, EC-576
Accelerator pedal released position learning ..... EC-44
AF1B1-Wiring diagram EC-431, EC-439, EC-447, EC-
456, EC-466, EC-475, EC-487
AF1B2-Wiring diagram EC-433, EC-441, EC-449, EC-
458, EC-468, EC-477, EC-489
AF1HB1-Wiring diagram .................................. EC-355
AF1HB2-Wiring diagram .................................. EC-357
Aiming adjustment .................................. LT-31, LT-78
Air bag .............................................................. SRS-3
Air cleaner and air duct ..................................... EM-14
Air cleaner filter replacement ............................ MA-15
Air conditioner cut control ................................. EC-30
Air flow meter - See Mass air flow sensor EC-146, EC-
154
Air fuel ratio sensor 1 .. EC-429, EC-437, EC-445, EC-
454, EC-463, EC-472, EC-484
Air fuel ratio sensor 1 heater ........................... EC-354
Air mix. door motor .......................................... ATC-67
All - mode 4WD system ..................................... TF-10
Ambient sensor ............................. ATC-125, ATC-136
Angular tightening application ............................. EM-3
APPS1 - Wiring diagram ................................. EC-558
APPS2 - Wiring diagram ................................. EC-564
APPS3 - Wiring diagram ................................. EC-578
ASC/BS - Wiring diagram ............................... EC-536
ASC/SW - Wiring diagram .............................. EC-519
ASCBOF - Wiring diagram .............................. EC-622
ASCD .............................................................. EC-647
ASCD (automatic speed control device) ........... ACS-3
ASCD brake switch ........................... EC-534, EC-621
ASCD indicator lamp ....................................... EC-628
ASCD steering switch ..................................... EC-517
ASCIND - Wiring diagram ............................... EC-629
ATP switch ......................................................... TF-96
ATP warning lamp .............................................. TF-89
AUDIO - Wiring diagram .................................... AV-10
AUT/DP - Wiring diagram .................................. SE-19
Auto air conditioner - Wiring diagram .............. ATC-41
Auto anti-dazzling inside mirror ........... GW-76, GW-77
Autolamp ............................................................ LT-47
Automatic amplifier ......................................... ATC-60
Automatic transmission number .......................... GI-48
AV and NAVI control unit ................................... AV-63
AV communication line ...................................... AV-87
B
Back door trim ..................................................... EI-31
Back sonar .......................................................... DI-59
BACK/L - Wiring diagram ................................. LT-106
Back-up lamp ................................................... LT-106
Ball joint (front) ................................................ FSU-15
Basic inspection ................................................ EC-79
Battery ................................................................. SC-4
Battery/Starting/Charging System Tester SC-6, SC-12,
SC-19
BCM (Body control module) .............................. BCS-3
Block heater ...................................................... EM-73
Blower motor ................................... ATC-83, ATC-140
Body alignment ................................................ BL-174
Body component parts ..................................... BL-161
Body construction ............................................ BL-173
Body exterior paint color .................................. BL-160
Body mounting ................................................. BL-159
Body repair ....................................................... BL-160
Body sealing .................................................... BL-170
Brake booster .................................................... BR-17
Brake fluid level ................................................. MA-27
Brake hydraulic line ........................................... BR-12
Brake inspection ............................................... MA-28

SQUEAK AND RATTLE TROUBLE DIAGNOSIS
IP-7
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: August 20072004 QX56
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J-43980) to repair the noise.
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid bumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sun visor shaft shaking in the holder
3. Front or rear windshield touching headliner and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
OVERHEAD CONSOLE (FRONT AND REAR)
Overhead console noises are often caused by the console panel clips not being engaged correctly. Most of
these incidents are repaired by pushing up on the console at the clip locations until the clips engage.
In addition look for:
1. Loose harness or harness connectors.
2. Front console map/reading lamp lens loose.
3. Loose screws at console attachment points.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

INSTRUMENT PANEL ASSEMBLY
IP-13
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: August 20072004 QX56
Instrument Lower Cover LH
Remove screws using power tool, and remove instrument lower
cover LH.

Pull to disconnect clips.

Disconnect harnesses from back of instrument lower cover LH.
Installation is in the reverse order of removal.
Combination Meter
1. Remove instrument lower cover LH. Refer to IP-13, "Instrument Lower Cover LH" .
2. Remove the combination meter cover.
3. Remove cluster lid A.
4. Remove screws using power tool and remove the combination
meter assembly.

Disconnect electrical connectors.
Installation is in the reverse order of removal.
A/T Finisher
1. Remove shift knob.
2. Remove console mask.
3. Pull up to release clips and remove A/T finisher.

Disconnect harnesses.
Installation is in the reverse order of removal.
Display Assembly and Audio Unit
1. Remove audio unit. Refer to AV- 4 5 , "Removal and Installation for Audio Unit" .
2. Remove display assembly. Refer to AV- 1 5 8 , "
Removal and Installation of Display Unit" .
LIIA1327E
LIIA1249E
LIIA1335E

LT-2Revision: August 20072004 QX56 COMBINATION SWITCH READING FUNCTION ... 48
EXTERIOR LAMP BATTERY SAVER CONTROL ... 48
DELAY TIMER FUNCTION ................................. 48
CAN Communication System Description .............. 48
Major Components and Functions .......................... 48
Schematic ............................................................... 49
Wiring Diagram — AUTO/L — ................................ 50
Terminals and Reference Values for BCM .............. 53
Terminals and Reference Values for IPDM E/R ...... 54
How to Proceed With Trouble Diagnosis ................ 55
Preliminary Check .................................................. 55
SETTING CHANGE FUNCTIONS ....................... 55
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 55
CONSULT-II Function (BCM) .................................. 57
CONSULT-II OPERATION ................................... 57
WORK SUPPORT ............................................... 58
DATA MONITOR .................................................. 58
ACTIVE TEST ..................................................... 59
SELF-DIAGNOSTIC RESULTS ........................... 59
CONSULT-II Function (IPDM E/R) .......................... 60
CONSULT-II OPERATION ................................... 60
DATA MONITOR .................................................. 61
ACTIVE TEST ..................................................... 61
Trouble Diagnosis Chart by Symptom .................... 62
Lighting Switch Inspection ...................................... 62
Optical Sensor System Inspection .......................... 63
Removal and Installation of Optical Sensor ............ 64
REMOVAL ........................................................... 64
INSTALLATION .................................................... 64
HEADLAMP AIMING CONTROL .............................. 65
System Description ................................................. 65
Wiring Diagram — H/AIM — ................................... 66
Removal and Installation ........................................ 68
Switch Circuit Inspection ........................................ 68
FRONT FOG LAMP .................................................. 69
Component Parts and Harness Connector Location ... 69
System Description ................................................. 69
OUTLINE ............................................................. 69
COMBINATION SWITCH READING FUNCTION ... 70
EXTERIOR LAMP BATTERY SAVER CONTROL ... 70
CAN Communication System Description .............. 70
Wiring Diagram — F/FOG — .................................. 71
Terminals and Reference Values for BCM .............. 73
Terminals and Reference Values for IPDM E/R ...... 74
How to Proceed With Trouble Diagnosis ................ 74
Preliminary Check .................................................. 75
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 75
CONSULT-II Functions ........................................... 76
Front Fog Lamps Do Not Illuminate (Both Sides) ... 76
Front Fog Lamp Does Not Illuminate (One Side) ... 77
Aiming Adjustment .................................................. 78
Bulb Replacement .................................................. 79
Removal and Installation ........................................ 79
TURN SIGNAL AND HAZARD WARNING LAMPS ... 80
Component Parts and Harness Connector Location ... 80
System Description ................................................. 80
OUTLINE ............................................................. 80TURN SIGNAL OPERATION ...............................80
HAZARD LAMP OPERATION .............................81
REMOTE KEYLESS ENTRY SYSTEM OPERA-
TION ....................................................................82
COMBINATION SWITCH READING FUNCTION ...82
CAN Communication System Description ..............82
Wiring Diagram — TURN — ...................................83
Terminals and Reference Values for BCM ..............85
How to Proceed With Trouble Diagnosis ................86
Preliminary Check ...................................................87
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .....................................................................87
CONSULT-II Function (BCM) ..................................88
CONSULT-II OPERATION ...................................88
DATA MONITOR ..................................................89
ACTIVE TEST ......................................................89
Turn Signal Lamp Does Not Operate ......................90
Rear Turn Signal Lamp Does Not Operate .............91
Hazard Warning Lamp Does Not Operate But Turn
Signal Lamps Operate ............................................92
Turn Signal Indicator Lamp Does Not Operate .......93
Bulb Replacement (Front Turn Signal Lamp) ..........94
Bulb Replacement (Rear Turn Signal Lamp) ..........94
Removal and Installation of Front Turn Signal Lamp ...94
Removal and Installation of Rear Turn Signal Lamp ...94
LIGHTING AND TURN SIGNAL SWITCH ................95
Removal and Installation .........................................95
REMOVAL ............................................................95
INSTALLATION ....................................................95
HAZARD SWITCH .....................................................96
Removal and Installation .........................................96
REMOVAL ............................................................96
INSTALLATION ....................................................96
COMBINATION SWITCH ..........................................97
Wiring Diagram — COMBSW — ............................97
Combination Switch Reading Function ...................98
CONSULT-II Function (BCM) ..................................98
CONSULT-II OPERATION ...................................98
DATA MONITOR ..................................................99
Combination Switch Inspection ............................. 100
Removal and Installation ....................................... 102
Switch Circuit Inspection ....................................... 102
STOP LAMP ............................................................ 103
System Description ............................................... 103
Wiring Diagram — STOP/L — .............................. 104
High-Mounted Stop Lamp ..................................... 105
BULB REPLACEMENT ...................................... 105
REMOVAL AND INSTALLATION ....................... 105
Stop Lamp ............................................................. 105
BULB REPLACEMENT ...................................... 105
REMOVAL AND INSTALLATION ....................... 105
BACK-UP LAMP ..................................................... 106
Wiring Diagram — BACK/L — .............................. 106
Bulb Replacement ................................................. 107
Removal and Installation ....................................... 107
PARKING, LICENSE PLATE AND TAIL LAMPS .... 108
Component Parts and Harness Connector Location . 108
System Description ............................................... 108
OPERATION BY LIGHTING SWITCH ............... 109

LT-8
HEADLAMP (FOR USA)
Revision: August 20072004 QX56

The light produced by the headlamps is a white color comparable to sunlight that is easy on the eyes.

Light output is nearly double that of halogen headlamps, affording increased area of illumination.

The light features a high relative spectral distribution at wavelengths to which the human eye is most sen-
sitive. This means that even in the rain, more light is reflected back from the road surface toward the vehi-
cle, for added visibility.

Power consumption is approximately 25 percent less than halogen headlamps, reducing battery load.
BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), and the ignition switch is turned
from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the headlamps remain illuminated for 5 minutes, unless the combination switch (lighting
switch) position is changed. If the combination switch (lighting switch) position is changed, then the headlamps
are turned off.
AUTO LIGHT OPERATION
Refer to LT- 4 8 , "System Description" for auto light operation.
VEHICLE SECURITY SYSTEM (PANIC ALARM)
The vehicle security system (panic alarm) will flash the high beams if the system is triggered. Refer to BL-48,
"Panic Alarm Operation" .
CAN Communication System DescriptionEKS0079R
Refer to LAN-5, "CAN COMMUNICATION" .

LT-20
HEADLAMP (FOR USA)
Revision: August 20072004 QX56
ACTIVE TEST
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “BACK” deactivates the operation.
Display Item List
SELF-DIAGNOSTIC RESULTS
Operation Procedure
1. Touch “BCM” on “SELECT TEST ITEM” screen.
2. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
3. Self-diagnostic results are displayed.
Display Item List
AUTO LIGHT SW “ON/OFF”Displays status of the lighting switch as judged from the lighting switch signal. (AUTO position:
ON/Other than AUTO position: OFF)
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from
lighting switch signal.
FR FOG SW “ON/OFF”Displays status (front fog lamp switch: ON/Others: OFF) of front fog lamp switch judged from
lighting switch signal.
DOOR SW-DR “ON/OFF”Displays status of the driver door as judged from the driver door switch signal. (Door is open:
ON/Door is closed: OFF)
DOOR SW-AS “ON/OFF”Displays status of the passenger door as judged from the passenger door switch signal. (Door
is open: ON/Door is closed: OFF)
DOOR SW-RR “ON/OFF”Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is open:
ON/Door is closed: OFF)
DOOR SW-RL “ON/OFF”Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is open:
ON/Door is closed: OFF)
BACK DOOR SW “ON/OFF”Displays status of the back door as judged from the back door switch signal. (Door is open: ON/
Door is closed: OFF)
TURN SIGNAL R “ON/OFF” Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
CARGO LAMP SW “ON/OFF” Displays status of cargo lamp switch.
OPTICAL SENSOR [0 - 5V] Displays “ambient light (close to 5V when dark/close to 0V when light)” judged from optical sen-
sor signal. Monitor item Contents
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON-OFF.
HEAD LAMP Allows headlamp relay (HI, LO) to operate by switching ON-OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON-OFF.
CARGO LAMP Allows cargo lamp to operate by switching ON-OFF.
CORNERING LAMP Not used.
Monitored item CONSULT-ll display Description
CAN communication CAN communication [U1000] Malfunction is detected in CAN communication.
CAN communication systemCAN communication system 1 to 6
[U1000]Malfunction is detected in CAN system.
