2004 INFINITI FX35 check engine

INJECTOR CIRCUIT
EC-1277
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

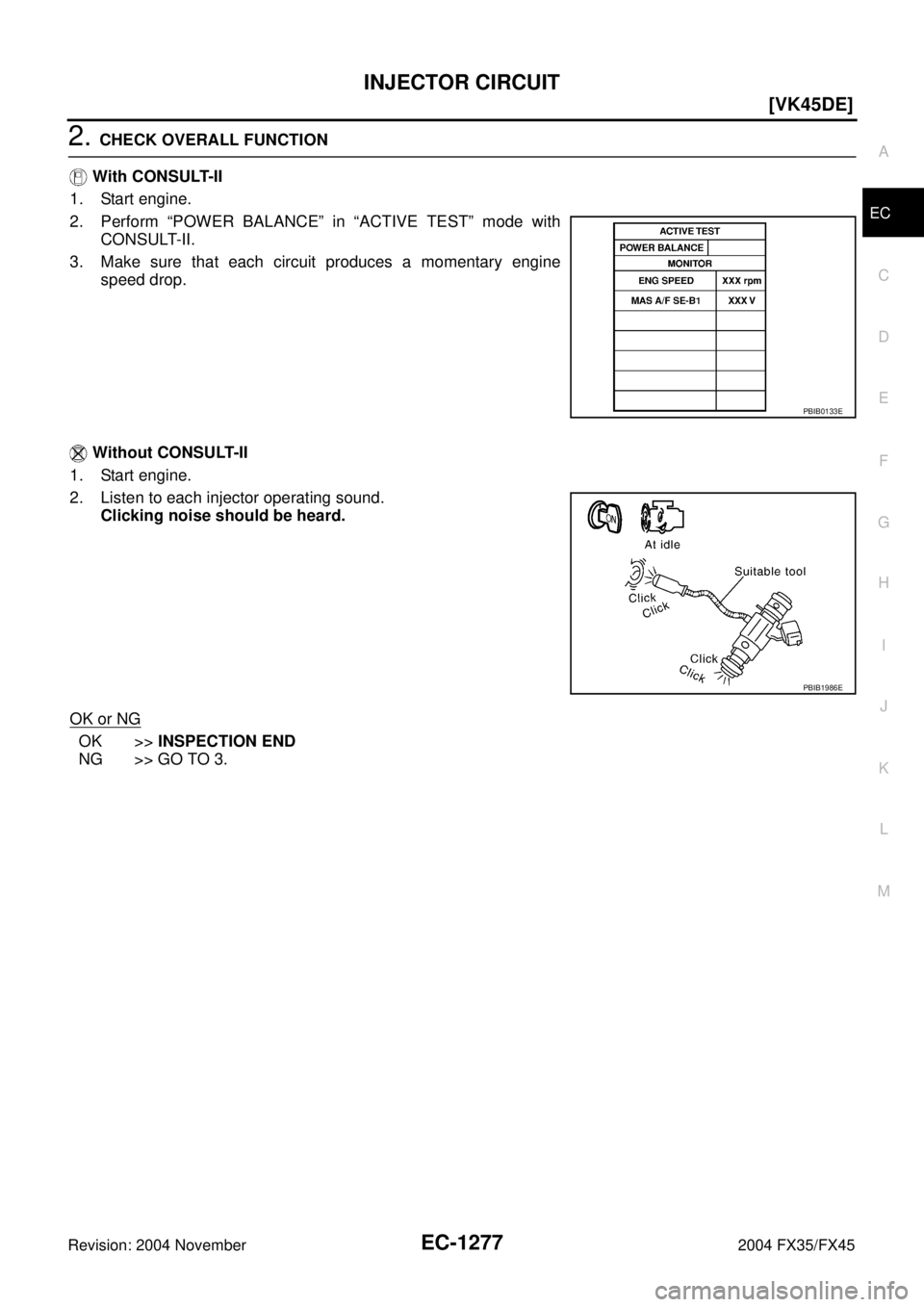

2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
Without CONSULT-II
1. Start engine.
2. Listen to each injector operating sound.
Clicking noise should be heard.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
PBIB0133E
PBIB1986E

EC-1282
[VK45DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CEX
1. CHECK OVERALL FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose with two fingers.
Fuel pressure pulsation should be felt on the fuel feed hose
for 1 second after ignition switch is turned ON.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Turn ignition switch ON.
4. Check voltage between ECM terminal 113 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 3 G Y / R F u e l p u m p r e l a y[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
PBIB1491E
Voltage: Battery voltage
PBIB1187E

REFRIGERANT PRESSURE SENSOR
EC-1289
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CF2
1. CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch ON.
3. Check voltage between ECM terminal 70 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
49 PUSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
67 B/WSensor ground
(Mass air flow sensor / IAT
sensor / Power steering
pressure sensor / EVAP
control system pressure
sensor / Refrigerant pres-
sure sensor / ECT sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
70 L/R Refrigerant pressure sensor[Engine is running]

Warm-up condition

Both A/C switch and blower switch are ON
(Compressor operates)1.0 - 4.0V
Voltage: 1.0 - 4.0V
PBIB1188E

EC-1314
[VK45DE]
SNOW MODE SWITCH
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CFO
1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in “DATA MONITOR” mode with
CONSULT-II.
3. Check “SNOW MODE SW” indication under the following condi-
tions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK SNOW MODE SWITICH OVERALL FUNCTION-II
1. Start engine.
2. Check the snow mode indicator in the snow mode switch under the following condition.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace ground connections.
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
PBIB2009E
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
PBIB2195E

ON BOARD REFUELING VAPOR RECOVERY (ORVR)
EC-1327
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
ON BOARD REFUELING VAPOR RECOVERY (ORVR)PFP:00032
System DescriptionABS00CFV
From the beginning of refueling, the air and vapor inside the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The vapor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspections below, be sure to observe the following:

Put a “CAUTION: INFLAMMABLE” sign in workshop.

Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.

Be sure to furnish the workshop with a CO2 fire extinguisher.
CAUTION:

Before removing fuel line parts, carry out the following procedures:
–Put drained fuel in an explosion-proof container and put lid on securely.
–Release fuel pressure from fuel line. Refer to EC-700, "FUEL PRESSURE RELEASE" .
–Disconnect battery ground cable.

Always replace O-ring when the fuel gauge retainer is removed.

Do not kink or twist hose and tube when they are installed.

Do not tighten hose and clamps excessively to avoid damaging hoses.

After installation, run engine and check for fuel leaks at connection.

Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
PBIB1068E

EI-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2004 November 2004 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area.To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570,Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to EI-7, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts
Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in)/76884-71L01: 60 × 85 mm (2.36 × 3.35 in)/76884-71L02:15
× 25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick,
50 × 50 mm (1.97 × 1.97 in)

EM-1
ENGINE MECHANICAL
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
Revision: 2004 November 2004 FX35/FX45
ENGINE MECHANICAL
VQ35DE
PRECAUTIONS .......................................................... 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................... 5
OPERATION PROCEDURE ................................. 5
Precautions for Drain Engine Coolant ...................... 5
Precautions for Disconnecting Fuel Piping .............. 5
Precautions for Removal and Disassembly ............. 5
Precautions for Inspection, Repair and Replace-
ment ......................................................................... 5
Precautions for Assembly and Installation ............... 5
Parts Requiring Angle Tightening ............................. 6
Precautions for Liquid Gasket .................................. 6
REMOVAL OF LIQUID GASKET SEALING .......... 6
LIQUID GASKET APPLICATION PROCEDURE ..... 6
PREPARATION ........................................................... 8
Special Service Tools ............................................... 8
Commercial Service Tools ...................................... 10
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING .............................................. 13
NVH Troubleshooting —Engine Noise ................... 13
Use the Chart Below to Help You Find the Cause
of the Symptom. ..................................................... 14
DRIVE BELTS ........................................................... 15
Checking Drive Belts .............................................. 15
Tension Adjustment ................................................ 15
ALTERNATOR AND POWER STEERING OIL
PUMP BELT ........................................................ 16
AIR CONDITIONER COMPRESSOR BELT ....... 16
Removal and Installation ........................................ 16
REMOVAL ........................................................... 16
INSTALLATION ................................................... 16
AIR CLEANER AND AIR DUCT ............................... 17
Removal and Installation ........................................ 17
REMOVAL ........................................................... 17
INSTALLATION ................................................... 17
Changing Air Cleaner Filter .................................... 18
INSPECTION ...................................................... 18
REMOVAL ........................................................... 18
INSTALLATION ................................................... 18INTAKE MANIFOLD COLLECTOR .......................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSPECTION AFTER REMOVAL ....................... 21
INSTALLATION ................................................... 22
INTAKE MANIFOLD ................................................. 24
Removal and Installation ........................................ 24
REMOVAL ........................................................... 24
INSPECTION AFTER REMOVAL ....................... 24
INSTALLATION ................................................... 25
EXHAUST MANIFOLD AND THREE WAY CATA-
LYST .......................................................................... 26
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSPECTION AFTER REMOVAL ....................... 28
INSTALLATION ................................................... 28
OIL PAN AND OIL STRAINER ................................. 30
Removal and Installation ........................................ 30
2WD MODEL ....................................................... 30
REMOVAL ........................................................... 30
INSPECTION AFTER REMOVAL ....................... 32
INSTALLATION ................................................... 32
INSPECTION AFTER INSTALLATION ................ 35
AWD MODEL ...................................................... 36
REMOVAL ........................................................... 36
INSPECTION AFTER REMOVAL ....................... 38
INSTALLATION ................................................... 39
INSPECTION AFTER INSTALLATION ................ 41
IGNITION COIL ......................................................... 42
Removal and Installation ........................................ 42
REMOVAL ........................................................... 42
INSTALLATION ................................................... 42
SPARK PLUG (PLATINUM-TIPPED TYPE) ............. 43
Removal and Installation ........................................ 43
REMOVAL ........................................................... 43
INSPECTION AFTER REMOVAL ....................... 43
INSTALLATION ................................................... 44

EM-2Revision: 2004 November 2004 FX35/FX45 FUEL INJECTOR AND FUEL TUBE ........................ 45
Removal and Installation ........................................ 45
REMOVAL ........................................................... 46
INSTALLATION .................................................... 47
INSPECTION AFTER INSTALLATION ................ 49
ROCKER COVER ..................................................... 51
Removal and Installation ........................................ 51
REMOVAL ........................................................... 51
INSTALLATION .................................................... 52
FRONT TIMING CHAIN CASE ................................. 54
Removal and Installation ........................................ 54
REMOVAL ........................................................... 54
INSTALLATION .................................................... 58
INSPECTION AFTER INSTALLATION ................ 62
TIMING CHAIN .......................................................... 63
Removal and Installation ........................................ 63
REMOVAL ........................................................... 64
INSPECTION AFTER REMOVAL ........................ 71
INSTALLATION .................................................... 71
INSPECTION AFTER INSTALLATION ................ 80
CAMSHAFT ............................................................... 82
Removal and Installation ........................................ 82
REMOVAL ........................................................... 83
INSPECTION AFTER REMOVAL ........................ 84
INSTALLATION .................................................... 87
Valve Clearance ...................................................... 89
INSPECTION ....................................................... 89
ADJUSTMENT .................................................... 92
OIL SEAL .................................................................. 94
Removal and Installation of Valve Oil Seal ............. 94
REMOVAL ........................................................... 94
INSTALLATION .................................................... 94
Removal and Installation of Front Oil Seal ............. 95
REMOVAL ........................................................... 95
INSTALLATION .................................................... 96
Removal and Installation of Rear Oil Seal .............. 96
REMOVAL ........................................................... 96
INSTALLATION .................................................... 96
CYLINDER HEAD ..................................................... 98
On-Vehicle Service ................................................. 98
CHECKING COMPRESSION PRESSURE ......... 98
Removal and Installation ........................................ 99
REMOVAL ........................................................... 99
INSPECTION AFTER REMOVAL ......................100
INSTALLATION ..................................................101
Disassembly and Assembly ..................................102
DISASSEMBLY .................................................103
ASSEMBLY .......................................................103
Inspection After Disassembly ...............................104
VALVE DIMENSIONS ........................................104
VALVE GUIDE CLEARANCE ............................105
VALVE GUIDE REPLACEMENT .......................105
VALVE SEAT CONTACT ...................................107
VALVE SEAT REPLACEMENT .........................107
VALVE SPRING SQUARENESS .......................108
VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD ..............................109
ENGINE ASSEMBLY ...............................................110
Removal and Installation .......................................110
2WD MODEL .....................................................110
REMOVAL .......................................................... 111
INSTALLATION ..................................................113
INSPECTION AFTER INSTALLATION ..............113
AWD MODEL .....................................................115
REMOVAL ..........................................................115
INSTALLATION ..................................................118
INSPECTION AFTER INSTALLATION ..............118
CYLINDER BLOCK .................................................120
Disassembly and Assembly ..................................120
DISASSEMBLY ..................................................121
ASSEMBLY ........................................................126
How to Select Piston and Bearing ........................131
DESCRIPTION ..................................................131
HOW TO SELECT PISTON ...............................131
HOW TO SELECT CONNECTING ROD BEAR-
ING .....................................................................132
HOW TO SELECT MAIN BEARING ..................133
Inspection After Disassembly ................................136
CRANKSHAFT END PLAY ................................136
CONNECTING ROD SIDE CLEARANCE .........136
PISTON TO PISTON PIN OIL CLEARANCE .....136
PISTON RING SIDE CLEARANCE ...................137
PISTON RING END GAP ..................................137
CONNECTING ROD BEND AND TORSION .....138
CONNECTING ROD BEARING HOUSING
DIAMETER (BIG END) ......................................138
CONNECTING ROD BUSHING OIL CLEAR-
ANCE (SMALL END) .........................................138
CYLINDER BLOCK DISTORTION ....................139
MAIN BEARING HOUSING INNER DIAMETER .140
PISTON TO CYLINDER BORE CLEARANCE ..140
CRANKSHAFT MAIN JOURNAL DIAMETER ...141
CRANKSHAFT PIN JOURNAL DIAMETER ......142
CRANKSHAFT OUT-OF-ROUND AND TAPER .142
CRANKSHAFT RUNOUT ..................................142
CONNECTING ROD BEARING OIL CLEAR-
ANCE .................................................................142
MAIN BEARING OIL CLEARANCE ...................143
MAIN BEARING CRUSH HEIGHT ....................144
CONNECTING ROD BEARING CRUSH
HEIGHT .............................................................144
MAIN BEARING CAP BOLT OUTER DIAMETER .144
CONNECTING ROD BOLT OUTER DIAMETER .144
DRIVE PLATE ....................................................145
OIL JET ..............................................................145
OIL JET RELIEF VALVE ....................................145
SERVICE DATA AND SPECIFICATIONS (SDS) ....146
Standard and Limit ................................................146
GENERAL SPECIFICATIONS ...........................146
DRIVE BELT ......................................................147
INTAKE MANIFOLD COLLECTOR, INTAKE
