2004 INFINITI FX35 Engine

PG-30
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of IPDM E/RAKS005SM
REMOVAL
1. Remove battery. Refer to SC-9, "Removal and Installation" in “Starting and Charging System (SC)” sec-
tion.
2. Remove IPDM E/R cover A. While pressing pawl on backside of
IPDM E/R cover B toward vehicle front to unlock, lift up IPDM E/
R.
3. While pressing pawls on right and left side of IPDM E/R, remove
IPDM E/R cover B from IPDM E/R.
4. Remove harness connector from IPDM E/R.
INSTALLATION
Install in the reverse order of removal.
SKIA4968E
SKIA1902E
SKIA4969E

PG-34
GROUND
Revision: 2004 November 2004 FX35/FX45

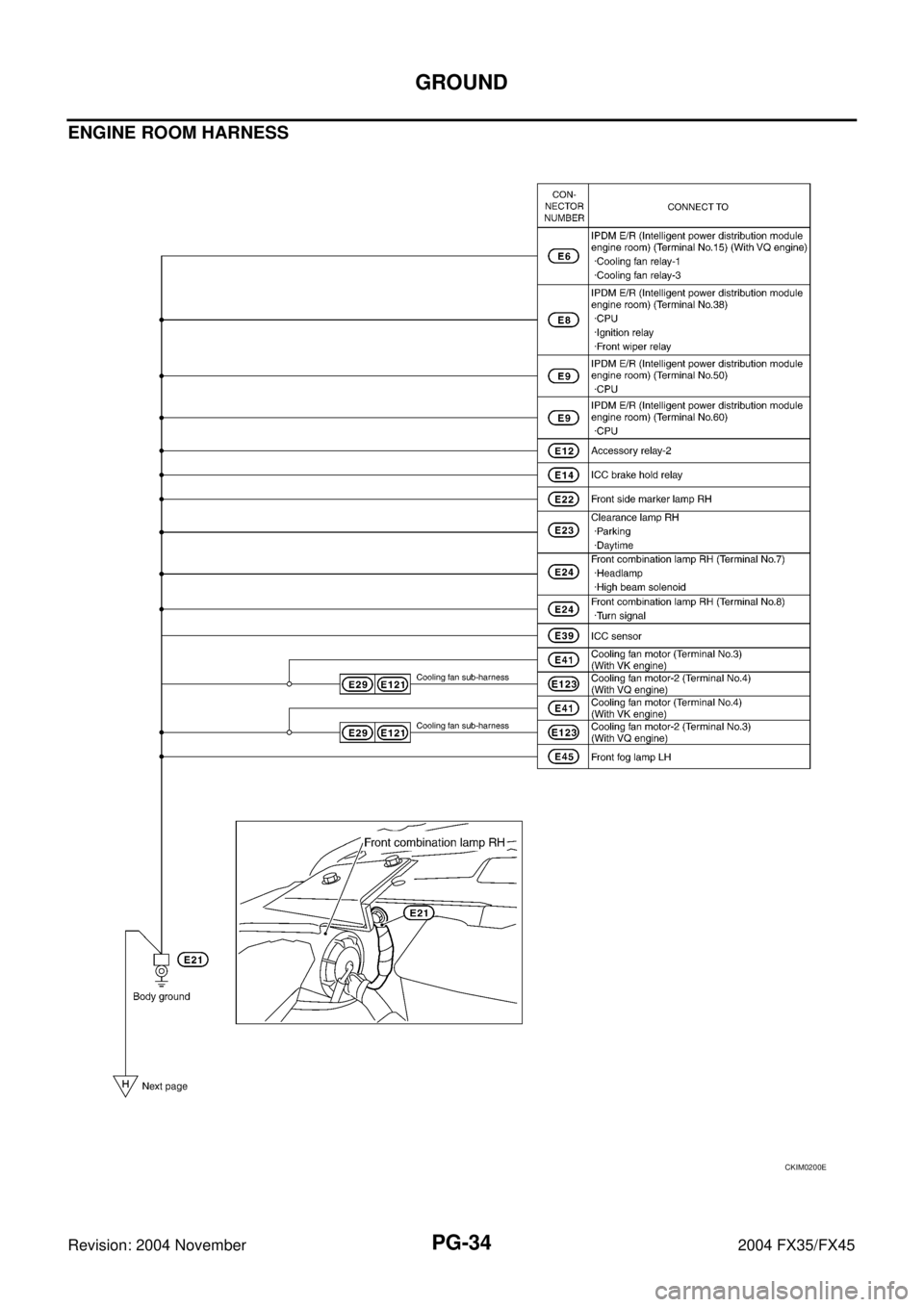

ENGINE ROOM HARNESS
CKIM0200E

GROUND
PG-37
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45

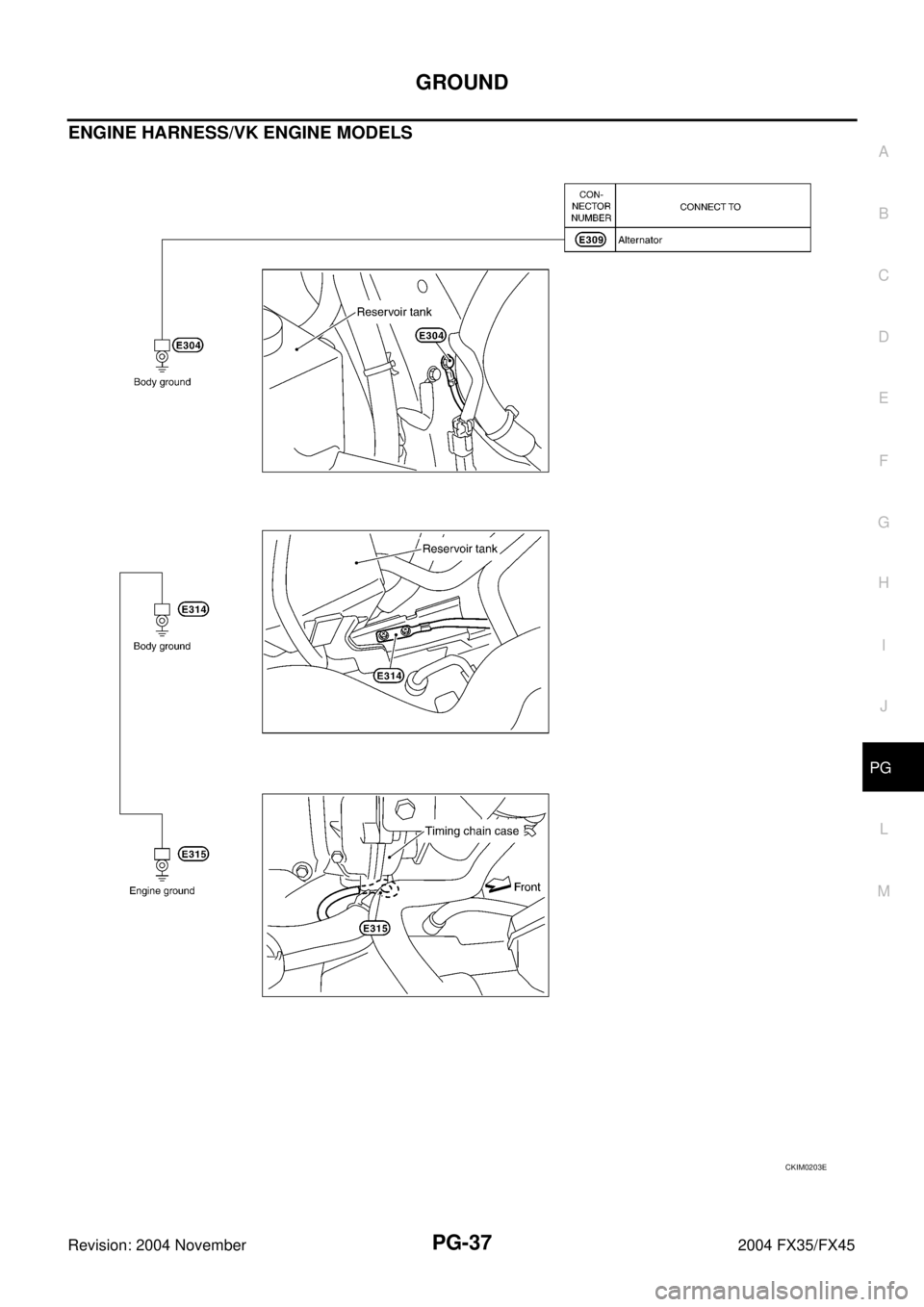

ENGINE HARNESS/VK ENGINE MODELS
CKIM0203E

PG-38
GROUND
Revision: 2004 November 2004 FX35/FX45

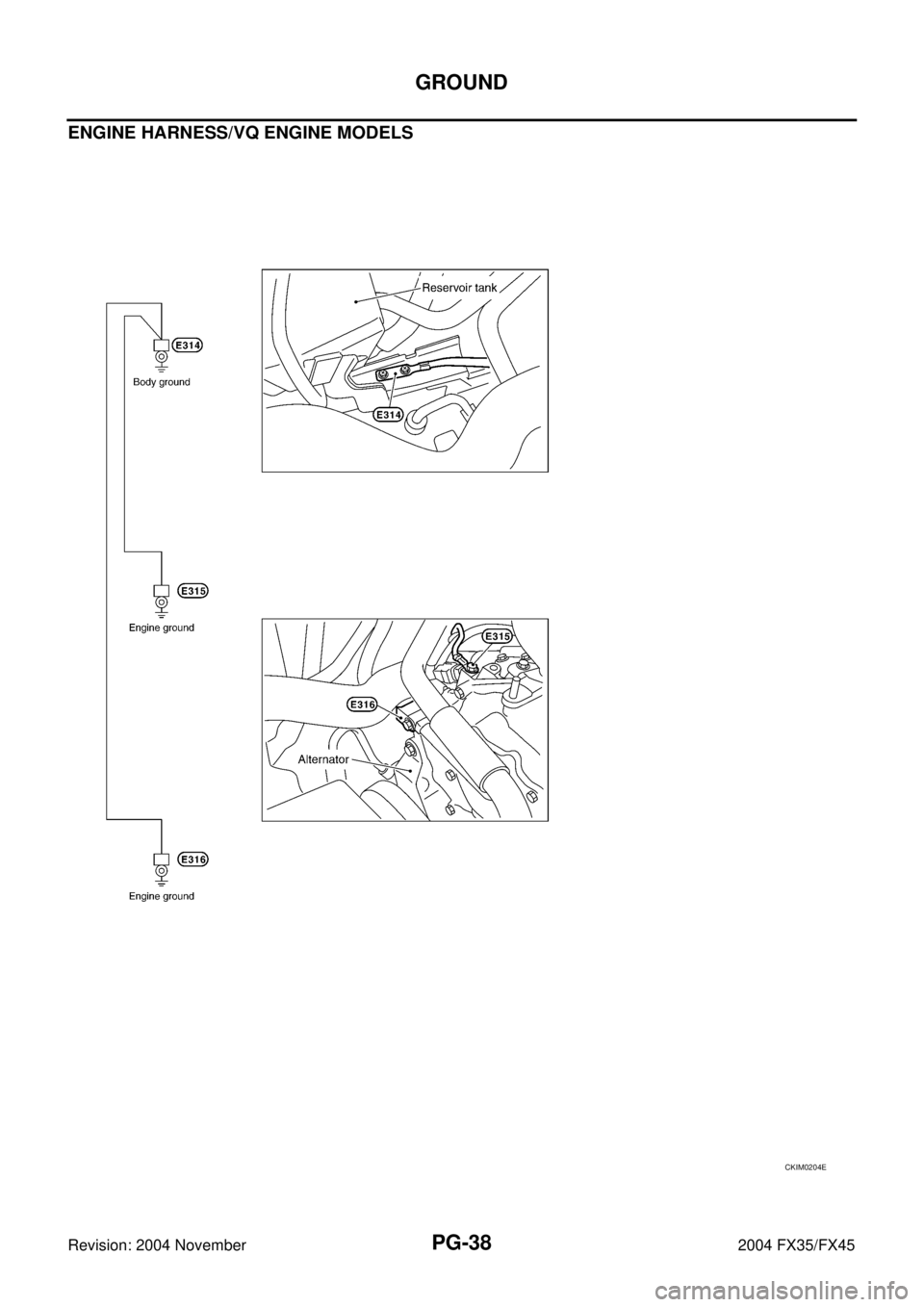

ENGINE HARNESS/VQ ENGINE MODELS
CKIM0204E

GROUND
PG-39
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45

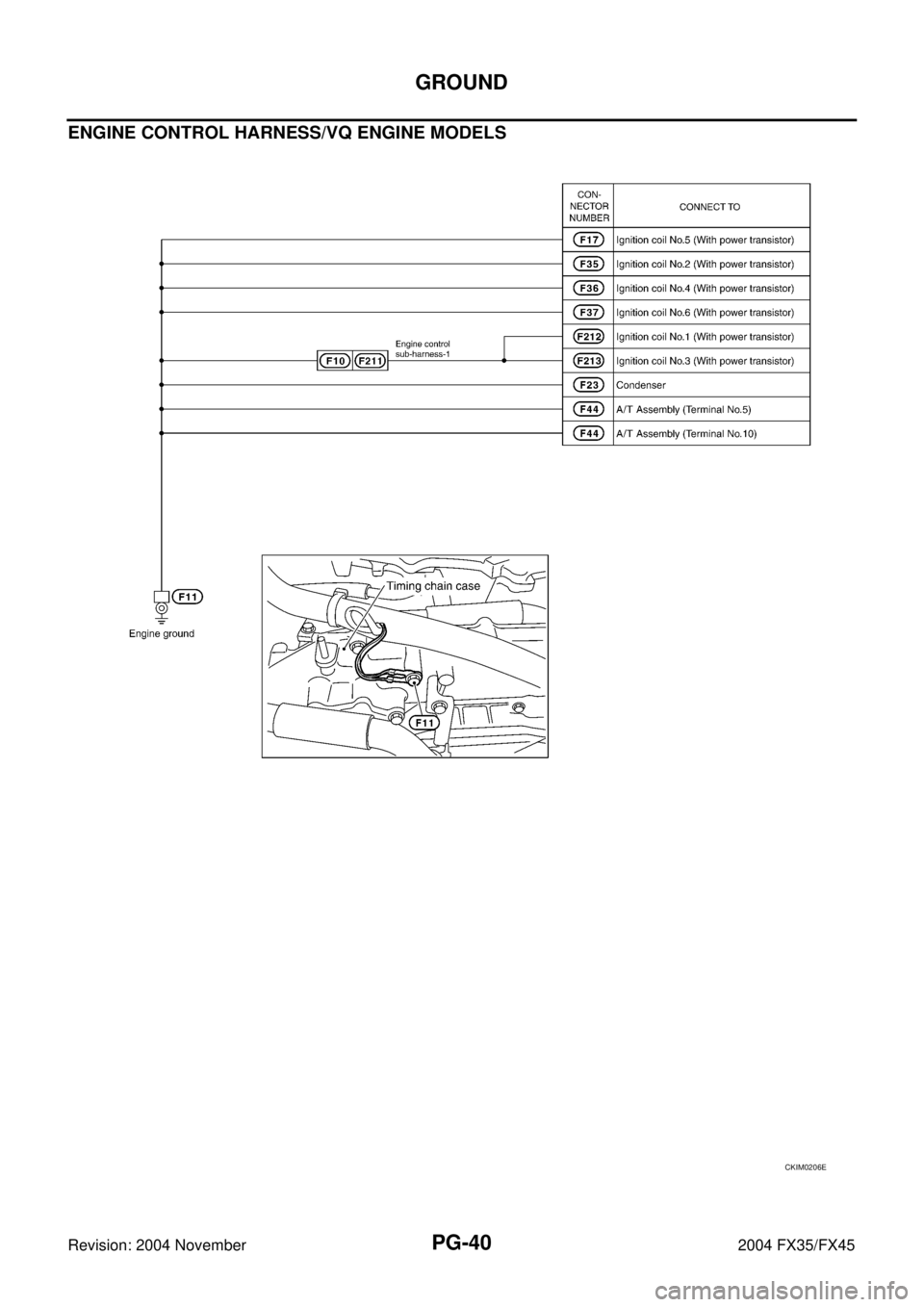

ENGINE CONTROL HARNESS/VK ENGINE MODELS
CKIM0205E

PG-40
GROUND
Revision: 2004 November 2004 FX35/FX45
ENGINE CONTROL HARNESS/VQ ENGINE MODELS
CKIM0206E

PG-46
HARNESS
Revision: 2004 November 2004 FX35/FX45
HARNESS PFP:00011
Harness Layout AKS007W0
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

Main Harness

Engine Room Harness (Engine Compartment)

Engine Control Harness

Body Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter col-
umn and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
CKIT0108E

HARNESS
PG-51
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45

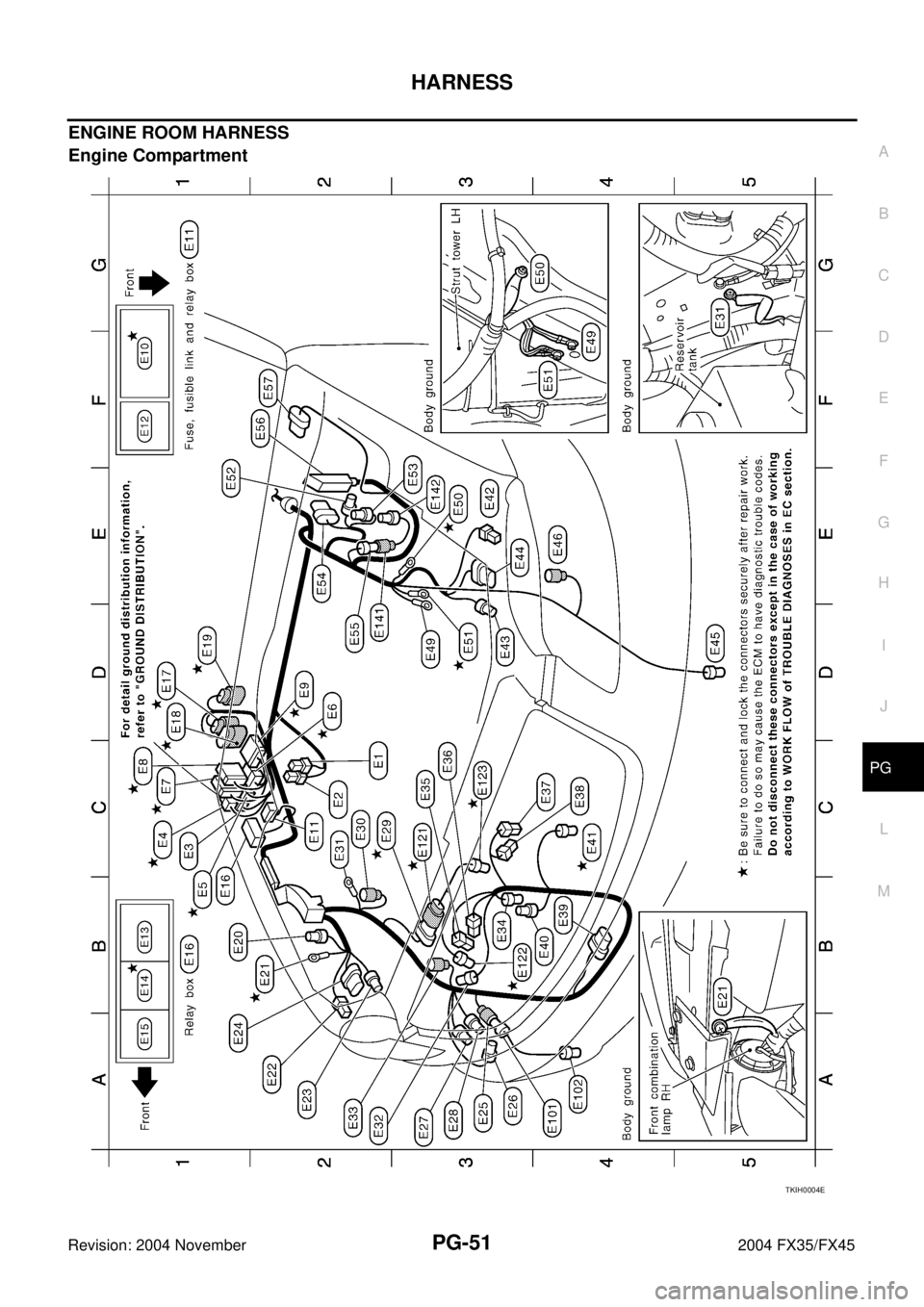

ENGINE ROOM HARNESS
Engine Compartment
TKIH0004E
