2004 GMC CANYON Owner's Manual

How to Reset the CHANGE OIL Message
The GM Oil Life System calculates when to change your
engine oil and lter based on vehicle use. Anytime
your oil is changed, reset the system so it can calculate
when the next oil change is required. If a situation
occurs where you change your oil prior to a CHANGE
OIL message being turned on, reset the system.
Always reset the engine oil life to 100% after every oil
change. It will not reset itself. To reset the CHANGE OIL
message, do the following:
1. Display OIL LIFE on the DIC.
2. Press and hold the reset stem. The oil life will
change to 100% and a beep will sound.
3. Turn the key to LOCK.
If the CHANGE OIL message comes back on when you
start your vehicle, the engine oil life system has not
reset. Repeat the procedure.
What to Do with Used Oil
Used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long.
Clean your skin and nails with soap and water, or a
good hand cleaner. Wash or properly dispose of
clothing or rags containing used engine oil. See the
manufacturer’s warnings about the use and disposal of
oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from the
lter before disposal. Never dispose of oil by putting it
in the trash, pouring it on the ground, into sewers,
or into streams or bodies of water. Instead, recycle it by
taking it to a place that collects used oil. If you have
a problem properly disposing of your used oil, ask your
dealer, a service station or a local recycling center
for help.
5-17

Engine Air Cleaner/Filter
The engine air cleaner/lter is located on the passenger’s
side of the engine compartment. SeeEngine Compartment
Overview on page 5-12for more information on location.
When to Inspect the Engine
Air Cleaner/Filter
Inspect the air cleaner/lter every 15,000 miles
(24 140 km), and replace at 25,000 miles (40 000 km).
How to Inspect the Engine
Air Cleaner/Filter
To remove the engine air cleaner/lter, do the following:
1. Unfasten the clips that hold the cover on and
remove the cover.
2. Lift out the engine air cleaner/lter.
3. Inspect or replace the air lter. SeeNormal
Maintenance Replacement Parts on page 6-15
to determine which lter to use.
4. Reinstall the engine air cleaner/lter cover.
Fasten the clips to hold the cover in place.
5-18

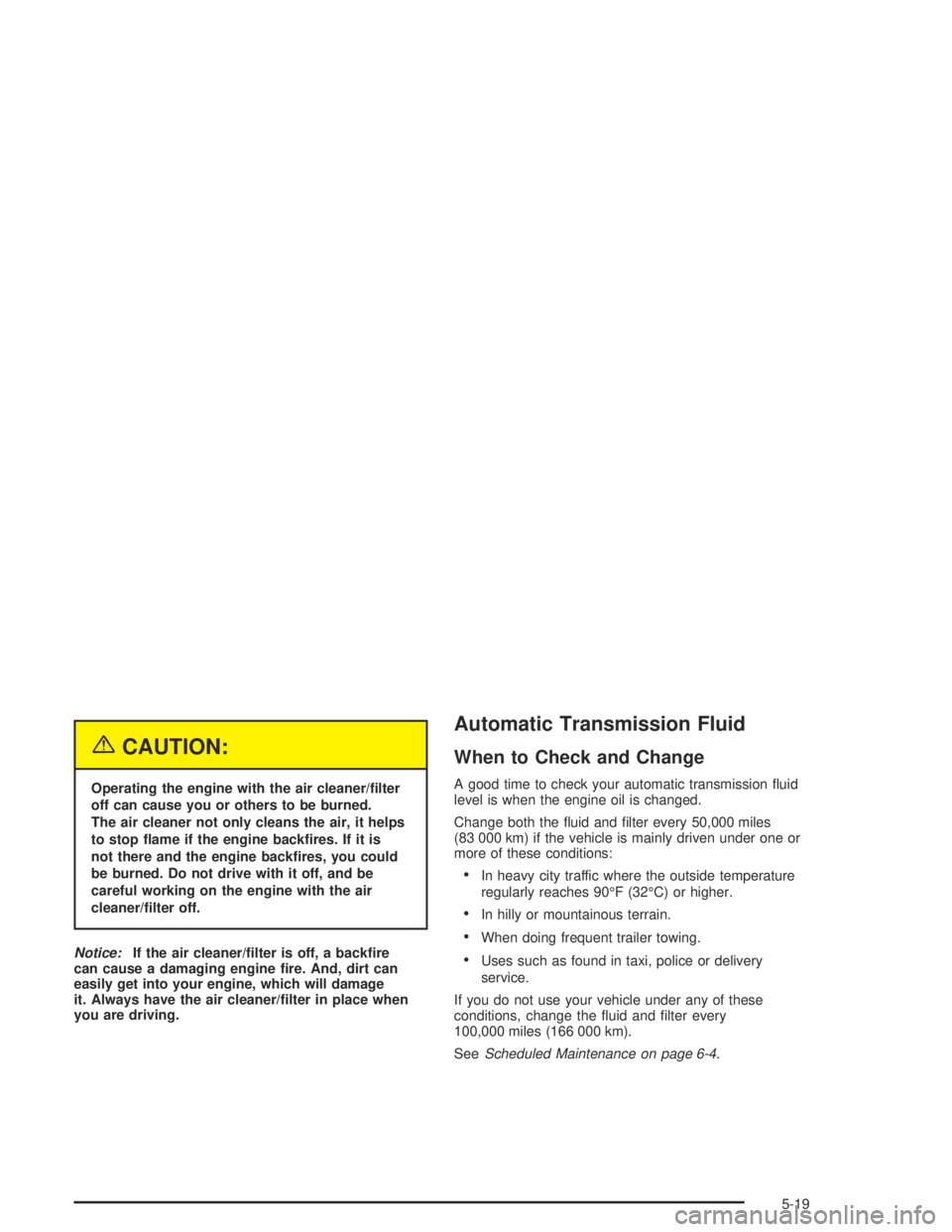

{CAUTION:
Operating the engine with the air cleaner/lter
off can cause you or others to be burned.
The air cleaner not only cleans the air, it helps
to stop ame if the engine backres. If it is
not there and the engine backres, you could
be burned. Do not drive with it off, and be
careful working on the engine with the air
cleaner/lter off.
Notice:If the air cleaner/lter is off, a backre
can cause a damaging engine re. And, dirt can
easily get into your engine, which will damage
it. Always have the air cleaner/lter in place when
you are driving.
Automatic Transmission Fluid
When to Check and Change
A good time to check your automatic transmission uid
level is when the engine oil is changed.
Change both the uid and lter every 50,000 miles
(83 000 km) if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
If you do not use your vehicle under any of these
conditions, change the uid and lter every
100,000 miles (166 000 km).
SeeScheduled Maintenance on page 6-4.
5-19

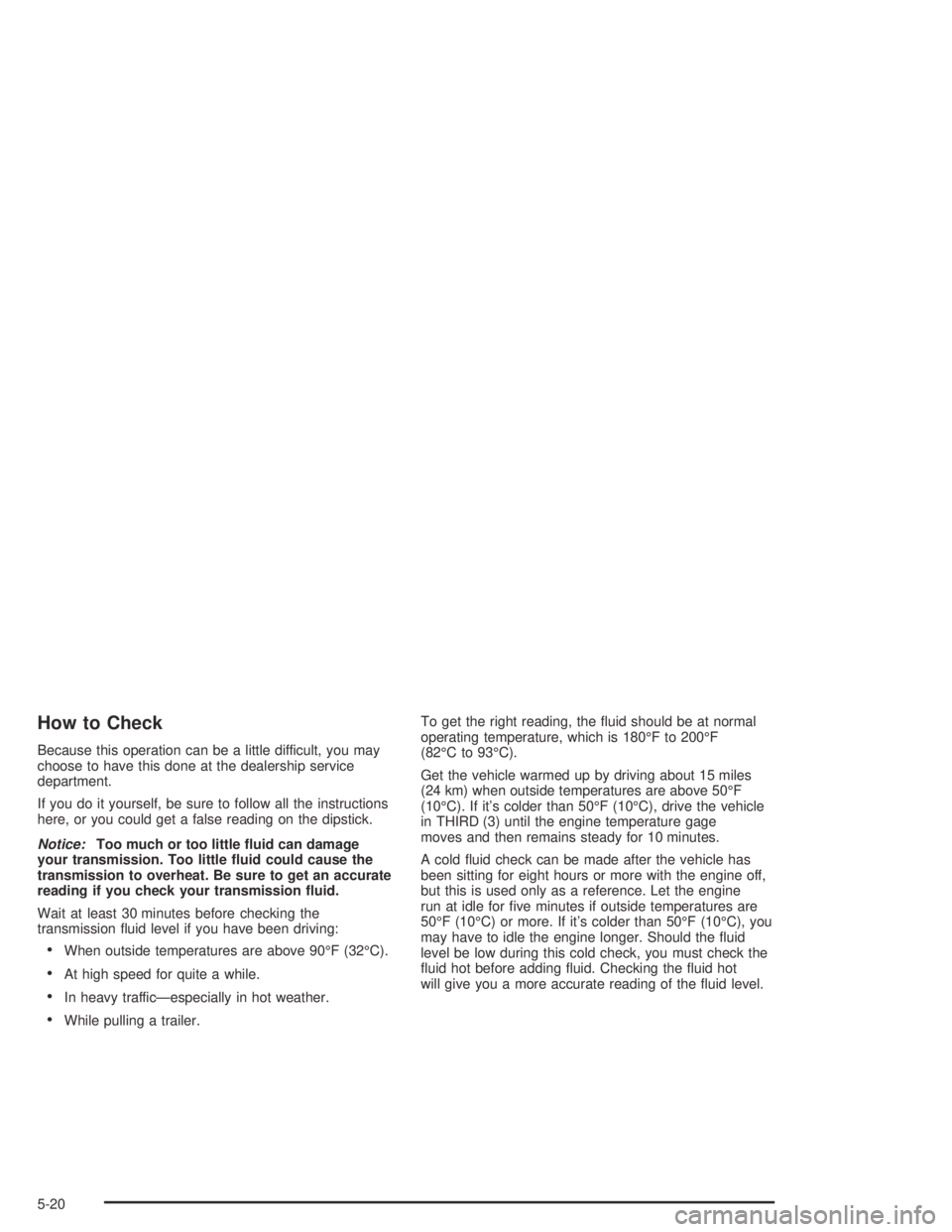

How to Check
Because this operation can be a little difficult, you may
choose to have this done at the dealership service
department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
Notice:Too much or too little uid can damage
your transmission. Too little uid could cause the
transmission to overheat. Be sure to get an accurate
reading if you check your transmission uid.
Wait at least 30 minutes before checking the
transmission uid level if you have been driving:
When outside temperatures are above 90°F (32°C).
At high speed for quite a while.
In heavy traffic—especially in hot weather.
While pulling a trailer.To get the right reading, the uid should be at normal
operating temperature, which is 180°F to 200°F
(82°C to 93°C).
Get the vehicle warmed up by driving about 15 miles
(24 km) when outside temperatures are above 50°F
(10°C). If it’s colder than 50°F (10°C), drive the vehicle
in THIRD (3) until the engine temperature gage
moves and then remains steady for 10 minutes.
A cold uid check can be made after the vehicle has
been sitting for eight hours or more with the engine off,
but this is used only as a reference. Let the engine
run at idle for ve minutes if outside temperatures are
50°F (10°C) or more. If it’s colder than 50°F (10°C), you
may have to idle the engine longer. Should the uid
level be low during this cold check, you must check the
uid hot before adding uid. Checking the uid hot
will give you a more accurate reading of the uid level.
5-20

Checking the Fluid Level
Prepare your vehicle as follows:
Park your vehicle on a level place. Keep the engine
running.
With the parking brake applied, place the shift lever
in PARK (P).
With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, position the shift
lever in PARK (P).
Let the engine run at idle for three minutes or more.
Then, without shutting off the engine, follow these steps:
The transmission dipstick
handle has this symbol
on it.
The transmission dipstick is located toward the rear of
the engine compartment on the passenger’s side of
the vehicle. SeeEngine Compartment Overview
on page 5-12for more information on location.1. Flip the handle up and then pull out the dipstick
and wipe it with a clean rag or paper towel.
2. Push it back in all the way, wait three seconds and
then pull it back out again.
3. Check both sides of the dipstick, and read the lower
level. The uid level must be in the COLD area,
below the cross-hatched area, for a cold check or in
the HOT area or cross-hatched area for a hot check.
4. If the uid level is in the acceptable range, push the
dipstick back in all the way; then ip the handle
down to lock the dipstick in place.
5-21

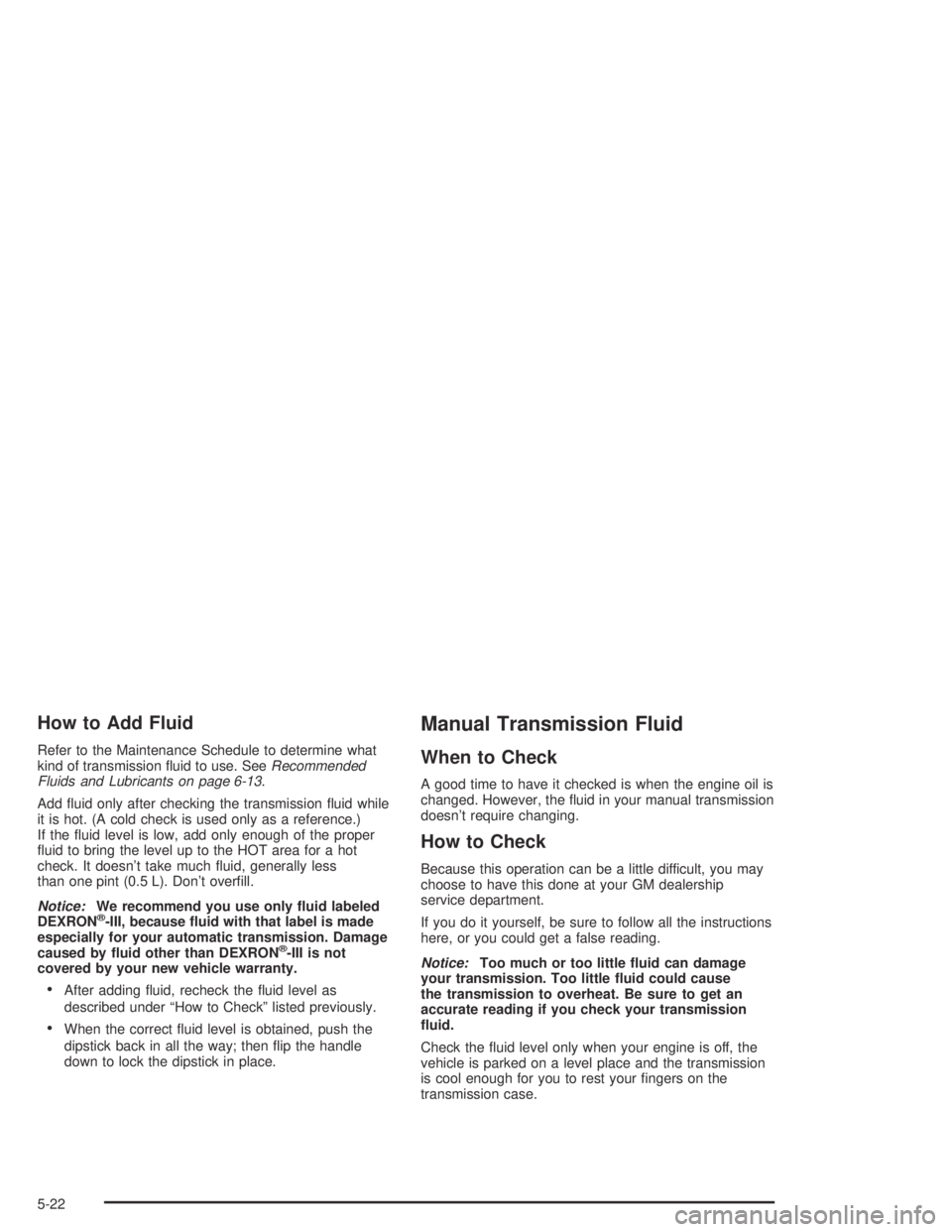

How to Add Fluid
Refer to the Maintenance Schedule to determine what
kind of transmission uid to use. SeeRecommended
Fluids and Lubricants on page 6-13.
Add uid only after checking the transmission uid while
it is hot. (A cold check is used only as a reference.)
If the uid level is low, add only enough of the proper
uid to bring the level up to the HOT area for a hot
check. It doesn’t take much uid, generally less
than one pint (0.5 L). Don’t overll.
Notice:We recommend you use only uid labeled
DEXRON
®-III, because uid with that label is made
especially for your automatic transmission. Damage
caused by uid other than DEXRON
®-III is not
covered by your new vehicle warranty.
After adding uid, recheck the uid level as
described under “How to Check” listed previously.
When the correct uid level is obtained, push the
dipstick back in all the way; then ip the handle
down to lock the dipstick in place.
Manual Transmission Fluid
When to Check
A good time to have it checked is when the engine oil is
changed. However, the uid in your manual transmission
doesn’t require changing.
How to Check
Because this operation can be a little difficult, you may
choose to have this done at your GM dealership
service department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading.
Notice:Too much or too little uid can damage
your transmission. Too little uid could cause
the transmission to overheat. Be sure to get an
accurate reading if you check your transmission
uid.
Check the uid level only when your engine is off, the
vehicle is parked on a level place and the transmission
is cool enough for you to rest your ngers on the
transmission case.
5-22

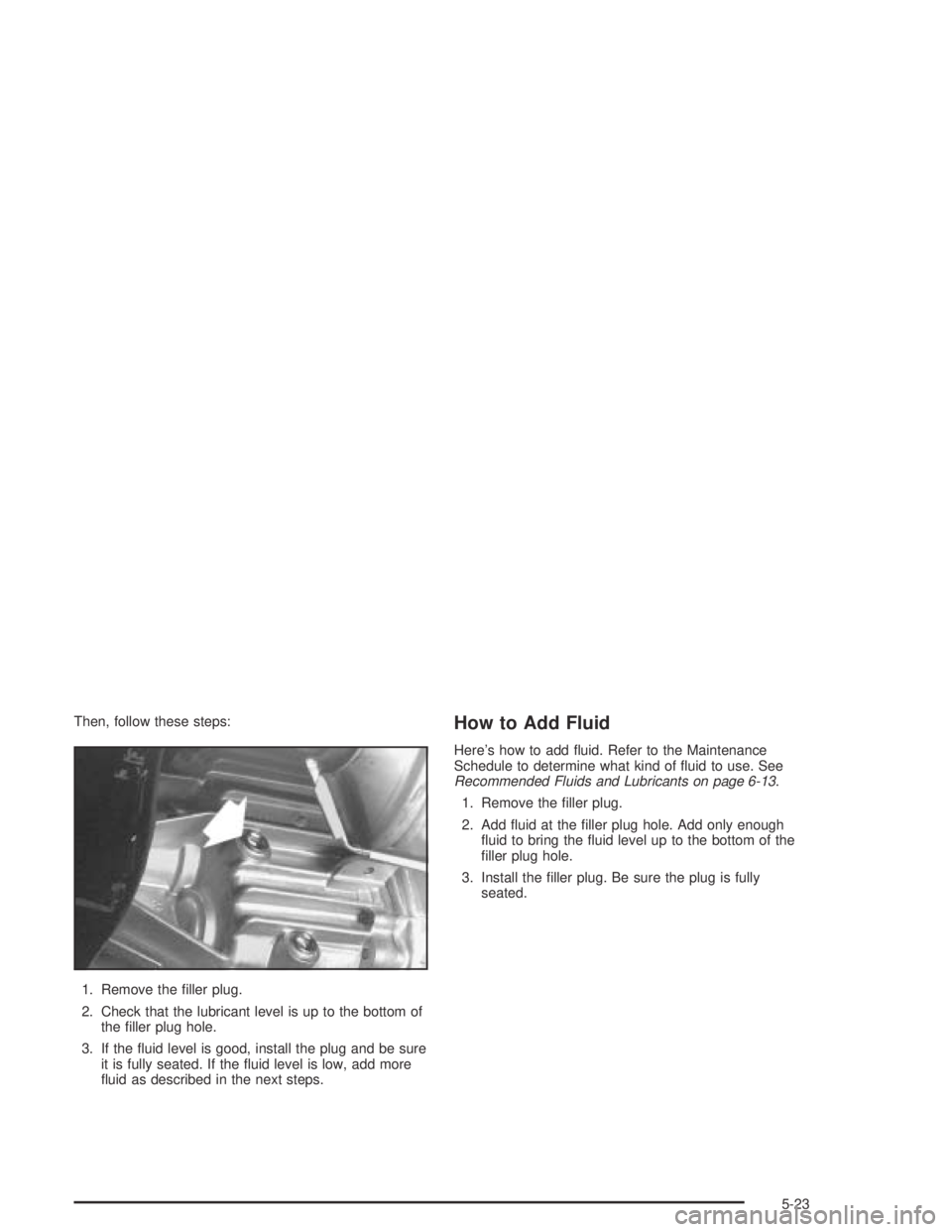

Then, follow these steps:
1. Remove the ller plug.
2. Check that the lubricant level is up to the bottom of
the ller plug hole.
3. If the uid level is good, install the plug and be sure
it is fully seated. If the uid level is low, add more
uid as described in the next steps.How to Add Fluid
Here’s how to add uid. Refer to the Maintenance
Schedule to determine what kind of uid to use. See
Recommended Fluids and Lubricants on page 6-13.
1. Remove the ller plug.
2. Add uid at the ller plug hole. Add only enough
uid to bring the uid level up to the bottom of the
ller plug hole.
3. Install the ller plug. Be sure the plug is fully
seated.
5-23

Hydraulic Clutch
(Manual Transmission)
The hydraulic clutch linkage in your vehicle is
self-adjusting. The clutch master cylinder reservoir is
lled with hydraulic clutch uid.
The hydraulic clutch uid
reservoir cap has this
symbol on it.
It is not necessary to regularly check clutch uid unless
you suspect there is a leak in the system. Adding
uid won’t correct a leak.
A uid loss in this system could indicate a problem.
Have the system inspected and repaired.
When to Check and What to Use
Refer to the Maintenance Schedule to determine how
often you should check the uid level in your clutch
master cylinder reservoir and for the proper uid.
SeeOwner Checks and Services on page 6-9and
Recommended Fluids and Lubricants on page 6-13.
How to Check and Add Fluid
The proper uid should be added if the level does not
reach the bottom of the diaphragm when it’s in place in
the reservoir. See the instructions on the reservoir cap.
5-24
