2004 GMC CANYON Owner's Manual

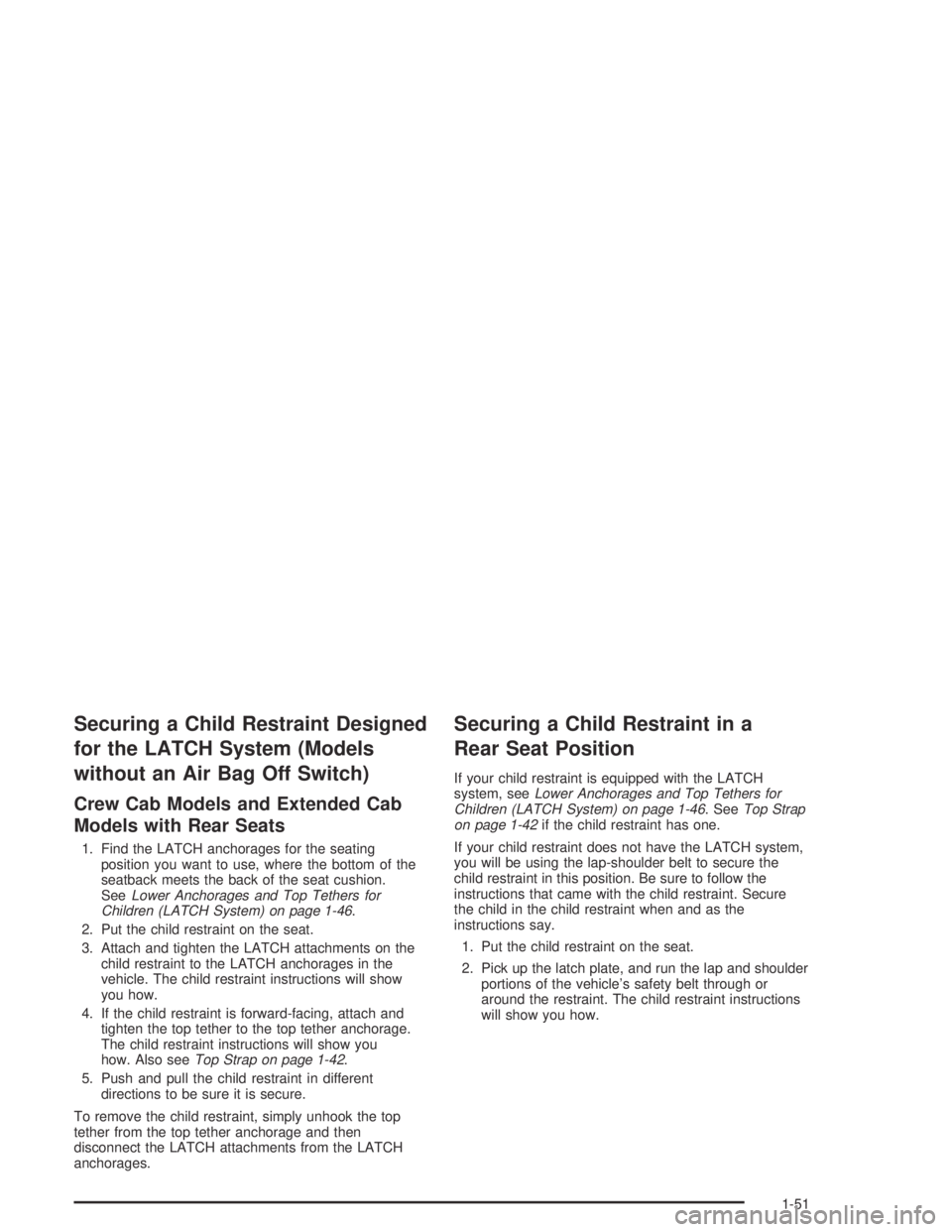

Securing a Child Restraint Designed
for the LATCH System (Models
without an Air Bag Off Switch)
Crew Cab Models and Extended Cab
Models with Rear Seats
1. Find the LATCH anchorages for the seating
position you want to use, where the bottom of the
seatback meets the back of the seat cushion.
SeeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46.
2. Put the child restraint on the seat.
3. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will show
you how.
4. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you
how. Also seeTop Strap on page 1-42.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
tether from the top tether anchorage and then
disconnect the LATCH attachments from the LATCH
anchorages.
Securing a Child Restraint in a
Rear Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-51

3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock (crew cab only).
1-52

5. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it
helpful to use your knee to push down on the
child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
Securing a Child Restraint in the
Center Front Seat Position
Do not use child restraints in this position. The restraints
will not work properly.
1-53

Securing a Child Restraint in
the Right Front Seat Position
(Models with an Air Bag Off Switch)
Regular Cab Models and Extended
Cab Models without Rear Seats
Your vehicle has a right front passenger’s frontal air
bag. Regular cab models and extended cab models
without rear seats have a switch on the instrument panel
that you can use to turn off the right front passenger’s
frontal air bag. SeeAir Bag Off Switch on page 1-70for
more on this, including important safety information.Unless the right front passenger’s frontal air bag has
been turned off, never put a rear facing child restraint in
the right front passenger’s seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s frontal air bag inates. This is
because the back of the rear-facing child
restraint would be very close to the inating
air bag. Do not use a rear-facing child restraint
in this vehicle unless the air bag has been
turned off.
Even though the air bag off switch is designed
to turn off the right front passenger’s frontal
air bag, no system is fail-safe, and no one can
guarantee that an air bag will not deploy under
some unusual circumstance, even though it is
turned off. We recommend that rear-facing
child restraints be transported in vehicles with
a rear seat that will accommodate a rear-facing
child restraint, whenever possible.
1-54

{CAUTION:
If the air bag readiness light ever comes on
when you have turned off the air bag, it means
that something may be wrong with the air bag
system. The right front passenger’s frontal air
bag could inate even though the switch is off.
If this ever happens, do not let anyone whom
the national government has identied as a
member of a passenger air bag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing child
restraint in your vehicle) until you have your
vehicle serviced. SeeAir Bag Off Switch on
page 1-70.If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Your vehicle has a right front passenger’s frontal
air bag. SeeAir Bag Off Switch on page 1-70.
If your child restraint is forward-facing, always move
the seat as far back as it will go before securing
it in this seat. SeeManual Seats on page 1-3
orPower Seats on page 1-4.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-55

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-56

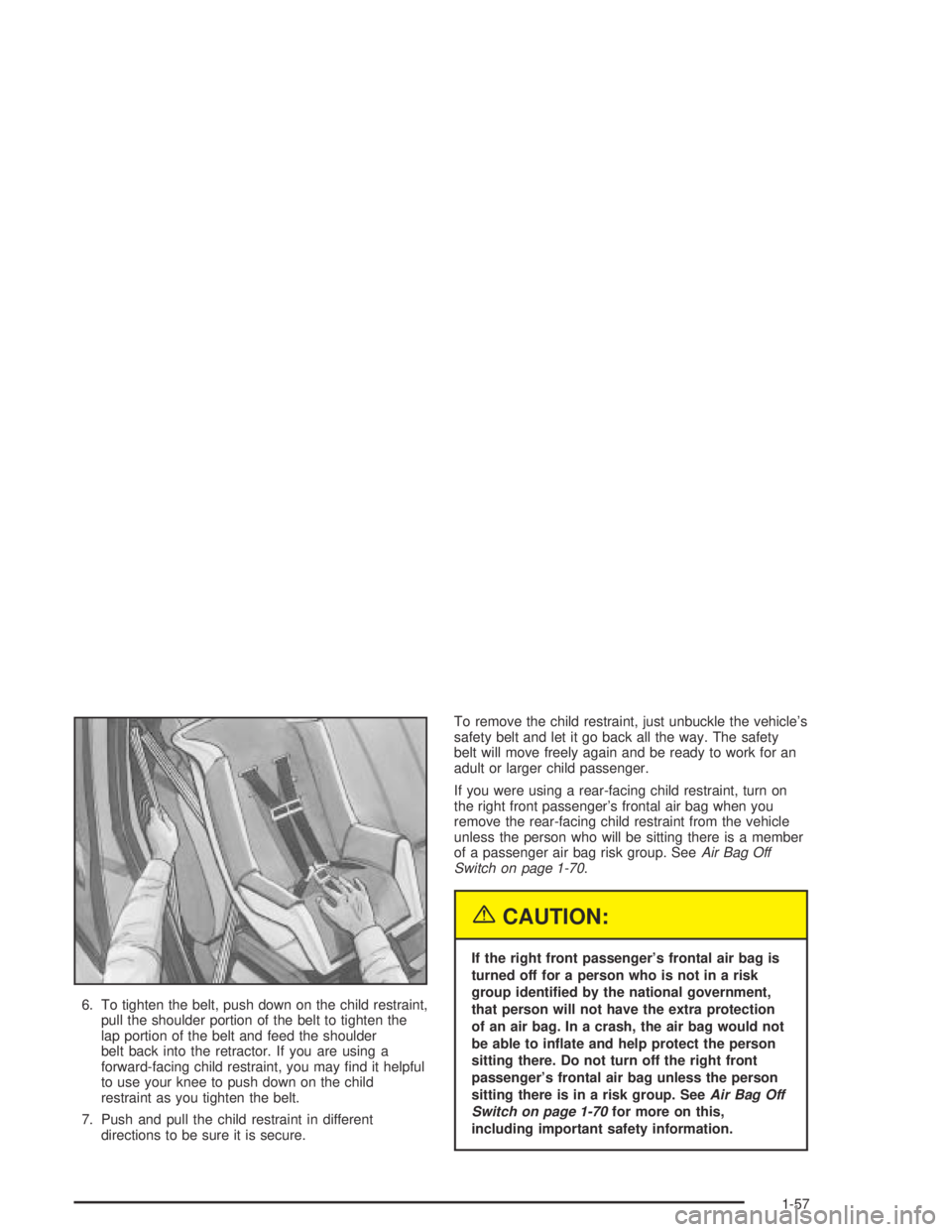

6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
If you were using a rear-facing child restraint, turn on
the right front passenger’s frontal air bag when you
remove the rear-facing child restraint from the vehicle
unless the person who will be sitting there is a member
of a passenger air bag risk group. SeeAir Bag Off
Switch on page 1-70.
{CAUTION:
If the right front passenger’s frontal air bag is
turned off for a person who is not in a risk
group identied by the national government,
that person will not have the extra protection
of an air bag. In a crash, the air bag would not
be able to inate and help protect the person
sitting there. Do not turn off the right front
passenger’s frontal air bag unless the person
sitting there is in a risk group. SeeAir Bag Off
Switch on page 1-70for more on this,
including important safety information.
1-57

Securing a Child Restraint in the
Right Front Seat Position (Models
without an Air Bag Off Switch)
Crew Cab Models and Extended Cab
Models with Rear Seats
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.
Your vehicle has a right front passenger air bag.
Neverput a rear-facing child restraint in the right front
passenger’s seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s air bag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating air bag.
Always secure a rear-facing child restraint in
a rear seat.A rear seat is a safer place to secure a forward-facing
child restraint. If you need to secure a forward-facing
child restraint in the right front seat position, seeWhere
to Put the Restraint on page 1-40.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Because your vehicle has a right front passenger’s
frontal air bag, always move the seat as far back as
it will go before securing a forward-facing child
restraint. SeeManual Seats on page 1-3orPower
Seats on page 1-4.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-58
