2003 TOYOTA SIENNA Owners Manual

03 SIENNA_U (L/O 0207)
532003 MY SIENNA (OM45410U)
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury:
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
To reinstall the second seat, do this.1. Hook the front legs to the floor.
2. Lock the rear legs.
CAUTION
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback
and by trying to pull up the edge
of the bottom cushion. Failure to
do so will prevent seat belt from
operating properly.
Do not remove the second seat or
fold the seatback down whenever
the third seat is folded up.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat legs may be damaged and the
seat cannot be reinstalled.

03 SIENNA_U (L/O 0207)
542003 MY SIENNA (OM45410U)
1. Pull the lever behind the seatback.
Right side only—The seat will slide for-
ward.2. Lift the seatback angle adjusting le- ver and fold the seatback down.3. Pull the seat lock release lever. Liftthe seat cushion and remove the
seat toward you.
Removing the second seat will enlarge the
luggage compartment. See “Luggage stow-
age precautions” in Section 2 for precau-
tions in loading luggage.
—Removing second seats
(captain seat)

03 SIENNA_U (L/O 0207)
552003 MY SIENNA (OM45410U)
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury:
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
To reinstall the second seat, do this.1. Hook the front legs to the floor.
2. Lock the rear legs.
CAUTION
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback
and by trying to pull up the edge
of the bottom cushion. Failure to
do so will prevent the seat belt
from operating properly.
Do not remove the second seat or
fold the seatback down whenever
the third seat is folded up.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat legs may be damaged and the
seat cannot be reinstalled.

03 SIENNA_U (L/O 0207)
562003 MY SIENNA (OM45410U)
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
When a person sits in the third seat
center position, adjust both seat cush-
ions to the same position.
Do not place anything under the seats. It
might interfere with the seatlock mecha-
nism.
2. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
When a person sits in the third seat
center position, align both seatbacks at
the same angle.CAUTION
Adjust both seats to the same posi-
tion and seatbacks to the same
angle when a person sits in the
third seat center position. Other-
wise, the person cannot wear the
seat belt properly and this may
cause serious injuries in a collision.
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen. In
the event of a frontal collision, the
more the seat is reclined, the great-
er the risk of personal injury.
—Adjusting third seats

03 SIENNA_U (L/O 0207)
572003 MY SIENNA (OM45410U)
BEFORE FOLDING THIRD SEAT
Stow the third center seat belt as
shown in the illustration.
This prevents the belt from falling out
when you fold up the third seat.
NOTICE
The third center seat belt must be
stowed before you fold up the third
seat.
Make sure to stow the third center
seat belt in order not to cause dam-
age on the seat belt by pinching it
between the third seat inner leg and
seat striker.FOLDING UP THIRD SEAT
1. Remove the head restraint.
—Folding third seats

03 SIENNA_U (L/O 0207)
582003 MY SIENNA (OM45410U)

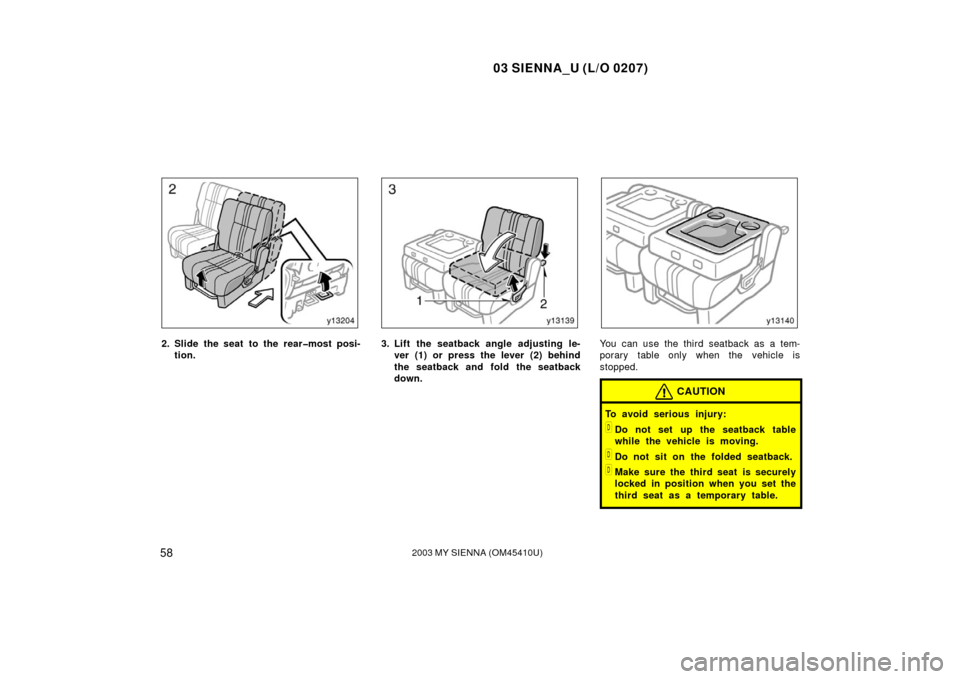

2. Slide the seat to the rearmost posi-tion.3. Lift the seatback angle adjusting le-ver (1) or press the lever (2) behind
the seatback and fold the seatback
down.You can use the third seatback as a tem-
porary table only when the vehicle is
stopped.
CAUTION
To avoid serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the third seat is securely
locked in position when you set the
third seat as a temporary table.

03 SIENNA_U (L/O 0207)
592003 MY SIENNA (OM45410U)
NOTICE
To prevent the seat from damaging,
avoid putting heavy loads on the tem-
porary table.

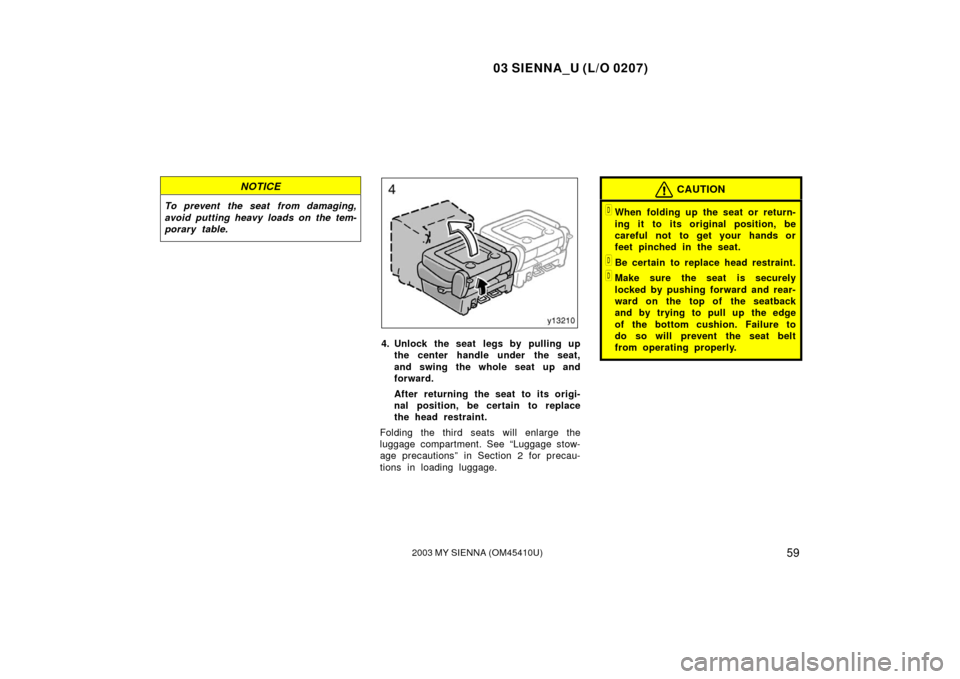

4. Unlock the seat legs by pulling upthe center handle under the seat,
and swing the whole seat up and
forward.
After returning the seat to its origi-
nal position, be certain to replace
the head restraint.
Folding the third seats will enlarge the
luggage compartment. See “Luggage stow-
age precautions” in Section 2 for precau-
tions in loading luggage.
CAUTION
When folding up the seat or return-
ing it to its original position, be
careful not to get your hands or
feet pinched in the seat.
Be certain to replace head restraint.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback
and by trying to pull up the edge
of the bottom cushion. Failure to
do so will prevent the seat belt
from operating properly.

03 SIENNA_U (L/O 0207)
602003 MY SIENNA (OM45410U)
BEFORE REMOVING THIRD SEAT
Stow the third center seat belt as
shown in the illustration.
This prevents the belt from falling out
when you remove the third seat.
NOTICE
The third center seat belt must be
stowed before you remove the third
seat.
Make sure to stow the third center
seat belt in order not to cause dam-
age on the seat belt by pinching it
between the third seat inner leg and
seat striker.REMOVING THIRD SEAT
1. Lower the head restraint to the low- est position.
—Removing third seats
