2003 TOYOTA SIENNA Owners Manual

03 SIENNA_U (L/O 0207)
1012003 MY SIENNA (OM45410U)

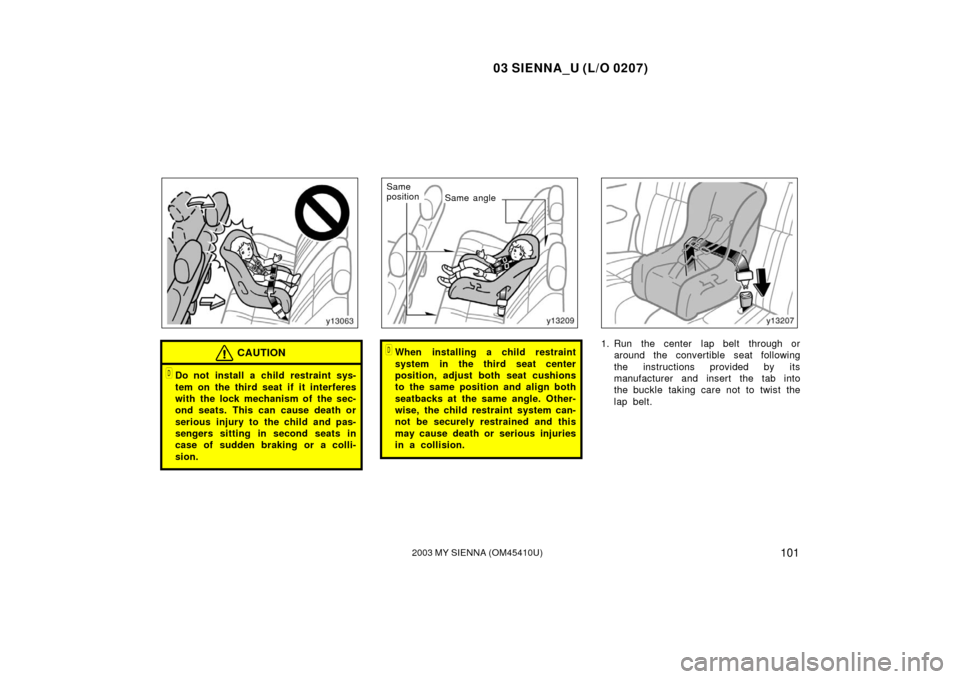

CAUTION
Do not install a child restraint sys-
tem on the third seat if it interferes
with the lock mechanism of the sec-
ond seats. This can cause death or
serious injury to the child and pas-
sengers sitting in second seats in
case of sudden braking or a colli-
sion.
Same
positionSame angle
When installing a child restraint
system in the third seat center
position, adjust both seat cushions
to the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.1. Run the center lap belt through or
around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.

03 SIENNA_U (L/O 0207)
1022003 MY SIENNA (OM45410U)

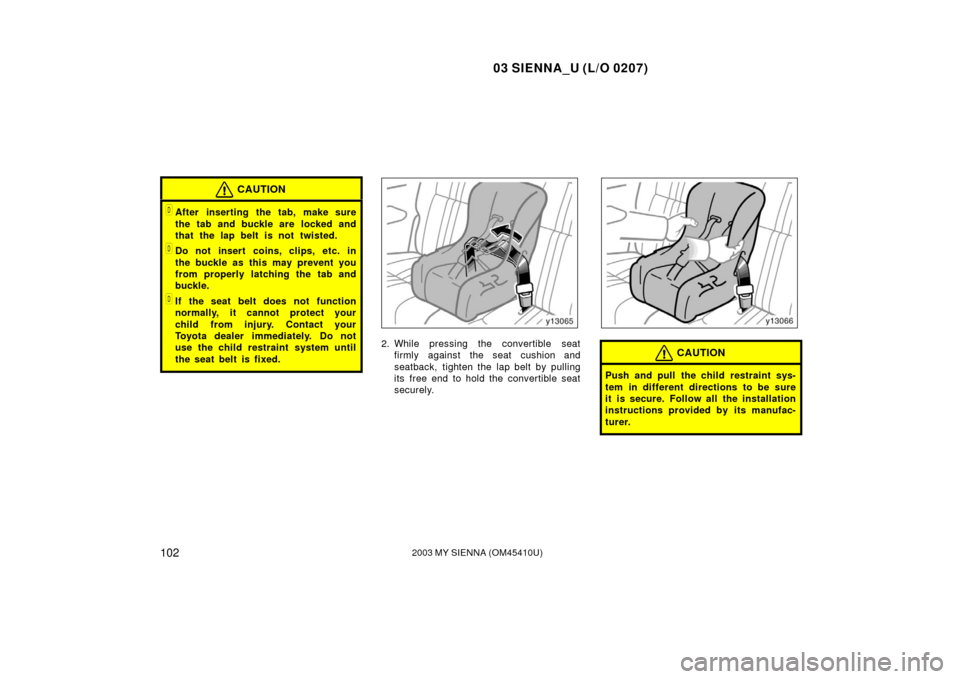

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
2. While pressing the convertible seatfirmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

03 SIENNA_U (L/O 0207)
1032003 MY SIENNA (OM45410U)

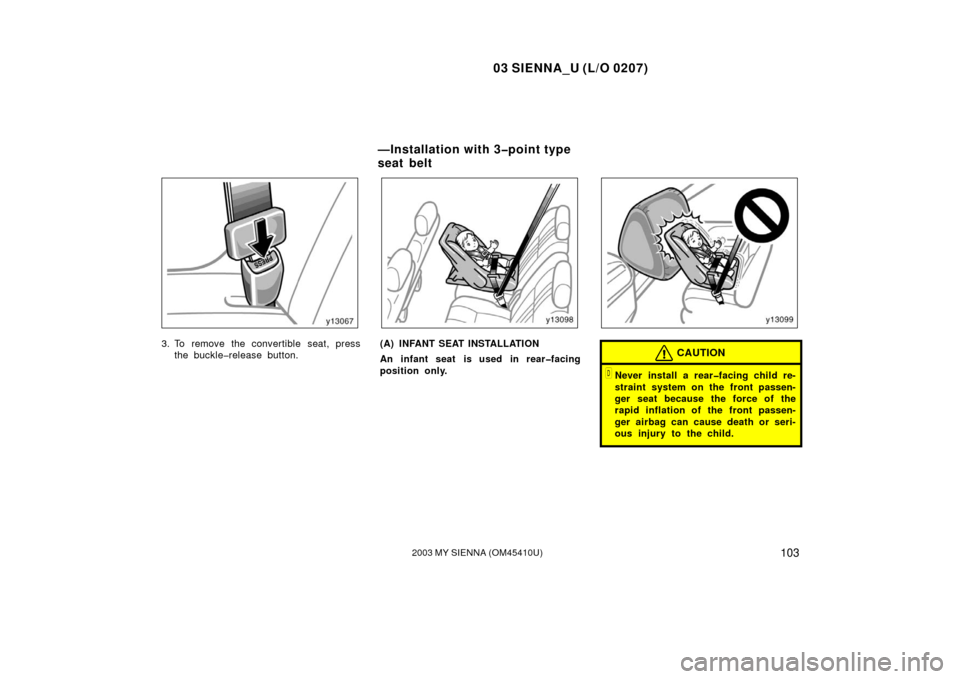

3. To remove the convertible seat, pressthe bucklerelease button.(A) INFANT SEAT INSTALLATION
An infant seat is used in rearfacing
position only.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.
—Installation with 3point type
seat belt

03 SIENNA_U (L/O 0207)
1042003 MY SIENNA (OM45410U)

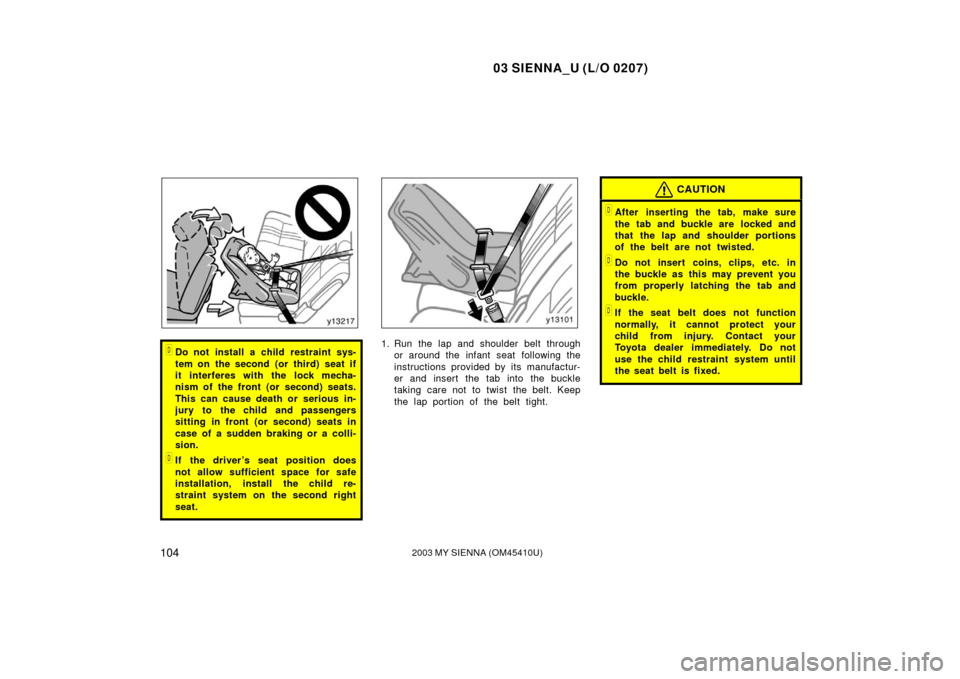

Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
This can cause death or serious in-
jury to the child and passengers
sitting in front (or second) seats in
case of a sudden braking or a colli-
sion.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.
1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.

03 SIENNA_U (L/O 0207)
1052003 MY SIENNA (OM45410U)

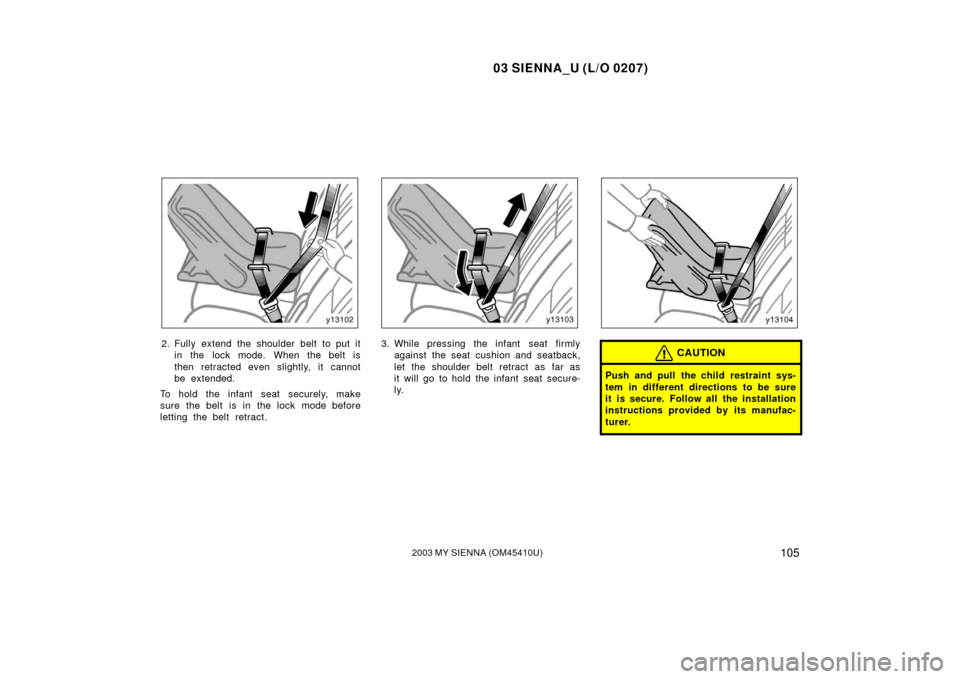

2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

03 SIENNA_U (L/O 0207)
1062003 MY SIENNA (OM45410U)

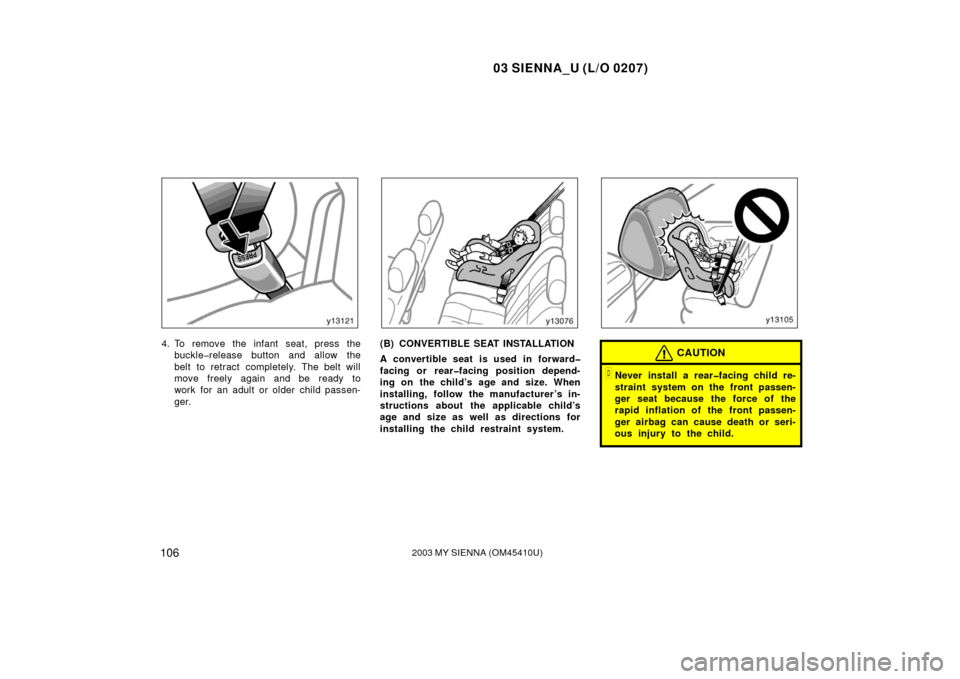

4. To remove the infant seat, press thebucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
structions about the applicable child’s
age and size as well as directions for
installing the child restraint system.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.

03 SIENNA_U (L/O 0207)
1072003 MY SIENNA (OM45410U)

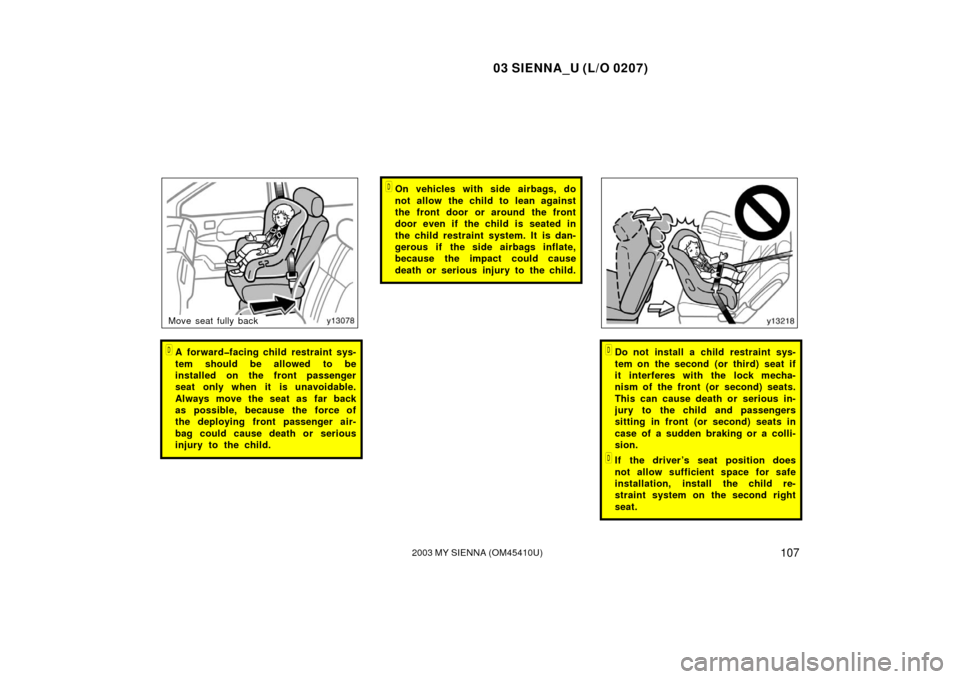

Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
This can cause death or serious in-
jury to the child and passengers
sitting in front (or second) seats in
case of a sudden braking or a colli-
sion.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.

03 SIENNA_U (L/O 0207)
1082003 MY SIENNA (OM45410U)

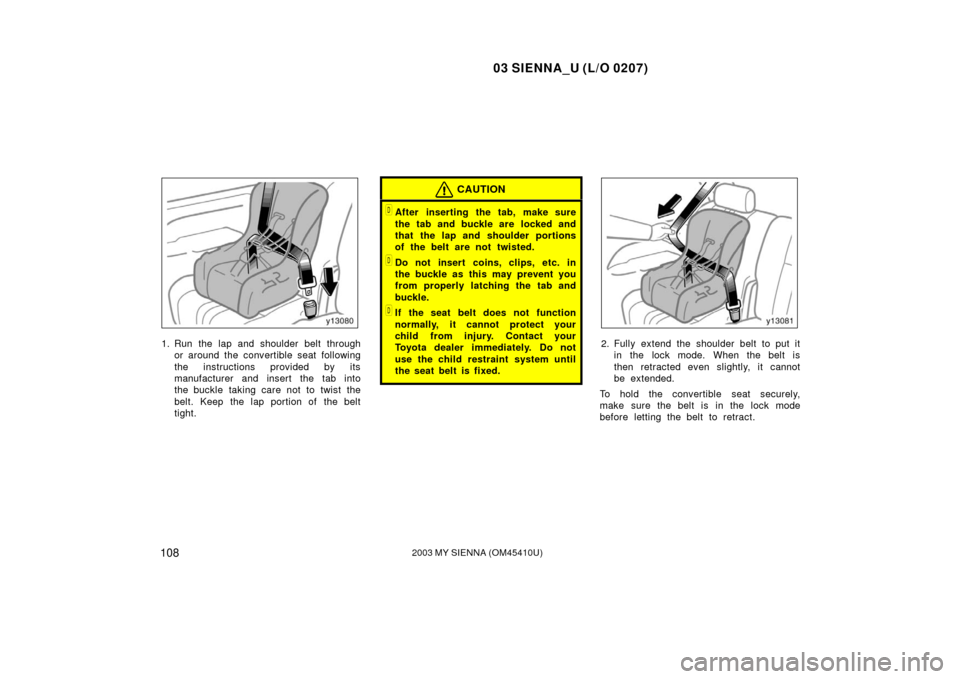

1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt to retract.
