2003 TOYOTA SIENNA Owners Manual

03 SIENNA_U (L/O 0207)
1492003 MY SIENNA (OM45410U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” or “ACC” position and the
selector lever pulled toward you).
(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking

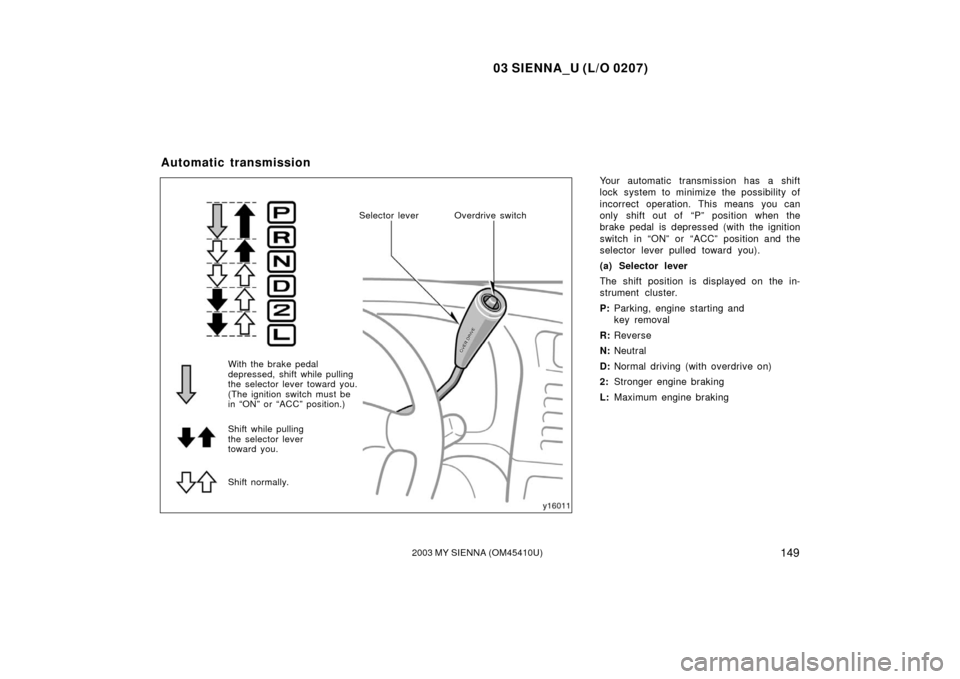

Automatic transmission
Selector lever Overdrive switch
With the brake pedal
depressed, shift while pulling
the selector lever toward you.
(The ignition switch must be
in “ON” or “ACC” position.)
Shift while pulling
the selector lever
toward you.
Shift normally.

03 SIENNA_U (L/O 0207)
1502003 MY SIENNA (OM45410U)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on.Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
(c) Normal driving
1. Start the engine as instructed in “How to start the engine” in Section 3. The
transmission must be in “P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into overdrive
gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than 112 km/h (69 mph), and
stronger engine braking will be en-
abled.
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than 58 km/h (36 mph), and
maximum engine braking will be en-
abled.
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.

03 SIENNA_U (L/O 0207)
1512003 MY SIENNA (OM45410U)
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using “2” and “L” positions
The “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “2” or “L”, you
can start the vehicle in motion as with the
lever in “D”.
With the selector lever in “2”, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.
NOTICE
Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
“2” 120 km/h (74 mph) . . . . . . . . . . .
“L” 64 km/h (40 mph) . . . . . . . . . . . .
 Do not continue hill climbing or
hard towing for a long time in the
“2” or “L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, “D” position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.

03 SIENNA_U (L/O 0207)
1522003 MY SIENNA (OM45410U)
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.
The traction control system automatical-
ly helps prevent the spinning of front
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the traction
control system is in the selfcheck mode,
but does not indicate a malfunction.
Traction control system

03 SIENNA_U (L/O 0207)
1532003 MY SIENNA (OM45410U)
When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
TRACTION CONTROL OFF MODE
If your wheels get stuck in a ditch
when you are driving on a severe off
road and sand, turn off the traction
control system. This system that con-
trols engine performance interferes with
the process of freeing your wheels.
To turn off: Push “TRAC OFF” switch.
The “TRAC OFF” indicator light will come
on.
To turn on: Push “TRAC OFF” switch
once again.
The “TRAC OFF” indicator light will go off. “TRAC OFF” indicator light comes on for
a few seconds when the ignition key is
turned to “ON”. It will come on again
when you push the “TRAC OFF” switch to
turn off the system.
In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on with the
normal driving mode while driving.

03 SIENNA_U (L/O 0207)
1542003 MY SIENNA (OM45410U)
“VSC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle skid control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The vehicle skid control system helps
provide integrated control of the sys-
tems such as an antilock brake sys-
tem, brake assist system, traction con-
trol, engine control, etc. This system
automatically controls the output of the
brakes or engine to help prevent the
vehicle from skidding when cornering
on a slippery road surface or abrupt
steering wheel operation occurs.
This system activates when the vehicle
speed is about more than 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the system is
in the selfcheck mode but does not indi-
cate a malfunction.
Vehicle skid control system

03 SIENNA_U (L/O 0207)
1552003 MY SIENNA (OM45410U)
CAUTION
Do not rely excessively on the ve-
hicle skid control system. Even if
the vehicle skid control system is
operating, you must always drive
carefully and attentively to avoid
serious injury. Reckless driving will
result in an unexpected accident. If
the slip indicator light flashes,
sounding an alarm sounds, special
care should be taken while driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle skid control sys-
tem may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” in
Section 72.)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle skid control sys-
tem or the traction control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.

03 SIENNA_U (L/O 0207)
1562003 MY SIENNA (OM45410U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.The tire pressure warning system is de-
signed to provide warning when tire
pressure of any one of the tires is criti-
cally reduced while the vehicle is mov-
ing. The low tire pressure warning light
comes on to inform you that such low
tire pressure may hamper driving.
This system is not designed to operate
when the vehicle is stopped. Therefore,
check the tire pressures regularly. The
recommended cold tire pressures, tire size
and the vehicle capacity weight are on the
tire pressure label. (For instruction, see
“Checking tire pressure” in Section 72.)
Installed tires should be of the specified
size. They should be of the same size
and construction. If tires other than of the
specified size are used, or if tires of dif-
ferent sizes or constructions are mixed,
the tire pressure warning system will not
function properly.
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on while driving, adjust tire
pressure to the specified level. (See
“Tires” in Section 8.)
After the tire pressure is adjusted, the
light should go off after driving at about
more than 30 km/h (19 mph) for some
time. If the light still remains, have the
tire pressure warning system checked at
your Toyota dealer.
Tire pressure warning system
